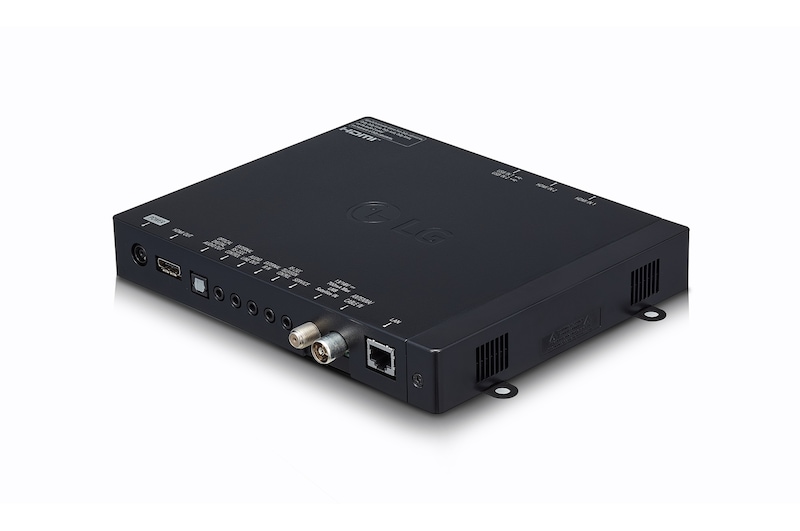

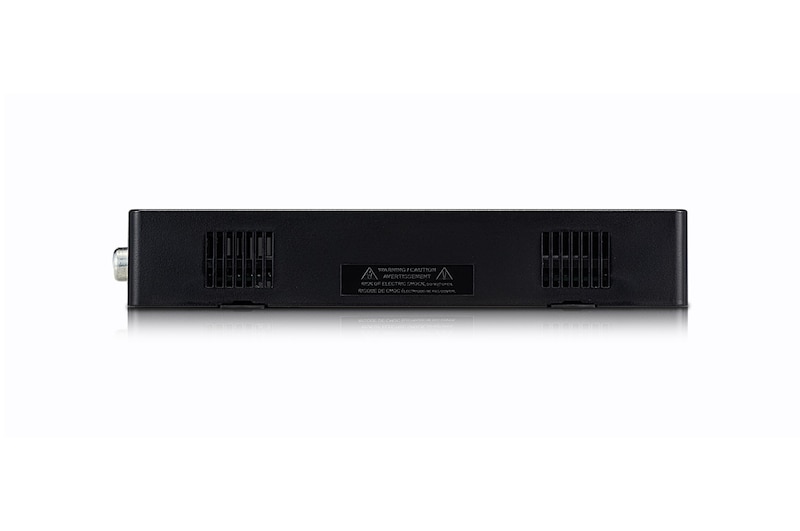

Pro:Centric SMART Set Top Box
![](/content/dam/channel/wcms/uk/images/business/commercial-tv/STB-6500_AEK_EEUK_UK_B/STB-6500_AEK_EEUK_UK_B-450x450.jpg)
Enjoy Seamless and Smart TV with Pro:Centric Set Top Box

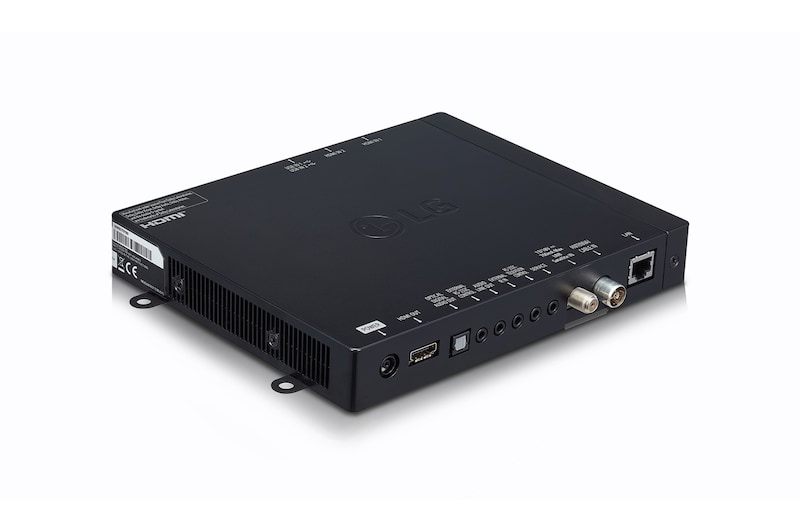

There is a simulated image to show Pro:Centric Set Top Box, STB-6500, installed in the hotel room. The TV connected to STB-6500 provides various information and services to guests.
* All images in this web page are for illustrative purposes only and may differ from the actual product.
* Actual UI may differ
* Some devices may have limited compatibility, thus may not support voice control and IoT function.
* The output resolution should be set and selected 2160p, and the native resolution of the connected display panel should support Ultra HD. For example, 2160p requires a UHD display panel.

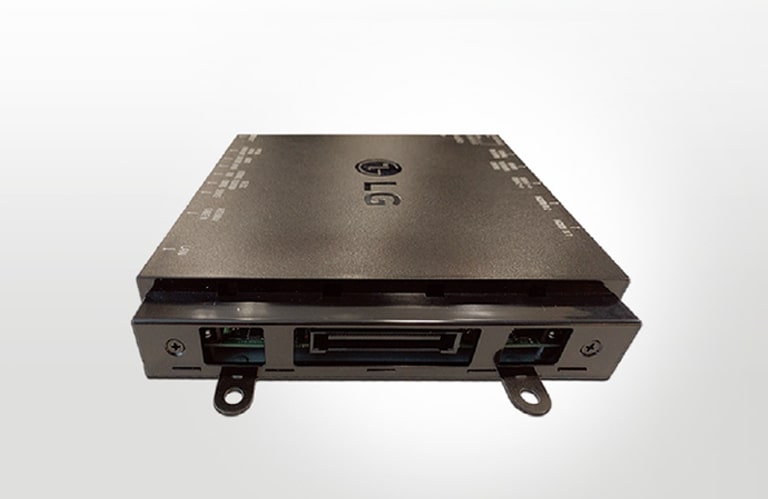

* The external modules must be tested for compatibility with STB-6500.
* The devices must be DLNA certified to support this feature.

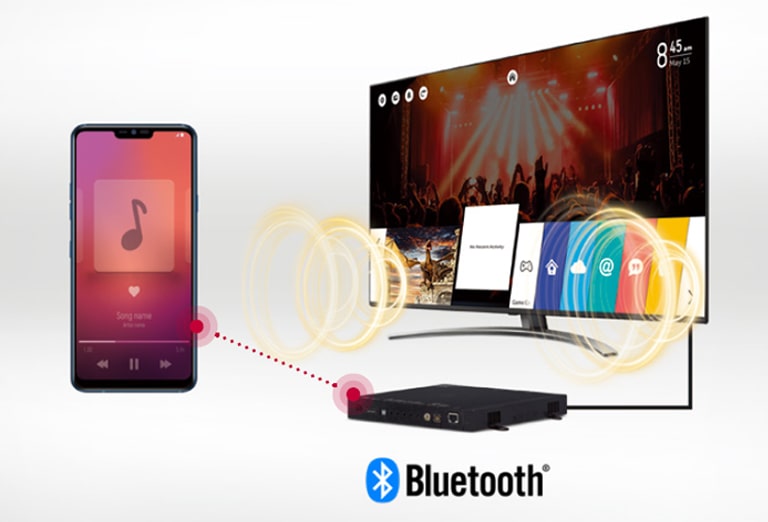

* Support devices for Bluetooth Sound Sync : Android, iOS based mobile device.
* Soft AP should be set in installation menu.
* Smart Mirroring may not be operated at the same time.
* This feature may not be available in certain devices because of different encryption method.
Gallery
All Spec
INFO
-
Category
Settop Box
VIDEO
-
Output Resolution
2160p / 1080p / 1366x768 / 720p
AUDIO (SOUND)
-
AI Sound
YES
-
AI Acoustic Tuning
YES (Ready, MMR Required)
-
LG Sound Sync
YES
BROADCASTING SYSTEM
-
Digital
DVB-T2/C/S2
-
Analog (NTSC / SECAM / PAL)
PAL
-
Teletext (Auto Teletext)
YES
HOSPITALITY SOLUTION
-
Pro:Centric Smart
YES
-
webRTC (Real Time Communication)
YES
-

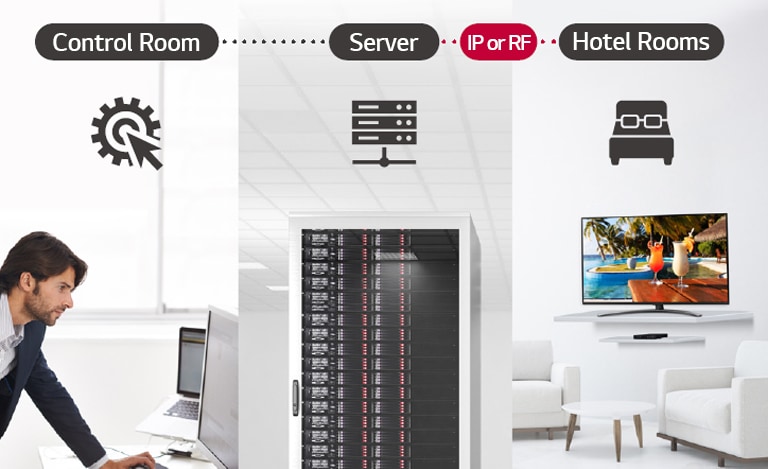

Pro:Centric Direct
YES
-
Pro:Centric V
YES
-
Pro:Centric Server
YES
-
Quick Menu (Customizable Portal)
YES
-
Pro:Idiom (DRM)
YES
-
Pro:Idiom Media (DRM)
YES
SMART FUNCTION
-
webOS version
webOS 5.0
-
Web Browser
YES
-
Magic Remote Compatibility
YES (Ready)
-
Gallery Mode
YES
-
Wi-Fi
YES
-
Bluetooth
YES
-

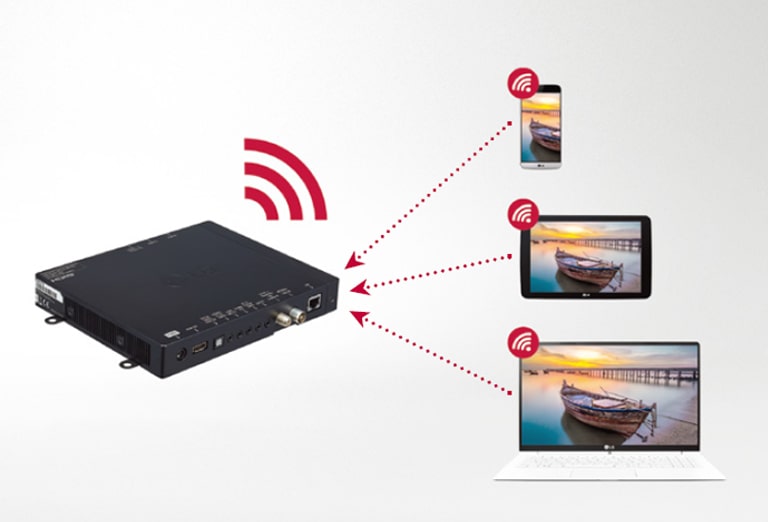

Soft AP
YES
-
Screen Share
YES
-
DIAL
YES
-
Bluetooth Audio Playback
YES
-
Voice Recognition (Standalone/Solution)
YES
-
IoT
YES
HOSPITALITY FEATURE
-
EzManager
YES
-
USB Cloning
YES
-
Wake on RF
YES
-
WOL
YES
-
SNMP
YES
-
Diagnostics
YES (IP Remote)
-
HTNG-CEC (Version)
YES (1.4)
-
Simplink(HDMI-CEC) (Version)
YES (1.4)
-
IR Out
YES (RS-232C)
-
Multi IR Code
YES
-
Hotel Mode / PDM / Installer Menu
YES
-
Insert Image
YES
-
One Channel Map
YES
-
External Speaker Out / Line Out
YES (Line Out)
-
Instant ON
YES
-
V-Lan Tag
YES
-
Port Block
YES
-
Lock mode
YES (Limited)
-
RJP (Remote Jack Pack) Compatibility
YES
-
Modular Interface
YES (60pin Interface)
VERTICAL FUNCTION (CORPORATE/RETAIL)
-
NTP sync timer
YES
-
BEACON
YES

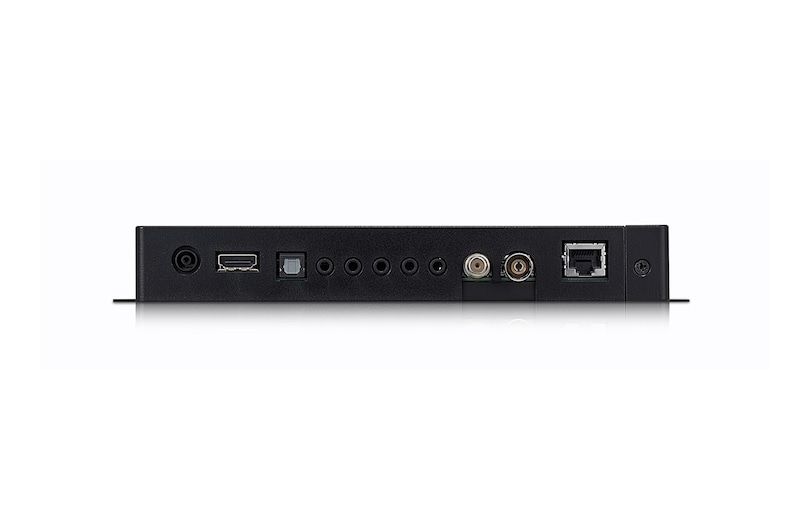

CONNECTIVITIES
-
HDMI In
YES (x2)
-
HDMI Out
YES (x1)
-
USB (Ver.)
YES (x2 / 2.0)
-
RF In
YES (x1)
-
Digital Audio Out (Optical)
YES
-
Audio Line Out(3.5mm Phone jack)
YES
-
RJ45 (Usage Purpose)
1 (Ethernet)
-
RS-232C (D-Sub 9pin / Phone jack)
YES (Phone jack)
-
Expansion slot (60pin)
YES
-
DC Adapter In
YES
-
EXT. IR In
YES
-
External RS-232C control (4pin Phone Jack)
YES
-
Service Port (For Debugging)
YES
DIMENSIONS/WEIGHT
-
Dimension (W x H x D)
233 x 180.5 x 29.8 mm
-
Dimension in Shipping (W x H x D)
366 x 143 x 218 mm
-
Weight
0.72 kg
-
Weight in Shipping
1.85 kg
POWER SPEC.
-
Power Supply (Voltage, Hz)
AC 100~240V 50-60Hz
-
Power Consumption(Max)
60W
-
Power Consumption(Typ)
STB only : 17.6W / STB + Exp. Module : 47.5W
-
Standby Power Consumption
Under 0.5W
STANDARD
-
Safety
YES
-
EMC
YES
ACCESSORIES
-
AC Adaptor
YES
-
Cables
HDMI, RS232 (Phone to RS232C)
-
