US342H Series

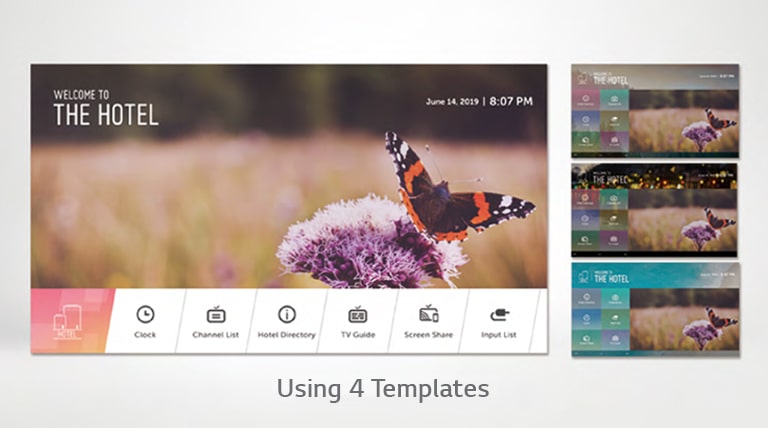

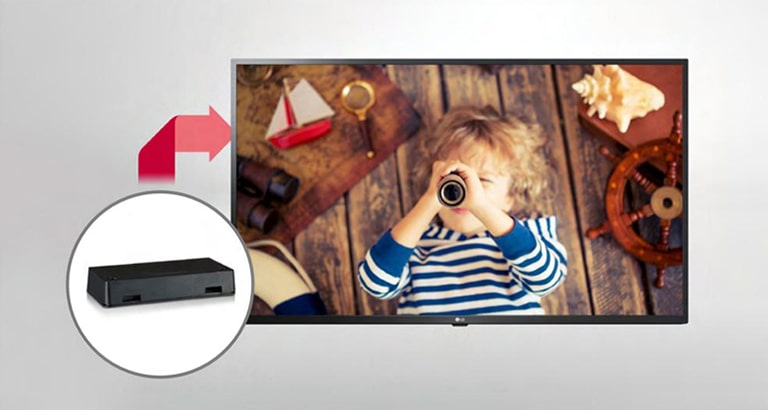

The US342H Commercial TV series provides hotels with an economical TV solution with Pro:Centric Direct for two-part solution (with an external set-top box). It features UHD resolution that creates vivid details and a virtually flawless picture. And, even when using US342H alone without a set-top box, you can be offered a great user interface by using templates in Quick Menu Solution.
4K UHD Hospitality TV
* All images are for illustrative purpose only.
The hotel content management solution Pro:Centric Direct offers easy and simple editing tools with a variety of templates. It enables users to edit their interface easily by providing customized interface, and efficiently manages all TVs in the rooms by releasing information and content, that users set in a server, through RF.
Pro:Centric Direct
* Some functions of Pro:Centric Direct may not be supported in the US342H series.
Category
Pro:Centric V
Tool Name
UM73
Stand Type
No Stand (For Accessory : 1Pole) * 32~55" : Swivel / Others : Fixed
Front Colour
Ceramic Black
Size (Inch)
55
Resolution
4K Ultra HD (3,840 x 2,160)
Brightness (Typ.)
400 nit
HDR_HDR 10 Pro
YES
HDR_HLG (Hybrid Log Gamma)
YES
Speaker (Audio Output)
20W
Digital
DVB-T2/C/S2
Analog (NTSC / SECAM / PAL)
SECAM / PAL
Teletext (Auto Teletext)
YES
Pro:Centric Direct
YES
Pro:Centric V
YES
Pro:Centric Server
YES
Quick Menu (Customizable Portal)
YES
Pro:Idiom (DRM)
YES
Pro:Idiom Media (DRM)
YES
webOS version
webOS 4.5
EzManager
YES
USB Cloning
YES
Wake on RF
YES
Diagnostics
YES (Self Diagnostics(USB))
HTNG-CEC (Version)
YES (1.4)
Simplink(HDMI-CEC) (Version)
YES (1.4)
IR Out
YES (RS-232C, HDMI)
Multi IR Code
YES

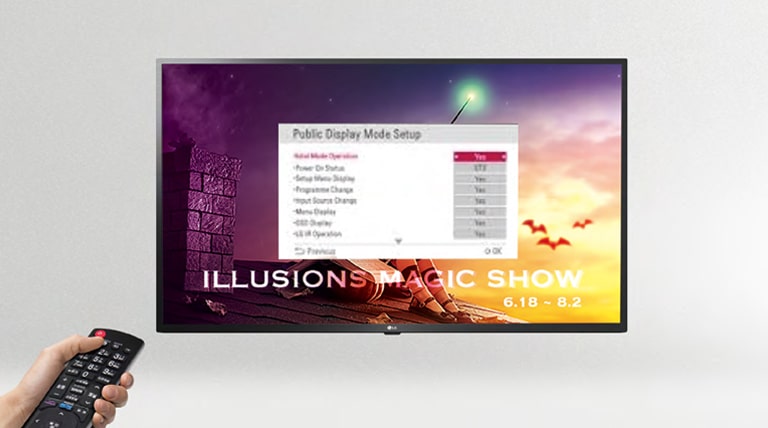

Hotel Mode / PDM / Installer Menu
YES
Welcome Video
YES
Welcome Screen (Splash Image)
YES
Insert Image
YES
One Channel Map
YES
External Speaker Out / Line Out
YES (Ext. Speaker Out)
USB Auto playback / playback+
YES (USB Auto playback)
Instant ON
YES
Lock mode
YES (Limited)
RJP (Remote Jack Pack) Compatibility
YES
Energy Saving mode
YES
Healthcare Headphone Mode
YES
HDMI In
YES (x2)
USB (Ver.)
YES (x2 / 2.0)
RF In
YES (x2)
AV In
YES
Component in (Y,Pb,Pr-Video)
YES
Digital Audio Out (Optical)
YES
External Speaker Out(3.5mm Phone jack)
YES
Headphone out
YES
CI Slot
YES (CI+ 1.4)
RJ45 (Usage Purpose)
1 (Service)
RS-232C (D-Sub 9pin / Phone jack)
YES (D-Sub 9pin)
ECI (RJ12 jack)
YES
VESA Compatible
300 x 300 mm
Kensington Lock
YES
Credenza/Security Screw Hole
YES (Need Stand)
Lock Down Plate (for easy installing )
YES (Need Stand)
Dimension without Stand (W x H x D)
1244 x 726 x 87.1 mm
Dimension in Shipping (W x H x D)
1360 x 835 x 175 mm
Bezel Width (L/R/U/B, On Bezel)
17.0/17.0/17.0/23.8 mm
Bezel Width (L/R/U/B, Off Bezel)
15.5/15.5/15.5/22.3 mm
Weight without Stand
14.3 kg
Weight in Shipping
19.3 kg
Power Supply (Voltage, Hz)
AC 100~240V 50-60Hz
Power Consumption(Max)
149W
Power Consumption(Typ)
138W
Standby Power Consumption
Under 0.5W
Safety
CB, CU TR
EMC
CE
ErP Class
A+
On Power Consumption
89W
Luminance Ratio (%)
65
Average Annual Consumption(kWh)
123
SDR Grade
G
SDR On mode
103W
HDR Grade
G
HDR On mode
129W
Remote type
S-Con
Power Cable
YES (1.55M / Angle Type)
