Double-sided display is attached to the store, allowing customers to get information about the promotion both inside and outside.
* All images of this page are for illustrative purposes only.

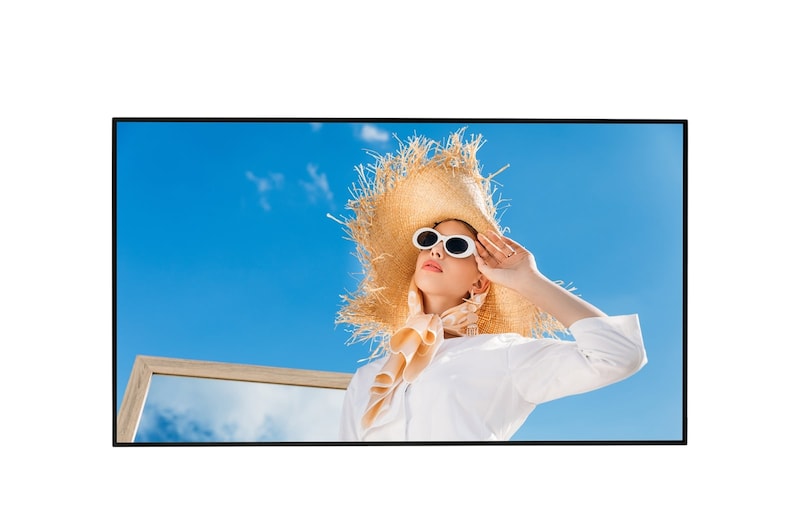

Unlike other products, 75XS4G's display is clearly visible under the sunlight or in environment with sunglasses on.
* ‘LG Conventional’ refers to LG 75XS2E.
** Brightness of 75XS4G : Max. 4,000 nits, Typ. 3,200 nits
*** Quarter Wave Plate
75XS4G has high energy efficiency, so it shows a high quality display and saves cost at the same time.
* Maximum power consumption of 75XS4G is 790 W at ‘On Mode’. The figure may differ depending on the actual environment.
75XS4G is installed close to the window and has a high level of immersion in the display due to its thin bezel and width.
* ‘LG Conventional’ refers to LG 75XS2E

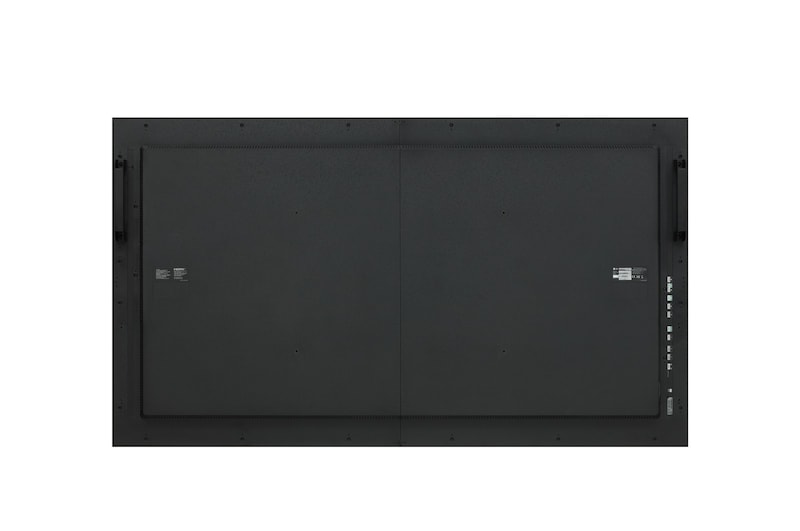

Using an dedicated bracket, LG UHD display compatible with 75XS4G can be attached on the back.
* Bracket is optional.
** Attachable Displays : LG 65/55/49 inches UH7 Series, 65/55/49 inches UH5/UM3 Series
A display is working well in an environment of 0-40°C.
75XS4G applies conformal coated circuit board and powerboard for protection against dust, iron powder, humidity etc.
* Conformal Coating : Thin protective films/breathing membranes that filter water vapor and solid debris
A number of tasks that can be done at the same time are arranged easily through webOS platform.
* System-on-Chip
It operates double-sided displays simultaneously with one remote control.
75XS4G features embedded Wi-Fi, Bluetooth, Beacon making it easy to distribute content wirelessly and update Firmware. In particular, using Beacon and BLE (Bluetooth Low Energy),
Shop manager can do various promotional activities, such as providing promotional coupons or product information to visitor in real time.
A visitor is receiving promotional coupon in real time through Wi-Fi, Bluetooth, and Beacon built into the display.
This web-based monitoring solution is user-friendly and allows the user to be at ease.
It enables the user to have full access anywhere at anytime
from their mobile phone while having access to both current and past data.
It allows the user to monitor the unit, make adjustments, and control the unit remotely in real time.
User can monitor and control their displays through mobile phone and laptop.
A display is installed without tilting using the leveler tool.
Through equipped horizontal sensor, the display can be reinstalled in the correct direction if it is incorrectly installed.
Screen Size (Inch)
75
Panel Technology
IPS / M+
Back Light Type
Direct
Aspect Ratio
16:9
Native Resolution
3840 x 2160 (UHD)
Refresh Rate
60Hz
Brightness
4,000nit (Typ.), 3,200nit (Min.)
Contrast Ratio
1,200:1 (Typ.)
Dynamic CR
500,000:1
Color Gamut
NTSC 68%
Viewing Angle (H x V)
178º x 178º
Color Depth (Number of Colors)
1.07 Billion colors
Response Time
8ms (G to G)
Surface Treatment (Haze)
Haze 3%
Life time
50,000Hrs (Typ.)
Operation Hours (Hours/Day)
24/7
Portait / Landscape
YES / YES
Transparency
N/A
QWP (Quarter Wave Plate)
YES
HDMI In
YES (2ea)
HDMI In (HDCP Ver.)
2.2/1.4
DP In
YES (HDCP 2.2/1.3)
DVI-D In
NO
RGB In
NO
Audio In
NO
RS232C In
YES
RJ45(LAN) In
YES (1ea)
IR In
YES
USB In
USB2.0 Type A (1ea)
HDMI Out
YES
DP Out
NO
Audio Out
NO
Touch USB
NO
External Speaker Out
YES
RS232C Out
YES
RJ45(LAN) Out
NO
IR Out
NO
Daisy Chain
NO
Bezel Color
Black
Bezel Width
Even bezel : 13.8mm
Weight (Head)
39.6Kg
Packed Weight
50Kg
Monitor Dimensions (W x H x D)
1679.2 x 957.6 x 104mm
Monitor Dimension with Stand (W x H x D)
N/A
Handle
YES
VESA Standard Mount Interface
600 x 400 mm
Carton Dimensions (W x H x D)
1816 x 1106 x 285mm
Weight(Head+Stand)
N/A
Thickness
N/A
Degree of Protection
N/A
Tempered / Chemical strengthening
N/A
Anti-Reflective
N/A
Infrared - Resistance (IR)
N/A
Shatter-Proof
N/A
Internal Memory (eMMC)
16GB
Wi-Fi/BT (Built-in)
YES
Temperature Sensor
YES
Auto Brightness Sensor
YES
Pixel Sensor
NO
Proximity Sensor
NO
Current Sensor
NO
BLU Sensor
NO
Humidity Sensor
NO
Acceleration(Gyro) Sensor
YES
Power Indicator
NO
Local Key Operation
YES
FAN (Built-in)
YES
OS Ver. (webOS)
webOS 4.1
Local Contents Scheduling
YES
Group Manager
YES
USB Plug & Play
YES
Fail over
YES
Booting Logo Image
YES
No Signal Image
YES
RS232C Sync
YES
Local Network Sync
YES
Backlight Sync
YES
PIP
YES
PBP
YES (2PBP)
Screen Share
NO
Video Tag
YES (4 Video Tag)
Play via URL
YES
Screen Rotation
YES
External Input Rotation
YES
Gapless Playback
YES
Tile Mode Setting
YES
Setting Data Cloning
YES
SNMP
YES
ISM Method
YES
Auto Set ID
YES
Status Mailing
YES
Control Manager
YES
Cisco Certification
NO
Crestron Connected
NO
Smart Energy Saving
YES
PM mode
YES
Wake on LAN
YES
Network Ready
YES
Beacon
YES
HDMI-CEC
YES
SI Server Setting
YES
webRTC
YES
Pro:Idiom
YES
Brightness Compensation
NO
W/B Setting by Grey scale
NO
Scan Inversion
NO
The security update is supported for
5 years from the product launch date stated at https://lgsecurity.lge.com/bulletins/idproducts
Operation Temperature
0 °C to 40 °C (w/o Direct Sunlight, Direct Sunlight in Cooling System) 0 °C to 30 °C (Direct Sunlight)
Operation Humidity
10 % to 80 %
Power Supply
AC 100-240V~, 50/60Hz
Power Type
Built-in Power
Typ.
750W (Full White) 405W (IEC 62087)
Max.
790W
BTU (British Thermal Unit)
2559 BTU/Hr(Typ.), 2696 BTU/Hr(Max.)
DPM
0.5W
Power off
0.5W
Smart Enegy Saving(~70%)
400W
Speaker (Built-in)
NO
Safety
CB / NRTL
EMC
FCC Class "A" / CE / KC / VCCI
ERP / Energy Star
YES / NO
ePEAT(US only)
NO
OPS Type compatible
NO
OPS Power Built-in
NO
SuperSign CMS
YES
SuperSign Control+
YES
SuperSign WB
NO
SuperSign Cloud
NO
Promota
NO
Mobile CMS
NO
Connected Care
YES
OSD
English, French, German, Spanish, Italian, Korean, Chinese(Simplified), Chinese(Original), Portugues(Brazil), Swedish, Finnish, Norwegian, Danish, Russian, Japanese, Portugues(Europe), Dutch, Czech, Greek, Arab, Türkçe
Basic
Remote Controller(including battery 2ea), Power Cord, HDMI Cable,Manual (EIG, IG), IR Receiver(w/ Ambient Light Sensor), RS-232C Gender, IR Sheet
Optional
Double sided Bracket (Landscape&Portrait : WM-B640S)
Overlay Touch Compatibility
N/A
Smart Calibration
N/A
Tilt (Face up)
N/A
Tilt (Face down)
N/A
IP Rating
N/A
Conformal Coating (Power Board)
YES
Power Protection
N/A
Direct Sunlight
N/A
Available Object Size for Touch
N/A
Response Time ('Paint' app on Windows 10 PC)
N/A
Accuracy (Typ.)
N/A
Interface
N/A
Protection Glass Thickness
N/A
Protection Glass Transmission
N/A
Operating System Support
N/A
Multi Touch Point
N/A
