Stand-by Screen Mode
The SE3KE series partially keeps power-on status controllable by network while the screen is turned off, enabling efficient power management.
Scheduled Screen Wash
ISM(Image Sticking Minimization) mode supports users in setting up periods and times to refresh the screen to prevent the occurrence of image sticking.
18/7 Operation
The SE3KE series can be operated for 18 hours a day, which provides users with the flexibility to allocate and operate it in places that are open for long periods of time.
1) Network based control

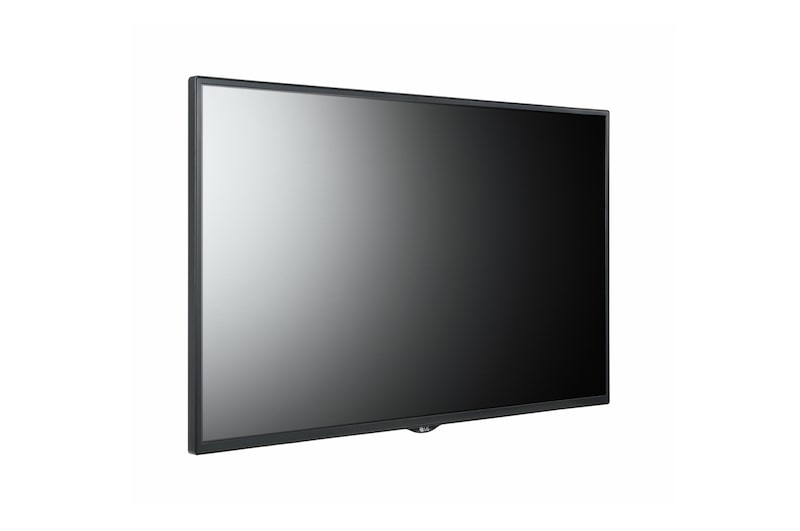

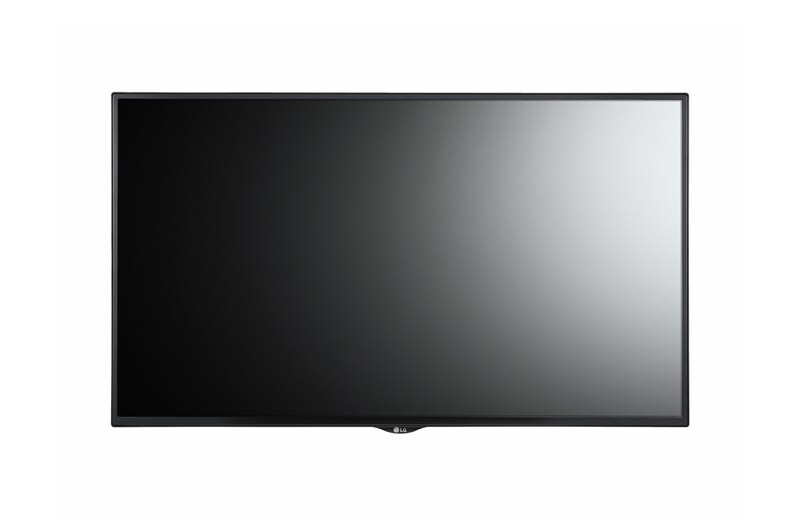

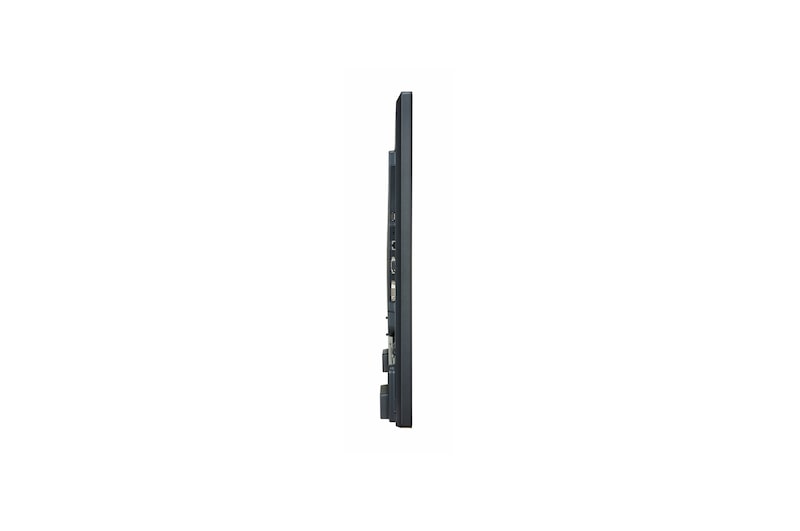

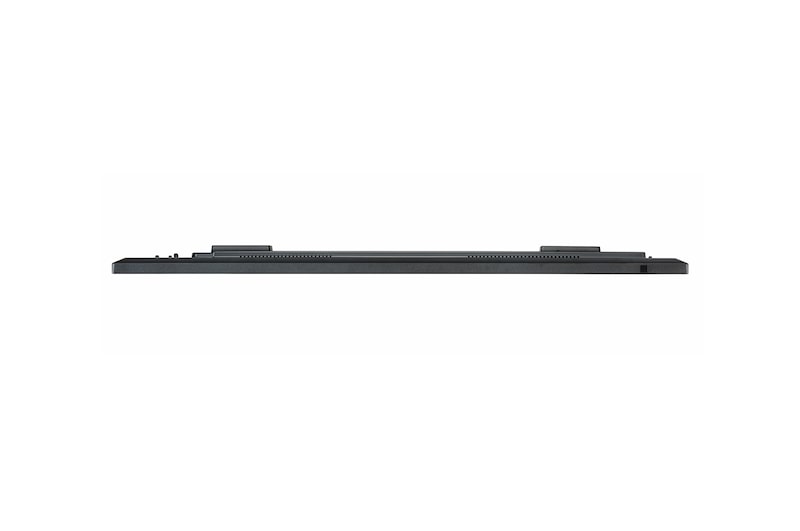

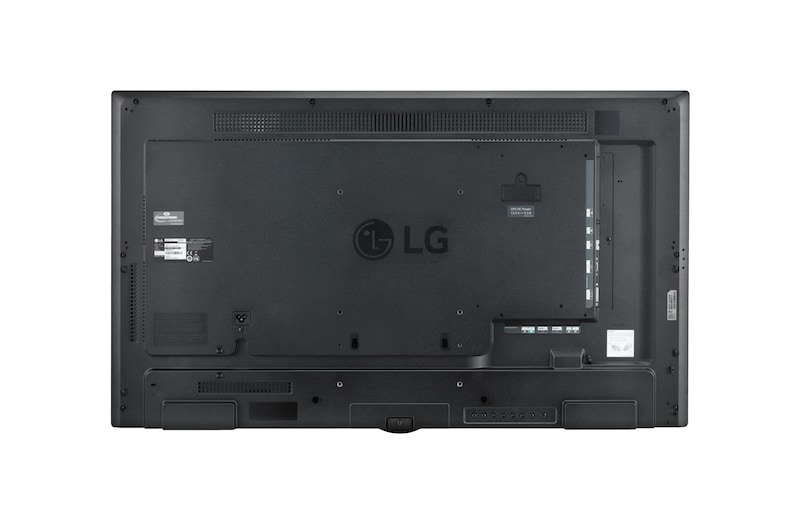

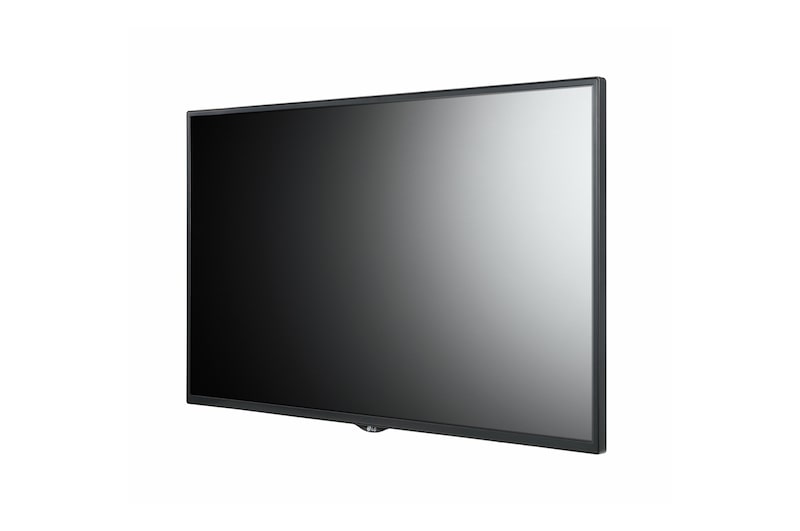

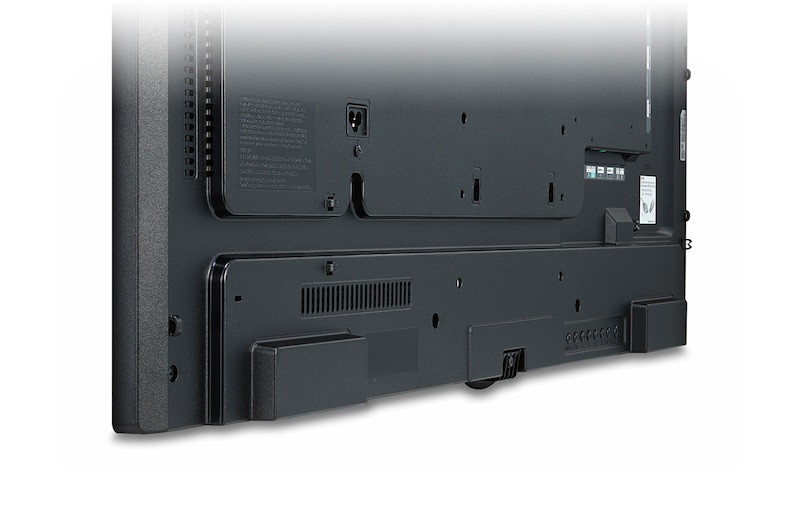

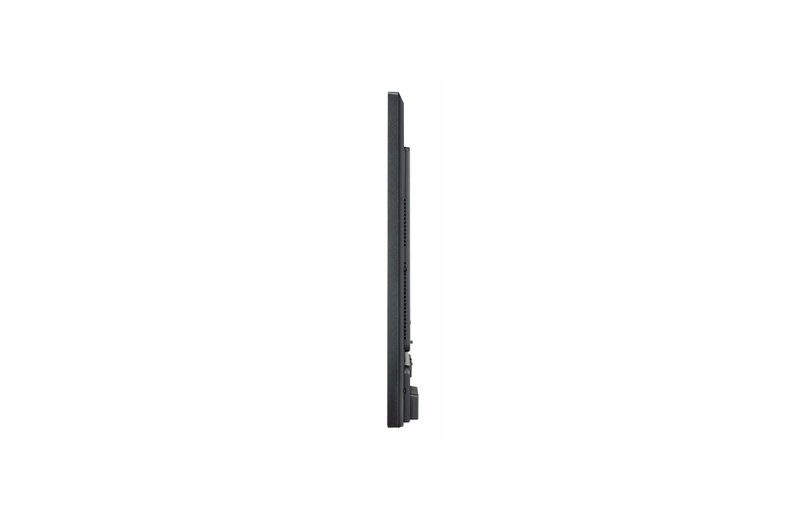

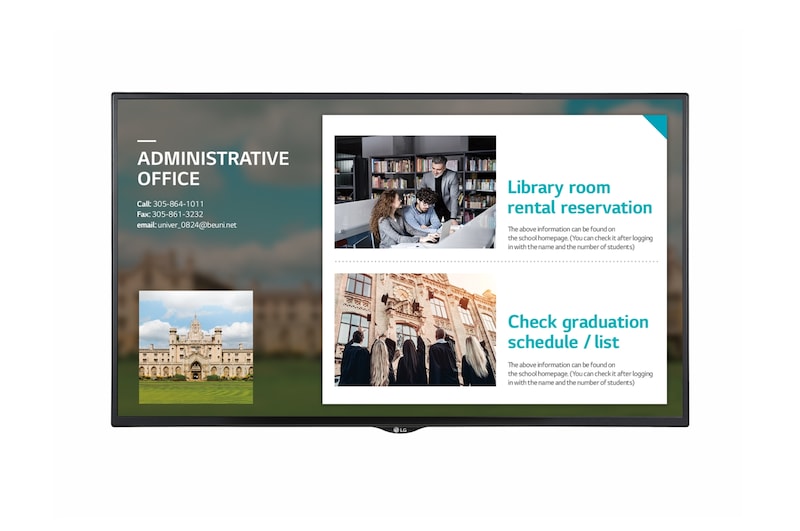

Gallery
All Spec
PANEL
-
Screen Size
32"
-
Native Resolution
1,920 x 1,080 (FHD)
-
Brightness(Typ.,cd/m²)
350

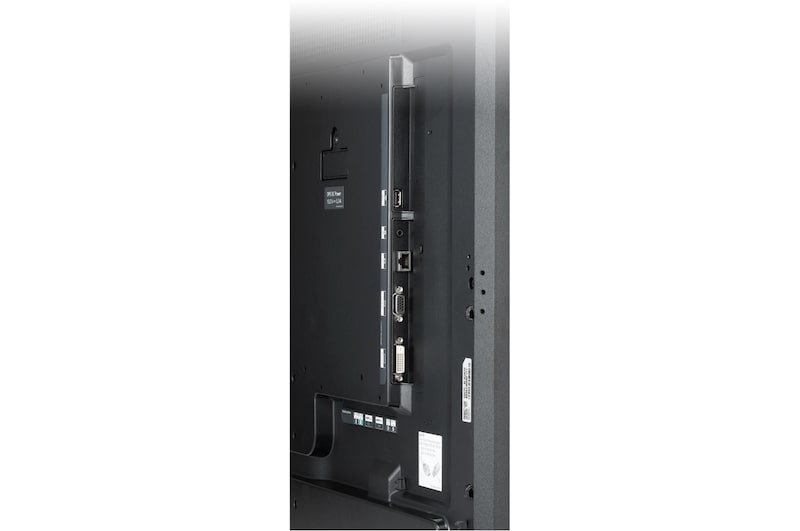

CONNECTIVITY
-
Input
HDMI (2), DVI-D, RGB, Audio, USB
-
Output
Audio (Off/Fixed/Variable)
-
External Control
RS232C in/out, RJ45 in, IR in
MECHANICAL SPECIFICATION
-
Bezel Width
13 mm (T/R/L), 18 mm (B)
-
Monitor Dimension (W × H × D)
729.4 x 428.9 x 55.5 mm
-
Weight (Head)
5.4 kg
-
Monitor with Optional Stand Dimensions (W x H x D)
729.4 x 481 x 154.2 mm
-
Weight (Head+Stand)
6.2 kg
-
Carton Dimensions (W × H × D)
810 x 510 x 132 mm
-
Packed Weight
6.7 kg
-
VESA™ Standard Mount Interface
200 x 200 mm
ENVIRONMENT CONDITIONS
-
Operation Temperature
0°C to 40°C
-
Operation Humidity
10 % to 80 %
POWER
-
Power Supply
100-240V~, 50/60Hz
-
Power Type
Built-In Power
POWER CONSUMPTION
-
Typ. / Max.
45 W / 80 W
-
Smart Energy Saving
31.5 W
SOUND
-
Speaker
20 W (10 W x 2)
STANDARD(CERTIFICATION)
-
Safety
IEC 60950-1 / EN 60950-1 / UL 60950-1
-
EMC
FCC Class "A" / CE / KC
-
ErP / Energy Star
N/A / Yes (Energy Star 8.0)
MEDIA PLAYER COMPATIBILITY
-
OPS type compatible
Yes
-
External Media player Attatchable
Yes (MP500 / MP700)
SOFTWARE COMPATIBILITY
-
Content Management Software
SuperSign CMS
-
Control and Monitoring Software
SuperSign Control / Control+
ACCESSORY
-
Basic
Remote Controller, Power Cord, QSG, RGB Cable, Regulation Book, Phone to RS232C Gender, IR Receiver
-
Optional
Stand (ST-322T), Media Player, Wall Bracket (LSW230B), VESA Adapter (AM-B220S), Wi-Fi Dongle (AN-WF500), Touch Overlay (KT-T32E)
