All Spec
PANEL
-
Screen Size
-
32"
-
Native Resolution
-
1,920 x 1,080 (FHD)
-
Brightness(Typ.,cd/m²)
-
350

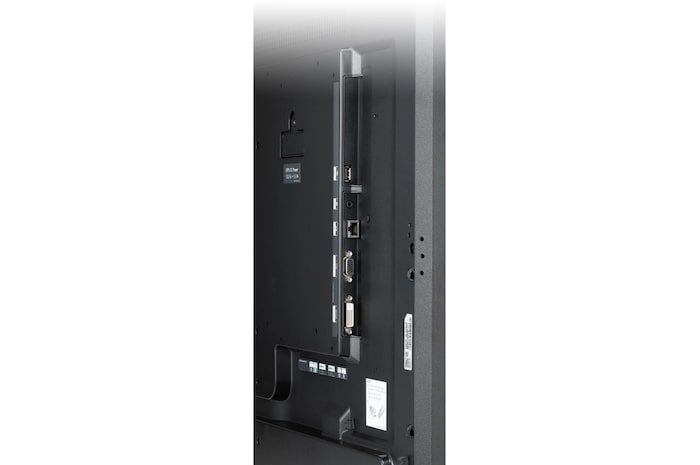

CONNECTIVITY
-
Input
-
HDMI (2), DVI-D, RGB, Audio, USB
-
Output
-
Audio (Off/Fixed/Variable)
-
External Control
-
RS232C in/out, RJ45 in, IR in
MECHANICAL SPECIFICATION
-
Bezel Width
-
13 mm (T/R/L), 18 mm (B)
-
Monitor Dimension (W × H × D)
-
729.4 x 428.9 x 55.5 mm
-
Weight (Head)
-
5.4 kg
-
Monitor with Optional Stand Dimensions (W x H x D)
-
729.4 x 481 x 154.2 mm
-
Weight (Head+Stand)
-
6.2 kg
-
Carton Dimensions (W × H × D)
-
810 x 510 x 132 mm
-
Packed Weight
-
6.7 kg
-
VESA™ Standard Mount Interface
-
200 x 200 mm
ENVIRONMENT CONDITIONS
-
Operation Temperature
-
0°C to 40°C
-
Operation Humidity
-
10 % to 80 %
POWER
-
Power Supply
-
100-240V~, 50/60Hz
-
Power Type
-
Built-In Power
POWER CONSUMPTION
-
Typ. / Max.
-
45 W / 80 W
-
Smart Energy Saving
-
31.5 W
SOUND
-
Speaker
-
20 W (10 W x 2)
STANDARD(CERTIFICATION)
-
Safety
-
IEC 60950-1 / EN 60950-1 / UL 60950-1
-
EMC
-
FCC Class "A" / CE / KC
-
ErP / Energy Star
-
N/A / Yes (Energy Star 8.0)
MEDIA PLAYER COMPATIBILITY
-
OPS type compatible
-
Yes
-
External Media player Attatchable
-
Yes (MP500 / MP700)
SOFTWARE COMPATIBILITY
-
Content Management Software
-
SuperSign CMS
-
Control and Monitoring Software
-
SuperSign Control / Control+
ACCESSORY
-
Basic
-
Remote Controller, Power Cord, QSG, RGB Cable, Regulation Book, Phone to RS232C Gender, IR Receiver
-
Optional
-
Stand (ST-322T), Media Player, Wall Bracket (LSW230B), VESA Adapter (AM-B220S), Wi-Fi Dongle (AN-WF500), Touch Overlay (KT-T32E)
