49SE3KE-B

49" 350 nits FHD Standard Signage

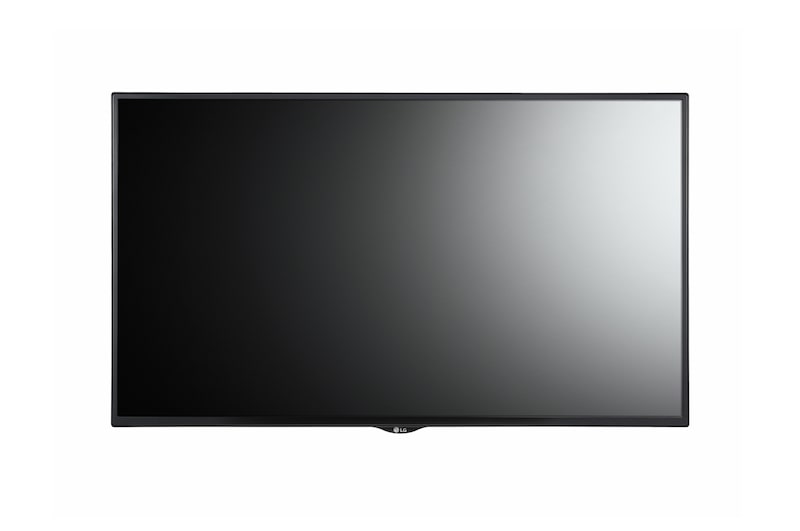

Front view of 49" 350 nits  FHD  Standard Signage 49SE3KE-B
An Essential Way of Delivering Dynamic Content1

An Essential Way of Delivering Dynamic Content

The SE3KE series satisfies a wide range of display purposes in your business while reducing operational costs with low power consumption. Easy-to-use menus designed for business purposes make for a more convenient and powerful display.
An Essential Way of Delivering Dynamic Content

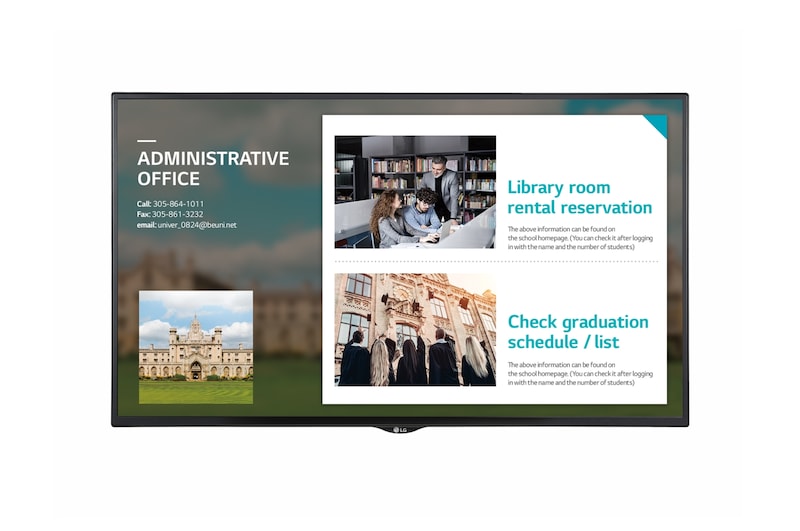

Simple Content Management

User-Friendly Menu for Digital Signage

With the signage dedicated home menu, users can check key information related to displays at a glance. On the bottom, the content management menu is provided, letting you explore and play available content and set playlists with desired schedules using a remote controller.
USB Content Scheduling & Data Cloning1
Simple Content Management

USB Content Scheduling & Data Cloning

USB content scheduling and cloning makes managing multiple displays more efficient for optimal content playback and operation, since users don't have to set up each display one by one. Once users copy data to a USB in one display, it will be easily distributed to others through a USB plug-in.

Efficient Operation

Stand-by Screen Mode

The SE3KE series partially keeps power-on status controllable by network while the screen is turned off, enabling efficient power management.

Scheduled Screen Wash

ISM(Image Sticking Minimization) mode supports users in setting up periods and times to refresh the screen to prevent the occurrence of image sticking.

18/7 Operation

The SE3KE series can be operated for 18 hours a day, which provides users with the flexibility to allocate and operate it in places that are open for long periods of time.

A Wide Range of Interfaces1
Excellent Connectivity

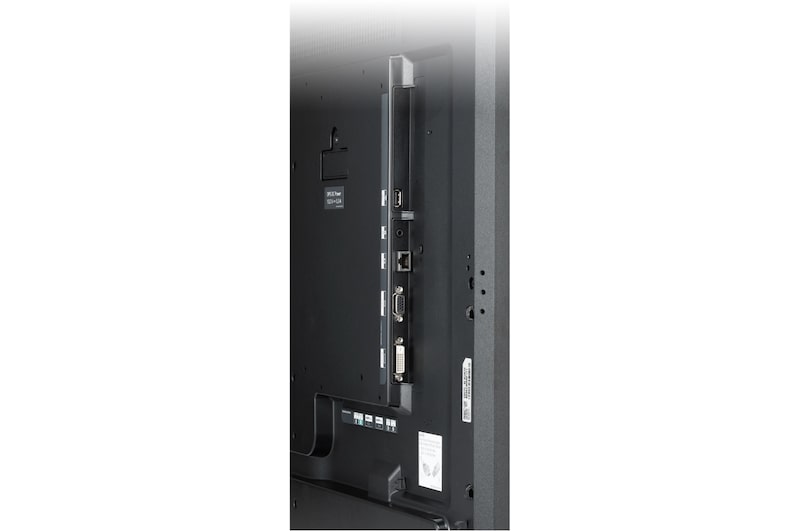

A Wide Range of Interfaces

Thanks to its high compatibility with diverse interfaces, users can select among various input/output sources for optimal content playback and control.
Compatibility with AV Control Systems1
Excellent Connectivity

Compatibility with AV Control Systems

The SE3KE series has been certified Crestron Connectedfor a higher level of compatibility with professional AV controls to achieve seamless integration and automated control1, boosting business management efficiency.

1) Network based control

Detachable Logo & Built-in Speaker
Industrial Design

Detachable Logo & Built-in Speaker

The detachable logo makes it easy for the user to arrange the signage. Also, sounds can be played from built-in speakers, offering viewers various multi-media experiences.
Conformal Coating
Industrial Design

Conformal Coating

The product can be often unavoidably exposed to dust and water during maintenance. Conformal coating on major circuit board eliminates such circumstances by protecting it against dust, iron powder, humidity, etc.

All Spec

PANEL

  • Screen Size

    49"

  • Native Resolution

    1,920 x 1,080 (FHD)

  • Brightness(Typ.,cd/m²)

    350

CONNECTIVITY

  • Input

    HDMI (2), DVI-D, RGB, Audio, USB

  • Output

    Audio (Off/Fixed/Variable)

  • External Control

    RS232C in/out, RJ45 in, IR in

MECHANICAL SPECIFICATION

  • Bezel Width

    11.9 mm (T/R/L), 18 mm (B)

  • Monitor Dimension (W × H × D)

    1,102.2 x 638.5 x 54 mm

  • Weight (Head)

    14.3 kg

  • Monitor with Optional Stand Dimensions (W x H x D)

    1,102.2 x 696.8 x 219.6 mm

  • Weight (Head+Stand)

    17.6 kg

  • Carton Dimensions (W × H × D)

    1,197 x 760 x 166 mm

  • Packed Weight

    17.4 kg

  • VESA™ Standard Mount Interface

    300 x 300 mm

ENVIRONMENT CONDITIONS

  • Operation Temperature

    0°C to 40°C

  • Operation Humidity

    10 % to 80 %

POWER

  • Power Supply

    100-240V~, 50/60Hz

  • Power Type

    Built-In Power

POWER CONSUMPTION

  • Typ. / Max.

    60 W / 95 W

  • Smart Energy Saving

    42 W

SOUND

  • Speaker

    20 W (10 W x 2)

STANDARD(CERTIFICATION)

  • Safety

    IEC 60950-1 / EN 60950-1 / UL 60950-1

  • EMC

    FCC Class "A" / CE / KC

  • ErP / Energy Star

    N/A / Yes (Energy Star 8.0)

MEDIA PLAYER COMPATIBILITY

  • OPS type compatible

    Yes

  • External Media player Attatchable

    Yes (MP500 / MP700)

SOFTWARE COMPATIBILITY

  • Content Management Software

    SuperSign CMS

  • Control and Monitoring Software

    SuperSign Control / Control+

ACCESSORY

  • Basic

    Remote Controller, Power Cord, QSG, RGB Cable, Regulation Book, Phone to RS232C Gender, IR Receiver

  • Optional

    Stand (ST-492T), Media Player, Wall Bracket (LSW350B), VESA Adapter (AM-B330S), Wi-Fi Dongle (AN-WF500), Touch Overlay (KT-T49E)

COMPLIANCE INFORMATION

The safety information for accessories is included with the safety information for the product and is not provided separately.
