All Spec
PANEL
-
Screen Size (Inch)
-
55
-
Panel Technology
-
IPS
-
Back Light Type
-
Edge
-
Aspect Ratio
-
16:9
-
Native Resolution
-
3840 x 2160 (UHD)
-
Refresh Rate
-
60Hz
-
Brightness
-
450nit (Typ.)
-
Contrast Ratio
-
1,000:1
-
Dynamic CR
-
NO
-
Color Gamut
-
NTSC 72%
-
Viewing Angle (H x V)
-
178º x 178º
-
Color Depth (Number of Colors)
-
1.07 Billion colors
-
Response Time
-
9ms (G to G)
-
Surface Treatment (Haze)
-
Haze 12%
-
Life time
-
50,000Hrs (Min.)
-
Operation Hours (Hours/Day)
-
24/7
-
Portait / Landscape
-
NO / YES
CONNECTIVITY
-
HDMI In
-
YES (2ea)
-
HDMI In (HDCP Ver.)
-
2.2/1.4
-
DP In
-
YES (USB Type C)
-
DVI-D In
-
NO
-
RGB In
-
NO
-
Audio In
-
NO
-
RS232C In
-
NO
-
RJ45(LAN) In
-
YES (1ea)
-
IR In
-
NO
-
USB In
-
USB3.1 Type A (2ea), USB Type C (1ea)
-
HDMI Out
-
NO
-
DP Out
-
YES (USB Type C)
-
Audio Out
-
NO
-
Touch USB
-
NO
-
External Speaker Out
-
NO
-
RS232C Out
-
NO
-
RJ45(LAN) Out
-
NO
MECHANICAL SPECIFICATION
-
Bezel Color
-
Silver
-
Bezel Width
-
T/R/L/B : 57.2/26.2/26.2/28.9mm
-
Weight (Head)
-
26Kg
-
Packed Weight
-
31Kg
-
Monitor Dimensions (W x H x D)
-
1265 x 769.5 x 61.8mm
-
Monitor Dimension with Stand (W x H x D)
-
1265 x 815 x 290mm
-
Handle
-
NO
-
VESA Standard Mount Interface
-
300 x 300 mm
-
Carton Dimensions (W x H x D)
-
1372 x 903 x 168mm (without Stand)
-
Weight(Head+Stand)
-
26.6Kg
FEATURE - HARDWARE
-
Temperature Sensor
-
YES
-
Auto Brightness Sensor
-
YES
-
Pixel Sensor
-
NO
-
Proximity Sensor
-
NO
-
Current Sensor
-
NO
-
BLU Sensor
-
NO
-
Humidity Sensor
-
NO
-
Acceleration(Gyro) Sensor
-
NO
-
Power Indicator
-
NO
-
Local Key Operation
-
YES
FEATURE - SOFTWARE
-
Smart Energy Saving
-
YES
-
Wake on LAN
-
YES
-
HDMI-CEC
-
YES
ENVIRONMENT CONDITIONS
-
Operation Temperature
-
0 °C to 40 °C
-
Operation Humidity
-
10 % to 80 %
POWER
-
Power Supply
-
AC 100-240V~, 50/60Hz
-
Power Type
-
Built-in Power
POWER CONSUMPTION
-
Typ.
-
127W
-
Max.
-
245W
-
DPM
-
0.5W
-
Power off
-
0.5W
-
Smart Enegy Saving(~70%)
-
30±10% (for HDMI1/2)
SOUND
-
Speaker (Built-in)
-
YES (10W x 2)
CERTIFICATION
-
Safety
-
CB / NRTL
-
EMC
-
FCC Class "B" / CE
-
ERP / Energy Star
-
YES / Energy Star 8.0
-
ePEAT(US only)
-
NO
OPS COMPATIBILITY
-
OPS Type Compatible
-
NO
-
OPS Power Built-in
-
NO
SOFTWARE COMPATIBILITY
-
Connected Care
-
NO
LANGUAGE
-
OSD
-
English, French, German, Spanish, Italian, Korean, Chinese(Simplified), Chinese(Original), Portugues(Brazil), Swedish, Finnish, Norwegian, Danish, Russian, Japanese, Portugues(Europe), Dutch, Czech, Greek, Arabic, Türkçe
ACCESSORY
-
Basic
-
HDMI Cable, Remote Controller(include battery 2ea), Touch Pen, Pen tip, Manual, Regulation Book, Warranty Card, IG
-
Optional
-

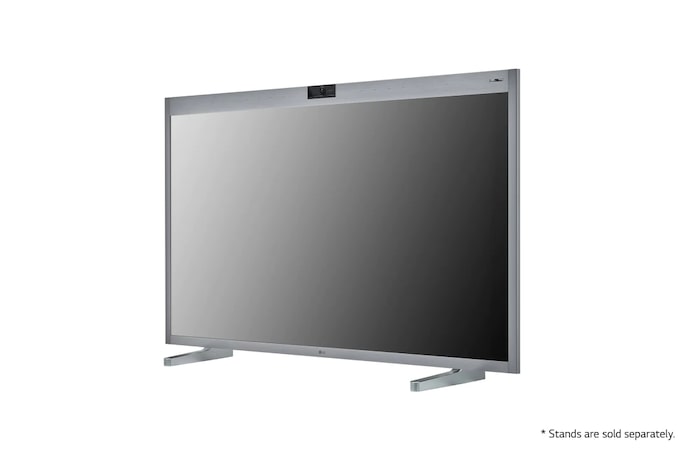

2 pole Stand(ST-653TW)
SPECIAL FEATURE
-
Overlay Touch Compatibility
-
N/A
-
Smart Calibration
-
N/A
-
Tilt (Face up)
-
N/A
-
Tilt (Face down)
-
N/A
-
IP Rating
-
N/A
-
Conformal Coating (Power Board)
-
N/A
-
Power Protection
-
N/A
-
Direct Sunlight
-
N/A
DEDICATED FEATURE - TOUCH
-
Available Object Size for Touch
-
Ø8 mm
-
Response Time ('Paint' app on Windows 10 PC)
-
35ms ↓
-
Accuracy (Typ.)
-
3.5mm
-
Interface
-
USB1.1
-
Protection Glass Thickness
-
N/A
-
Protection Glass Transmission
-
N/A
-
Operating System Support
-
Windows 10 or higher
-
Multi Touch Point
-
Max. 10 Points
DEDICATED FEATURE - ONE:QUICK
-
CPU
-
AMD Ryzen Embedded V1605B
-
Memory(RAM)
-
8GB
-
Storage
-
128GB
-
Graphic
-
AMD Radeon Vega
-
OS ver.
-
Windows 10 IOT Enterprise (Value)
-
Wi-Fi
-
802.11ac
-
Bluetooth
-
Bluetooth 5.0
-
Launcher Bar
-
YES
-
Home Dashboard
-
NO
-
SplitView_Full / Half
-
YES
-
SplitView_Customized Template
-
NO
-
Cloning
-
NO
-
Screen Capture
-
YES
-
Meeting(Voice) Record
-
YES
-
File Sharing
-
YES
-
Compatibility One:Quick Share
-
YES
-
One:Quick Remote Meeting
-
YES
-
Reader Mode (Bluelight)
-
YES
-
Built-in Apps
-
Chrome, Skype (Preloaded) MS Whiteboard (Download link)
-

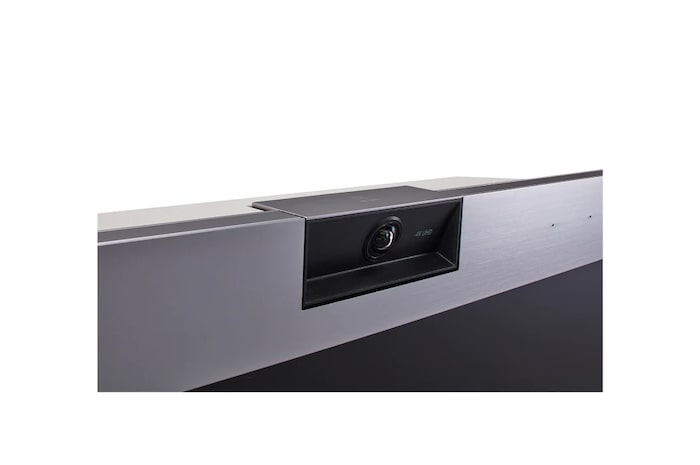

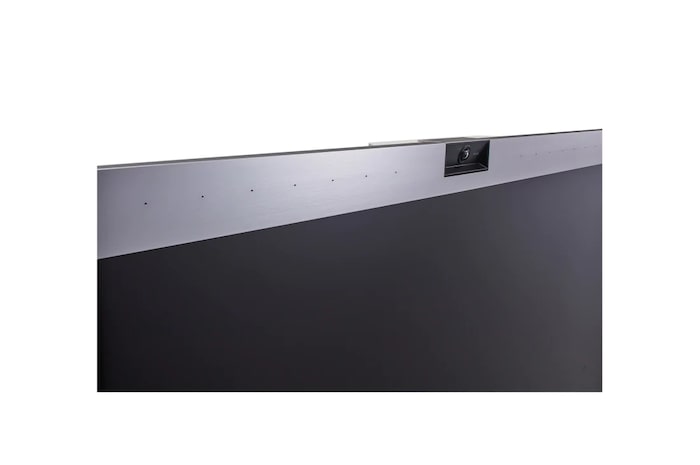

Camera_Resolution
-
3840 x 2160 (UHD)
-
Camera_Field of View (FoV)
-
120°
-
Camera_Zoom (ePTZ)
-
4x Zoom
-
Camera_Video Framing
-
YES
-
MIC_Array
-
10ea
-
MIC_Beamforming
-
YES
-
MIC_Pickup Range
-
6m
-
Warranty
-
3 Years (Panel) 1 Year (PC Board)
