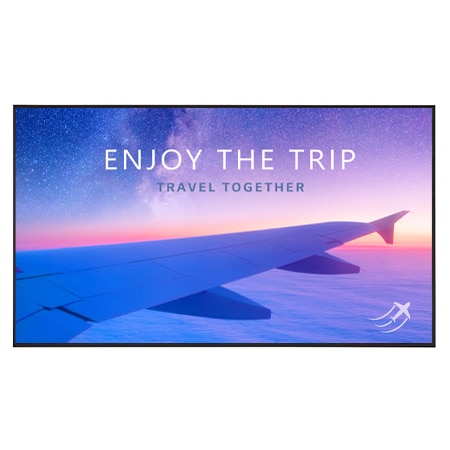

UHD Signage Display -
55UH7N-E
• Resolution : 3,840 x 2,160 (UHD)
• Brightness (Typ.) : 700 nit
• Surface Treatement (Haze) : 28 %
• Bezel : 8.9 mm (T/R/L), 12.9 mm (B)
• Interface : HDMI(2) / DP / USB 2.0 / RS232C / RJ45 / Audio / IR
• webOS Smart Platform
The display has been installed on a column at the airport, which is exposed to the bright sunlight. In spite of bright environment, advertisements on the display are clearly demonstrated.
* All images in this page are for illustrative purposes only.
It offers a resolution that is four times higher than FHD, satisfying customers visually. Additionally, the anti-glare coating on the screen reduces screen reflection in bright lighting environments, increasing visibility and legibility, providing customers with a comfortable screen.

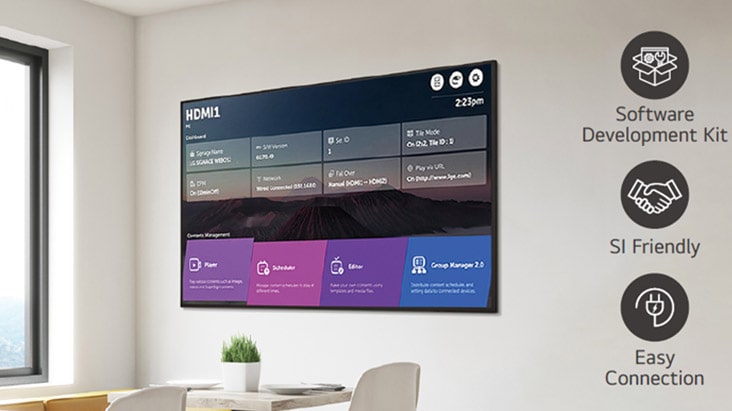

The UH7N-E is equipped with a high-performance SoC that allows for multiple tasks to be performed without a separate media player. The webOS platform provides app development tools with an intuitive UI that enhances user convenience, enabling easy connection with external sensors and webOS partner apps to create an SI-friendly environment.
Optimized for business environments, the UH7N-E is guarded against the potential impact of salt, dust, iron powder and humidity through the implementation of conformal coating on the power board. Also, its customer-centric features, such as IP5x, 30-degree tilting and Shock Monitoring, provide both reliability and satisfaction.

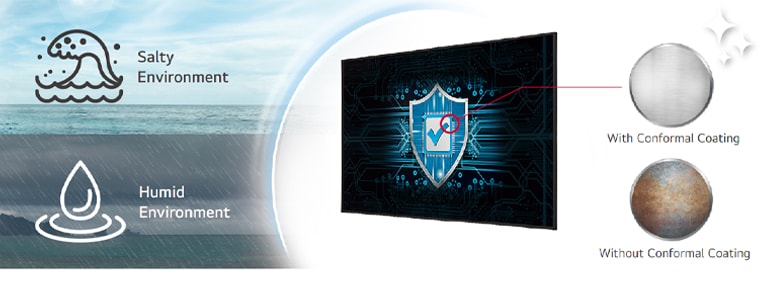

The UH7N-E has Conformal Coating on the power board to protect display even in a salty or humid environment.

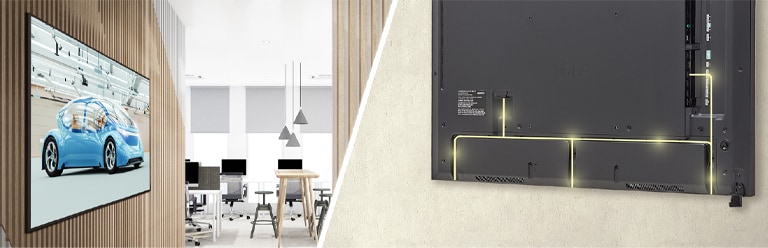

Designed with thin bezels and simple cable management, the UH7N-E saves space. With specialised hidden power inlets, it can be installed close to the wall, leaving only about 13 mm of space with the slim bracket. Bezels accessories can also be used to convert it into an art frame, making it a stylish interior element that matches customers' interior spaces.

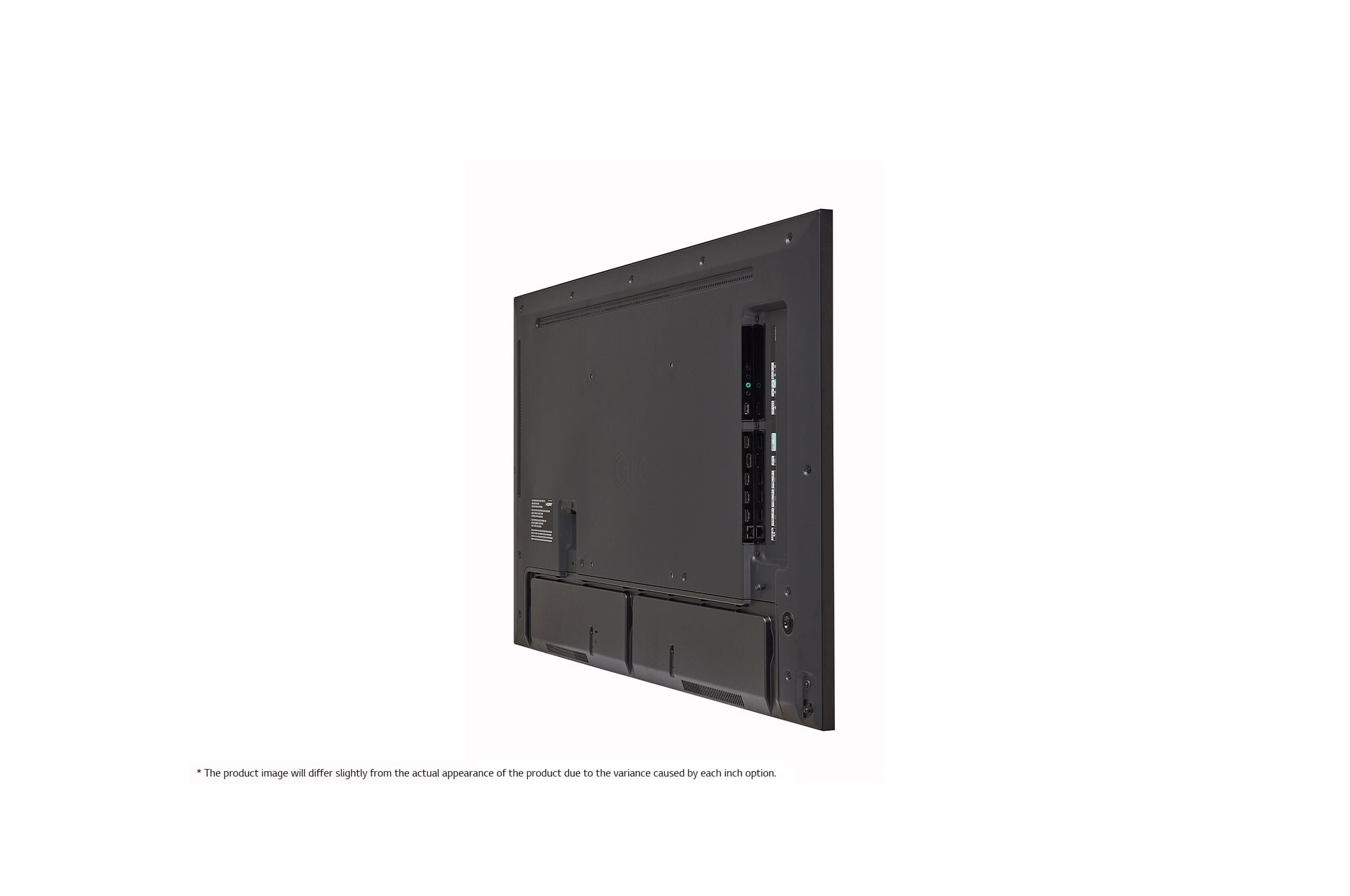

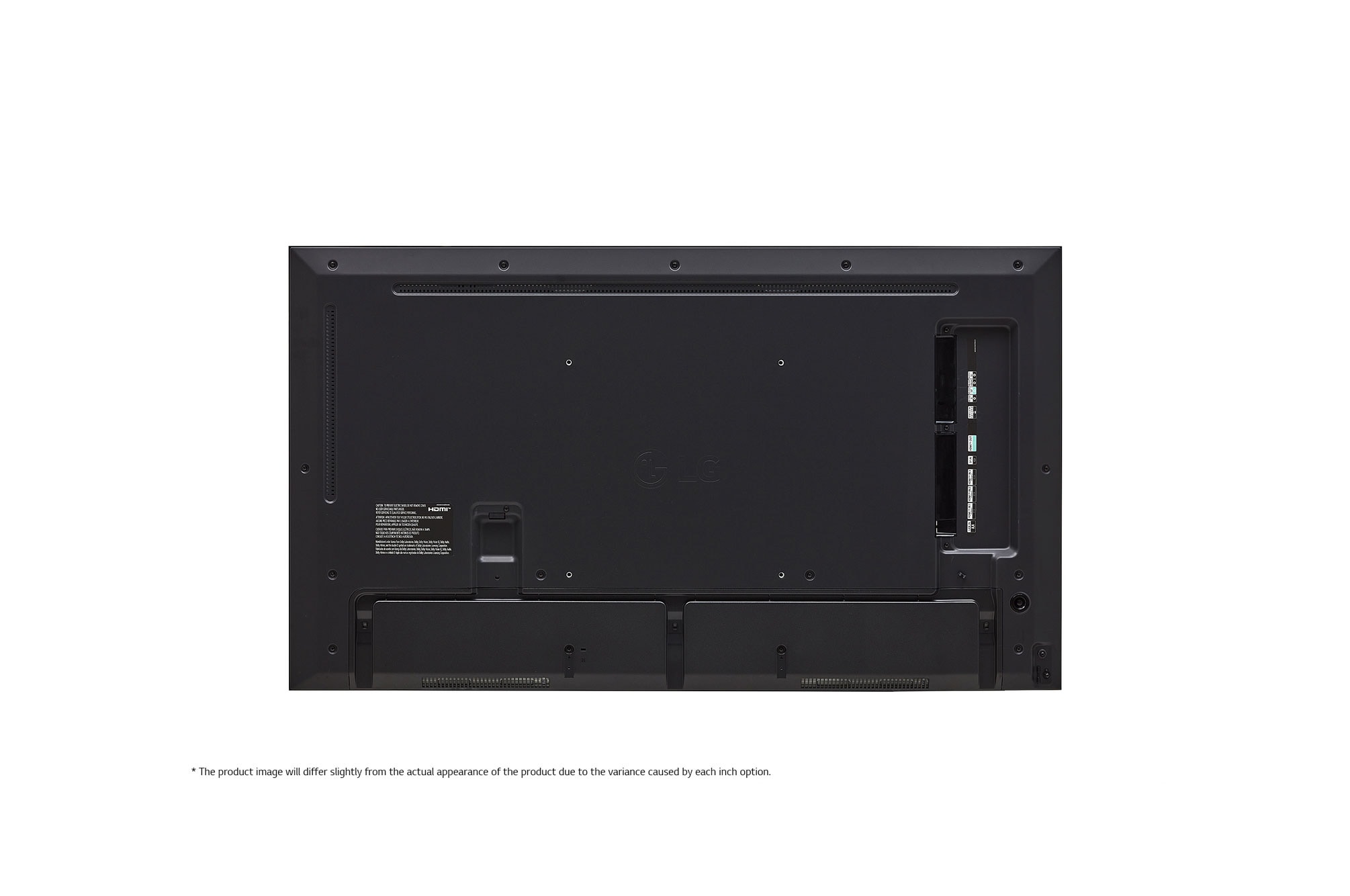

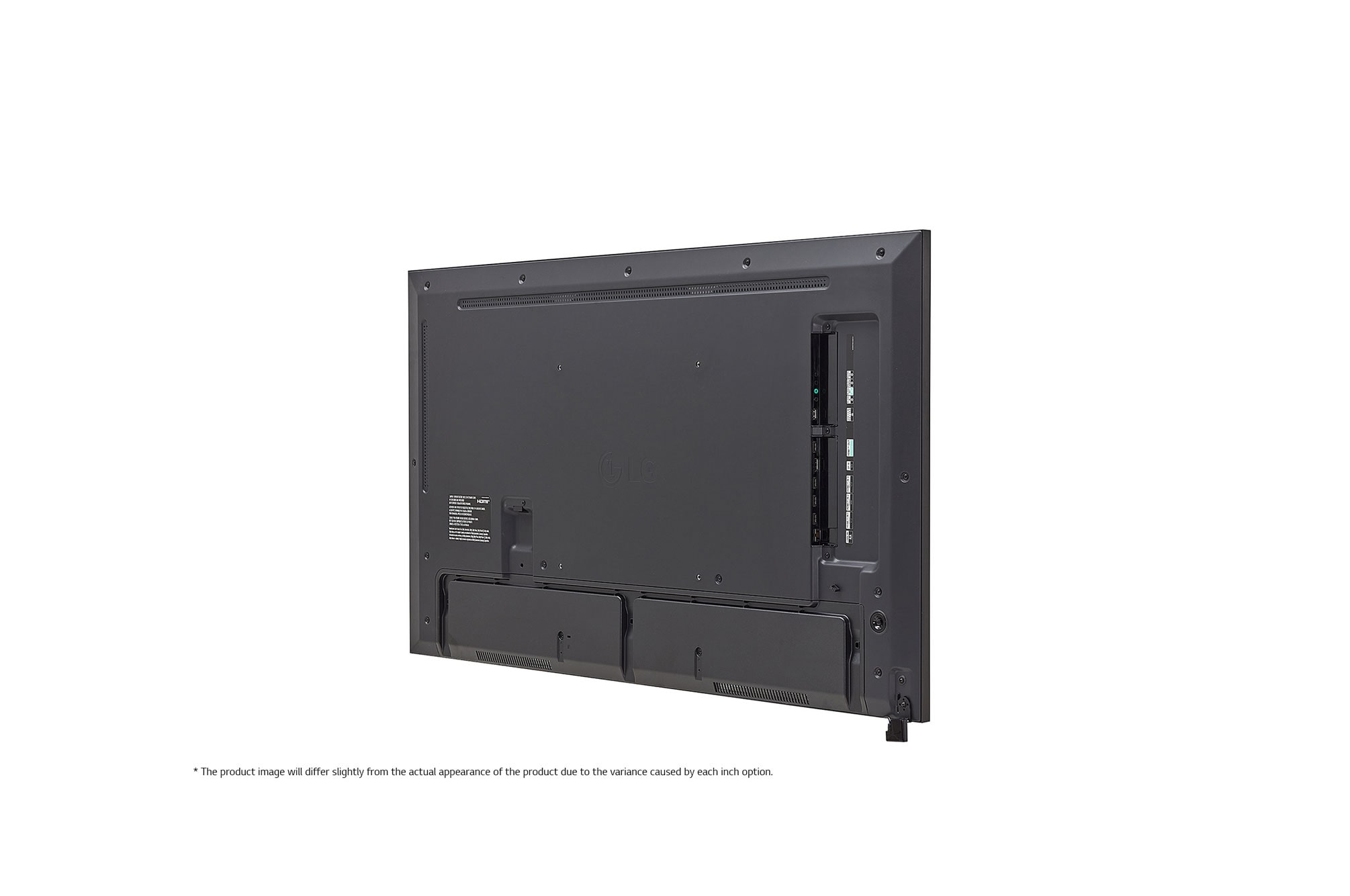

The UH7N-E with slim bezels is mounted close to the wall, showcasing a rear design that is optimized for space-saving with a simple cable management system.

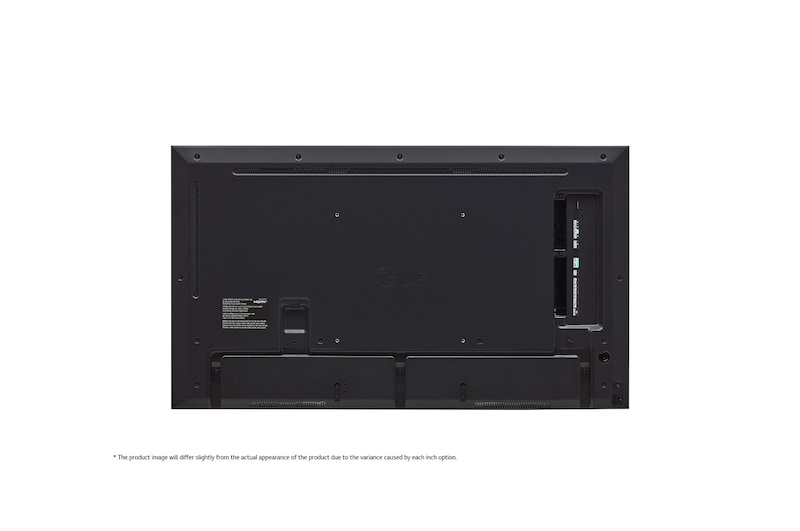

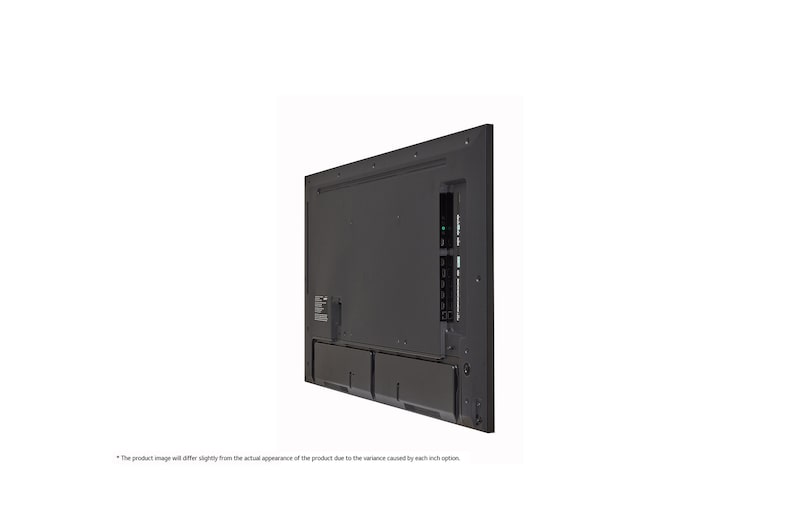

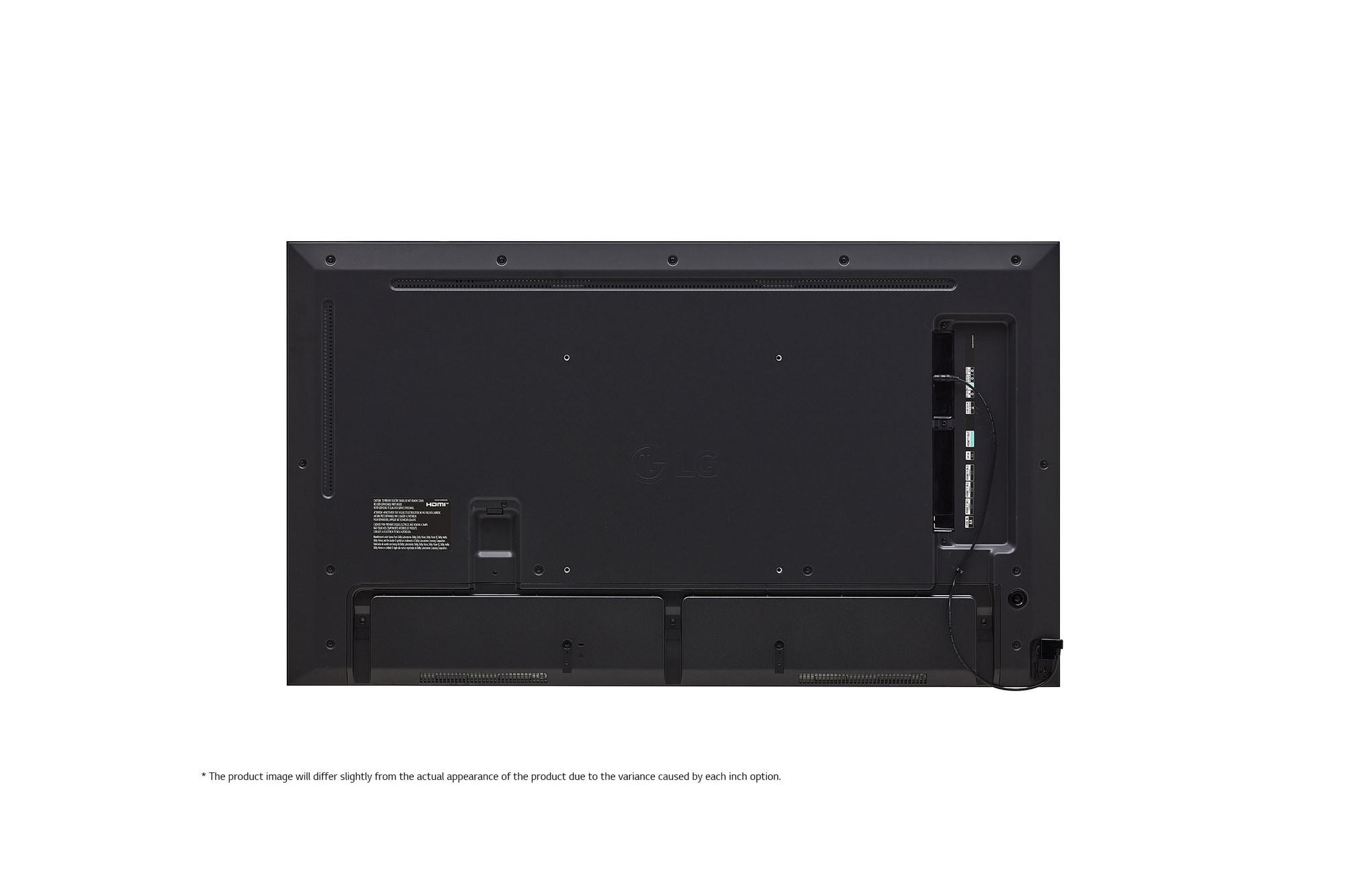

* The product image will differ slightly from the actual appearance of the product due to the variance caused by each inch option.
* Bezel accessories are sold separately at an additional cost.
The UH7N-E provides security features, including LG's Enhanced Kernel Protection (EKP) technology, guarding important data from external access or attacks. LG UHD Signage also holds reliable certification in the field of information security, maintaining customers' data and businesses securely. For example, this model is ISO/IEC 15408 Common Criteria EAL2 Certified.
Recycled resins are used to manufacture back covers for digital signage product* and LG plans to expand this practice to other models as well. In addition, recycled cardboard was partially used to produce packaging materials, and the printing information on the packaging materials was written by only black ink.
* Digital signage product refers "UH7N-E" model
SuperSign is an integrated and intuitive content management solution for creative and organized digital signage content in your space, connecting customers to a range of services with convenient user experiences. There are a variety of versions such as SuperSign Cloud, so discover and enjoy the version that best fits you.
Cafe managers are creating menus that will be displayed on the display installed on the cafe wall using content management software.
Screen Size (Inch)
55"
Panel Technology
IPS
Back Light Type
Edge
Aspect Ratio
16:9
Native Resolution
3840 x 2160 (UHD)
Refresh Rate
60Hz
Brightness
700nit (Typ.)
Contrast Ratio
1,100:1
Dynamic CR
1,000,000:1
Color Gamut
BT709 95%
Viewing Angle (H x V)
178 X 178
Color Depth (Number of Colors)
10bit(D), 1.07Billion colors
Response Time
8ms (G to G)
Surface Treatment (Haze)
0.28
Life time
50,000Hrs (Min.)
Operation Hours (Hours/Day)
24/7
Portait / Landscape
Yes / Yes
HDMI In
Yes(2), 3840x2160@60Hz, HDCP 2.2/1.4
DP In
Yes(1), 3840x2160@60Hz, HDCP2.2/1.3
RS232C In
Yes(1), 4pin Phone-jack
RJ45(LAN) In
Yes(1)
IR In
Yes(1)
USB In
USB2.0 Type A(1), USB2.0 Type C ((1), without PD funtion)
DP Out
Yes(1), 3840x2160@60Hz, Input : HDMI1/2/DP/USB-C
Audio Out
Yes(1)
RS232C Out
Yes(1), 4pin Phone-jack
Daisy Chain
Yes(Input HDMI, DP, USB C / Output DP)
Bezel Color
Black
Bezel Width
T/R/L: 8.9mm, B: 12.9mm
Weight (Head)
16.1 kg
Packed Weight
20.5 kg
Monitor Dimensions (W x H x D)
1231.4 x 707.2 x 29.7mm (without IR)
VESA Standard Mount Interface
300 x 300
Carton Dimensions (W x H x D)
1360.0 x 801.0 x 161.0mm
Internal Memory (eMMC)
16GB
Wi-Fi/BT (Built-in)
Yes
Temperature Sensor
Yes
Auto Brightness Sensor
Yes( IR)
Acceleration(Gyro) Sensor
Yes
Local Key Operation
Yes
OS Ver. (webOS)
webOS6.0
Local Contents Scheduling
Yes
Group Manager
Yes
USB Plug & Play
Yes
Fail over
Yes
Booting Logo Image
Yes
No Signal Image
Yes
RS232C Sync
Yes
Local Network Sync
Yes
PIP
Yes
PBP
Yes(4)
Screen Share
Yes
Video Tag
Yes(4)
Play via URL
Yes
Screen Rotation
Yes
External Input Rotation
Yes
Gapless Playback
Yes
Tile Mode Setting
Yes (Max. 15x15)
Setting Data Cloning
Yes
SNMP
Yes
ISM Method
Yes
Auto Set ID
Yes
Status Mailing
Yes
Control Manager
Yes
Crestron Connected
Yes
Smart Energy Saving
Yes
PM mode
Yes
Wake on LAN
Yes
Network Ready
Yes
Beacon
Yes
HDMI-CEC
Yes
SI Server Setting
Yes
webRTC
Yes
Pro:Idiom
Yes
Operation Temperature
0 °C to 40 °C
Operation Humidity
10 % to 80 %
Power Supply
AC 100-240V~, 50/60Hz
Power Type
Built-In Power
Typ.
110W
Max.
160W
BTU (British Thermal Unit)
0 BTU/Hr(Typ.), 0 BTU/Hr(Max)
Smart Energy Saving (70%)
77
DPM
0.5W
Power off
0.5W
Speaker (Built-in)
Yes (10W X 2)
Safety
CB / NRTL
EMC
FCC Class "B" / CE / KC
ERP / Energy Star
Yes(NewErP)/Yes
ePEAT(US only)
Yes
SuperSign CMS
Yes
SuperSign Control+
Yes / Yes
SuperSign WB
Yes
SuperSign Cloud
Yes
Mobile CMS
Yes
Connected Care
Yes
OSD
English, French, German, Spanish, Italian, Korean , Chinese(Simplified), Chinese(Original), Portugues(Brazil), Swedish, Finnish, Norwegian, Danish, Russian, Japanese, Portugues(Europe), Dutch, Czech, Greek, Türkiye, Arabic
Basic
Remote Controller(include battery 2ea), Power Cord, QSG, Regulation Book, Phone to RS232C Gender, USB-C Cable, Cable Holder(2EA), AC Cord Holder (1EA)
Optional
Slim Wall Mount (WB21LMA/B), Wall Mount (OLW480A/B) Wall Mount Adapter (AM-B330S)
Tilt (Face down)
Yes(Max 30˚ degree, 40℃ temperature)
IP Rating
IP5X
Conformal Coating (Power Board)
Yes
