*The scenes are simulated for illustrative purposes. Actual GUI may differ from the accompanying image.
** All displays must be connected to the same network.
Easy Maintenance1
In case of malfunctions or errors, real-time remote care is available. When an error occurs, a notification can be sent through the SNMP (Simple Network Management Protocol) protocol.
WOL(Wake-on-LAN)enables users to send a message through network to turn on displays. This greatly simplifies the installation and maintenance processes as only a single wire is required for power and network connection.
Screen Size
75"
Resolution

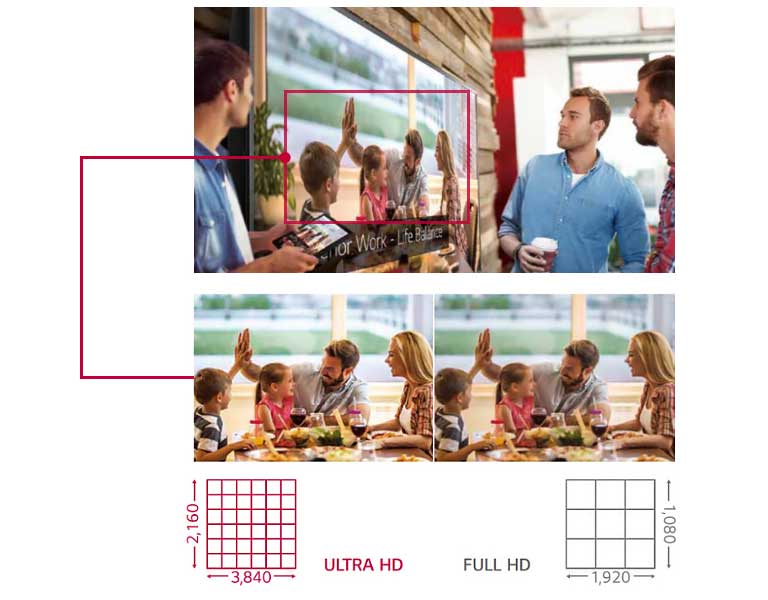

3,840 x 2,160 (UHD)
Brightness(Typ.,cd/m²)
350
Input
HDMI (3) Side: 2, Rear: 1
Output
Audio (2) Digital Audio Out, Optical
External Control
RS232C In (Phone Jack Type), RJ45 In
Bezel Width
20.2 mm (T/L/R), 21.5 mm (B)
Monitor Dimension (W x H x D)
1693mm x 978mm x 73.4mm (88.8mm w/speaker)
Weight (Head)
34.6 kg
Carton Dimensions (W x H x D)
1,839 x 1,116 x 231 mm
Packed Weight
45.7 kg
VESA™ Standard Mount Interface
600 x 400 mm
Operation Temperature
0°C to 40°C
Operation Humidity
10% to 80%
Safety
IEC 60065:2014
Power Supply
100-240V~, 50/60Hz
Power Type
Built-In Power
Typ.
220 W
Max
243 W
Safety
CB
EMC
CE
ErP
Yes (Class A)
Speaker
Built-in
OPS type compatible
No
External Media player Attatchable
No
Content Management Software
SuperSign CMS
Control and Monitoring Software
SuperSign Control+
Basic
Remote Controller (2ea Batteries Included), Regulation Book, Phone to RS232C Gender
