Outstanding Image Quality
Auto Module Protection

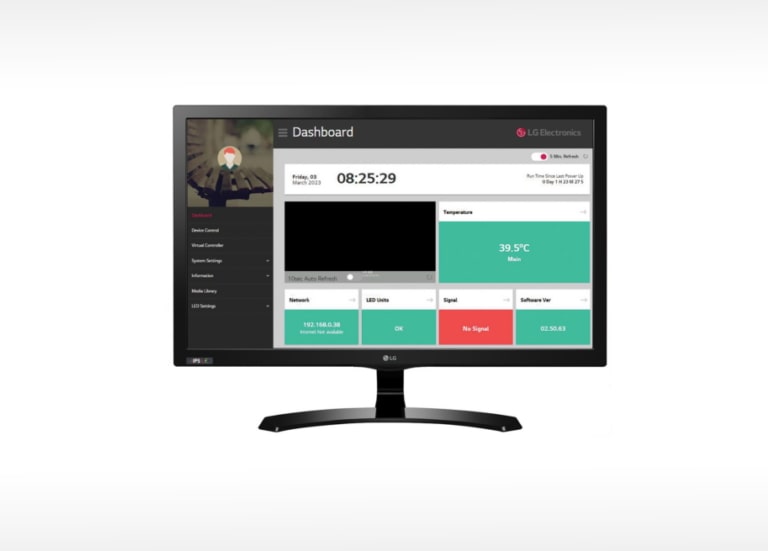

Easy Management
Pitch Name
P1.0
Pixel Pitch (mm)
1.0
LED Type
SMD 3-in-1
Resolution(W x H, per Unit Case)
384 x 360
Dimensions(W x H x D, per Module)
192 x 180 x 16 mm
Dimensions(W x H x D, per Unit Case)
384 x 360 x 77 mm
Weight(per Unit Case)
5 kg
Weight(per SQM)
36 kg1)
1) LED Unit Case (Except LED Controller)
IP Rating
N/A
Unit Frame Material
Die Casting Allumium
Unit Frame Color
Black
Curvature
N/A

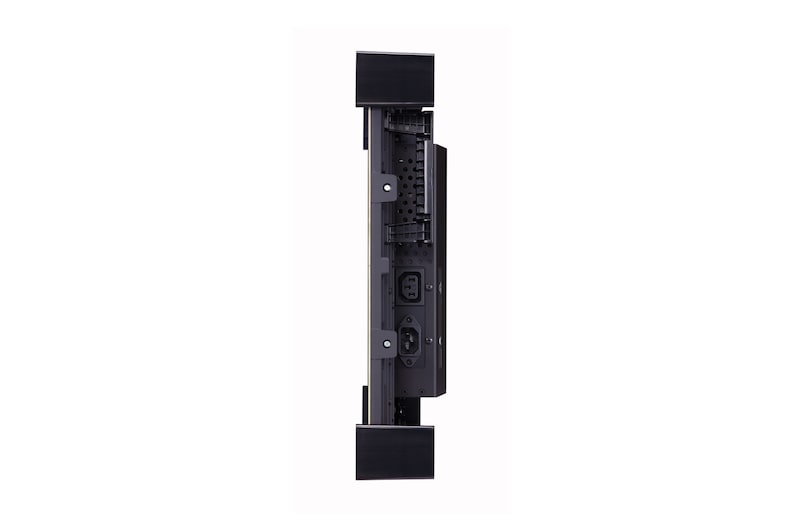

Access
Rear
Brightness(After Calibration)
1,000nit
Contrast Ratio
6,000:1
Viewing Angle(H x V)
160 x 140
Bit Depth
16bit
Brightness Uniformity
≥ 97%
Color Uniformity
±0.015Cx, Cy
Color Gamut
NTSC 100%, BT2020 94%
Color temperature - Default
6,500K
Color temperature - Adjustable
3,200 ~ 9,300K
Video Frame Rate
50/60Hz
Input Power Range
100-240V~, 50/60Hz
Power consumption - Max/Typ(per Unit Case)
170/85W
Power consumption - Max/Typ(per SQM)
1,230/615W
Refresh rate
1,920Hz
Redundancy
N/A

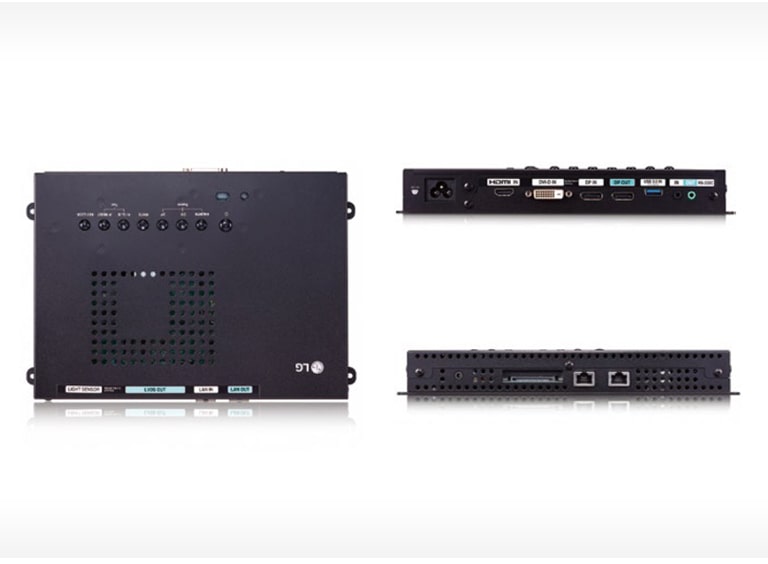

Video Inputs
HDMI In, DP In/Out, DVI, USB
Control
RJ45 In/Out, RS232C In/Out
Special Features
Temperature Sensor, Ambient Light Sensor, Current Sensor
Working Temperature/Humidity
0 °C to 40 °C at 10 % to 80 %
Storage Temperature/Humidity
-20°C to 60 at 5 to 90%
LED Lifetime
100,000hrs
Safety
IEC 60950-1 / EN 60950-1 / UL 60950-1
EMC
FCC Class "A" / CE / KC
Environment
RoHS
