Superior Image Quality
*ACR-AAPM-SIIM Secondary Review Brightness Guideline : The secondary review brightness guideline developed collaboratively by the American College of Radiology (ACR), the American Association of Physicists in Medicine (AAPM), and the Society for Imaging Informatics in Medicine (SIIM).
Aspect Ratio
16:9
Backlight Dimming Technology
Global Dimming
Backlight Technology
LED
Backlight Type
Edge
Brightness (Typ.)
350cd/m²
Brightness (Stabilization)
250 cd/m2
Colour Bit
10 bit
Colour Depth (Number of Colours)
1.07 B
Colour Gamut (Typ.)
sRGB over 99%(Coverage)
Contrast Ratio (Typ.)
1000:1
Contrast Ratio with DFC
Mega
Panel Type
IPS
Pixel Pitch (H x V)
0.1554mm x 0.1554mm
Resolution
3840 x 2160
Response Time (GTG)
14ms (Off-setting), 5ms (Faster-setting)
Size (Inch)
27
Size (cm)
68.58
Surface Treatment
Anti-glare, 3H
Viewing Angle (CR≥10)
178°(Right/Left), 178°(Up/Down)
Brightness stabilization
Yes
Factory Calibration
Yes (Delta E<5, Gamma 1.8~2.6/DICOM curve)
HW Calibration
Yes (True Color Pro)
DICOM Compliant
Yes
Colour Temperature
6500K/8500K/9300K
Manual (5000K ~ 10000K)
Colour Weakness
Yes
Flicker safe
Yes
OSD Language
17 Language

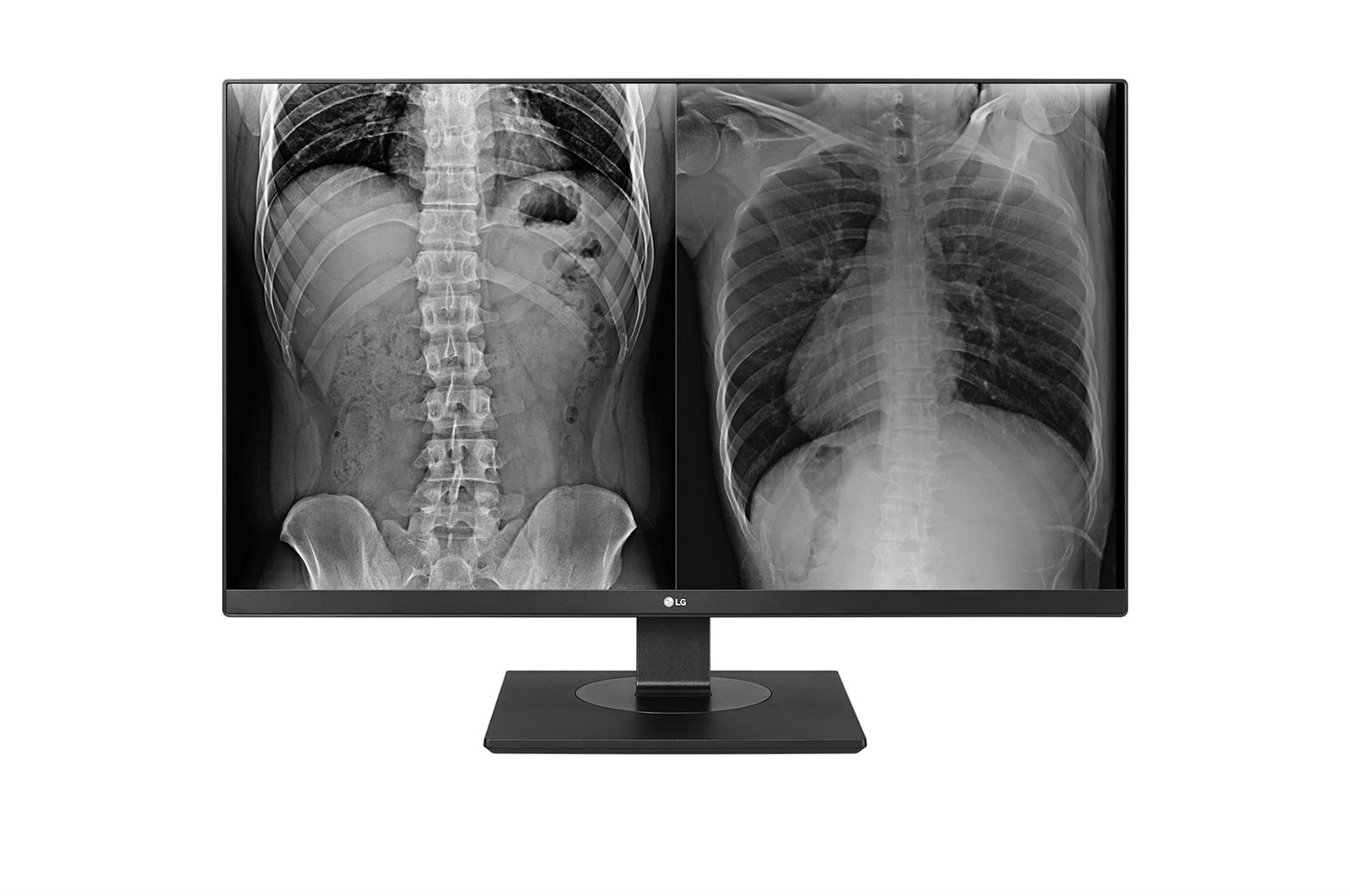

PBP
Yes (2PBP)
Picture Mode
(SDR) Custom, Mono, Reader, sRGB, Color Weakness, EBU, REC709, SMPTE-C, DICOM, Calibration 1, Calibration 2
Reader Mode
Yes
Smart Energy Saving
Yes
Super Resolution+
Yes
Uniformity
Yes
Dual Controller
Yes
True Colour Pro
Yes
DisplayPort
Yes (1ea)
DP (HDCP Version)
2.2
DP (Max. Resolution at Hz)
3840 x 2160 at 60Hz
DP (H-Frequency)
30~135 kHz
DP (V Frequency)
56~61 Hz
DP Version
1.2
HDMI
Yes (2ea)
HDMI (HDCP Version)
2.2
HDMI (Max. Resolution at Hz)
3840 x 2160 @60Hz
HDMI (H Frequency)
30~135 kHz
HDMI (V Frequency)
56~61 Hz
HDMI Version
2.0
Composite
Yes
S-Video
Yes
Component
Yes
Headphone out
Yes
USB Downstream Port
Yes (2ea/ver3.0)
USB Upstream Port
Yes (1ea/ver3.0)
[Location]
Rear
AC Input
100-240Vac, 50/60Hz
DC Output
19V, 3.42A
Power Consumption (DC Off)
Less than 0.3W
Power Consumption (Max.)
65W
Power Consumption (Sleep Mode)
Less than 0.5W
Type
External Power (Adapter)
Base Detchable
Yes
Borderless Design
3-Side Virtually Borderless Design
Colour (Back Cover)
Black
Colour (Middle Cabinet)
Black
Colour (Stand Base)
Black
Colour (Stand Body)
Black
Display Position Adjustments
Tilt/Height/Pivot/swivel
Down Height
49mm

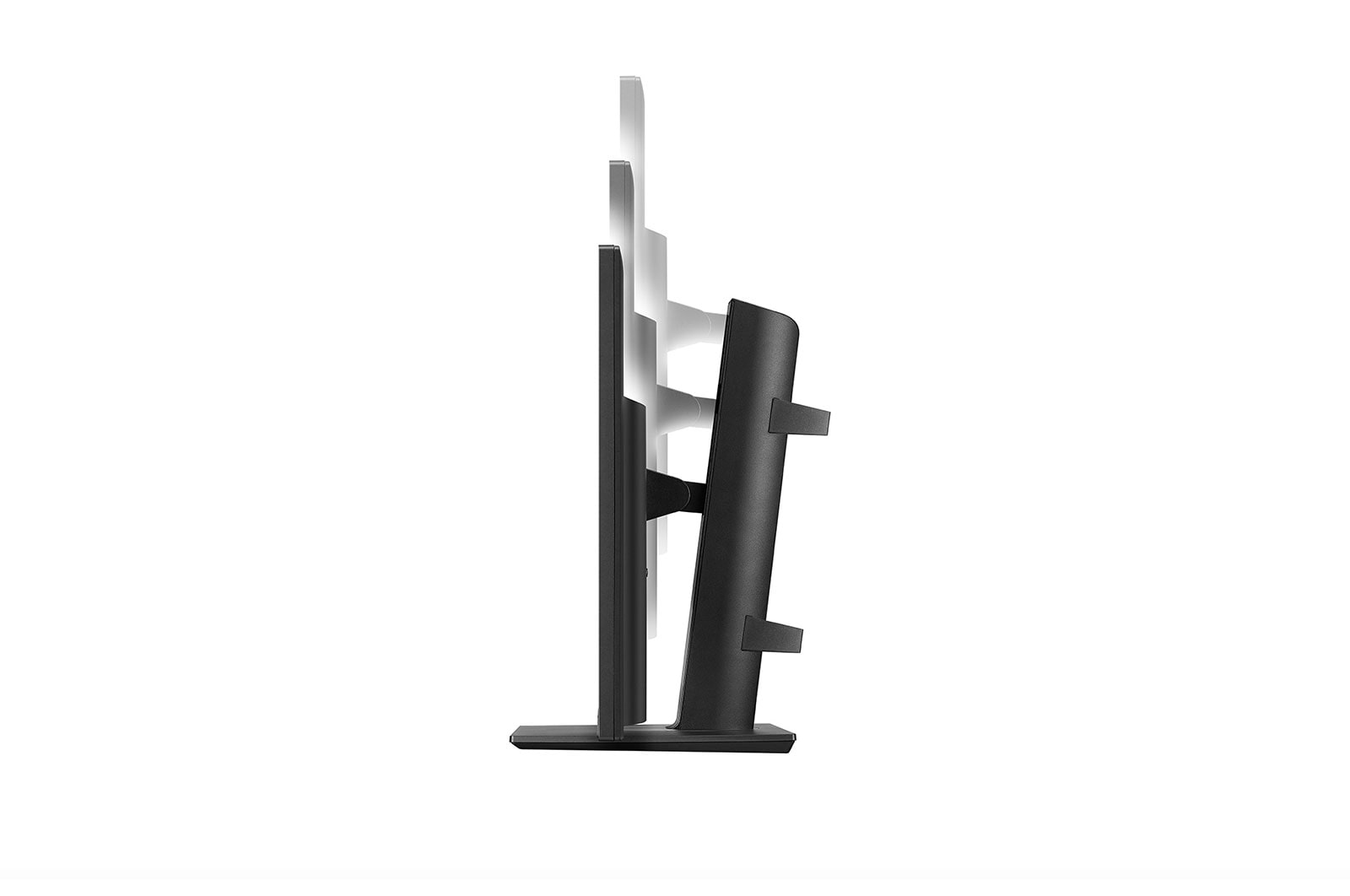

Height Range
150mm
OneClick Stand
Yes

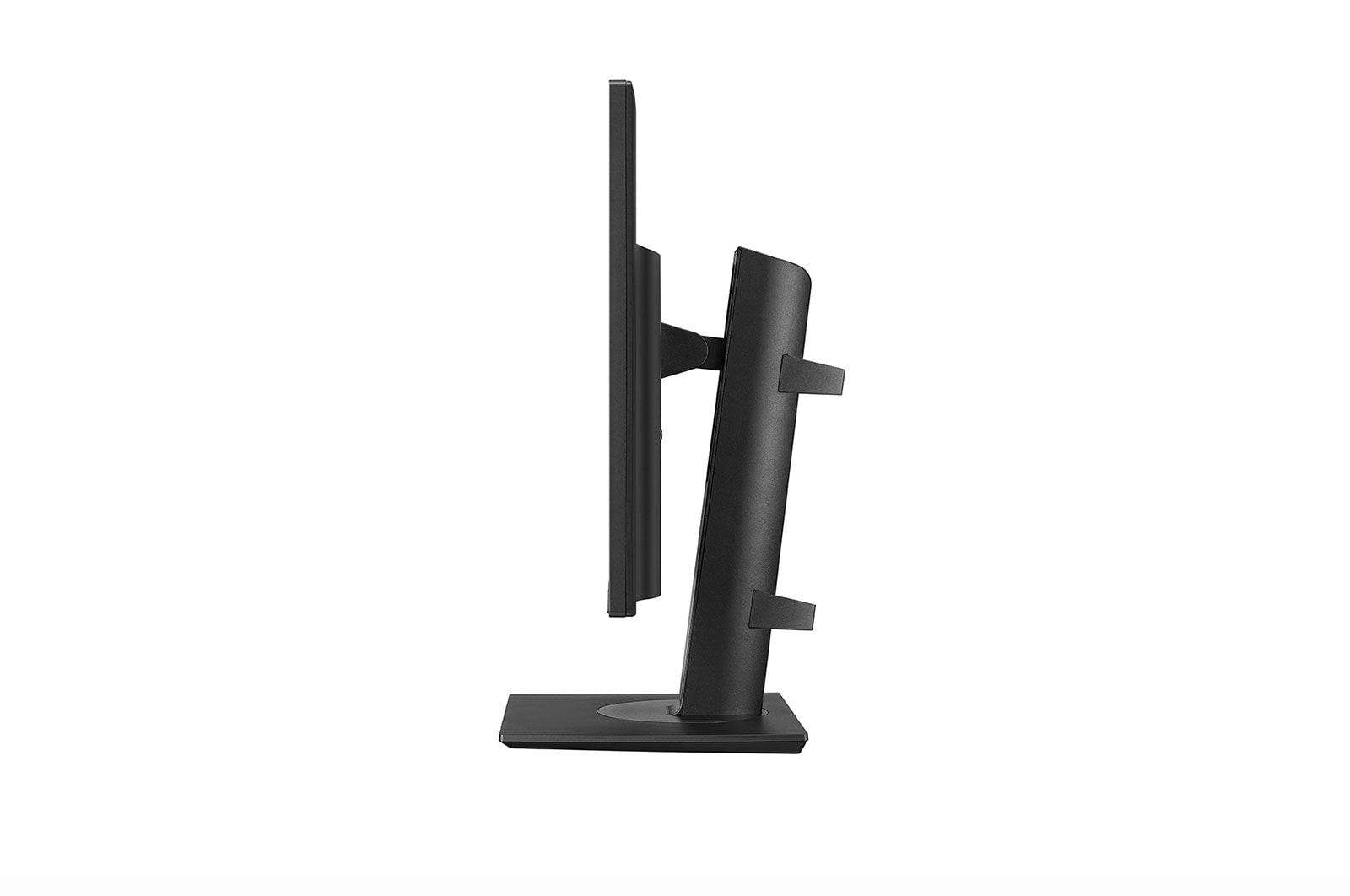

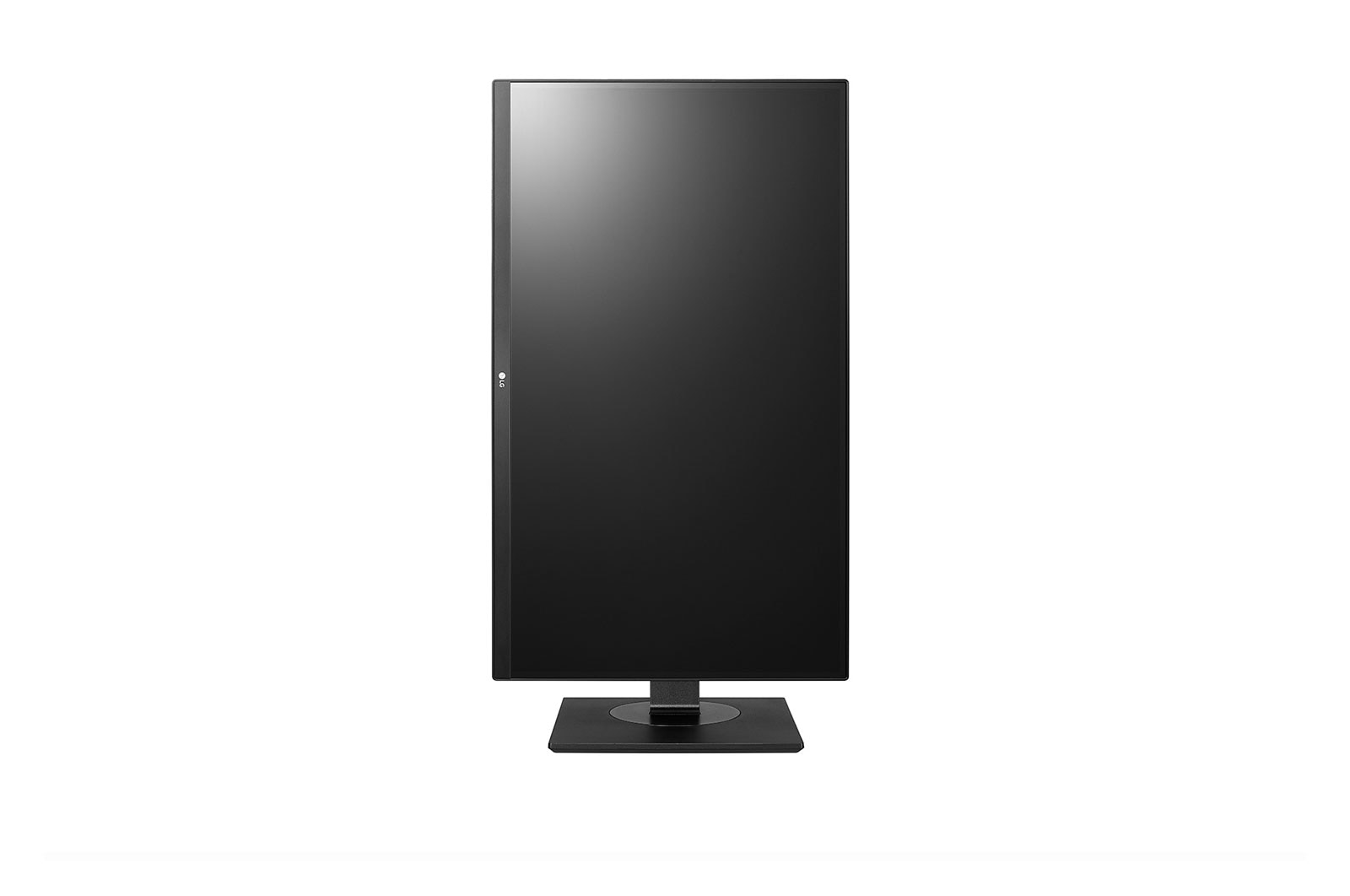

Pivot
Yes (±90°)
Swivel
Yes (±45°)
Tilt
Yes (-5°~25˚)
Wall Mount Size
100 x 100 mm
Dimension in Shiping (W x H x D)
694 x 504 x 185 mm
Dimension with Stand (W x H x D)
615 x 546.3 x 276.1 mm
Dimension without Stand (W x H x D)
615 x 365.1 x 42.70 mm
Pallet Stuffing (20ft/40ft/40ft HC)
352ea/704ea/832ea
Weight in Shipping
10.3kg (22.7lb)
Weight with Stand
7.5kg (16.5lb)
Weight without Stand
4.7kg (10.4lb)
IEC (IEC 60601-1/IEC 60601-1-2)
Yes
EN (EN 60601-1/EN 60601-1-2)
Yes
IEC (IEC 60950-1/IEC 55032, 55024)
Yes
EN (EN 60950-1/EN 55032, 55024)
Yes
cUL (ANSI/AAMI ES 60601-1, CSA CAN/CSA-C22.2 NO. 60601-1)
Yes
FCC (FCC part 15 Class A)
Yes
FDA
Registration (Class I)
ISO13485
Yes
GMP
Yes
KGMP
Yes
KC
Yes
RoHS
Yes
REACH
Yes
WEEE
Yes
MFDS
Yes
Adapter
Yes
Adapter (Colour)
Black
Calibration Report (Paper)
Yes
Display Port
Yes
Display Port (Colour/Length)
Black/1.5m
HDMI
Yes
HDMI (Colour/Length)
Black/1.8m
Power Cord
Yes
Power Cord (Colour/Length)
Black/1.8m
USB3.0 Upstream Cable
Yes
USB3.0 Upstream Cable (Colour/Length)
Black/1.5m
time/years
5 years (subject to terms and conditions)
