LG 21.3'' 3MP IPS Diagnostic Monitor

Features

Gallery

Specs

Support

Resource

Find a Dealer

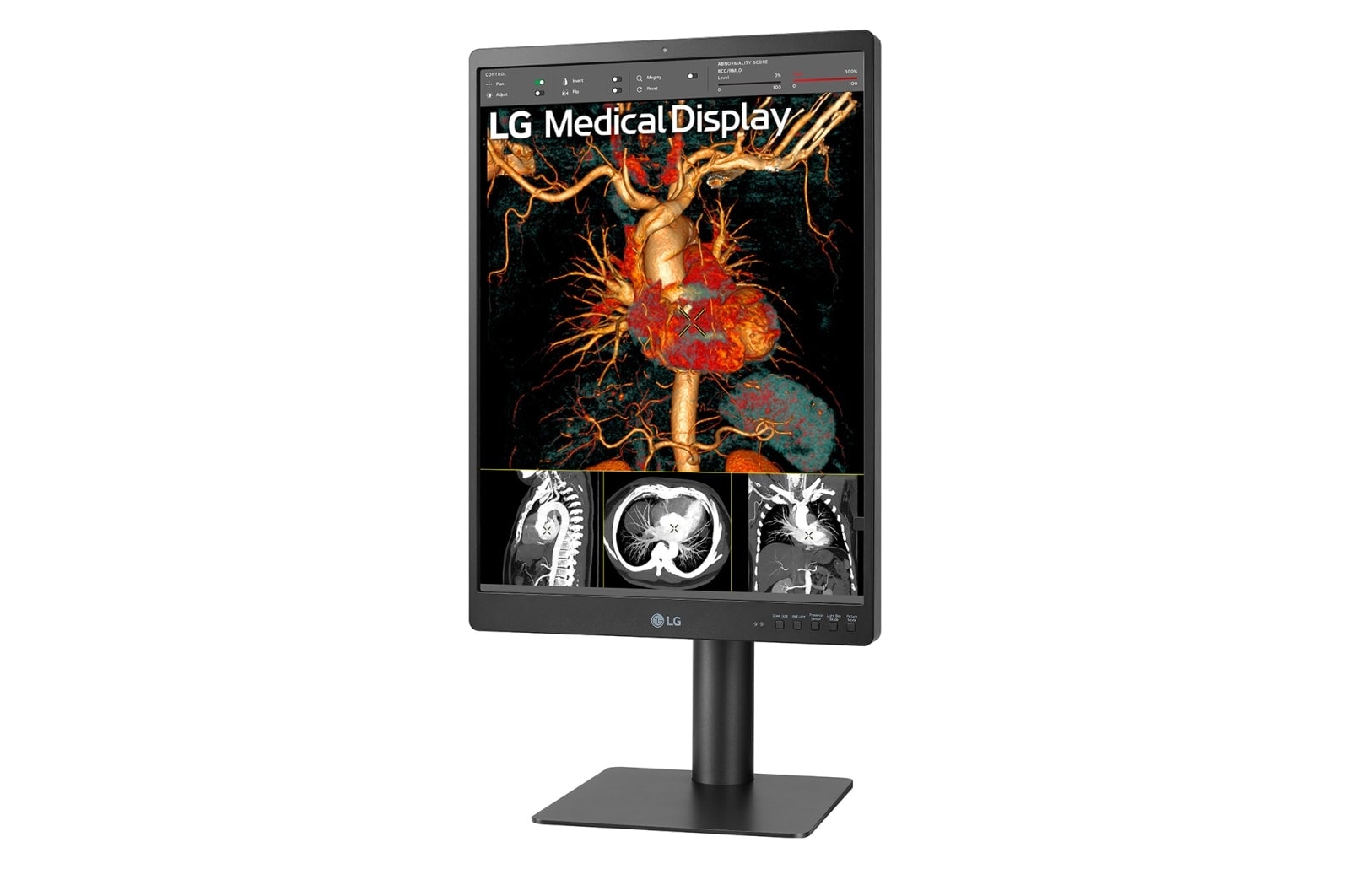

LG 21.3'' 3MP IPS Diagnostic Monitor

LG 21.3'' 3MP IPS Diagnostic Monitor

21HQ513D-B
()
  • LG 21.3'' 3MP IPS Diagnostic Monitor, 21HQ513D-B
  • LG 21.3'' 3MP IPS Diagnostic Monitor, 21HQ513D-B
  • LG 21.3'' 3MP IPS Diagnostic Monitor, 21HQ513D-B
  • LG 21.3'' 3MP IPS Diagnostic Monitor, 21HQ513D-B
  • LG 21.3'' 3MP IPS Diagnostic Monitor, 21HQ513D-B
  • LG 21.3'' 3MP IPS Diagnostic Monitor, 21HQ513D-B
  • LG 21.3'' 3MP IPS Diagnostic Monitor, 21HQ513D-B
  • LG 21.3'' 3MP IPS Diagnostic Monitor, 21HQ513D-B
  • LG 21.3'' 3MP IPS Diagnostic Monitor, 21HQ513D-B
  • LG 21.3'' 3MP IPS Diagnostic Monitor, 21HQ513D-B
  • LG 21.3'' 3MP IPS Diagnostic Monitor, 21HQ513D-B
LG 21.3'' 3MP IPS Diagnostic Monitor, 21HQ513D-B
LG 21.3'' 3MP IPS Diagnostic Monitor, 21HQ513D-B
LG 21.3'' 3MP IPS Diagnostic Monitor, 21HQ513D-B
LG 21.3'' 3MP IPS Diagnostic Monitor, 21HQ513D-B
LG 21.3'' 3MP IPS Diagnostic Monitor, 21HQ513D-B
LG 21.3'' 3MP IPS Diagnostic Monitor, 21HQ513D-B
LG 21.3'' 3MP IPS Diagnostic Monitor, 21HQ513D-B
LG 21.3'' 3MP IPS Diagnostic Monitor, 21HQ513D-B
LG 21.3'' 3MP IPS Diagnostic Monitor, 21HQ513D-B
LG 21.3'' 3MP IPS Diagnostic Monitor, 21HQ513D-B
LG 21.3'' 3MP IPS Diagnostic Monitor, 21HQ513D-B

Key Features

  • 21.3-inch 3MP IPS Display
  • 1100 cd/m² (Typ.)
  • Pathology Mode, Focus View Mode
  • Lighting (Down/Wall Lighting)
  • Ergonomic Design
More
LG 21.3'' 3MP IPS Diagnostic Monitor
21.3-inch 3MP IPS Display

See Clearly Image Quality for Diagnostic Review

Accuracy

21.3-inch 3MP IPS Display
Easy Calibration with Front Sensor

Efficiency

Focus View
5 Hot Keys & Lighting

Comfort

Daisy Chain
Ergonomic Design

Accurate Imaging

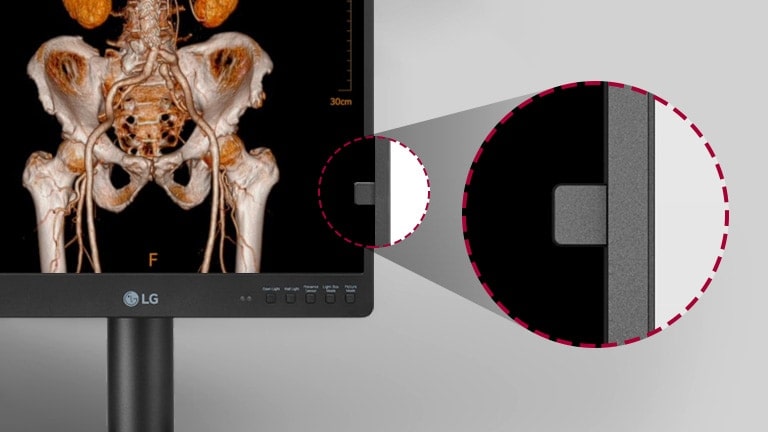

Easy Calibration with Front Sensor

Manage Effortless Quality Control

The Integrated Front Sensor allows easy calibration ​without the need for additional measuring equipment. It improves the quality and consistency of medical images that are displayed by maintaining accurate values.
multi-resolution mode offering for users to select resolution between input of 3mp and of 2mp.
Multi-resolution Mode

Compatible with Various Device

Diagnostic monitors often need to be connected to various modalities, all with differing resolutions. Thanks to 21HQ513D’s Multi-resolution Mode, you can adjust the resolution of monitor to optimize to the connected device.
pathology mode offering imaging results as detailed and accurately colored as seen under a microscope.
Pathology Mode

True-to-Life Color Reproduction

In Pathology Mode, the 21HQ513D reproduces the same level of detail and color accuracy as seen directly under a microscope, to help healthcare professionals make more accurate diagnoses.

Streamlined and Efficient Workflow

presence sensor detecting the motion of the user and having the screen turned off automatically when no motion.

Presence Sensor

Hassle-free Savings & Stronger Security

Thanks to the Presence Sensor of 21HQ513D which automatically turns off the display when no motion is detected, you can save energy and be more secure against exposing patient information and other sensitive data.

focus view offering for users to review a specific part of imaging.
Focus View

Fully Focus on the Region of Interest

LG 21HQ513D includes the Focus View Mode which allows you to review a specific part of the medical image more closely. This allows professionals to focus fully on the region of interest of the image for a more accurate and efficient diagnosis.

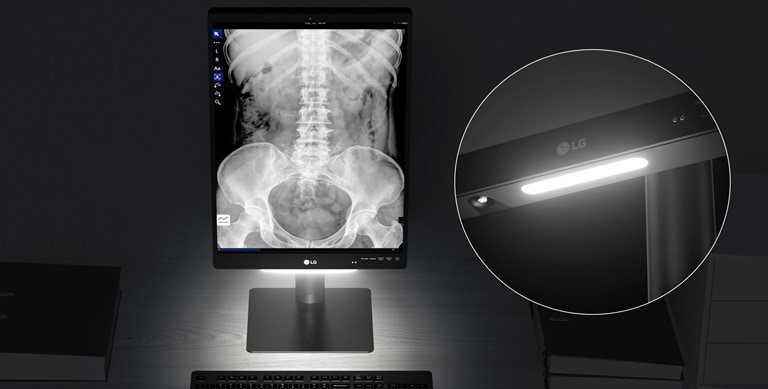

Down Lighting & Wall Lighting

Ideal Diagnostic Workspace

Down and Wall Lighting Modes reduce the contrast between the monitor brightness and ambient lighting conditions, allowing you to work comfortably without having to adjust the lighting to view paper documents in the darkroom.
5 Hot Keys

Intuitive Control

The 21HQ513D's 5 Hot Keys make changing between screen modes easier and more intuitive than operation through an OnScreen menu. The 5 Hot Keys are much faster and easier to operate while working, allowing you to change mode and lighting settings all without disrupting your workflow.

5 hot keys offering user's intuitive control consisting of down light, wall light, presence sensor, light box mode, and picture mode.

Ergonomic and Comfortable Workspace

auto luminance sensor offering automatic adjustment of screen brightness at the optimal level under ambient lighting conditions.
Auto Luminance Sensor

Reducing Eye Strain

LG 21HQ513D features an Auto Luminance Sensor which automatically adjusts screen brightness according to the ambient lighting conditions. As a result, eye strain is reduced by ensuring screen brightness is always set to the optimal level.

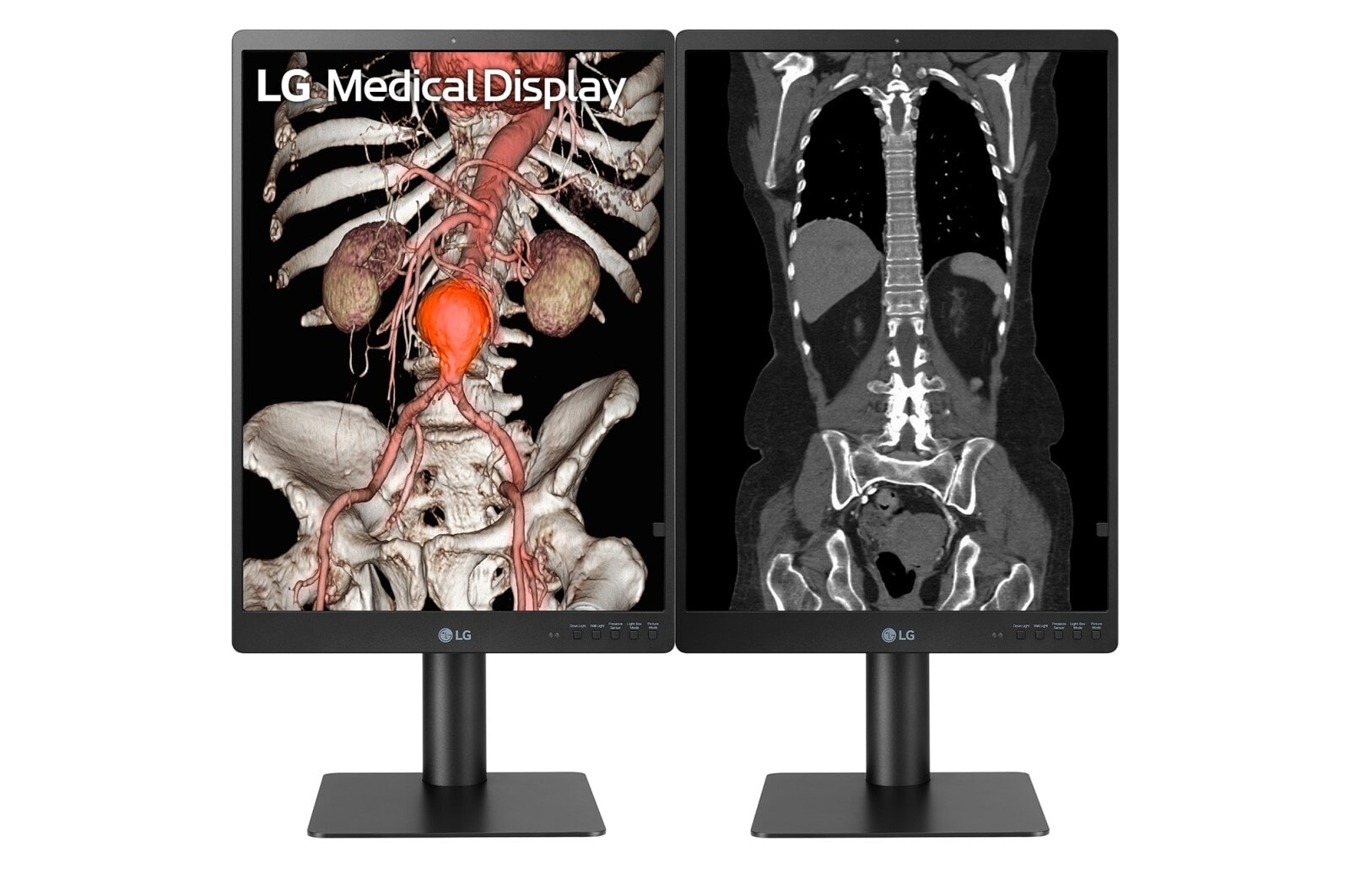

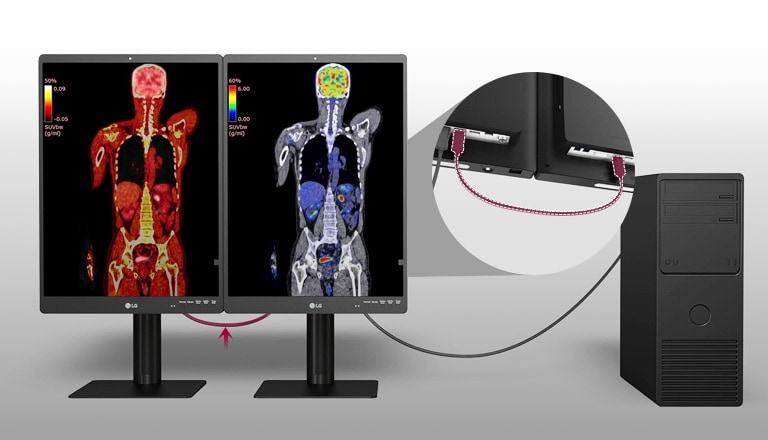

Daisy Chain

Reducing Clutter on Your Desk and Simplifying Cable Management

The 21HQ513D with 2 USB 3.0 Upstream Port and DisplayPort support Daisy Chain Setup. So you can establish a productive workstation by connecting two diagnostic Monitors and a PC.

productive workstation by connecting two diagnostic Monitors and a PC.

Ergonomic Design

Easy and Comfortable Workspace

The 21HQ513D is designed to be adjustable for the posture of healthcare professionals' image review. So, It helps review medical images more comfortable reducing chronic pain caused by long hours of work.

Easy and Comfortable Workspace

icon

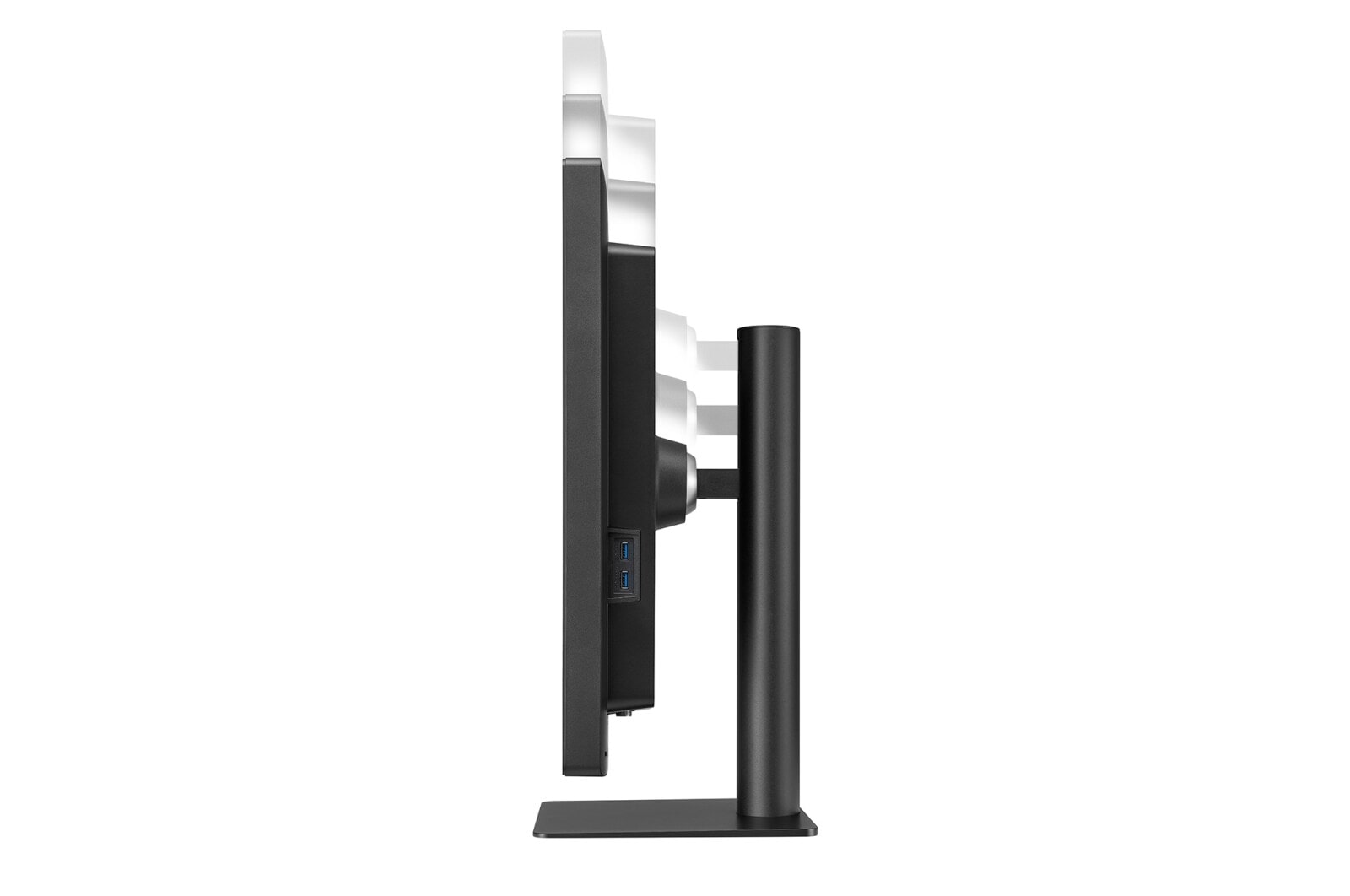

Pivot

Two-way

Height

Height

0~110mm

Tilt

Tilt

-5~20°

Print

All Spec

DISPLAY

  • Aspect Ratio

    3:4

  • Brightness (Typ.)

    1100cd/m²

  • Color Bit

    10bit

  • Color Gamut (Typ.)

    NTSC 72%

  • Contrast Ratio (Typ.)

    1800:1

  • Panel Type

    IPS

  • Pixel Pitch(H x V)

    0.2115 x 0.2115 mm

  • Resolution

    1536x2048

  • Response Time (GTG)

    5ms (GtG at Faster)

  • Size (Diagonal, Inch)

    21.3

  • Size (H x V)

    324.86 x 433.15mm
    (12.79 x 17.05")

  • Surface Treatment

    Anti-glare, 3H

  • Viewing Angle (CR≥10)

    178°(Right/Left), 178°(Up/Down)

FEATURE

  • Hot Key

    Yes(5keys)

  • Brightness stabilization

    Yes

  • Auto Luminance Sensor

    Yes

  • Presence Sensor

    Yes

  • Front Sensor

    Yes

  • Black Stabilizer

    Yes

  • HW Calibration

    Yes(PerfectLum)

  • DICOM Compliant

    Yes

  • Color Temperature

    6500K / 7500K / 9300K / Manual (5000K ~ 10000K)

  • Flicker safe

    Yes

  • Multi-resolution Mode

    Yes(3MP/2MP)

  • Pathology Mode

    Yes

  • Reader Mode

    Yes(Text Mode)

  • Focus View

    Yes

  • Light Box Mode

    Yes

  • Smart Energy Saving

    Yes

  • Lighting

    Yes(Down/ Wall)

  • Super Resolution+

    Yes

SW APPLICATION

  • Dual Controller

    Yes

  • Qubyx

    Yes

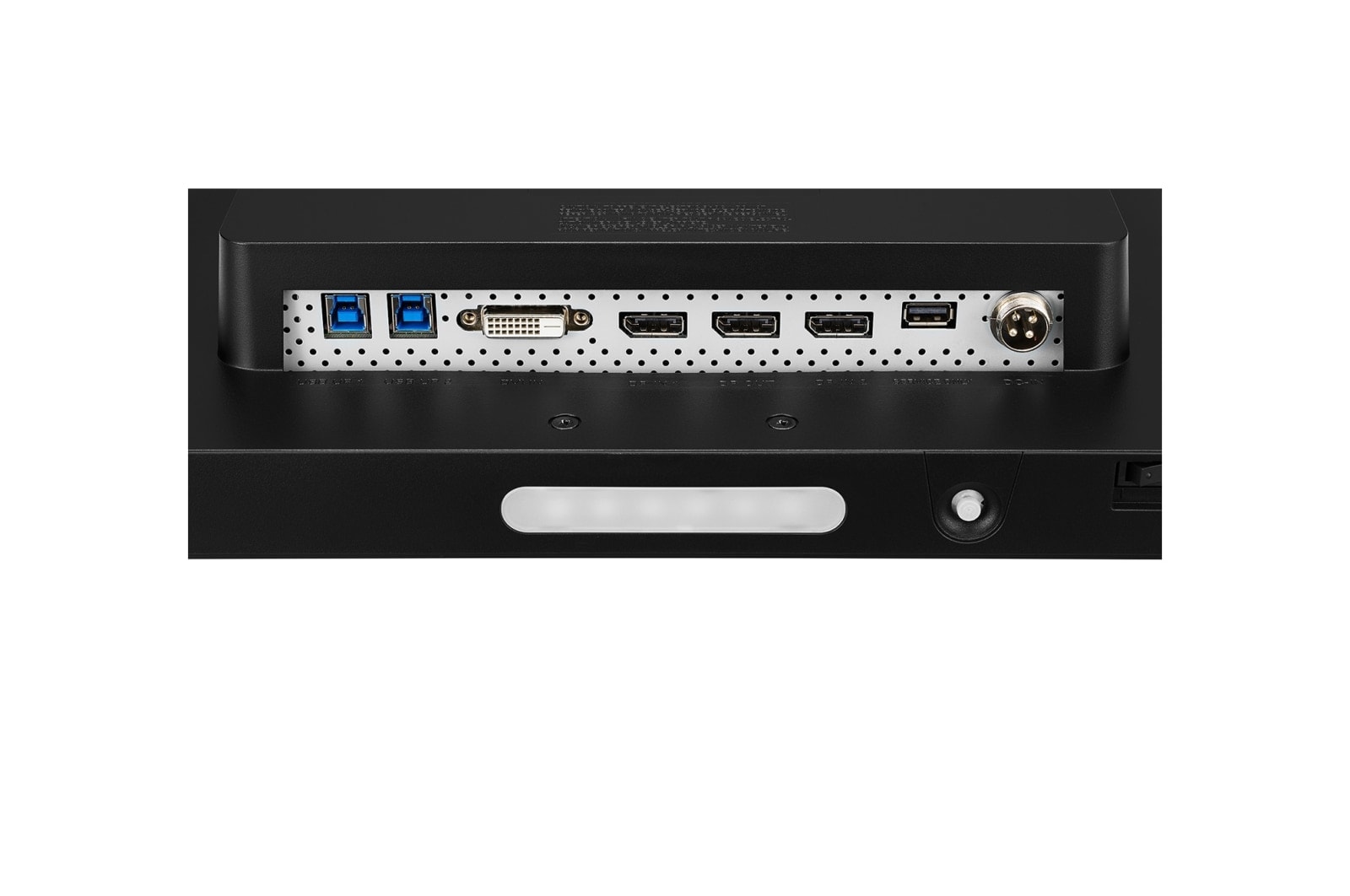

CONNECTIVITY

  • DisplayPort

    YES(In 2ea / Out 1ea)

  • DVI

    Yes (1ea)

  • Daisy Chain

    Yes(3MP/60Hz)

  • USB Downstream Port

    Yes(2ea/ver3.0)

  • USB Upstream Port

    Yes(2ea/ver3.0)

POWER

  • AC Input

    100-240Vac, 50/60Hz

  • DC Output

    19V, 6.32A

  • Power Consumption (DC Off)

    Less than 0.3W

  • Power Consumption (Max.)

    120W

  • Type

    External Power(Adapter)

MECHANICAL

  • Borderless Design

    Normal

  • Display Position Adjustments

    Tilt/Height/Pivot

  • Height Range

    110mm

  • Machanical Power Switch

    Yes

  • OneClick Stand

    Yes

  • Pivot

    Yes(±90°)

  • Tilt

    Yes (-5°~20˚)

  • Wall Mount Size

    100 x 100 mm

DIMENSIONS/WEIGHT

  • Dimension in Shiping (W x H x D)

    636x551x163

  • Dimension with Stand (W x H x D)

    343.1x640x234.6

  • Dimension without Stand (W x H x D)

    343.1x484x72.4

  • Pallet Stuffing (20ft/40ft/40ft HC)

    396/864/936

  • Weight in Shipping

    9.5Kg

  • Weight with Stand

    7.0kg

  • Weight without Stand

    5.0kg

ACCESSORY

  • Adapter

    Yes

  • Calibration Report (Paper)

    Yes

  • DVI-D

    Yes

  • Display Port

    Yes

  • Power Cord

    Yes

  • USB3.0 Upstream Cable

    Yes

WARRANTY

  • time/years

    5 years (subject to terms and conditions)

COMPLIANCE INFORMATION

MORE COMPLIANCE INFORMATION
The safety information for accessories is included with the safety information for the product and is not provided separately.

To access more technical documentation and downloads, please visit the LG B2B Partner Portal.
