Aspect Ratio
16:9
Backlight Dimming Technology
Global Dimming
Backlight Technology
LED
Backlight Type
Edge
Brightness (Min.)
360cd/m²
Brightness (Typ.)
450cd/m²
Brightness (Stabilization)
250 Clinical mode setting)/350 (Dignostic mode setting) cd/m²
Colour Bit
10bit (8bit+FRC)
Colour Depth (Number of Colours)
1.07B
Colour Gamut (Typ.)
DCI-P3 98%(CIE1976)
Contrast Ratio (Typ.)
1300:1
Contrast Ratio with DFC
Mega
Panel Type
IPS
Peak Brightness (Min.)
360cd/m²
Peak Brightness (Typ.)
450cd/m²
Pixel Pitch (H x V)
0.18159mm x 0.18159mm
Resolution
3840 x 2160
Response Time (GTG)
14ms (Off-setting), 5ms (Faster-setting)
Size (Inch)
31.5
Size (cm)
80.0051
Surface Treatment
Anti-glare, 3H
Viewing Angle (CR≥10)
178°(Right/Left), 178°(Up/Down)
Brightness stabilization
Yes
Black Stabilizer
Yes
Factory Calibration
Yes (Delta E<5, Gamma 1.8~2.6/DICOM curve)
HW Calibration
Yes (PerfectLum)
DICOM Compliant
Yes
Colour Temperature
6500K/7500K/9300K
Manual (5000K ~ 10000K)
Flicker safe
Yes
HDR 10
Yes
HDR Effect
Yes
Nano IPS™ Technology
Yes
OSD Language
17 Language
PBP
Yes (2PBP)
Multi-resolution Mode
Yes (8MP/6MP/4MP)
Pathology Mode
Yes
Picture Mode
(SDR) Custom, Mono, Pathology, Reader, Vivid, HDR Effect, DICOM (Clinical), DICOM (Diagnostic), Calibration 1, Calibration 2, (HDR) Custom, Vivid, Standard
Reader Mode
Yes
Smart Energy Saving
Yes
Super Resolution+
Yes
Uniformity
Yes
Wide Colour Gamut
Yes
Dual Controller
Yes
OnScreen Control (LG Screen Manager)
Yes
Qubyx
Yes
DisplayPort
Yes (2ea)
DP (HDCP Version)
2.2
DP (Max. Resolution at Hz)
3840 x 2160 at 60Hz
DP (H-Frequency)
30~135kHz
DP (V Frequency)
56~61Hz
DP Version
1.4
HDMI
Yes (1ea)
HDMI (HDCP Version)
2.2
HDMI (Max. Resolution at Hz)
3840 x 2160 @60Hz
HDMI (H Frequency)
30~135kHz
HDMI (V Frequency)
56~61Hz
HDMI Version
2.0
USB Downstream Port
Yes (2ea/ver2.0)
USB Upstream Port
Yes (1ea/ver2.0)
[Location]
Rear
AC Input
100-240Vac, 50/60Hz
DC Output
19V, 3.42A
Power Consumption (DC Off)
Less than 0.3W
Power Consumption (Max.)
65W
Power Consumption (Sleep Mode)
Less than 0.5W
Type
External Power (Adapter)
Base Detchable
Yes
Borderless Design
4-Side Virtually Borderless Design
Colour (Back Cover)
Black
Colour (Front Cabinet)
Black
Colour (Middle Cabinet)
Black
Colour (Stand Base)
Black
Colour (Stand Body)
Black

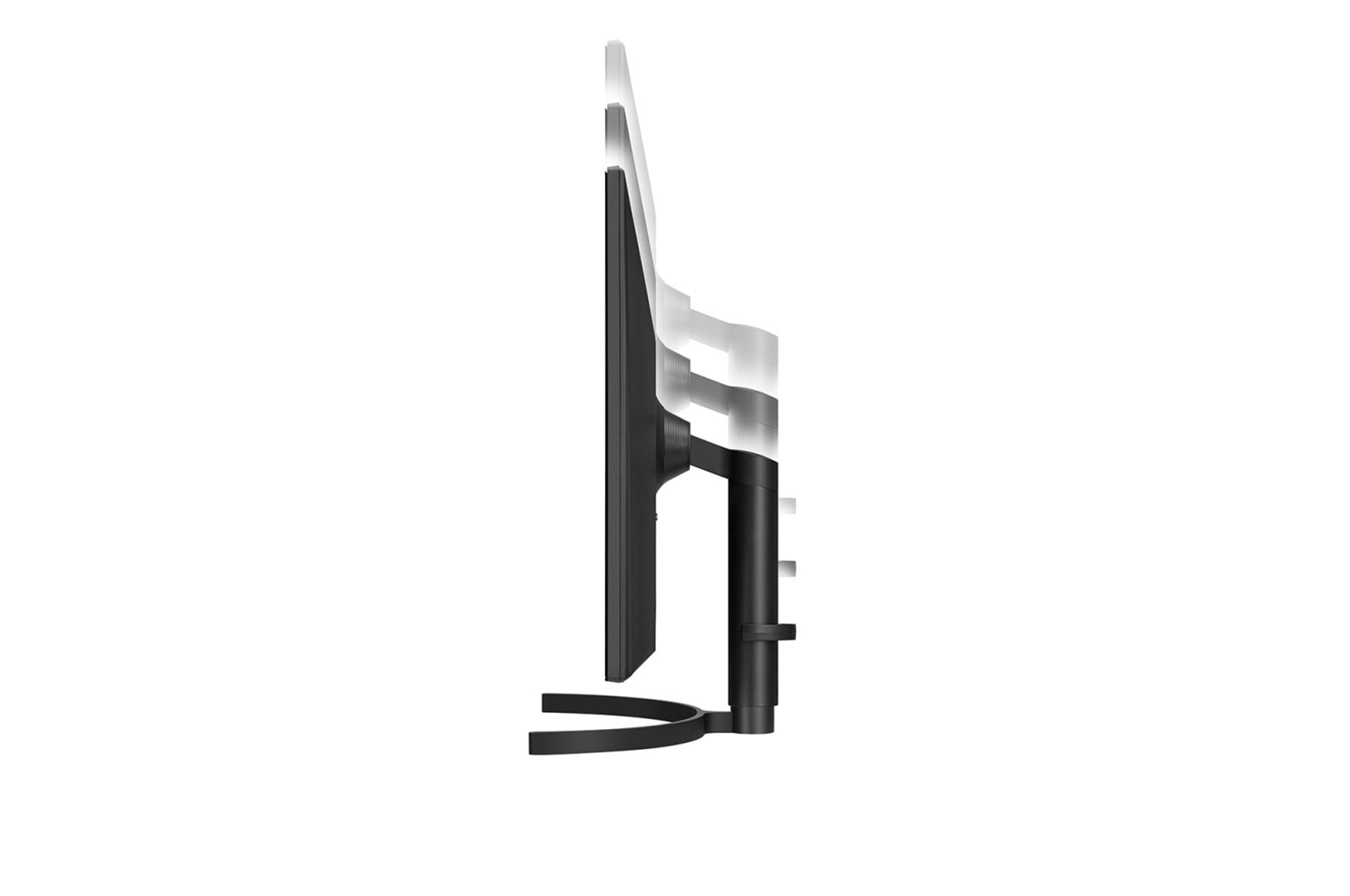

Display Position Adjustments
Tilt/Height/Pivot
Down Height
85.3mm
Height Range
110mm
OneClick Stand
Yes

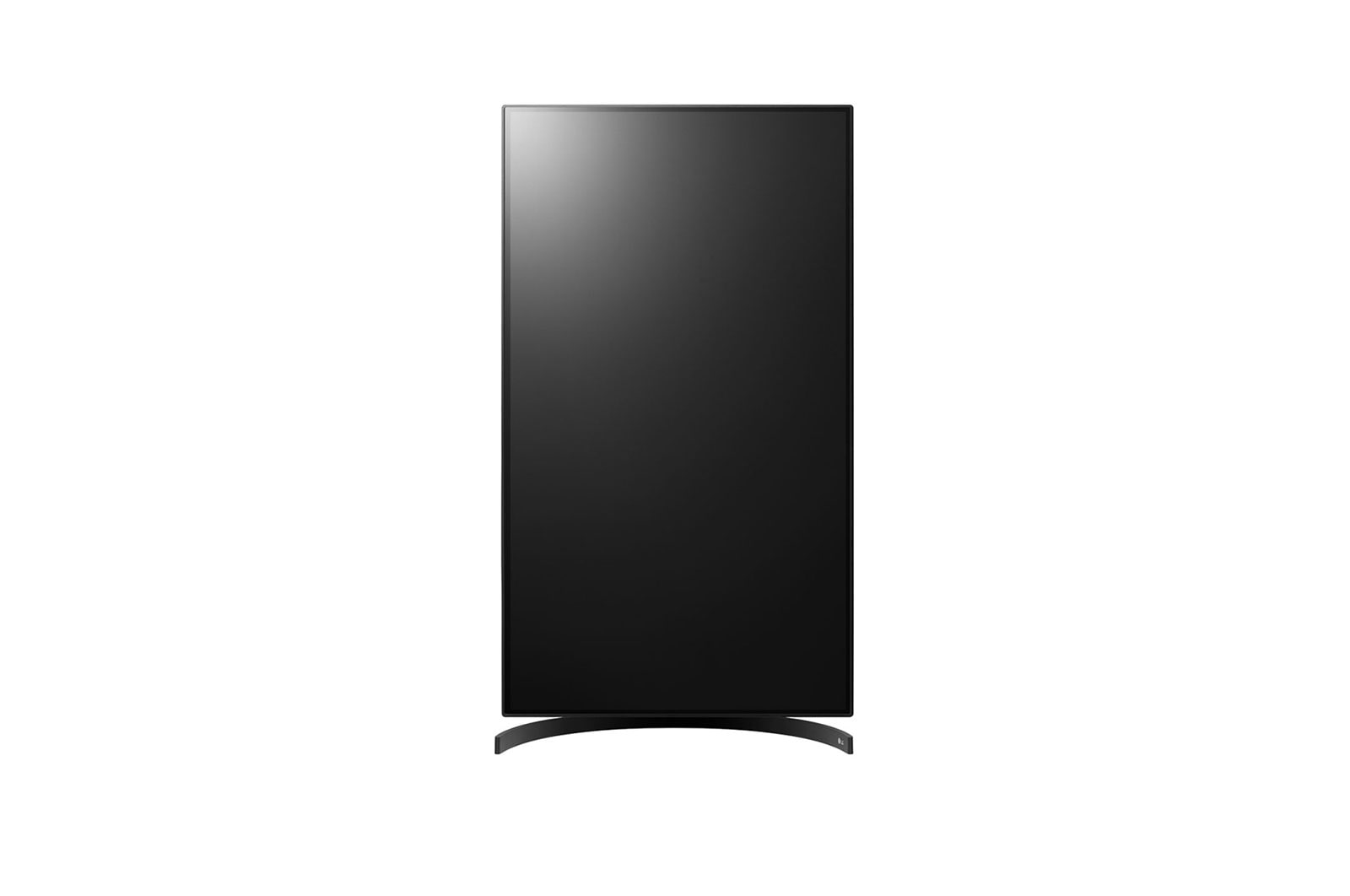

Pivot
Yes (±90°)
Tilt
Yes (-5°~20˚)
Wall Mount Size
100 x 100 mm
Dimension in Shiping (W x H x D)
838 x 553 x 240 mm
Dimension with Stand (W x H x D)
718.2 x 590.0 x 231.2 mm
Dimension without Stand (W x H x D)
718.2 x 414.3 x 45.1 mm
Pallet Stuffing (20ft/40ft/40ft HC)
144EA/336EA/560EA
Weight in Shipping
11.4kg (25.1lb)
Weight with Stand
7.0kg (15.4lb)
Weight without Stand
5.6kg (12.4lb)
IEC (IEC 60601-1 / IEC 60601-1-2)
Yes
EN (EN 60601-1 / EN 60601-1-2)
Yes
IEC (IEC 60950-1 / IEC 55032, 55024)
Yes
EN (EN 60950-1 / EN 55032, 55024)
Yes
cUL (ANSI/AAMI ES 60601-1, CSA CAN/CSA-C22.2 NO. 60601-1)
Yes
FCC (FCC part 15 Class A)
Yes
FDA
510 (k) (Class II)
ISO13485
Yes
GMP
Yes
KGMP
Yes
RoHS
Yes
REACH
Yes
WEEE
Yes
MFDS
Yes
Adapter
Yes
Adapter (Colour)
Black
Calibration Report (Paper)
Yes
Display Port
Yes
Display Port (Colour/Length)
Black/1.8m
HDMI
Yes
HDMI (Colour/Length)
Black/1.8m
Power Cord
Yes
Power Cord (Colour/Length)
Black/1.8m
time/years
5 years (subject to terms and conditions)
