All Spec
DIMENSION/WEIGHT(INCLUDING BATTERY)
-
Dimension / Weight (Including battery)
-
384 mm x 460 mm x 15.6 mm
3.2 kg (7.1 lbs)
INTENDED USE
-
Intended Use
-
General Radiography
TFT TYPE
-
TFT Type
-
a-Si
SCINTILLATOR
-
Scintillator
-
CsI
PIXEL PITCH
-
Pixel Pitch
-
140 ㎛
IMAGE AREA
-
Number of Pixels
-
2500 x 3052 pixels
-
TFT Active Area
-
350.0 x 427.28 mm
MTF
-
MTF @ 0.5lp/mm (Typ.)
-
84%
A/D CONVERSION
-
A/D Conversion
-
16 bit
-
Data Output
-
16 bit
COMMUNICATION
-
Type
-
Wired / Wireless
-
WLAN
-
IEEE802.11a/b/g/n/ac, 2.4GHz/5GHz
-
Auto Exposure Detection
-
Yes
CYCLE TIME
-
Cycle Time
-
4.5 sec (Wired) / 5 sec (Wireless)
FULL IMAGE TRANSFER(TYP.)*WITHOUT WINDOW TIME
-
Full Image Transfer (Typ.) *Without window time
-
1.5 sec (Wired) / 2 sec (Wireless)
DURABILITY
-
Maximum Load Weight
-
Full (Uniform Load) : 400 kg (881.8 lbs)
Local (Point Load) : 200 kg (440.9 lbs)
-
Watertightness
-
IP68
-
Sensor Protection Plate
-
Carbon Fiber Plate
BATTERY
-
Operation Time
-
300 shots / 7.5 hrs (Typ.) (Condition : Cycle Time 90 sec)
-
Charging Time
-
3 hrs (Typ.)
-
Hot Swap
-
Yes (1 Min)

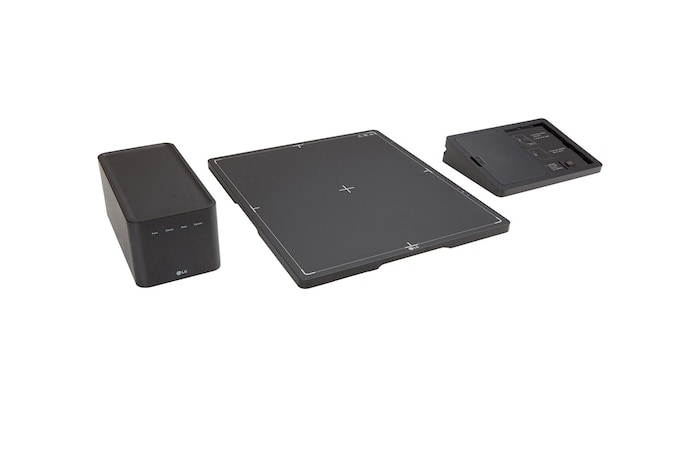

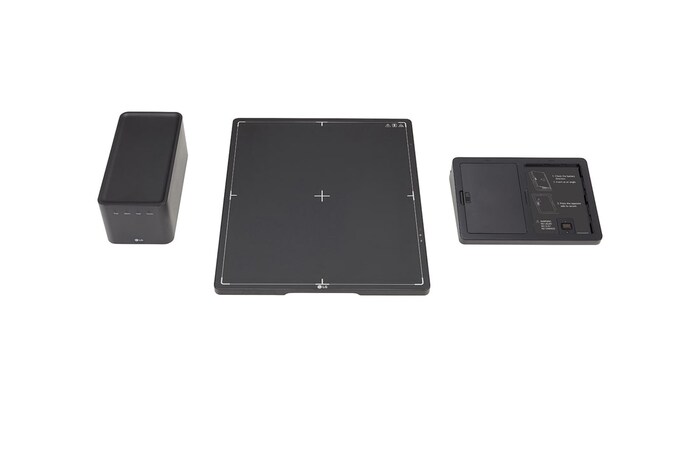

ACCESSORIES
-
Cable
-
Power Cord, Main Cable 7 m (LAN Cable, Sync Cable Option)
-
Other
-
Battery Charger
2 x Battery Packs
Control Box
COMPLIANCE INFORMATION
