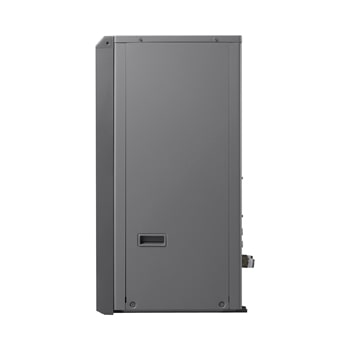

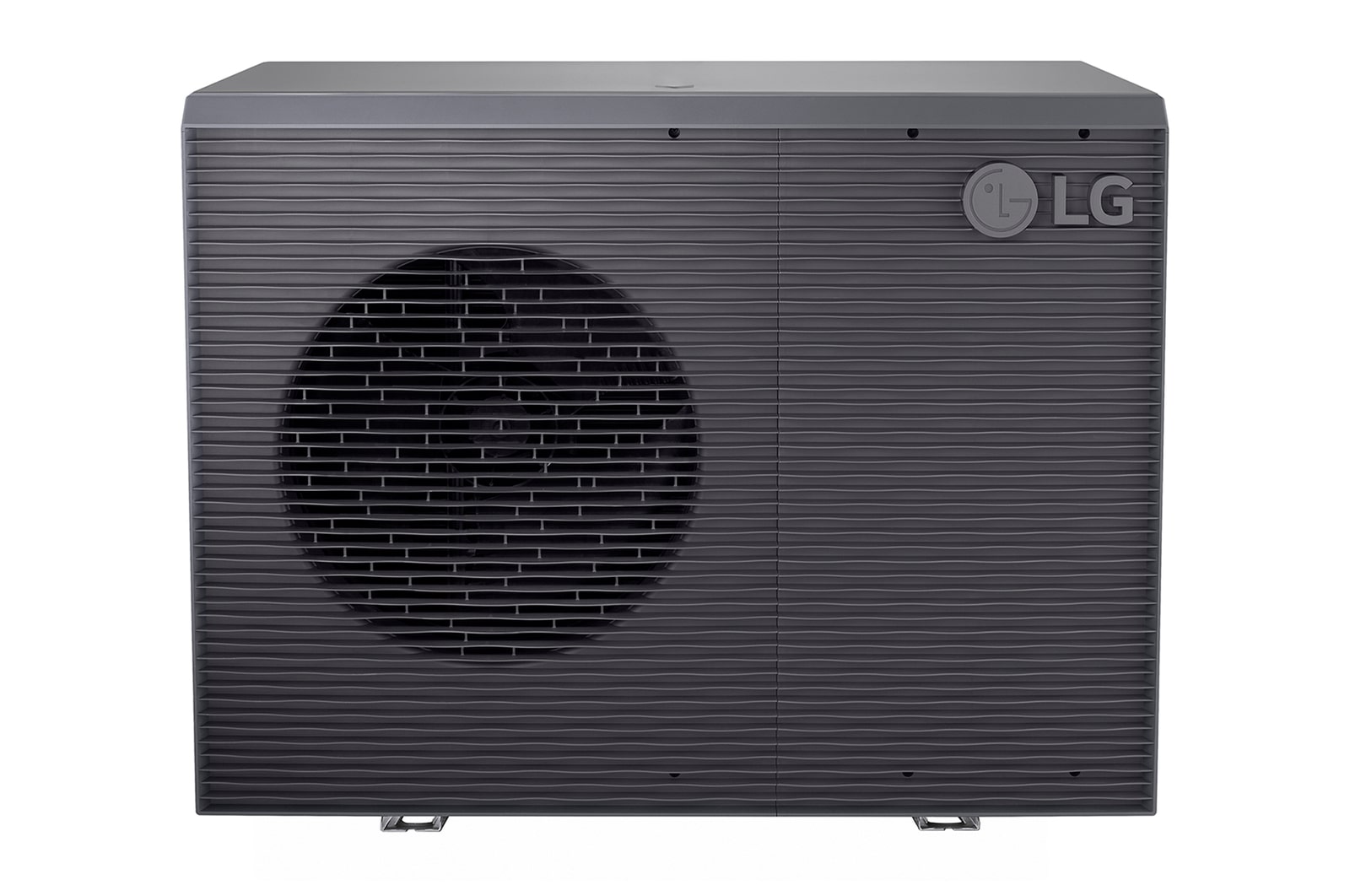

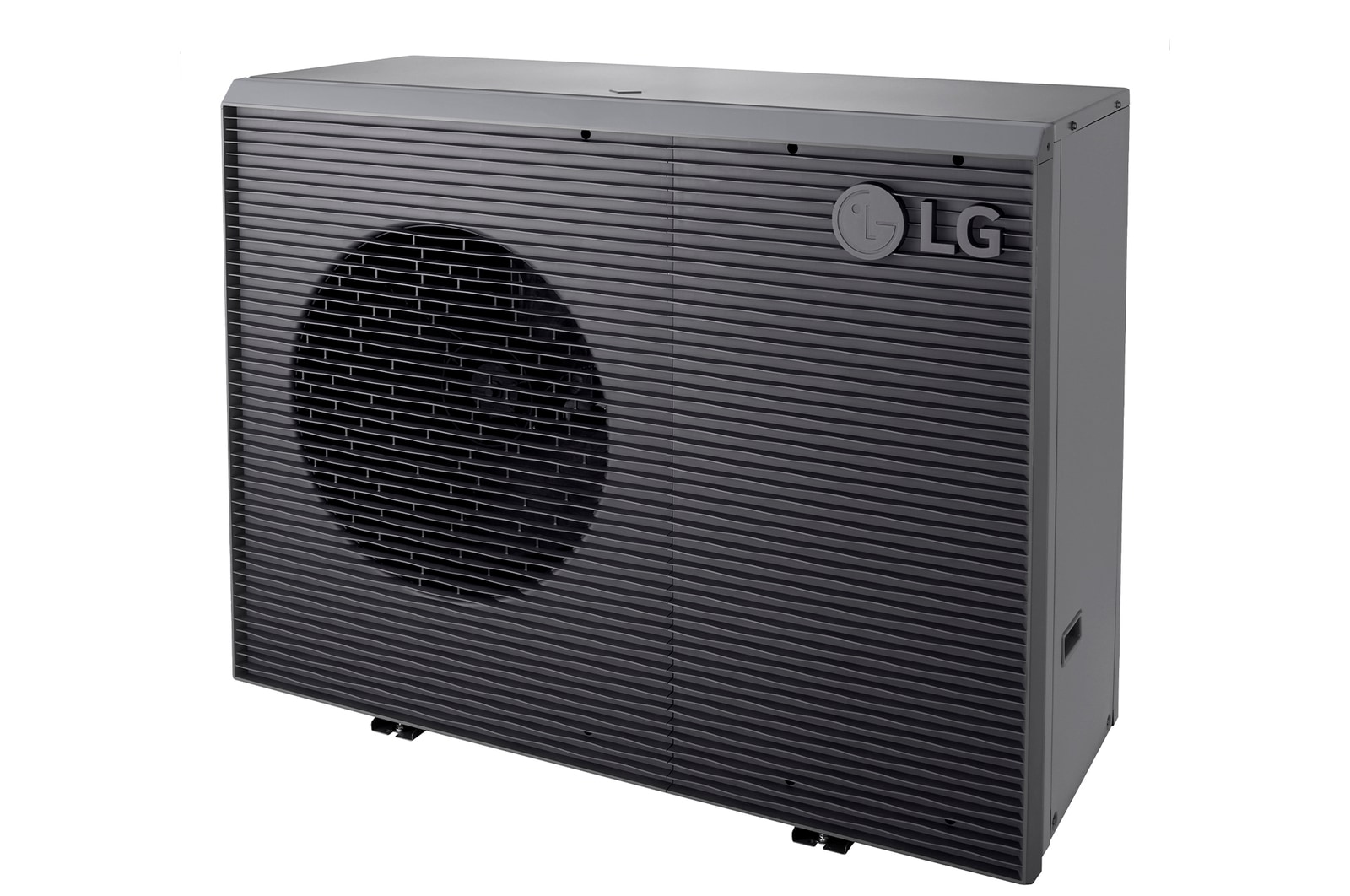

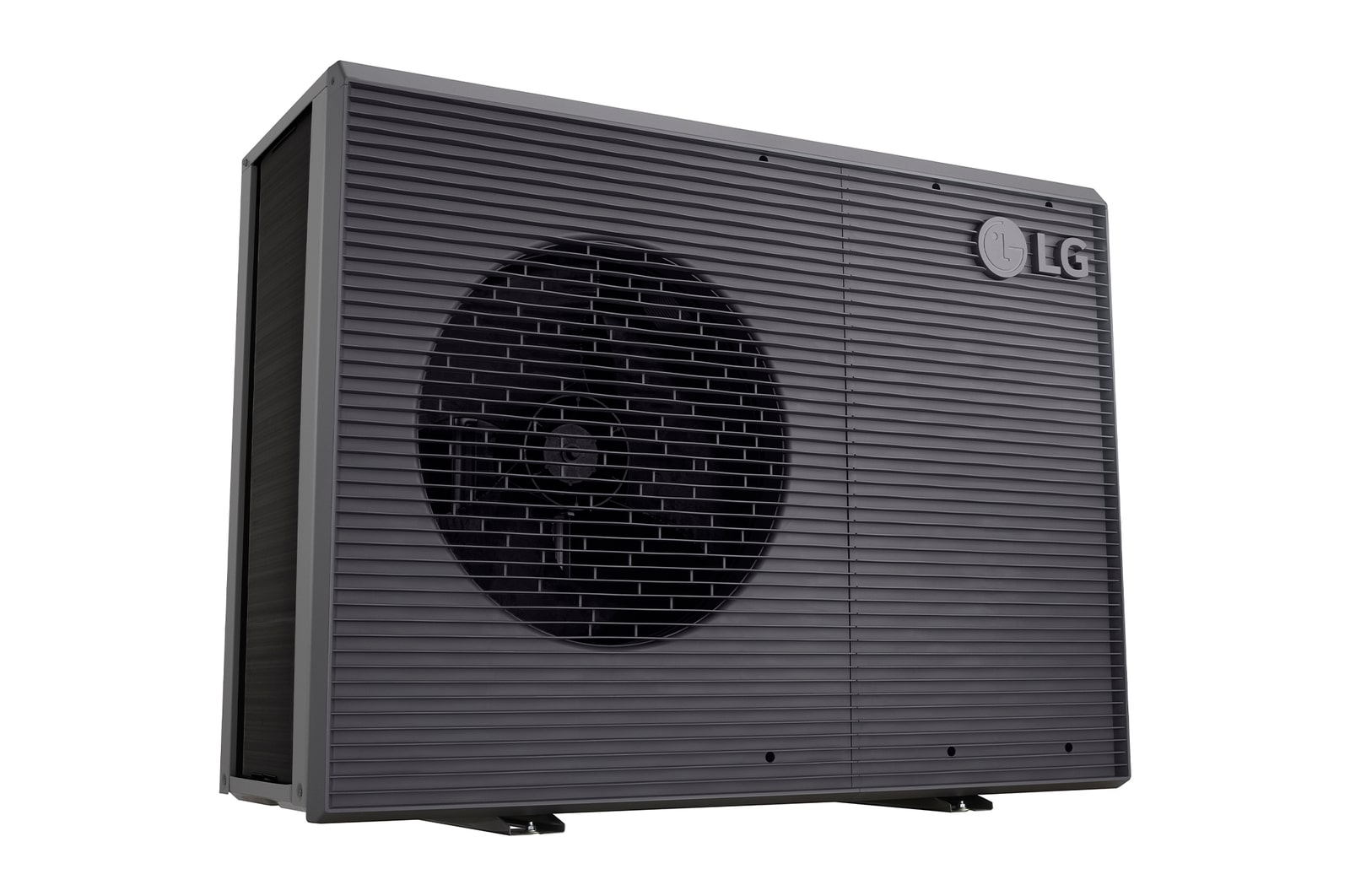

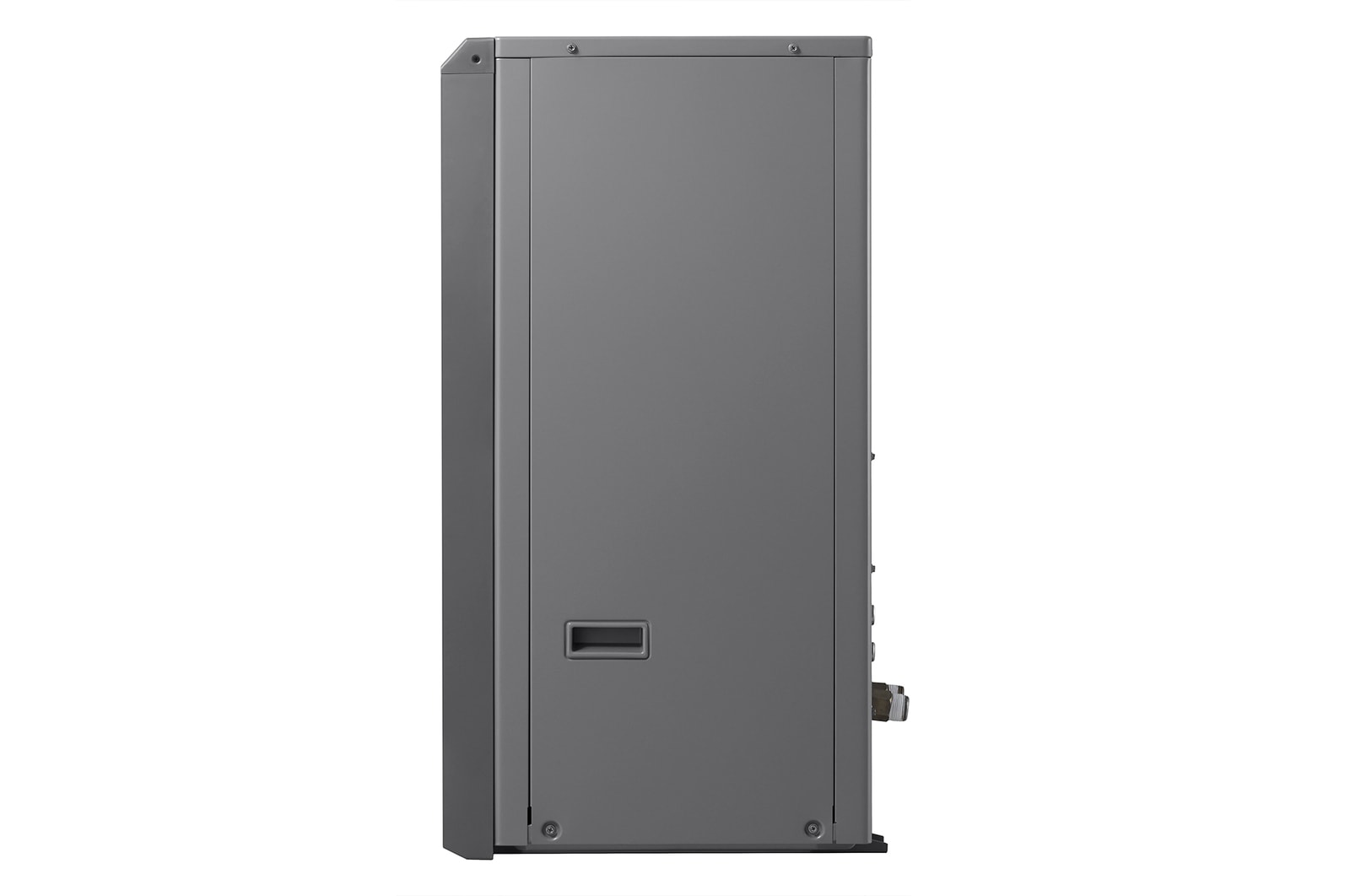

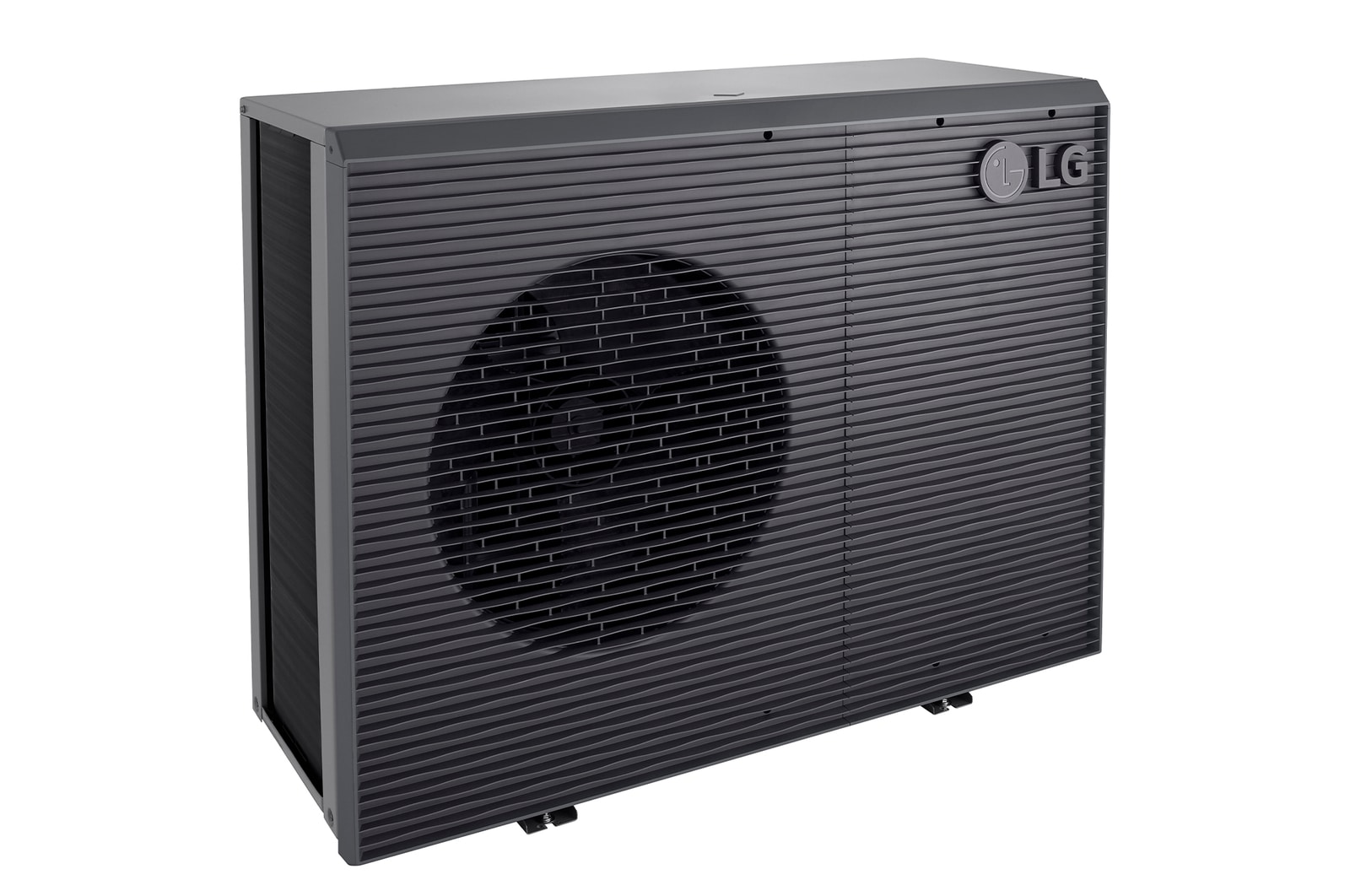

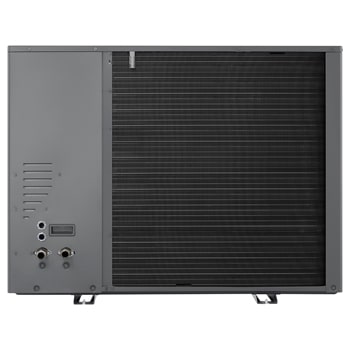

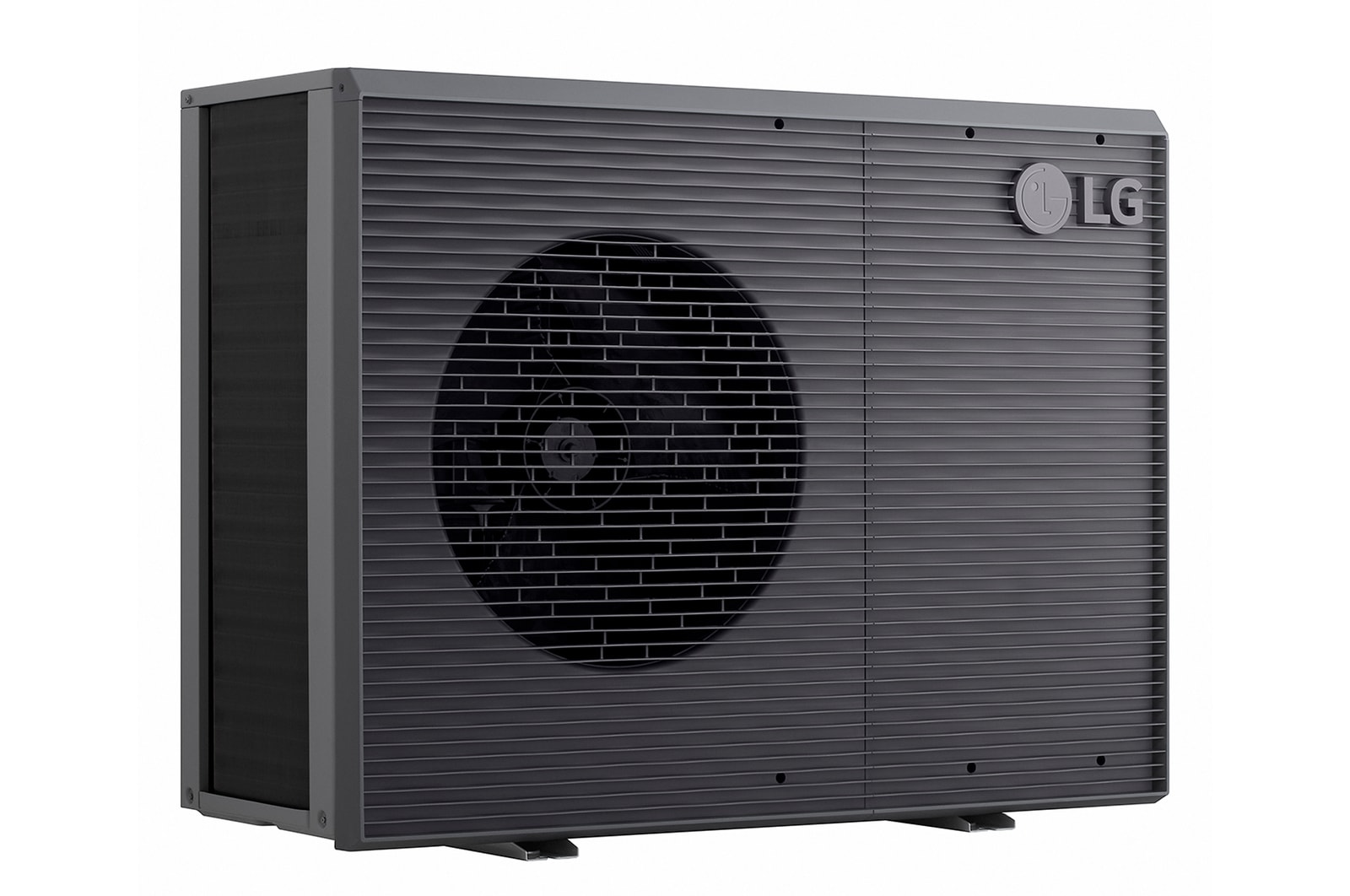

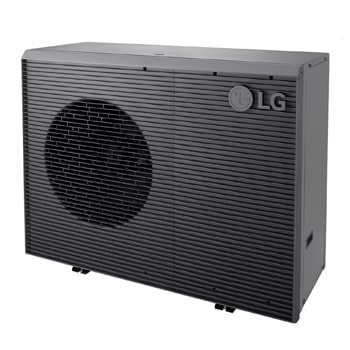

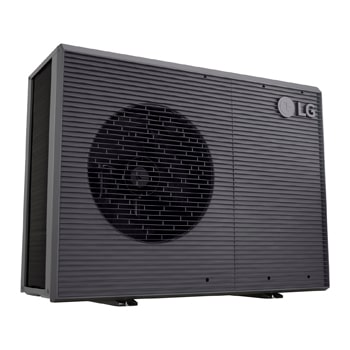

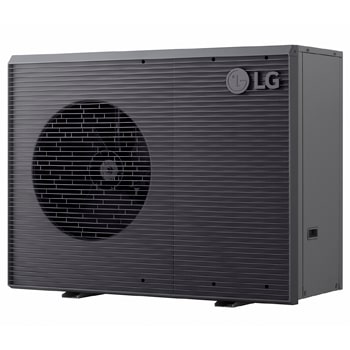

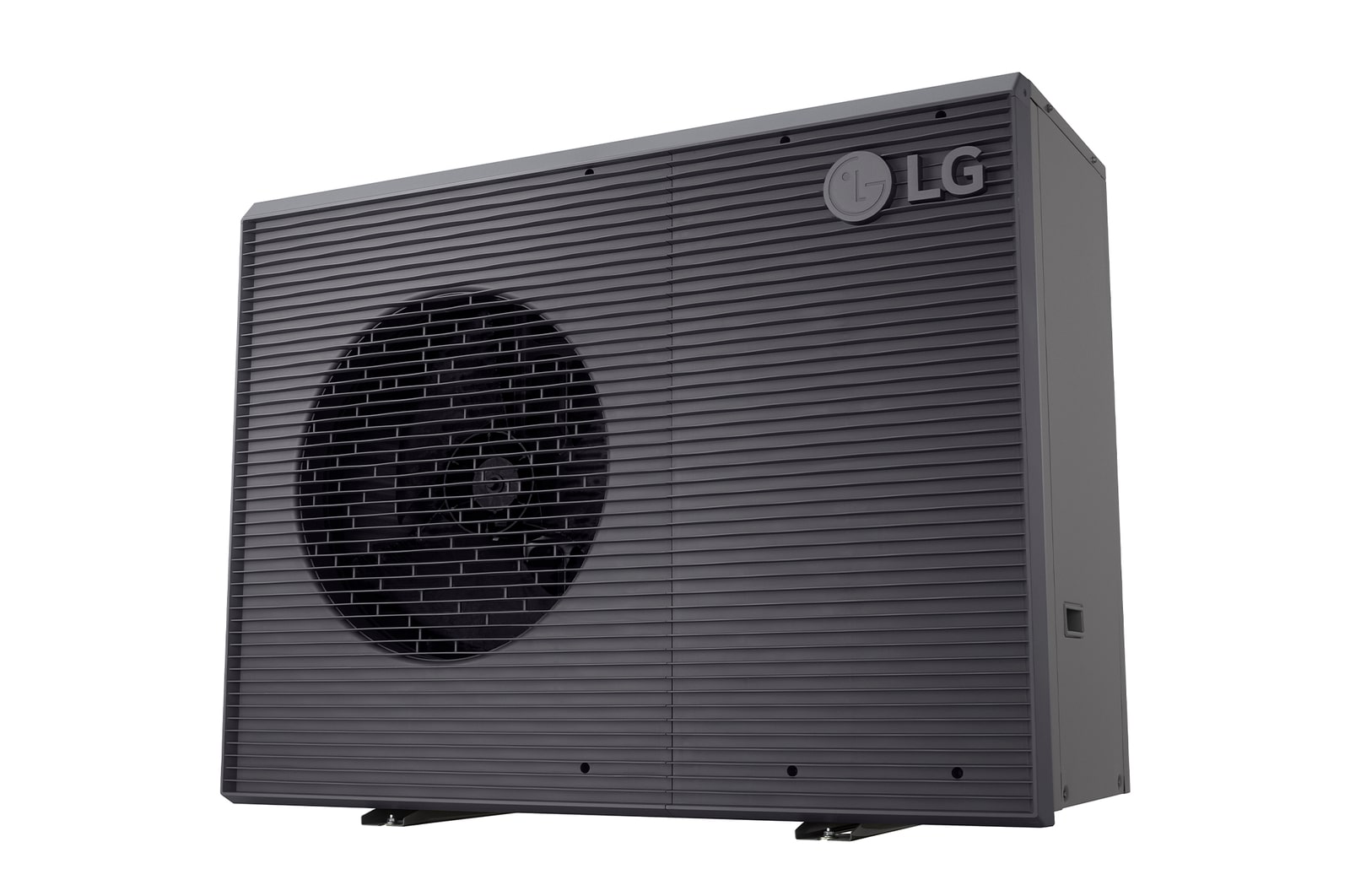

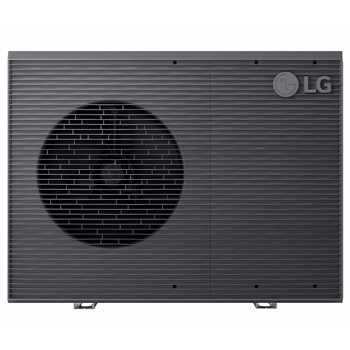

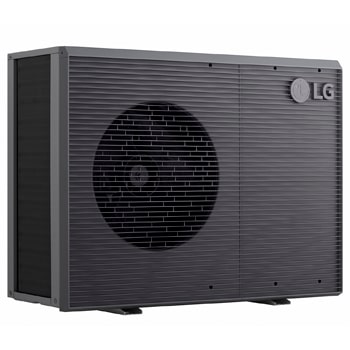

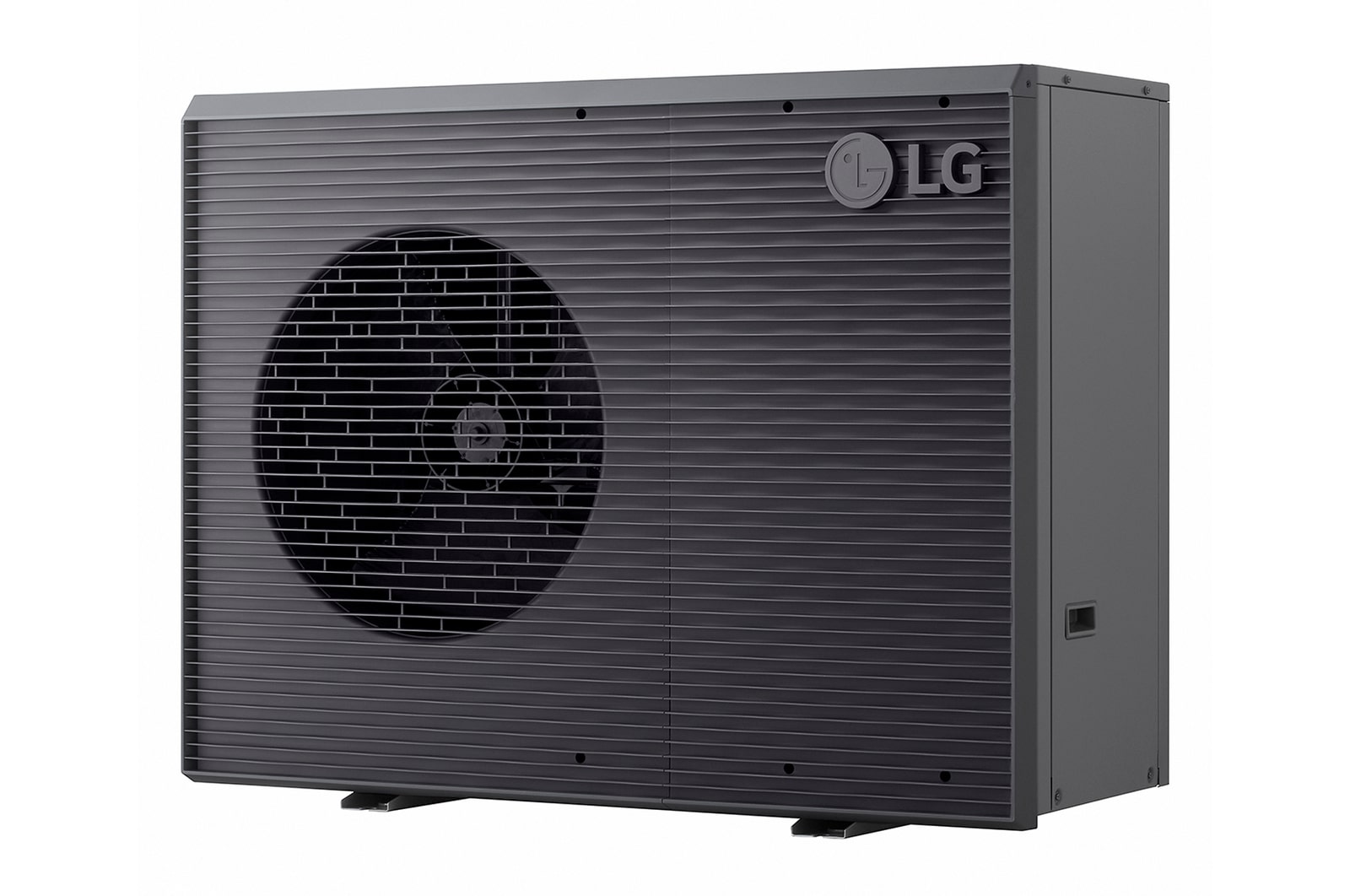

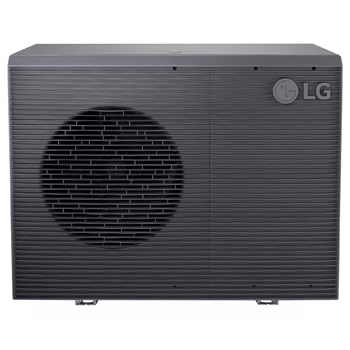

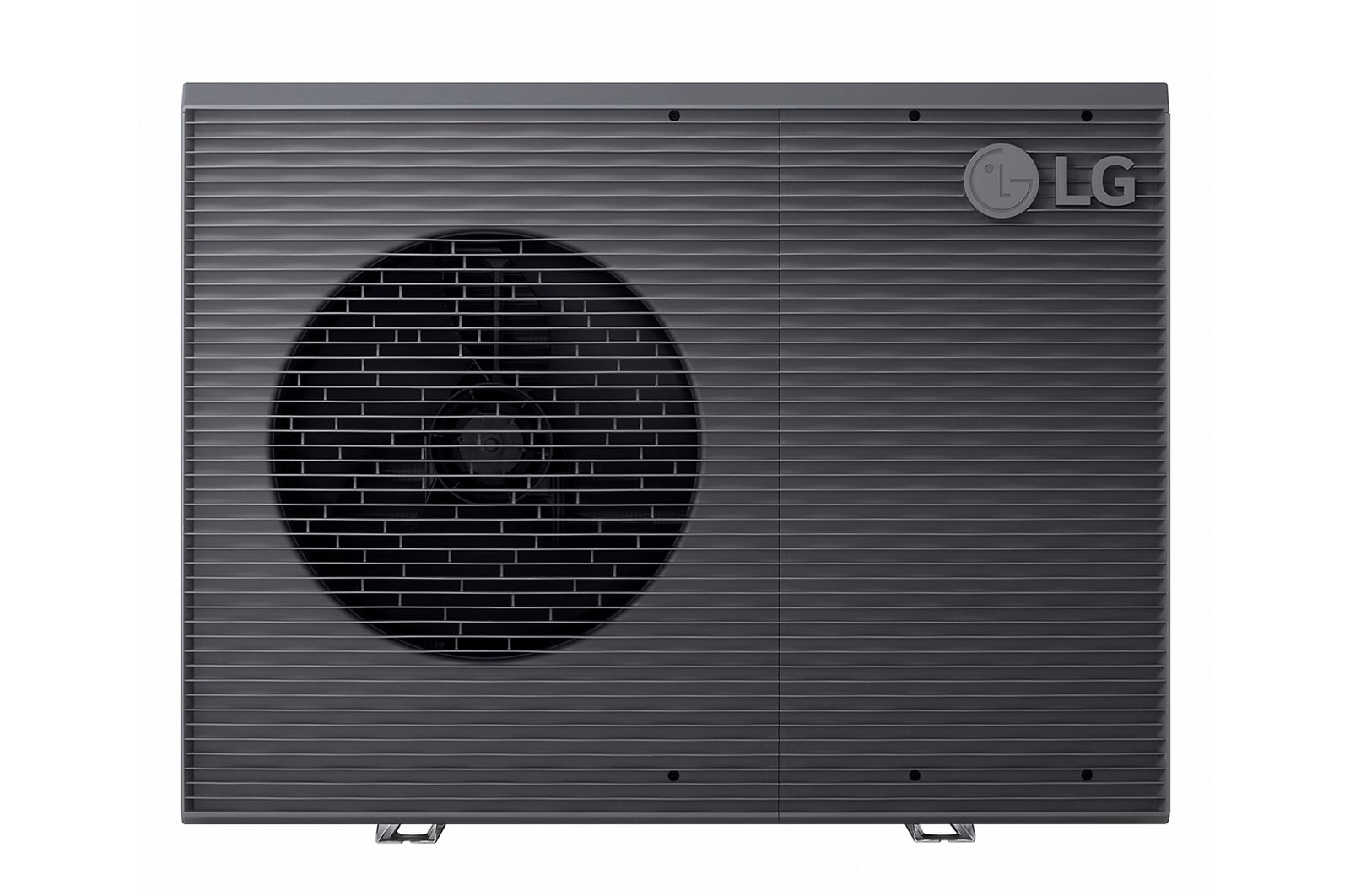

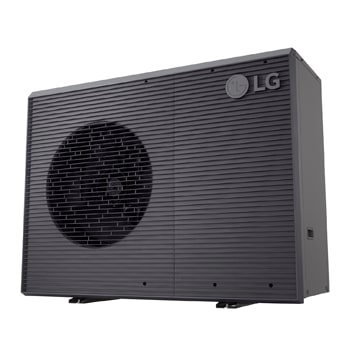

R32 Monobloc S, 1Ø, 16kW
Key Features
All-in-one outdoor unit includes all hydronic components in a package, ensuring space-efficiency and simplified installation.
Wide operation range ensures remarkable heating performance even in an extremely cold weather.
Noise reduction technology provides quieter and more comfortable experience, increasing installation flexibility in urban areas.
Color
Warm gray
RAL code
RAL 7044
COP
3.60
Heating capacity (kW)
13.80
COP
4.70
Heating capacity (kW)
16.00
COP
2.80
Heating capacity (kW)
12.00
Cooling capacity (kW)
16.00
EER
4.00
Cooling capacity (kW)
16.00
EER
3.10
Cooling (Min. ~ Max.) (℃)
5 ~ 27
DHW (Min. ~ Max.) (℃)
15 ~ 80
Heating (Min. ~ Max.) (℃)
15 ~ 65
Cooling (Min. ~ Max.) (℃)
5 ~ 48
Heating & DHW (Min. ~ Max.) (℃)
-25 ~ 35
Inlet diameter (inch)
Male PT 1"
Outlet diameter (inch)
Male PT 1"
Inlet diameter (inch)
Male PT 1"
Outlet diameter (inch)
Male PT 1"
Voltage, phase, frequency (V, Ø, Hz)
220-240, 1, 50
GWP
675
Precharged amount (g)
2,000
Type
R32
Seasonal space heating efficiency (ηS) (35℃ / 55℃)
178 / 135
SCOP (35℃ / 55℃)
4.53 / 3.45
Seasonal space heating eff. class (35℃ / 55℃)
A+++/A++
Rated / low noise mode (dB(A))
61 / 57
Rated / low noise mode (dB(A))
53 / 49
Rated / low noise mode (dB(A))
39 / 35
