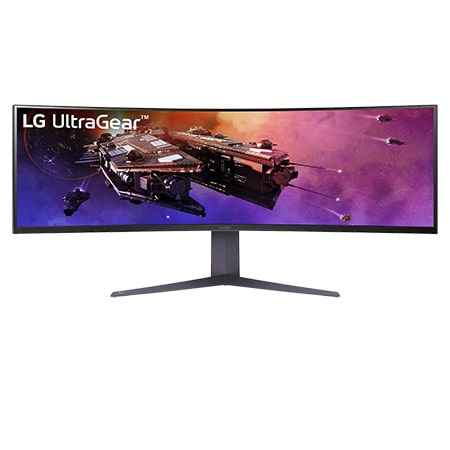

45" UltraGear™ DQHD curved monitor with 200Hz refresh rate
It shows 45GR75DC.
The magnificent graphics, the thrill of actions, and the pleasure of victory. The game world you have known will expand.
45" 32:9 Dual-QHD
1500R curved
VESA DisplayHDR™ 600
DCI-P3 95% (Typ.)
200Hz refresh rate
1ms (GtG) response time
AMD FreeSync™ Premium Pro
*It supports up to 200Hz Variable Refresh Rate (VRR). A graphic card that supports DisplayPort 1.4 (DSC), HDMI 2.1 or USB Type-C™is required to work correctly.
*The images simulated to enhance feature understanding. It may differ from actual use.
HDR 600 with DCI-P3 95% (Typ.)
Thanks to the wide colour gamut that supports DCI-P3 95% (Typ.) and VESA DisplayHDR™ 600, this monitor can deliver detailed-colour and contrast. Play games more lively with amazing colours.
It is a very vivid and colourful image with an astronaut.
*The images simulated to enhance feature understanding. It may differ from actual use.
PBP & PIP
With Picture-by-Picture and Picture-in-Picture, you can multitask while playing games by connecting various devices at the same time, splitting the screen, or floating a little window on the other window.
*The images simulated to enhance feature understanding. It may differ from actual use.
200Hz refresh rate, 1ms (GtG) response time
Get an edge in your game with clear and buttery movement by the 1ms fast time and a refresh rate that re-loads image frames 200 times a second, allowing you to respond fast with few visual obstacles such as input lag or reverse ghosting.
*The images simulated to enhance feature understanding. It may differ from actual use.
*To enable the 200Hz, a PC with a graphic card that supports DisplayPort 1.4 (DSC), HDMI 2.1 or USB Type-C™ is required.
DQHD@200Hz by DP, HDMI, USB Type-C
Fully enjoy constantly up to 200Hz refresh rate and DQHD resolution with HDMI2.1, DP1.4, and USB Type-C™.
*It supports up to 200Hz Variable Refresh Rate (VRR). A graphic card that supports DisplayPort 1.4 (DSC), HDMI 2.1or USB Type-C is required to work properly.
*The graphic card is sold separately.
USB Type-C™ (90W PD)
Create a clutterless gaming room with a USB Type-C™ port that supports connection to various devices, data transfer as well as up to 90W of power delivery via only a single cable.
*The images simulated to enhance feature understanding. It may differ from actual use.
*To work properly, the USB-Type-C™ cable included in the package is required to connect the USB-Type-C™ port to the monitor.
Immerse yourself with significantly reduced distractions such as tearing, stuttering, or jittering by the AMD FreeSync™ Premium Pro that synchronize the specification of the game, monitor, and graphic card.
Image with distractions
Tech applied
*The images simulated to enhance feature understanding. It may differ from actual use.
*The performance of the feature is compared to the models not applied the Sync technology.
*Errors or delays may occur depending on the network connection.
Enhance your gaming experience with an eye-catching design and a 3-side virtually borderless design. The adjustable base supports the monitor's tilt, height, and swivel to help you play games more comfortably.
Borderless design
3-side virtually borderless
Swivel
±15˚

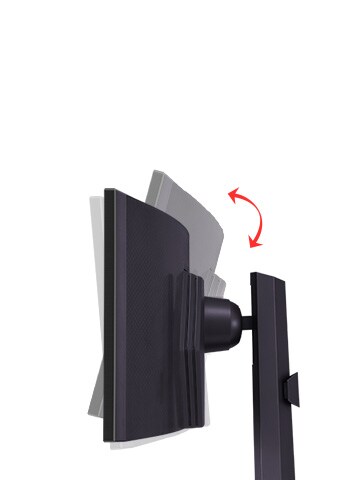

Tilt
-5~15°

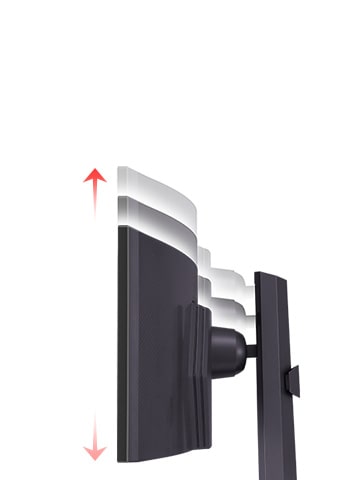

Height
110mm
*The images simulated to enhance feature understanding. It may differ from actual use.
See the live colours even in the low blue light option. LG's Live Colour Low Blue Light can reduce blue light by combining RGB hardware and software adjustments while maintaining vivid colour quality.
The image applied conventional low blue light
The image applied Live colour low blue light
*The images simulated to enhance feature understanding. It may differ from actual use.
*The performance of Live colour low blue light is compared to the typical low blue light mode.

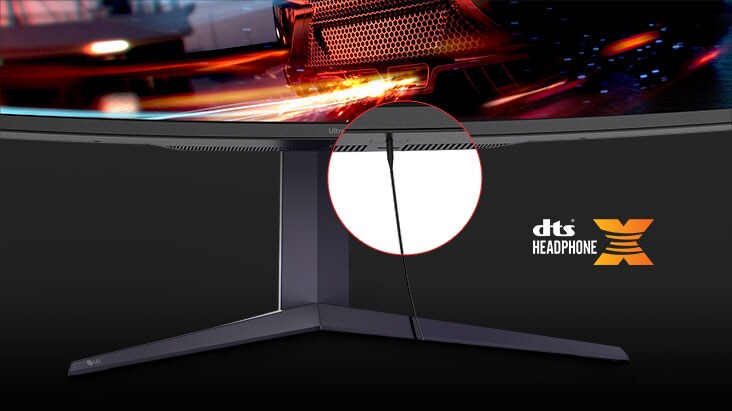

4-pole headphone out
Enjoy your games while having voice chat by connecting easily with 4-pole headphones out. Also, you can feel more immersive with virtual 3D sound with DTS Headphones :X.
*Headsets sold separately.
Reducing input lag with Dynamic Action Sync, gamers can catch critical moments in real time and respond quickly.
Black Stabilizer helps gamers detect snipers lurking in the darkest corners and swiftly navigate flash explosions.

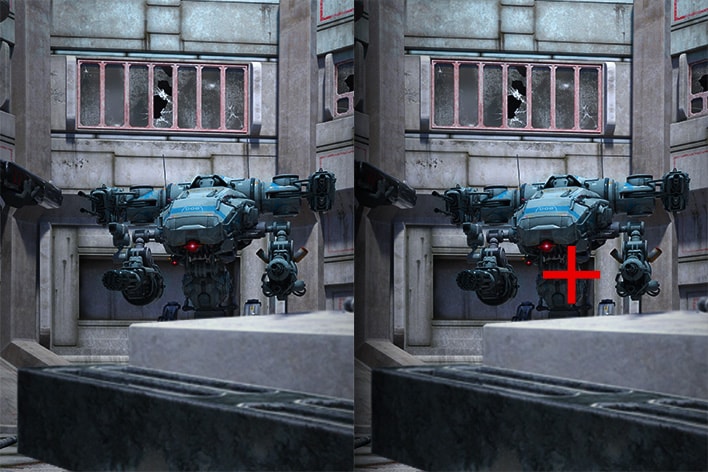

The target point is fixed in the center to enhance shooting accuracy.
The FPS Counter (Frame Per Second) will let you see how well everything is loading. Whether you're editing, playing games, or watching a movie, you'll have real-time data.
*The images simulated to enhance feature understanding. It may differ from actual use.
*The Crosshair feature is unavailable while FPS Counter is activated.
*FPS(Frame Per Second) Counter: Measurement of frames per second.
*FPS Counter may display the value that exceeds the monitor’s maximum refresh rate.
Gaming GUI
Gamers can use On-Screen Display and OnScreen Control to easily customize the setting from adjusting basic monitor options to registering a ‘User Defined Key’ that user can set the shortcut.
*To download the latest OnScreen Control, visit LG.COM.
*The images simulated to enhance feature understanding. It may differ from actual use.
Product name
UltraGear
Year
Y23
Size [Inch]
44.5
Size [cm]
113
Resolution
5120 x 1440
Panel Type
VA
Aspect Ratio
32:9
Pixel Pitch [mm]
0.2124 x 0.2124 mm
Color Gamut (Min.)
DCI-P3 90% (CIE1976)
Color Gamut (Typ.)
DCI-P3 95% (CIE1976)
Color Depth (Number of Colors)
1.07B
Contrast Ratio (Min.)
2400:1
Contrast Ratio (Typ.)
3000:1
Response Time
1ms (GtG at Faster)
Refresh Rate (Max.) [Hz]
200
Viewing Angle (CR≥10)
178º(R/L), 178º(U/D)
Curvature
1500R
Brightness (Min.) [cd/m²]
320 cd/m²
Brightness (Typ.) [cd/m²]
400 cd/m²
HDR 10
YES
Dolby Vision™
NO
VESA DisplayHDR™
DisplayHDR™ 600
HDR Effect
YES
Mini-LED Technology
NO
Nano IPS™ Technology
NO
Advanced True Wide Pol.
NO
Color Calibrated in Factory
YES
HW Calibration
NO
Auto Brightness
NO
Flicker Safe
YES
Reader Mode
YES
Color Weakness
YES
Super Resolution+
NO
AMD FreeSync™
FreeSync Premium Pro
VRR
YES
Black Stabilizer
YES
Dynamic Action Sync
YES
Crosshair
YES
FPS Counter
YES
OverClocking
NO
User Defined Key
YES
Auto Input Switch
YES
RGB LED Lighting
NO
PBP
2PBP
PIP
YES
Smart Energy Saving
YES
Camera
NO
LG Calibration Studio (True Color Pro)
NO
Dual Controller
YES
OnScreen Control (LG Screen Manager)
YES
LG UltraGear™ Control Center
NO
LG UltraGear™ Studio
NO
D-Sub
NO
DVI-D
NO
HDMI
YES(2ea)
DisplayPort
YES(1ea)
DP Version
1.4
Thunderbolt
NO
Thunderbolt (Data Transsmission)
NO
USB-C
YES(1ea)
USB-C (Max. Resolution at Hz)
5120x1440 at 200Hz
USB-C (Data Transsmission)
YES
USB-C (Power Delivery)
90W
Daisy Chain
NO
USB Upstream Port
YES(1ea/ver3.0)
USB Downstream Port
YES(2ea/ver3.0)
Built-in KVM
YES
LAN (RJ-45)
NO
SPDIF out (Optical Digital Audio Out)
NO
Audio In
NO
Mic In
NO
Headphone out
4-pole (Sound+Mic)
Line out
NO
Speaker
NO
Maxx Audio
NO
Rich Bass
NO
Type
External Power(Adapter)
AC Input
100~240V (50/60Hz)
Power Consumption (Sleep Mode)
Less than 0.5W
Power Consumption (DC Off)
Less than 0.3W
DC Output
19.5V , 10.8A
Display Position Adjustments
Tilt/Height/Swivel
Wall Mountable [mm]
100 x 100 mm
Dimension with Stand (W x H x D) [mm]
1083.7 x 559.4 x 328.3mm(UP) / 1083.7 x 449.4 x 328.3mm(DOWN)
Dimension without Stand (W x H x D) [mm]
1083.7 x 332.6 x 163.8mm
Dimension in Shiping (W x H x D) [mm]
1181 X 285 X 476 mm
Weight with Stand [kg]
8.8kg
Weight without Stand [kg]
6.2kg
Weight in Shipping [kg]
13.7kg
D-Sub
NO
DVI-D
NO
HDMI
YES (ver 2.1)
Thunderbolt
NO
USB-C
YES
Display Port
YES
USB A to B
YES
Remote Controller
NO
Others (Accessory)
Mouse Holder , Body cable holder
Adapter
YES
Calibration Report (Paper)
YES
HDMI (Color/Length)
Black / 1.8m
Power Cord
YES
