23.6" Smart HD Ready LED TV Monitor
UK EU
Product Information Sheet

Specs

Reviews

Support

23.6" Smart HD Ready LED TV Monitor

UK EU
Product Information Sheet
24TN520S

23.6" Smart HD Ready LED TV Monitor

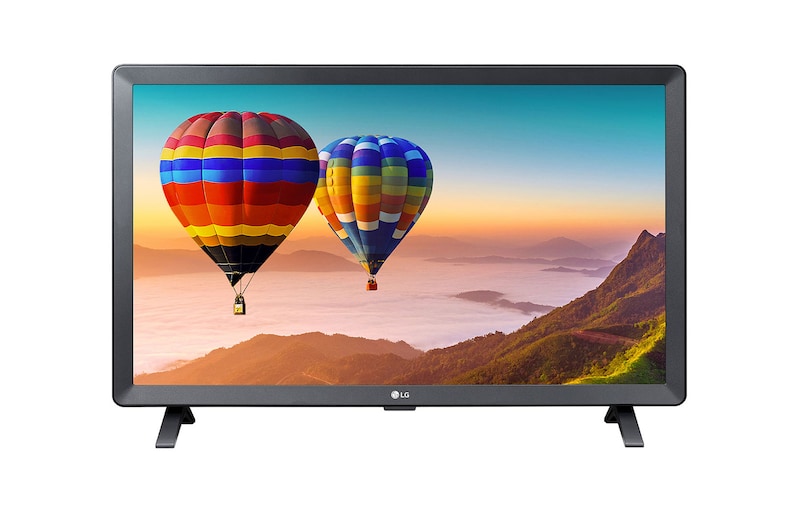

front view
Print

All Spec

GENERAL

  • Size (Inch / cm)

    23.6" / 60cm

  • Panel Type

    Wide Viewing Angle

  • Colour Gamut (CIE1931)

    NTSC 68%

  • Colour Bit

    8bit

  • Colour Depth (Num of Colours)

    16.7M

  • Pixel Pitch (mm)

    0.38175 x 0.38175

  • Aspect Ratio

    16:9

  • Resolution

    1366 x 768

  • Brightness (Typ.)

    200cd/m2 (Typ.) 160cd/m2 (Min.)

  • Contrast Ratio (Original)

    1000:1(typ.)

  • (DFC)

    Mega

  • (GTG)

    14ms (Faster)

  • Viewing Angle (CR≥10)

    178/178

  • Backlight Type

    Edge

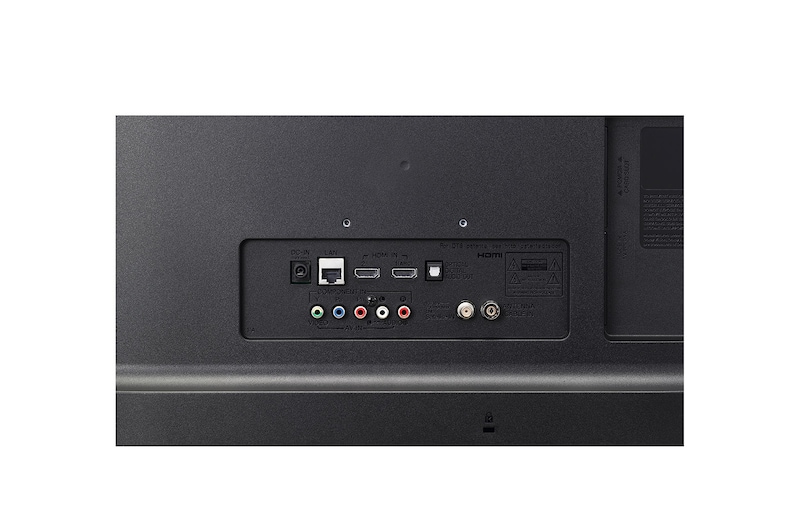

JACK INPUT/OUTPUT

  • CI Slot

    Yes

  • Composite

    Yes

  • Component

    Yes

  • HDMI

    Yes (2ea)

  • Optical out

    Yes

  • (Audio Input) RCA

    Yes

  • USB (Ver.)

    Yes (USB2.0 1EA)

  • [ Jack Location ]

    Rear/Side

  • Bluetooth

    Yes

  • LAN

    Yes

  • Wi-Fi

    Yes

SPEAKER

  • Audio output

    5W

  • Others

    Equalizer, Virtual Surround, AVL (Auto Volume)

POWER

  • Type

    Adapter

  • Input

    100-240 Vac, 50/60 Hz

  • DC Output

    40W (19V 2.1A)

  • Normal On (typ.)

    28W

  • DC Off (Max)

    0.4W

RESOLUTION

  • Component

    480i, 480p, 720p, 1080i, 1080p

  • Composit

    480i

  • Video (HDMI)

    480p, 720p, 1080i, 1080p

  • PC (HDMI)

    1360 x 768 (Native)

FREQUENCY

  • HDMI (H-Frequency)

    30~83kHz

  • HDMI (V-Frequency)

    58Hz~62Hz

CONTROL KEY

  • [ Key Location ]

    Bottom(center)

  • Key Number (Power Key Included)

    1 Key

  • Key Type

    Tact 1 key

  • LED Colour (On mode)

    Off

  • LED Colour (Standby)

    Red

OSD

  • Languange(Country)

    11

  • Number of Language

    35

SPECIAL FEATURE

  • Bluetooth Audio

    Yes

  • Energy Saving

    Yes

  • Eye Comfort Mode

    Yes

  • Motion Eye Care

    Yes

  • Music

    Yes

  • Photo&Video

    Yes

  • Screen Share (Wi-Fi Mirroring)

    Yes

  • Launcher (Recent/home/My Apps)

    Yes

  • Quick Start

    Yes

  • Apps & Games

    Yes

  • Movies (VoD)

    Yes

  • Premium LG Content

    Yes

  • TV Show (Catch-up)

    Yes

  • Live Menu

    Yes (Recommend, Channels, Recording)

  • Voice Recognition

    Yes (Natural Language)

  • Magic Remote 3 Mode

    Yes

  • LG TV Plus App

    Yes

  • Bluetooth wireless headphone

    Yes

  • Google Dial

    Yes

  • Network File Brower (DLNA)

    Yes (no DLNA)

  • Miracast

    Yes

  • WiDi

    Yes

  • Web Browser

    Yes

  • Mobile TV On

    Yes

  • Simplink (HDMI CEC)

    Yes

  • Wi-Fi B/in / Wi-Fi Ready

    Wifi B/in

  • WiFi Direct

    Yes

  • ARC-PC

    Same as ARC-Video

  • ARC-Video

    16:9 - DTV, ATV, AV, Component, HDMI / Just Scan – DTV, Component, HDMI (720p↑) / Set By Program - DTV, ATV, AV, Component, HDMI / 4:3 - DTV, ATV, AV Component, HDMI / Zoom - DTV, ATV, AV, Component, HDMI / Cinema Zoom - DTV, ATV, AV, Component, HDMI

  • Audio Description (Visual Impaired)

    Yes

  • Auto / Manual Clock

    Yes

  • Auto Off / Auto Sleep

    Yes

  • EPG

    Yes

  • On/ Off Time

    Yes

  • Picture Mode

    Vivid/ Standard/ Eco/ Cinema/Sport/Game/Expert(Bright Room)/Expert(Dark Room)

  • Plug & Play

    DDC2B

  • Remote Control

    Yes

  • Sleep Timer

    Yes

  • Tuner

    Yes (Analog - NTSC)

  • HDCP

    Yes

COLOUR

  • B/Cover

    Black

  • Front

    Iron Gray

  • Stand

    Iron Gray

STAND

  • Base Detchable

    Yes

  • Wall Mount (mm)

    75 x 75

DIMENSION(W*D*H, MM)

  • Set (with Stand)

    563.1 x 150.1 x 367

  • Set (without Stand)

    563.1 x 58 x 340.9

  • Box

    640 x 413 x 126

  • Wall Mount size (mm)

    75 x75

WEIGHT(KG)

  • Set (with Stand)

    3.3

  • Set (without Stand)

    3.25

  • Box

    4.5

STUFFING

  • Pallet (20ft/40ft/40ft HC)

    720 / 1440 / 1620

WRAP

  • Box Printing Type

    Flexo

  • Handle

    No (Hand hole)

  • Packing Material

    EPS

  • Stacking Type

    Face Down

  • Stand Packing Type

    Base Detach

STANDARD

  • CE

    Yes

  • DTS

    Yes (DTS 2.0 Channel)

  • Dolby Audio

    Yes

  • ERP

    Yes

ACCESSORY

  • Adapter

    Yes

  • Battery

    Yes (remote controller)

  • HDMI

    Yes (2ea)

  • Remote Controller

    Yes
