Display Technology
0.7" DMD (DDP3020)
Native Resolution
XGA (1024 x 768)
Brightness(ANSI-Lumens)
5000
Contrast Ratio (FIFO)
2800:1
Noise (dB)
High Brightness: 36, Economic: 33
Uniformorty(min)JBMA
>80%
Colour wheel
6 segment (RGBWYC)
Projection Lens
Focus: Manual, Zoom: Manual 1.2x
Projection Image
Standard: 100"@2.5m (4:3) Semi Short Throw, Throw Ratio: 1.23/1.47
Projection Offset
100%
Lamp Power (W)
UHP / 300W
Lamp life (hours)
2000

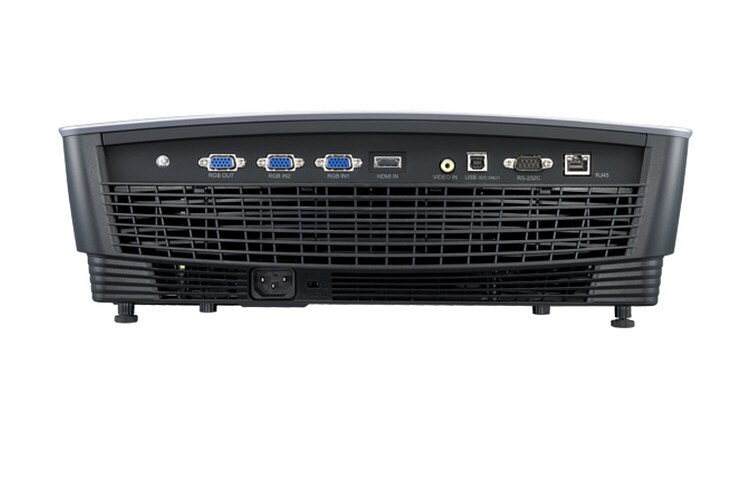

RGB Input
2xRGB in
RGB Output
1xRGB out
Video Input
S Video: No, Composite: 1, Component (Y/Pb/Pr): 2 (Thru RGB), RS-232C: 1
Composite(AV) in
1
Component (YPbPr)
2 (thru RGB)
Ethernet
1 (RJ45)
HDMI
1 (Ver 1.3)
USB
1xUSB(SVC)
Digital Keystone Correction
Advanced (H/V)
Picture Still
Yes
Quick Power on/off
Yes (On-12sec, Off-20sec)
Auto Sleep
Yes (Off/10/20/30/60/ 90/120/180/240)
Auto Source Detection
Yes
Blank
Yes (Blue, Green, Black, Logo, Captured image)
Image Flip
Yes - Vertical/Horizontal
Colour Temperature
Yes (Warm, Medium, Cool, Natural)
Over Scan
Yes (0~10%)
BrilliantColor™
Yes
Black Level Control
Yes (High / Low)
Expert control (RGBCMY Gain/Sat/Hue Adjustment)
Yes
VIDI™
Yes
Cabinet Colour
Titan Silver / Black
Local Key
Yes
Kensington Lock
Yes
Lamp
Top Replacement
Cable
D-sub, Power cord
Remote control
Yes
CD Manual
Yes
AAA * 2EA Battery
Yes
Safety Regulation
CE, IEC, MIC, USA/ Japanese/ Chinese
