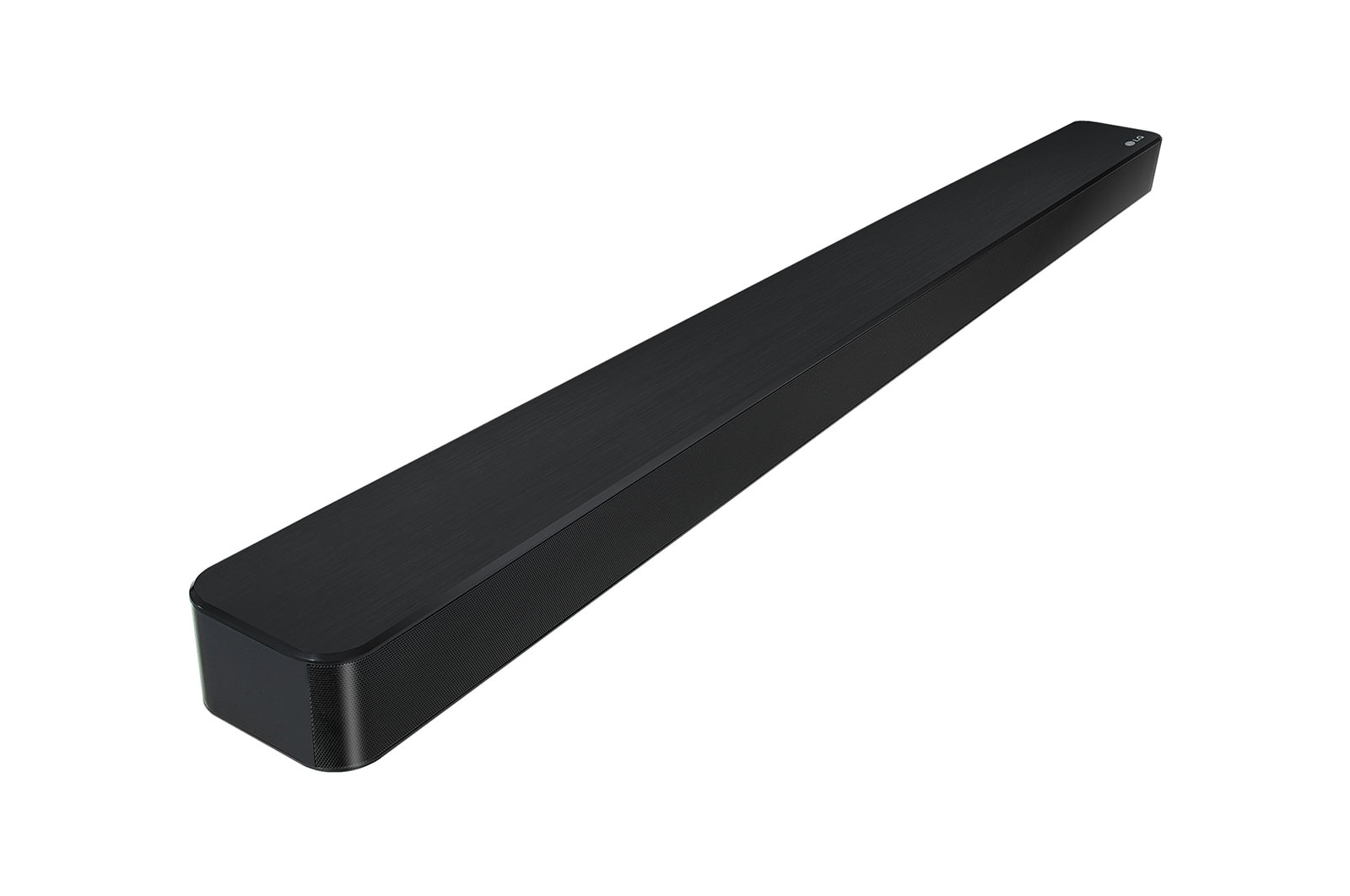

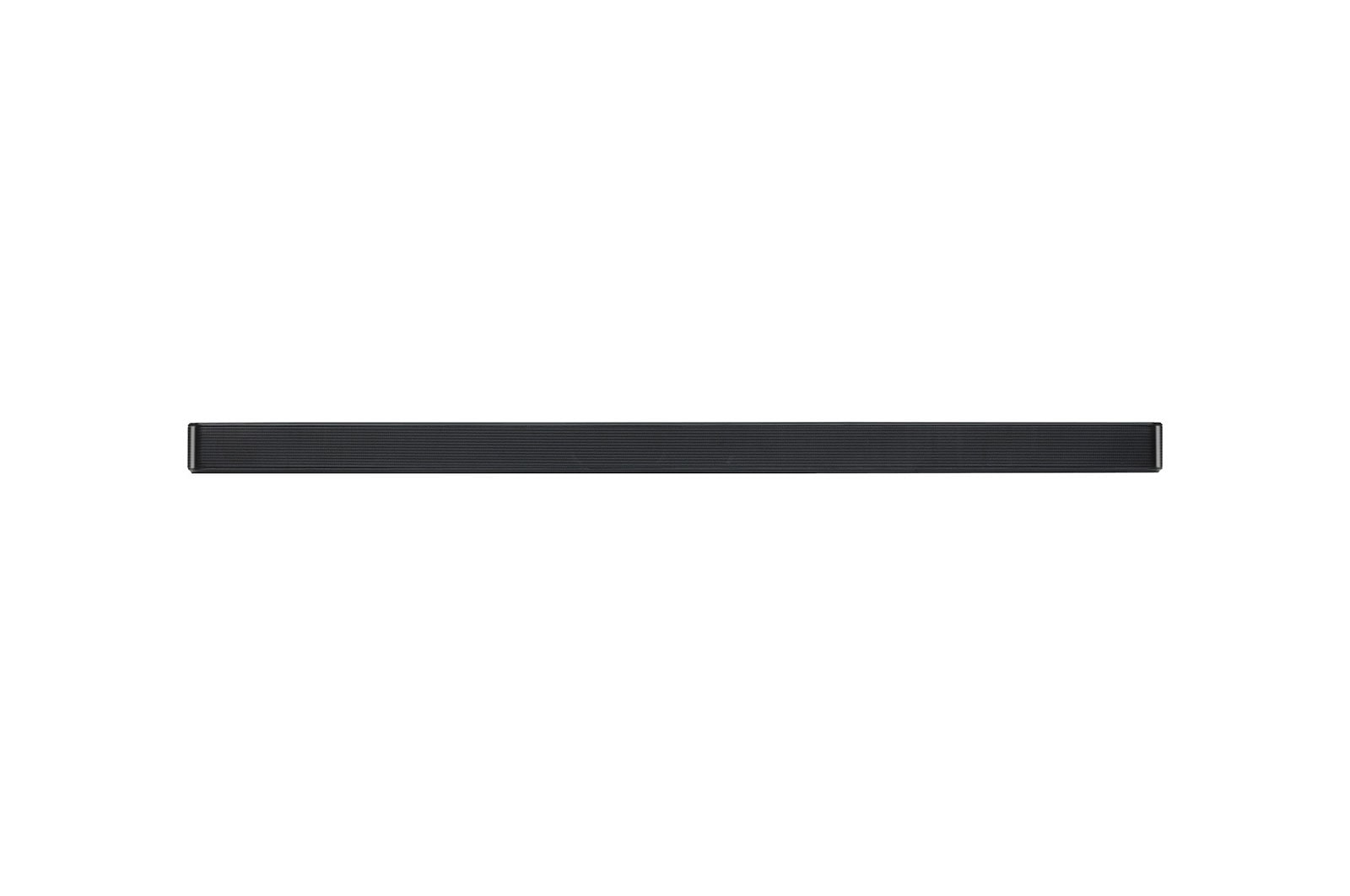

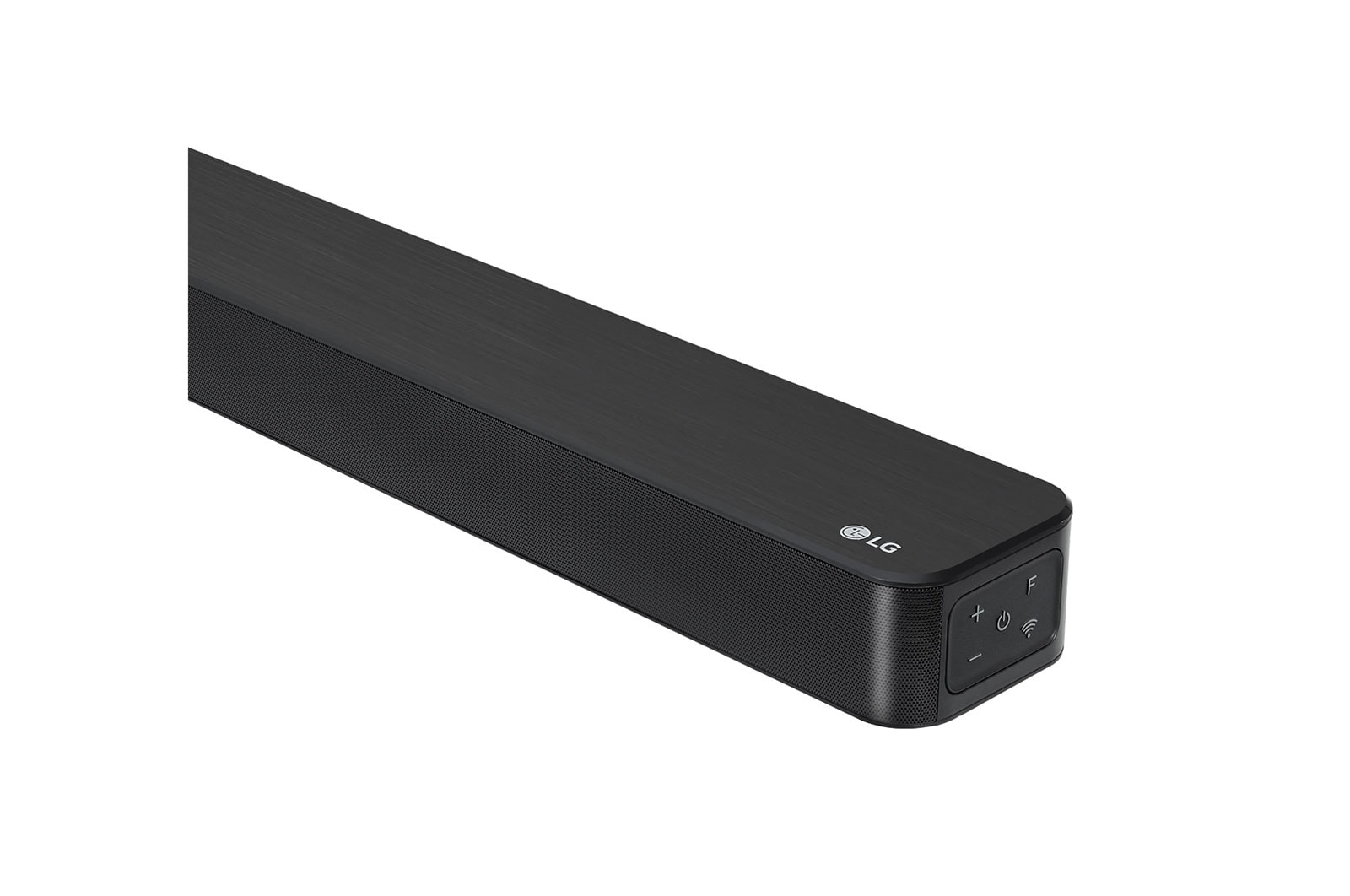

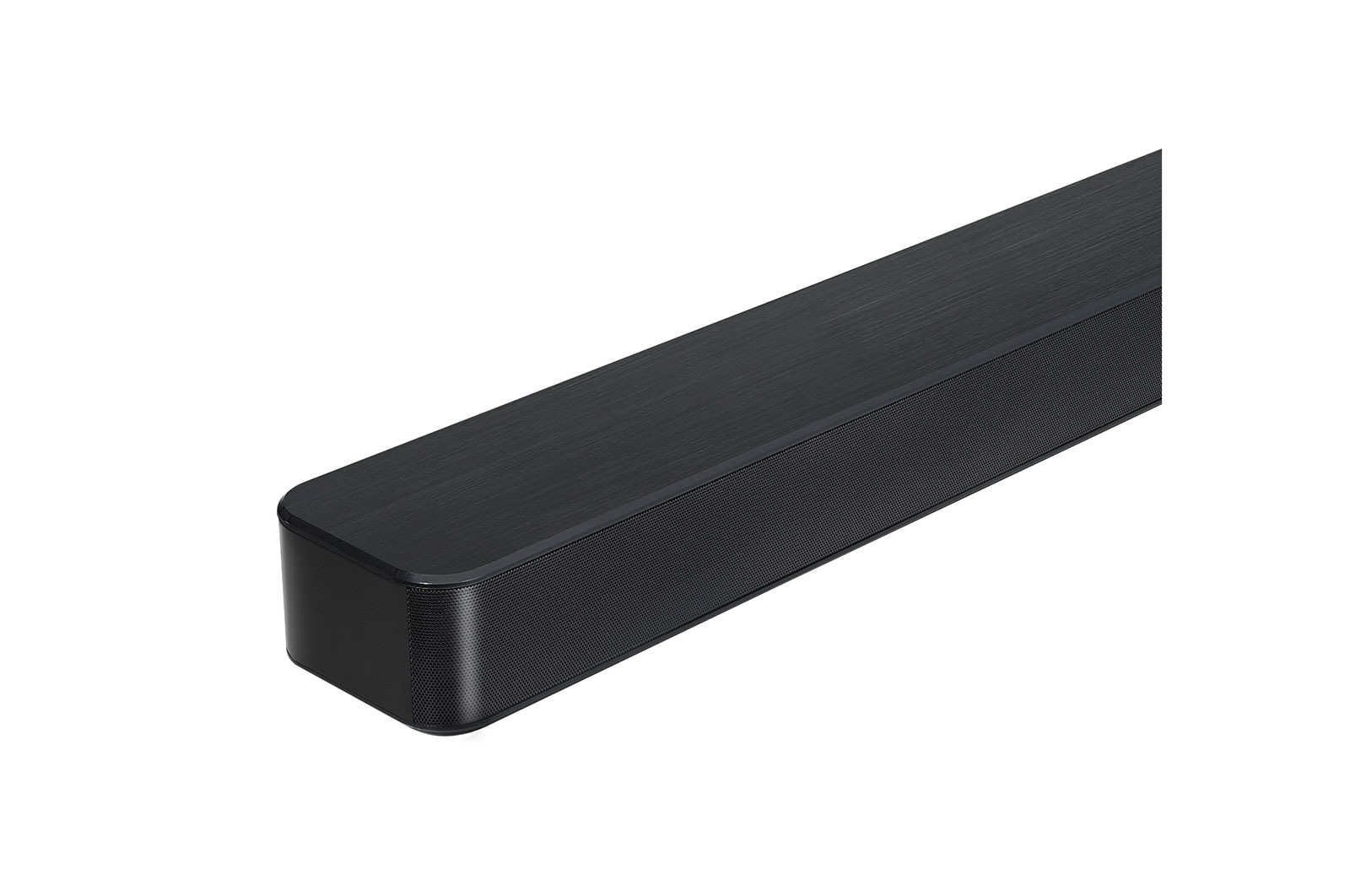

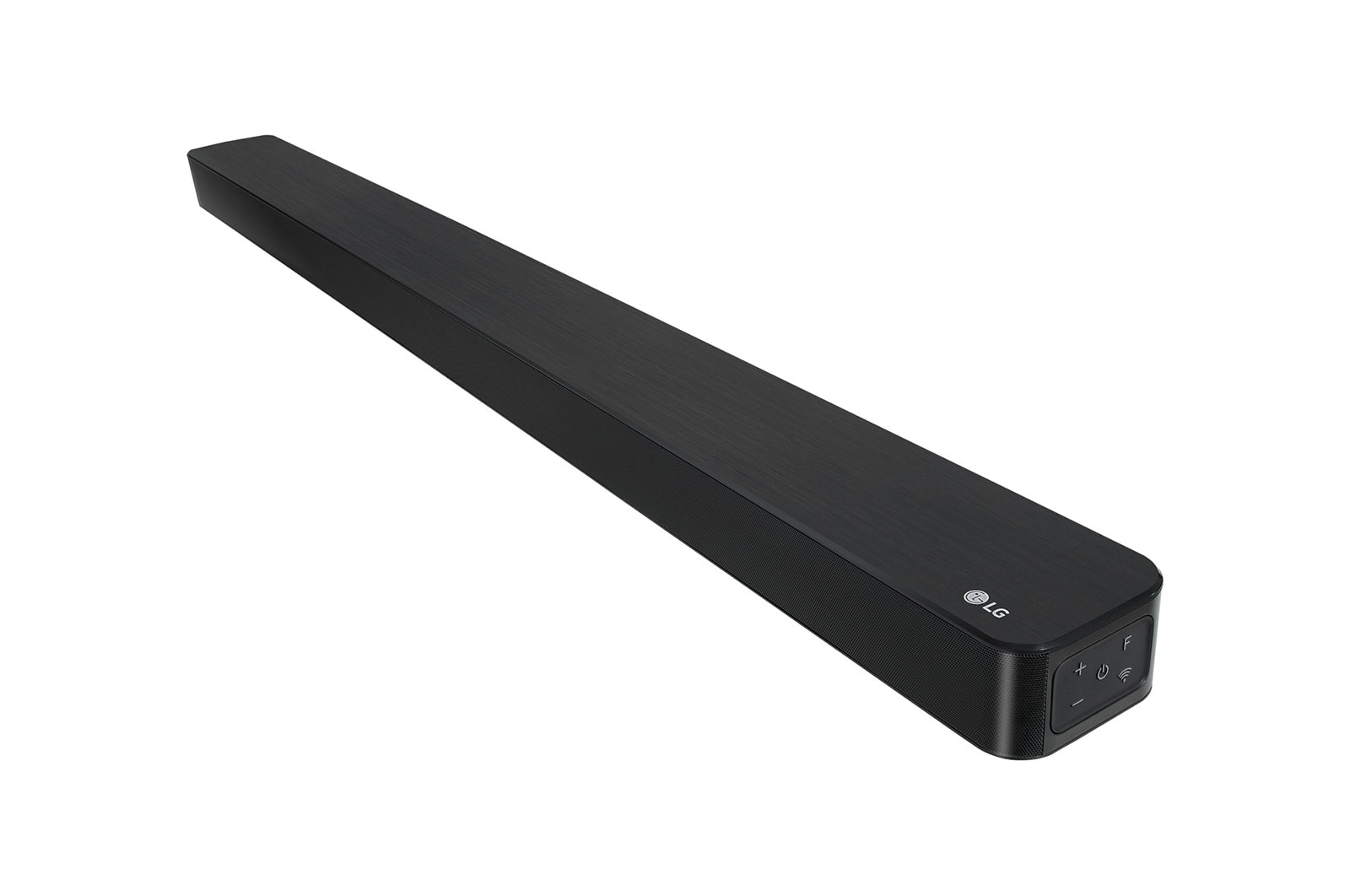

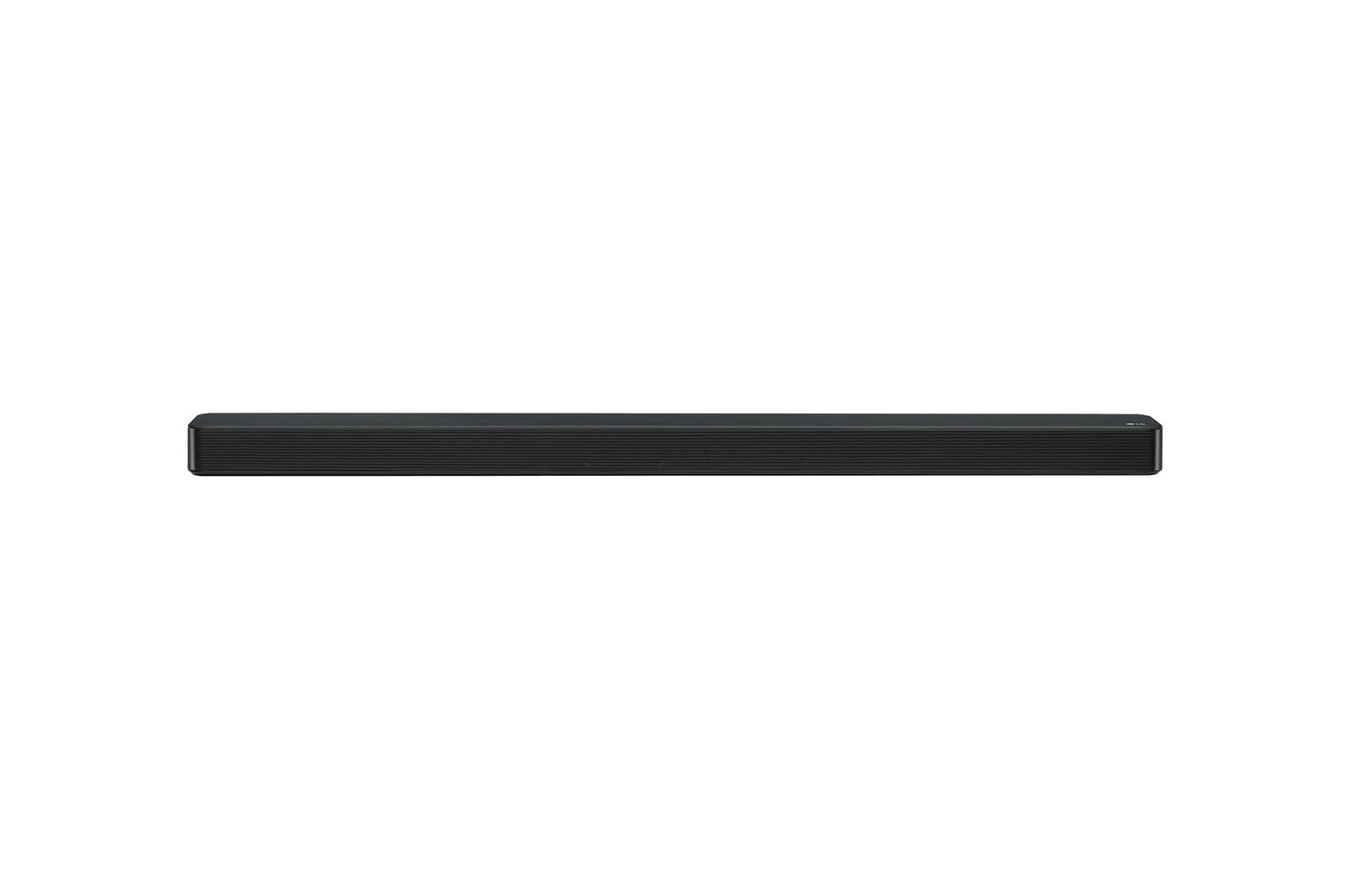

Main (W x H x D / MM)
1060 x 57 x 85

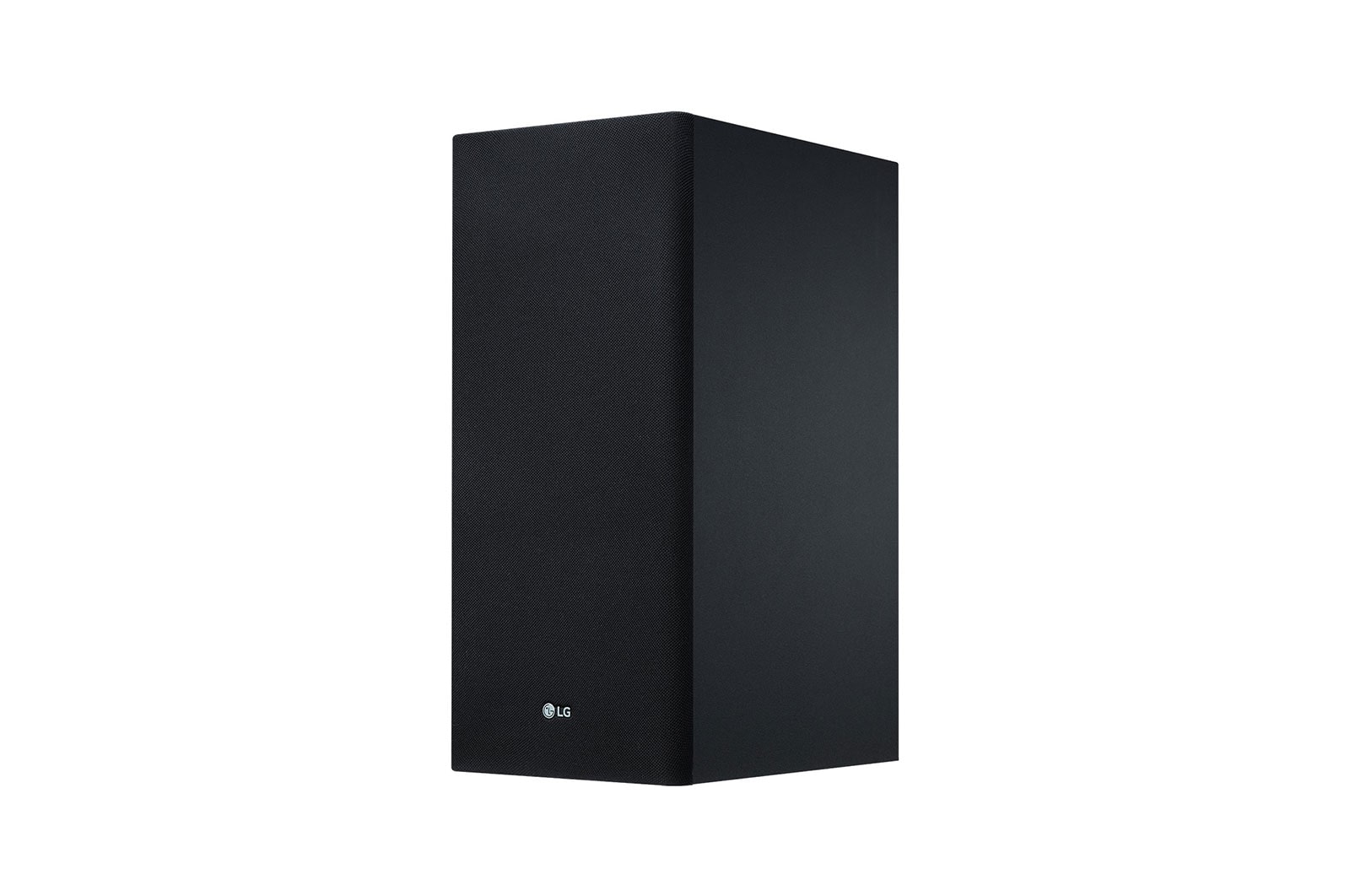

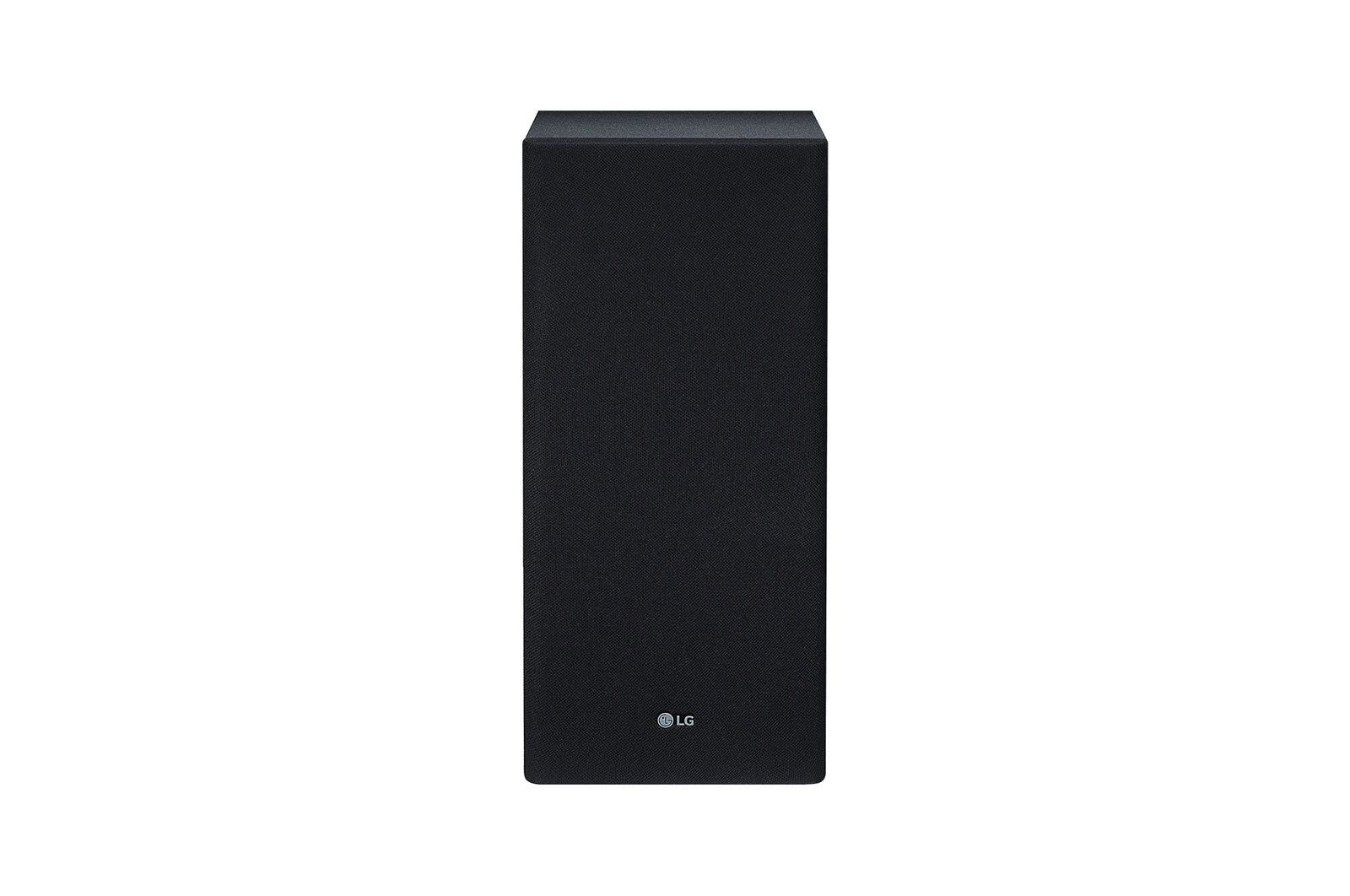

Subwoofer (W x H x D / MM)
171.0 x 393.0 x 248.5
Carton Size (W x H x D / MM)
1159 x 217 x 547
Carton Type
Offset
Main (Net Weight / Kg)
3.45
Subwoofer - Net Weight (Kg)
5.3
Gross Weight (Kg)
11.3
Built-in Foot (H) MM
14
Material - Mainset - Front
Metal Grille
Material - Mainset - Top/Bottom
Mold/Mold
Material - Subwoofer - Front
Jersey
Material - Subwoofer - Body
Wood
Container Quantity - 20ft
240
Container Quantity - 40ft
480
Container Quantity - 40ft (HC)
640
Matching TV Sizebr ('18 New Designed LG TV)
Over 49 inch
Channel
3.1ch
Output Power (THD 10%) - Total
420W
Output Power (THD 10%) - Front
80W (45W+35W) x 2
Output Power (THD 10%) - Center
40W
Output Power (THD 10%) - Subwoofer
200W (Wireless)
Audio DAC - 96kHz/24bit
Yes
Main - SPL
82dB
Main - System
Closed
Main - Tweeter Unit - Front Only
20mm Silk Dome
Main - Woofer Unit
40x100 mm
Main - Impedance
4ohm
Main - Magnetic Shielding
non-Shield
Subwoofer - SPL
85dB
Subwoofer - System
Bass Reflex
Subwoofer - Woofer Unit
6 inch
Subwoofer - Impedance
3ohm
Subwoofer - Magnetic Shielding
non-Shield
WiFi Band Width - 2.4G / 5G
Yes
General - Optical
Yes(1)
General - HDMI 1.4 (HDCP 1.4) - In / Out
Yes(1)/Yes(1)
General - USB
Yes
Wireless - Bluetooth 4.0
Yes (Bluetooth codec SBC and AAC)
Wireless - WiFi
Yes
Display Type
LCD (5 Char.)
Hi-Res Audio - Sampling - 24bit/96kHz
Yes
Google Multi Zone - Group Play Mode (One Source -- Multi Speaker)
Yes
Sound Effect - ASCbr (Adaptive Sound Control : Default)
Yes
Sound Effect - Standard
Yes
Sound Effect - Bass Blast
Yes (Bass Blast / Bass Blast +)
Sound Effect - DTS Virtual:X
Yes
User EQ
Yes (RCU / App)
Night Mode - On/Off
Yes (App)
Dynamic Range Control - On/Off
Yes (App)
Auto Volume Leveler - On/Off
Yes (App)
Smart Phone & Tablet Remote App - iOS / Android OS
Yes / Yes
Smart Phone File Playback
Yes
EZ setup (BLE)
Yes
Works with the Google Assistant
Yes
NSU (Network Software Update)
Yes
Control with your TV Remote - Vol + , - , Mute
Yes
Sound Sync - Bluetooth (LG TV)
Yes
Sound Sync - Optical
Yes
Automatic Power On/Off - Bluetooth (LG TV)
Yes
Automatic Power On/Off - Optical
Yes
A/V Sync - 0~300ms
Yes (App)
SIMPLINK
Yes
Audio Return Channel (ARC)
Yes
Woofer Level Volume
Yes (-15 ~ +6dB)
Channel Level
Yes (-6 ~ +6 (step), Center and Surround)
Mute
Yes
Auto Dimmer
Yes
Sleep Timer
Yes (App)
USB Host
Yes
Bluetooth Stand-By
Yes
Wireless Rear Speaker Ready - 1:1 Rx module Type (Wireless Kit for rear)
Yes
LPCM
Yes
Dolby Digital
Yes
DTS Digital Surround
Yes
DTS Virtual X
Yes
AAC / AAC+
Yes
FLAC - Up to 192kHz
Yes (C4A / USB)
OGG - Up to 48kHz
Yes (C4A / USB)
WAV
Yes (C4A / USB)
MP3
Yes (C4A / USB)
WMA
Yes (C4A / USB)
AAC
Yes (C4A / USB)
Chrome Cast
Yes
Main - Type
Adaptor (25V, 2A)
Main - Power Off Consumption
0.5W Under
Main - Power Consumption
38W
Subwoofer - Type - SMPS
100~240V, 50/60Hz
Subwoofer - Power Off Consumption
0.5W Under
Subwoofer - Power Consumption
33W
Subwoofer - Wireless Frequency
5.8GHz
Owners Manual br Web (w/ Simple Manual)
Yes (Full)
Owners Manual - Book
Yes (Simple)
Owners Manual br Wall Mount Guide
Yes
Owners Manual br Open Source
Yes (Full)
Remote Control Unit - Model
MA7
Remote Control Unit br Battery (Size)
AAA x 2
Batteries
Yes
Warranty Card
Yes
Wall Mount Bracket
Yes
Additional Foot
Yes
Box Type
Offset
