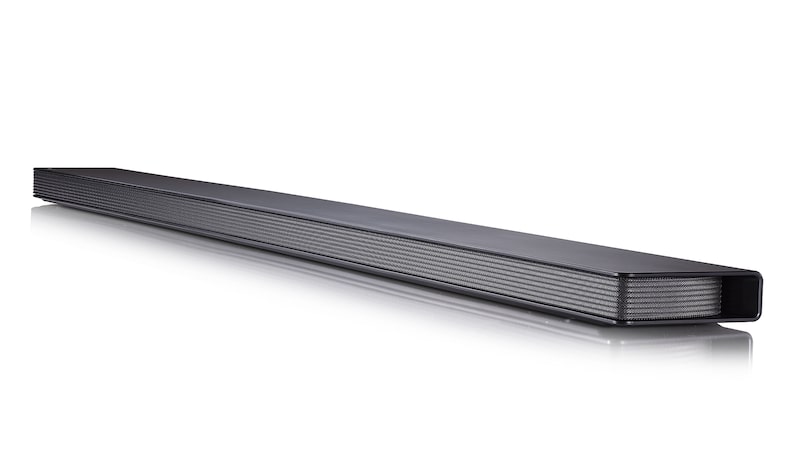

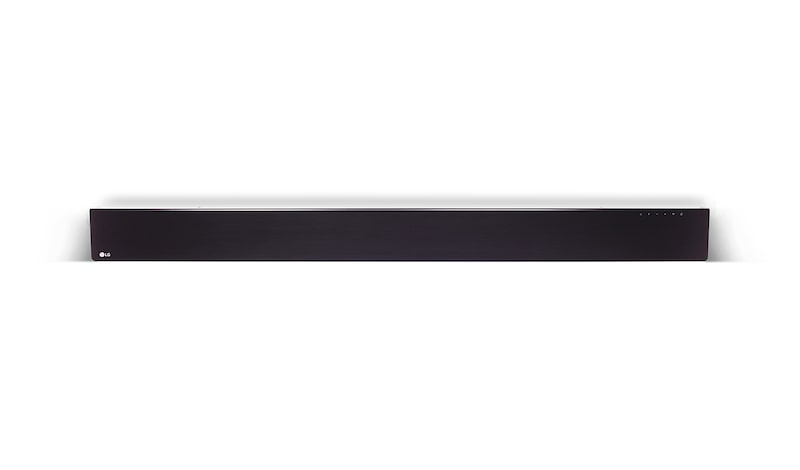

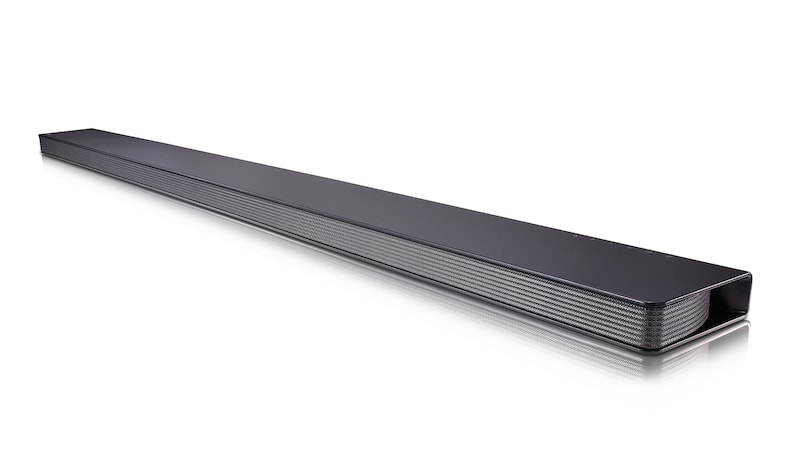

Main (W x H x D / MM)
1220 x 38 x 105

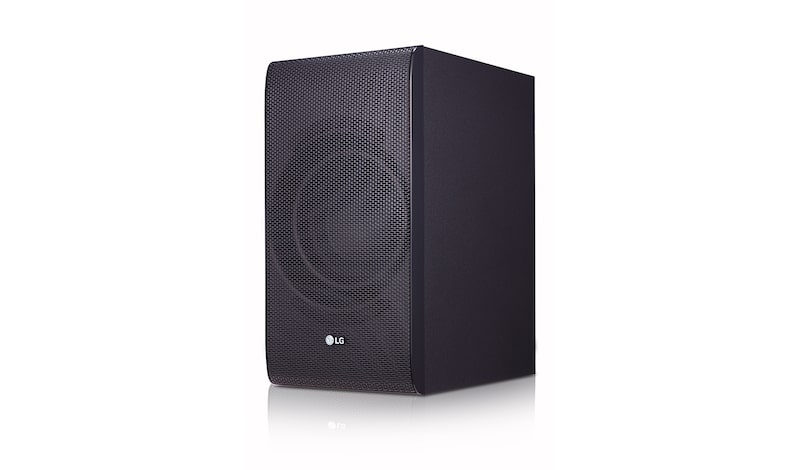

Subwoofer (W x H x D / MM)
171 x 320 x 252
Carton Size (W x H x D / MM)
1276 x 373 x 223
Carton Type
Offset
Main (Net Weight / Kg)
2.7
Subwoofer - Net Weight (Kg)
4.3
Gross Weight (Kg)
9.8
Material - Mainset - Front
Grill (SECC)
Material - Mainset - Top/Bottom
Mold / Mold
Material - Subwoofer - Front
SECC
Material - Subwoofer - Body
Wood
Container Quantity - 20ft
256
Container Quantity - 40ft
545
Container Quantity - 40ft (HC)
641
Matching TV Sizebr ('17 New Designed LG TV)
Over 55 inch
Built-in Foot (H) MM
2
Channel
4.1ch Speaker System
Output Power (THD 10%) - Total
300W
Output Power (THD 10%) - Front
65W(TW 25W) x 2
Output Power (THD 10%) - Subwoofer
170W(Wireless)
Audio DAC - 192kHz/24bit
Yes
Main - SPL
80dB
Main - System
Closed
Main - Tweeter Unit - Front Only
20mm PPS Dome
Main - Woofer Unit
26x95mm Exelway
Main - Impedance
4ohm
Main - Magnetic Shielding
non-Shield
Subwoofer - SPL
85dB
Subwoofer - System
Bass Reflex
Subwoofer - Woofer Unit
6 inch
Subwoofer - Impedance
3ohm
Subwoofer - Magnetic Shielding
non-Shield
WiFi Band Width - 2.4G / 5G
Yes
Mesh Network
Yes

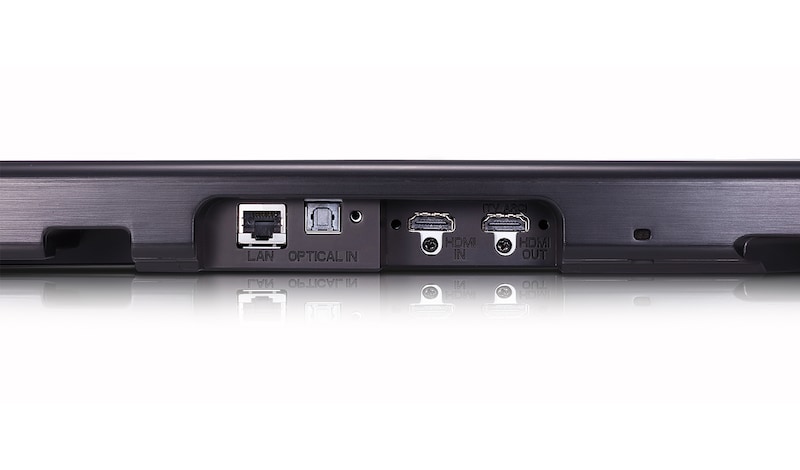

General - Optical
Yes(1)
General - HDMI 2.0 (HDCP 2.2): 4K pass through - In / Out
Yes(1) / Yes(1)
General - USB
Yes(Service Only)
Wireless - Bluetooth 4.0
Yes
Wireless - Ethernet port
Yes
Wireless - WiFi
Yes
Display Type
LCD (8 char.)
LED Indicator Colour
7 Colour w/ 1ea 3 colour LED
8K Sound - 24bit/192kHz Sampling
Yes
8K Sound - Upscaling/upsampling to 24bit/192kHz
Yes
4K Sound - 24bit/96kHz
Yes
LG Music Flow - Home Cinema Mode
Yes
LG Music Flow - Home Cinema Mode - Channel
4.1ch
LG Music Flow - Group Play Mode (One Source -- Multi Speaker)
Yes
LG Music Flow - Multi Room Mode (Multi Source -- Multi Speaker)
Yes
LG Music Flow - Audio Contents Flow
Yes
Sound Effect - ASCbr (Adaptive Sound Control : Default)
Yes
Sound Effect - Standard
Yes
Sound Effect - Bass Blast
Yes
Sound Effect - Cinema
Yes
Tone control - User EQ
Yes
Night Mode - On/Off
Yes
Auto Sound Engine - Default
Yes
SFX - Default
Yes
Dynamic Range Control - On/Off
Yes
Auto Volume Leveler - On/Off
Yes
PC OS Support (Window / Mac)
Yes/No
Phone OS Support (iOS / Android)
Yes/Yes
Smart Phone Media Server
Yes
Smart Phone / Tablet Remote App
Yes
Smart Phone / Tablet Remote App - Universal Search
Yes
Smart Phone / Tablet Remote App - Auto Music Play
Yes
Smart Phone / Tablet Remote App - Auto Music Play - Auto Sync
Yes
Smart Phone / Tablet Remote App - Auto Music Play - ROF
Yes
EZ setup (BLE)
Yes
Phone Roaming
Yes
BT-Fi
Yes
1 Botton Home Cinema Setup
Yes
NSU (Network Software Update)
Yes
Control with your TV Remote - Vol + , - , Mute
Yes
Sound Sync - Bluetooth (LG TV)
Yes
Sound Sync - Optical
Yes
Automatic Power On/Off - Bluetooth (LG TV)
Yes
Automatic Power On/Off - Optical
Yes
A/V Sync - 0~300ms
Yes
SIMPLINK
Yes
Audio Return Channel (ARC)
Yes
Woofer Level - -15 ~ +6dB
Yes
Mute
Yes
Auto Dimmer
Yes
Timer / Sleep
Yes
Alram
Yes
LPCM
Yes
Dolby Digital
Yes
DTS Digital Surround
Yes
FLAC - Up to 192kHz
Yes
OGG - Up to 48kHz
Yes
WAV
Yes
ALAC
Yes
MP3
Yes
WMA
Yes
AAC (MPEG4)
Yes
AAC+
Yes
AIFF
Yes
Chrome Cast
Yes
Spotify Connect
Yes
Embbeded Service
Yes
Main - Type
Adaptor (25V, 1.52A)
Main - Power Off Consumption
0.5W ↓
Main - Power Consumption
22W
Subwoofer - Type - SMPS
100~240V, 50/60Hz
Subwoofer - Power Off Consumption
0.5W Under
Subwoofer - Power Consumption
33W
Subwoofer - Wireless Frequency
5GHz
Owners Manual - Web
Yes
Owners Manual br Wall Mount Guide
Yes
Owners Manual br Wireless Speaker Reset Guide
Yes
Owners Manual br Open Source
Yes (Full)
PC SW - Web
Yes
Remote Control Unit - Model
MA5
Remote Control Unit br Battery (Size)
AAA
Batteries
2ea
Warranty Card
Yes
Optical Cable
Yes
Wall Mount Bracket
Yes
Cable Management
Tie (3EA)
Box Type
Offset
