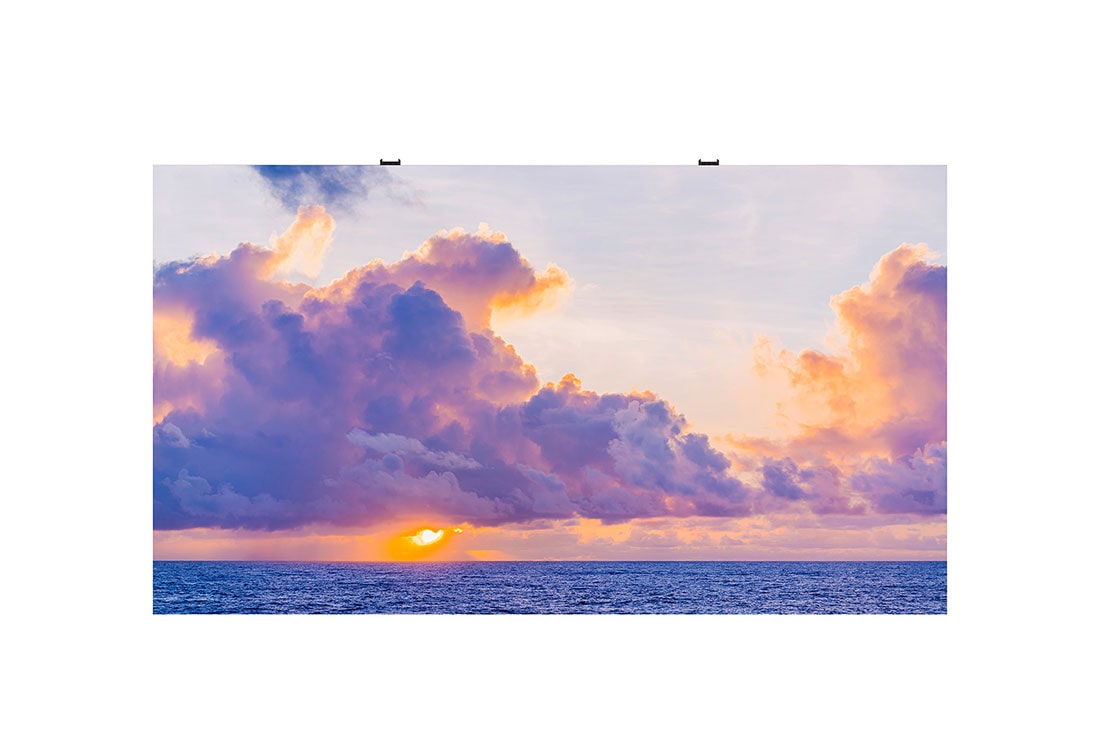

54” Cabinet Series Direct View LED with 2.5mm Pixel Pitch, webOS™ 4.0, 600 nit Brightness, Cable-less Design, & HDR10 Pro
$
54” Bezel-free LED Video Wall Display
*The screen image is simulated for illustrative purposes only.
Cableless Signal Transmission & Power Docking
The LSAC series uses innovative DVLED signage that applying wireless radio frequency transmission technology to transmit and receive data between cabinets. Additionally, the block assembly design helps make the LSAC series easy to install, replace, and maintain.
*Non Connectors: Connectors that use RF (Radio Frequency) to transmit and receive data between two devices.
Easy Replacement & Simple Maintenance
Upgrade or replace the screens within your existing 55-inch LCD video wall to the LSAC series displays without having to secure additional space on the wall.
*The product can be installed using VESA wall-mount (600×400) and screws.
* The VESA wall-mount or any other wall-mounts are sold separately.
*Screen images are simulated for illustrative purposes only.
* The VESA wall-mount or any other wall-mounts are sold separately.
*Screen images are simulated for illustrative purposes only.
Bezel-less LED Display
Unlike the LCD video walls, the LED technology
of the LSAC series is truly bezel-free, so audiences can focus on visual
content in its entirety, without being distracted by the bezels between screens.
*Screen images are simulated for illustrative purposes only.
Expressive Color Powered by HDR
With HDR (HDR10, HDR10Pro*) support, your content is expressed with vivid color. A wide color spectrum and high contrast ratio allows viewers to immerse themselves in lively, colorful content.
*HDR10 Pro is LG's own HDR solution for processing HDR signal by using enhanced dynamic tone mapping.
*Image is a simulated comparison to compare SDR to HDR capabilities .
*Dramatization of the comparison is simulated for illustrative purposes only.
*Image is a simulated comparison to compare SDR to HDR capabilities .
*Dramatization of the comparison is simulated for illustrative purposes only.
EMC Class B Certified
The LSAC series is EMC Class B certified,
meaning that it is made for use in residential, commercial, light industrial,
or other business environments. The LSAC series is a versatile display that is
suitable for corporate meeting rooms, board rooms, retail advertising,
informational signage in transportation environments, and much more.
Standby Mode
When there is no input signal for a period of time, the screen turns off and the main circuit parts inside the LED cabinet go to a standby mode. This saves additional power consumption and enables the product to be reactivated simply by using a remote control.
Optimized Image Quality with
α 7 Intelligent Processor
The onboard Alpha 7
Intelligent Processor on the LSAC series recognizes and analyzes displayed
content, then optimizes the image for clarity and sharpness.
Compatibility with
LG Software Solutions
Powered by LG’s webOS™ 4.0 system controller,
the LSAC series is compatible with LG software solutions including SuperSign
CMS, LED Assistant, and ConnectedCare, that allow customers to monitor the
status of their display.
*LG ConnectedCare' and 'SuperSign CMS' need to be purchased separately.
*The availability of the LG ConnectedCare' service differs by region, so please contact the LG sales representative in your region for more details.
*The items that can be monitored by LG ConnectedCare : Main Board (Temp., Signal Status, FPGA Ver, Ethernet Connection Status), Receiving Card (Temp., LED Power)
*Actual GUI may vary in different webOS versions.
*The availability of the LG ConnectedCare' service differs by region, so please contact the LG sales representative in your region for more details.
*The items that can be monitored by LG ConnectedCare : Main Board (Temp., Signal Status, FPGA Ver, Ethernet Connection Status), Receiving Card (Temp., LED Power)
*Actual GUI may vary in different webOS versions.
PHYSICAL PARAMETERS
-
- Pixel Configuration
- 3 in 1 SMD
- Pixel Pitch
- 2.50 mm
-
- Module Resolution (W x H)
- 120 x 90
- Module Dimensions (W x H, mm)
- 11.8 x 8.9 in 300 x 225 mm
-
- Weight per Module
- 0.95 lb / 430 g
- No. of Modules per Cabinet (W x H)
- 4 x 3
-
- Cabinet Resolution (W x H)
- 480 x 270
- Cabinet Dimensions (W x H x D)
- 47.2 x 26.7 x 2.0 in 1200 x 675 x 51 mm
-
- Cabinet Surface Area
- 8.72 ft²/0.81 m²
- Weight per Cabinet
- 49.6 lbs / 22.5 kg
-
- Weight per Unit Area
- 5.69 lb/ft² / 27.8 kg/m²
- Physical Pixel Density
- 14,864 pixels/ft² / 160,000 pixels/m²
-
- Flatness of Cabinet
- ±0.5 mm
- Cabinet Material
- Die Cast Aluminum
-
- Service Access
- Front
OPTICAL SPECIFICATIONS
-
- Max Brightness After Calibration
- 600 nits
- Color Temperature
- 3,200K to 9,300K
-
- Visual Viewing Angle (Horizontal)
- 160°
- Visual Viewing Angle (Vertical)
- 160°
-
- Brightness Uniformity
- 95%
- Color Uniformity
- ±0.015Cx,Cy
-
- Contrast Ratio (Typ)
- 5,000:1
- Contrast Ratio (Peak)
- 9,000:1
-
- Processing Depth
- 20 bit (HDR10, HDR10 Pro)
ELECTRICAL SPECIFICATIONS
-
- Max Power Consumption
- 290 W/cabinet 358 W/m²
- Avg Power Consumption
- 190 W/cabinet
-
- Max Heat Dissipation
- 990 BTU/h/cabinet 1,222 BTU/h/m²
- Avg Heat Dissipation
- 648 BTU/h/cabinet
-
- Power Supply
- 100 to 240 Vac
- Frame Rate
- 50 / 60 Hz
-
- Refresh Rate
- 3,840Hz
- Typical Inrush Current
- 130 A (220Vac @50Hz) (Include Power Redundancy)
-
- Typical Leakage Current
- 0.6mA (220Vac @50HZ) (Include Power Redundancy)
OPERATION SPECIFICATIONS
-
- LED Lifetime (Half brightness)
- 100,000 Hours
- Operating Temperature
- 32°F to 104°F/0°C to 40°C
-
- Operating Humidity
- 10-80% RH
- IP Rating Front
- IP20
-
- IP Rating Rear
- IP20
CERTIFICATIONS
-
- CERTIFICATIONS
- IEC 60950-1 EMC Class B BS476 Part7 Class1
ENVIRONMENT
-
- Environment
- RoHS
CONTROLLER
-
- Controller
- CSAC-025K
