KEY FEATURES

  • 5.7 cu. ft. Mega Capacity
  • AAFA Certified
  • TurboWash™ Technology
  • Steam Technology
  • SmartDiagnosis™
  • Direct Drive Motor 10 Year Warranty

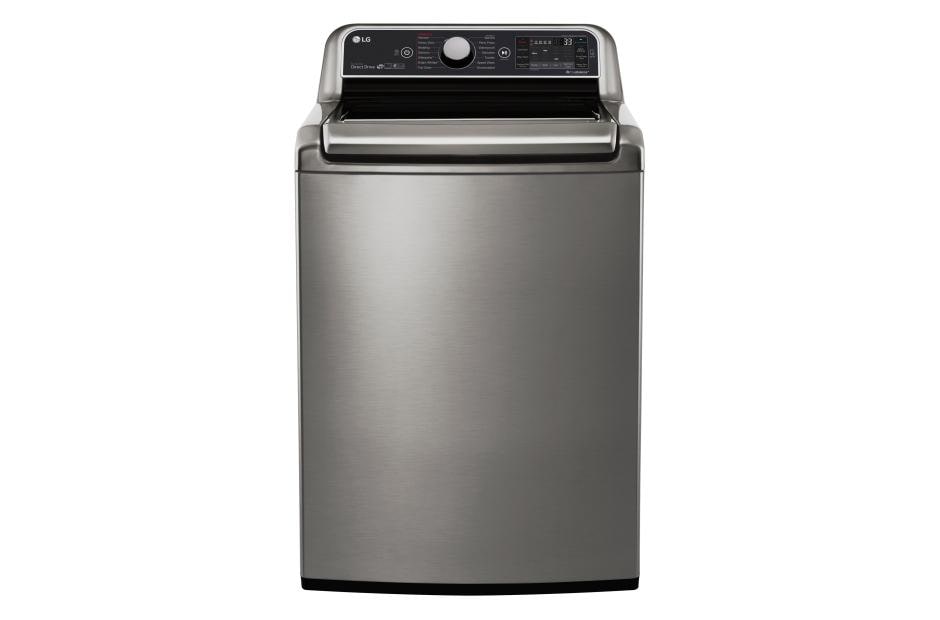

5.7 CU. FT. Mega Capacity Top Load Washer Turbowash™ Technology
Download Spec Sheet Download Energy Guide

SUMMARY

    • Design Style
    • Top Loader
    • Capacity
    • 5.7 cu. ft.

APPEARANCE

    • Design Look
    • Rear Control
    • Intelligent Electronic Controls with Dual LED Display
    • Yes
    • Touch Buttons
    • Yes

ENERGY

    • ENERGY STAR® Most Efficient 2018
    • Yes
    • CEE Tier Rating
    • 3

WASH PROGRAMS

    • No. of Programs
    • 14
    • Wash Programs
    • Pre Wash+ Normal, Cotton/Normal, Tub Clean, Bulky/Bedding, Heavy Duty, Perm. Press, Speed Wash, Delicates, Bright Whites™, Towels, Sanitary, Allergiene™, Waterproof, Downloaded
    • No. of Options
    • 13
    • Options
    • Soak, Extra Rinse, Fabric Softener, Delay Wash, Child Lock, Custom Program PGM Save, Signal, Rinse+Spin, Spin Only, ColdWash™, StainCare™, Water Plus, Add Garment
    • No. of Wash/Rinse Temps
    • Extra Hot, Hot, Warm, Cold, Tap Cold (All Cold Rinses)
    • Spin Speeds
    • Extra High (950 max.), High, Medium, Low, No Spin
    • No. of Water Levels
    • Automatically adjusts to the size of load
    • No. of Soil Levels
    • 3

FABRIC CARE FEATURES

    • TurboWash® Technology
    • Yes (v2.0)
    • Steam Technology
    • Yes
    • Allergiene™ Cycle
    • Yes
    • Sanitary Cycle
    • Yes
    • WaveForce™ Technology
    • Yes
    • SmartRinse™ Jet Spray System
    • Yes
    • ColdWash™ Option
    • Yes
    • SenseClean™ System
    • Yes

CONVENIENCE FEATURES

    • 3-Tray Dispenser
    • Main Wash, Fabric Softener + Liquid Bleach
    • TrueBalance™ Anti-Vibration System
    • Yes
    • LoadSense
    • Yes
    • Status Indicator(s)
    • Yes
    • End of Cycle Signal
    • Yes
    • Child Lock
    • Yes
    • Auto Suds Removal
    • Yes
    • Forced Drain System
    • Yes
    • Add Garment Indicator
    • Yes
    • Internal Water Heater
    • Yes
    • LoDecibel™ Quiet Operation
    • Yes
    • Leveling Legs
    • 4 Adjustable Legs

SMART THINQ® TECHNOLOGY

    • SmartDiagnosis™
    • Yes
    • NFC Tag On
    • Yes

MOTOR AND AGITATOR

    • Motor Type
    • Inverter Direct Drive Motor
    • Motor Speed
    • Variable
    • Max RPM
    • 950
    • Axis
    • Vertical

MATERIALS AND FINISHES

    • NeveRust™ Stainless Steel Drum
    • Yes
    • Cabinet
    • PCM
    • Control Panel
    • Plastic
    • Top Cover
    • Painted
    • Diamond Glass Lid
    • Dark Gray Tint (Graphite Steel)
    • Available Colors
    • Graphite Steel (V)

POWER SOURCE

    • Ratings
    • CSA Listed
    • Electrical Requirements
    • 120V, 10 Amps
    • Type
    • Electric

DIMENSIONS

    • Product (WxHxD)
    • 29" x 45 1/4" x 29" (59 5/8" H with lid open)
    • Carton (WxHxD)
    • 33 3/4" x 48 1/32" x 31 15/16"
    • Weight (Product/Carton)
    • 166 lbs/190.3 lbs

Warranty/UPC

    • Limited Warranty
    • 1 Year Parts and Labor, 10 Years on Linear Compressor, Lifetime on Drum
    • UPC
    • 048231015202
