Installing the SIM card and memory card

Insert the SIM card from your mobile service provider and the separately purchased memory card into the device.

NOTES

  • Your phone already has a SIM card installed.
  • In order for the water-resistant and dust-resistant features to work effectively, the card tray must be inserted correctly.

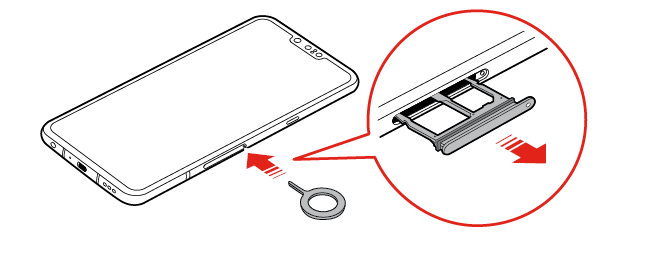

  1. Insert the ejection pin into the hole in the card tray and then pull out the card tray from the device.



Installing the SIM card and memory card

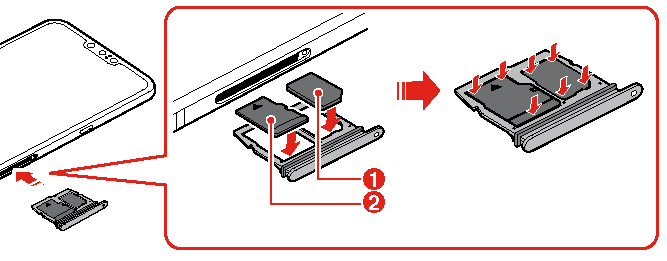

  1. Place the SIM card or memory card on the card tray and then insert the card tray into the device in the direction of the arrow.



  1. SIM card
  2. Memory card (optional-sold separately)

NOTES

  • Do not lose your SIM card. LG is not responsible for damage and other issues caused by loss or transfer of a SIM card.
  • Be careful not to damage the SIM card when you insert or remove it.
  • When you insert the SIM card or memory card, place it on the card tray correctly.
  • When you insert the card tray back into the device, insert it horizontally in the direction of arrow as shown in the figure. Make sure that the card placed on the card tray does not move out of its position.
  • Insert the SIM card with the gold-colored contacts facing downwards.
  • Be sure to insert the SIM card into the device by following the instructions in the user manual.
  • If you insert to or remove the card tray from the device, be careful not to let water or other liquids enter into the card tray. If a wet card tray or card is inserted into the device, your device may get damaged.
  • Memory card is an optional item.
  • Frequent writing and erasing of data may shorten the memory card lifespan.
  • Some memory cards may not be fully compatible with the device. If you use an incompatible card, it may damage the device or the memory card, or corrupt the data stored in it.
