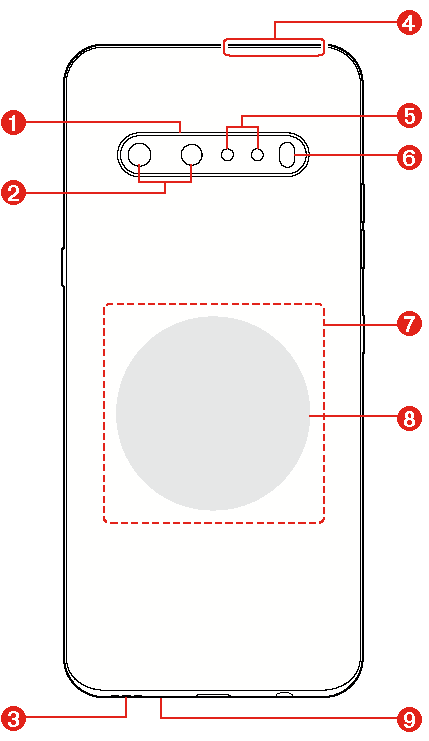

Rear View

NOTE	Press and hold the volume down button and Power/Lock button at the same time for a second to take a screenshot.

WARNING!
Don't attempt to remove the back cover.
This device has a non-removable battery. Do not attempt to remove the back cover. Doing so may severely damage the battery and device, which could cause overheating, fire, and injury.

Microphone Transmits your voice to the other caller. It’s also used for voice-activated functions.
Rear cameras Use to take photos and record videos. Keep the lenses clean for optimal performance.
Speaker Use to listen to audio (e.g., music, videos, sound clips, speakerphone, etc.) from the rear speaker instead of the earpiece.

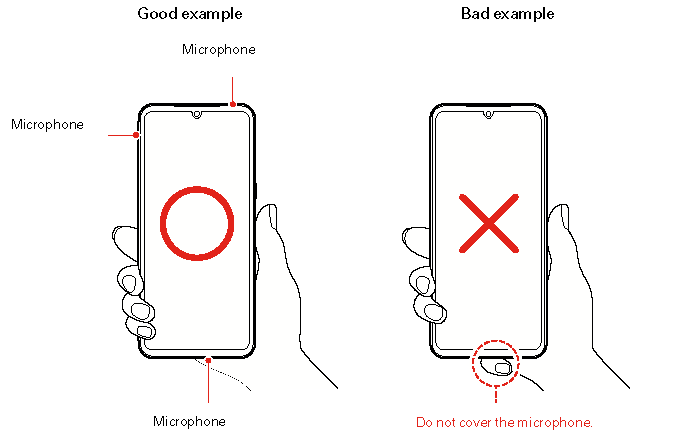

NOTE	Hold the device correctly as shown below. If you cover the microphone hole with a hand, finger, or protective case while using the device, you may sound unclear during a call.

SIM/microSD card slot Insert the SIM card and an optional memory card (not included) for file storage.
ToF (Time-of-Flight) sensors Measures the accurate distance by detecting the infrared emitted from the IR illuminator.
Flash Brightens up when taking photos or recording videos in low-light environments.
NFC touchpoint Tap the back of your phone to an NFC tag or another NFC compatible device to transfer data between them.

NOTE	Don't cover the proximity sensor with a protection film, pouch, or protection case not authorized by LG as it may cause the device to malfunction.

Wireless charging spot This device is compatible with WPC (Qi) certified wireless charger.
Microphone Transmits your voice to the other caller. It’s also used for voice-activated functions.
