* This images are provided for illustrative purposes, and the actual GU may differ.
* All displays must be connected to the same network.
Real-Time Remote Monitoring
Power & Network with One Line
* It is a network based control system.
Available AV control systems may differ by regions.

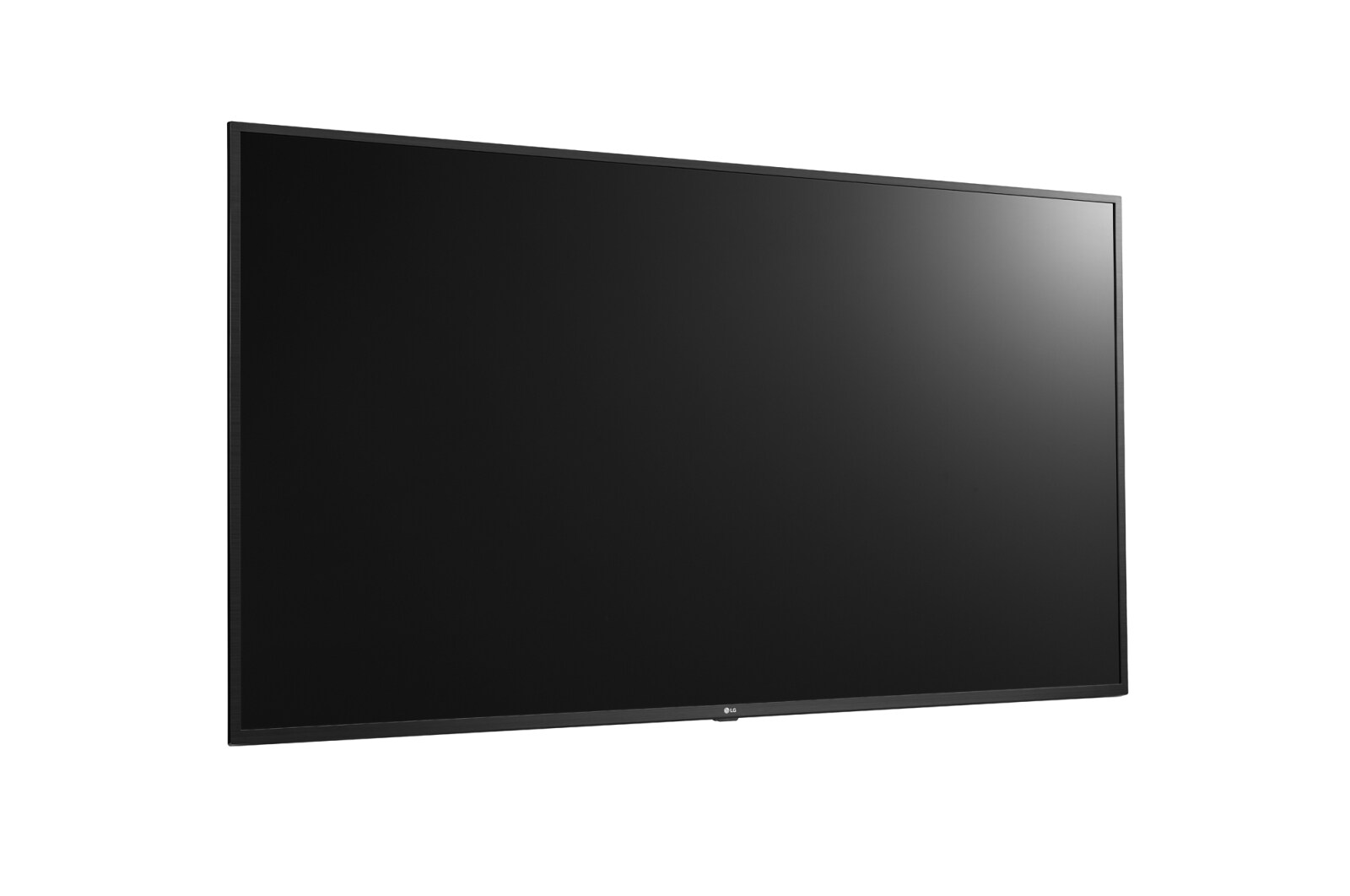

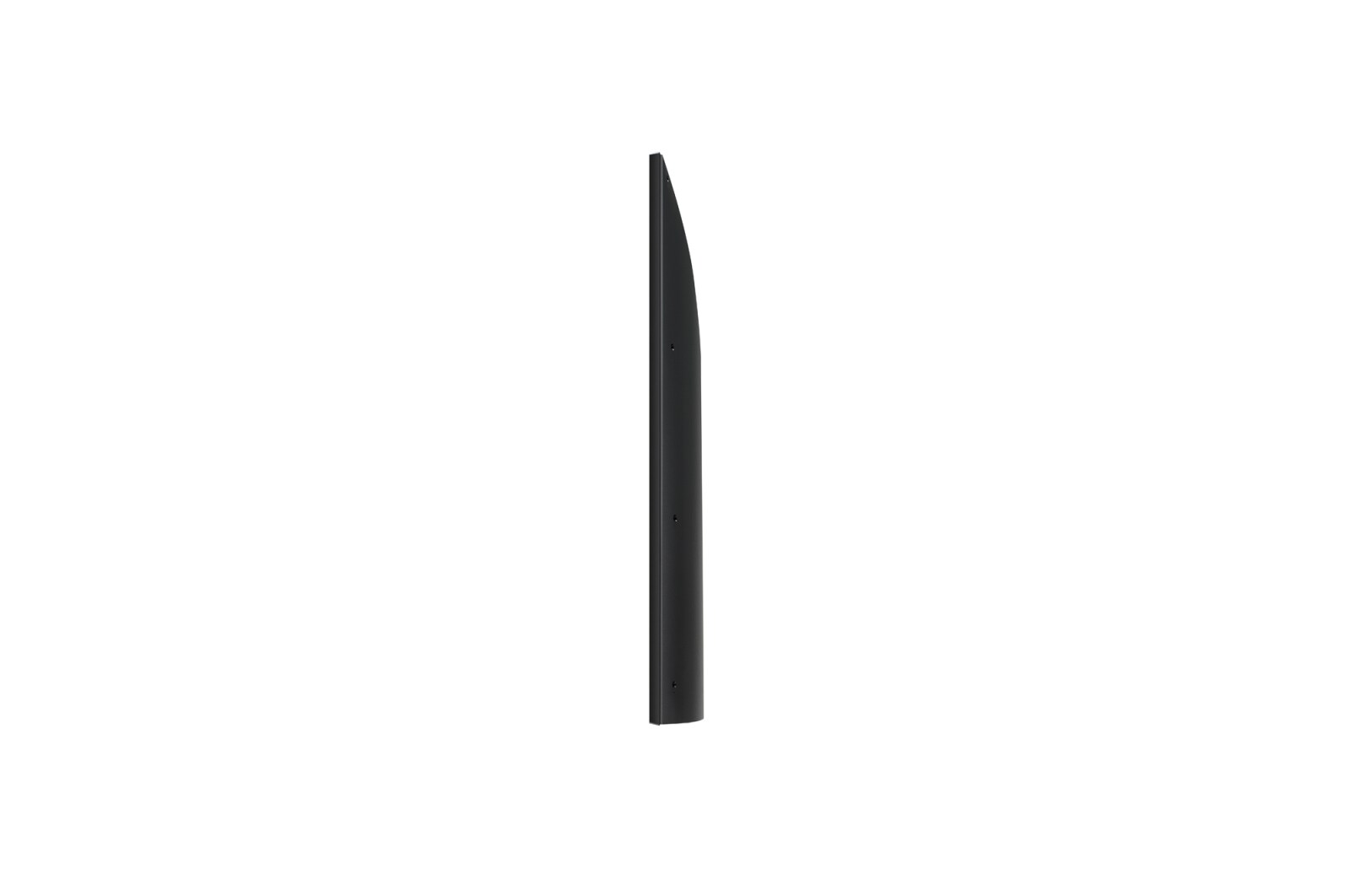

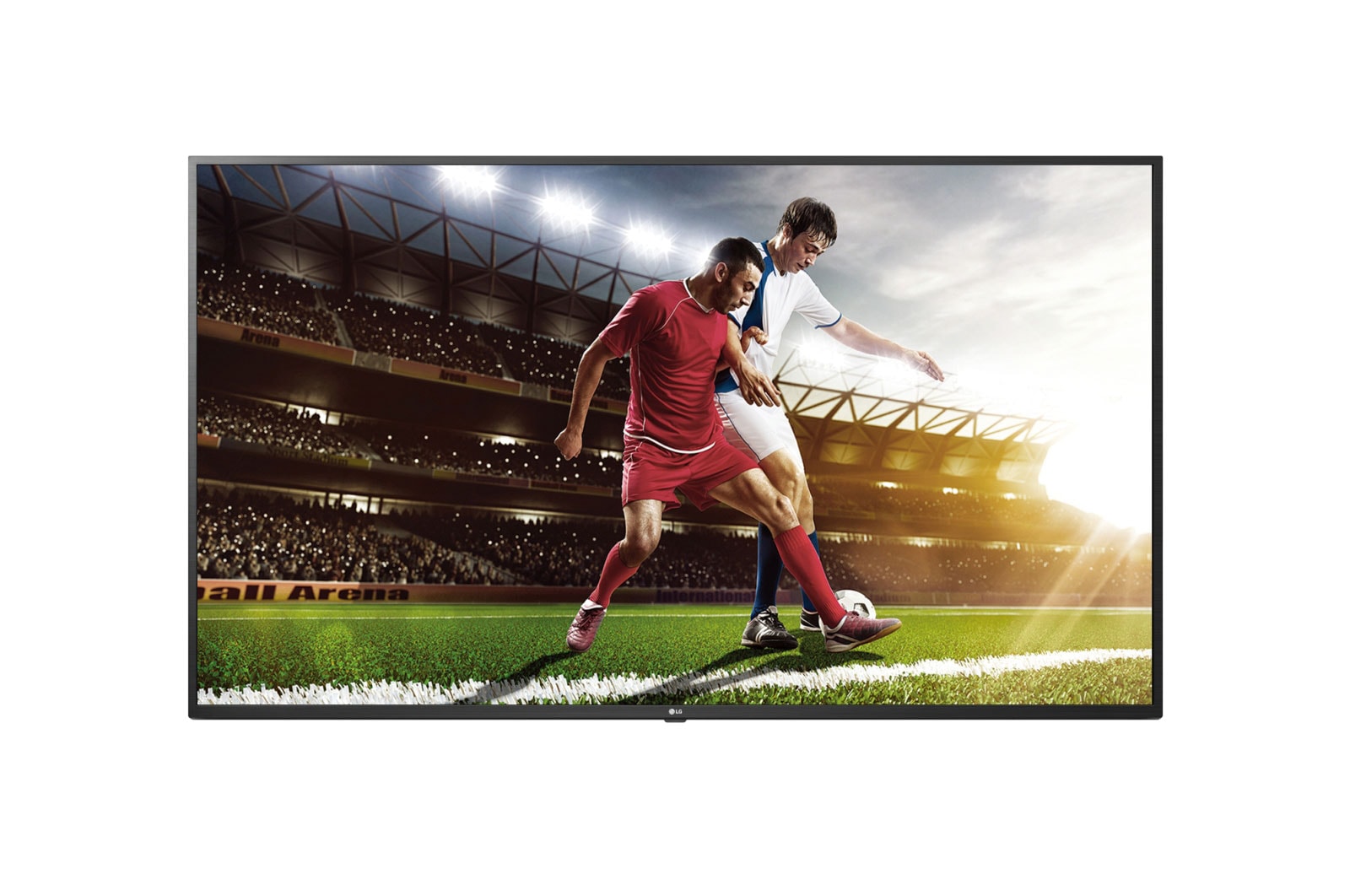

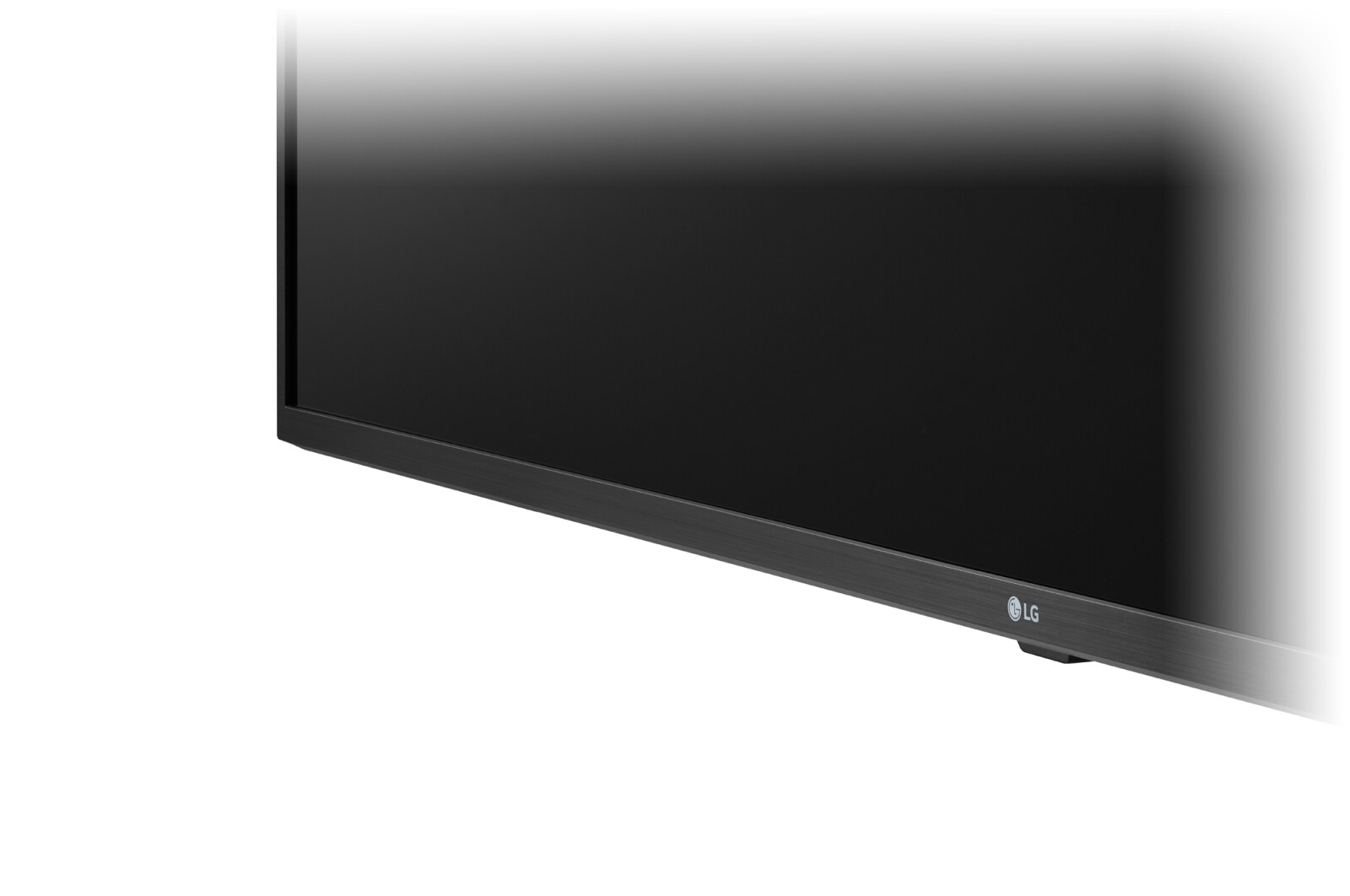

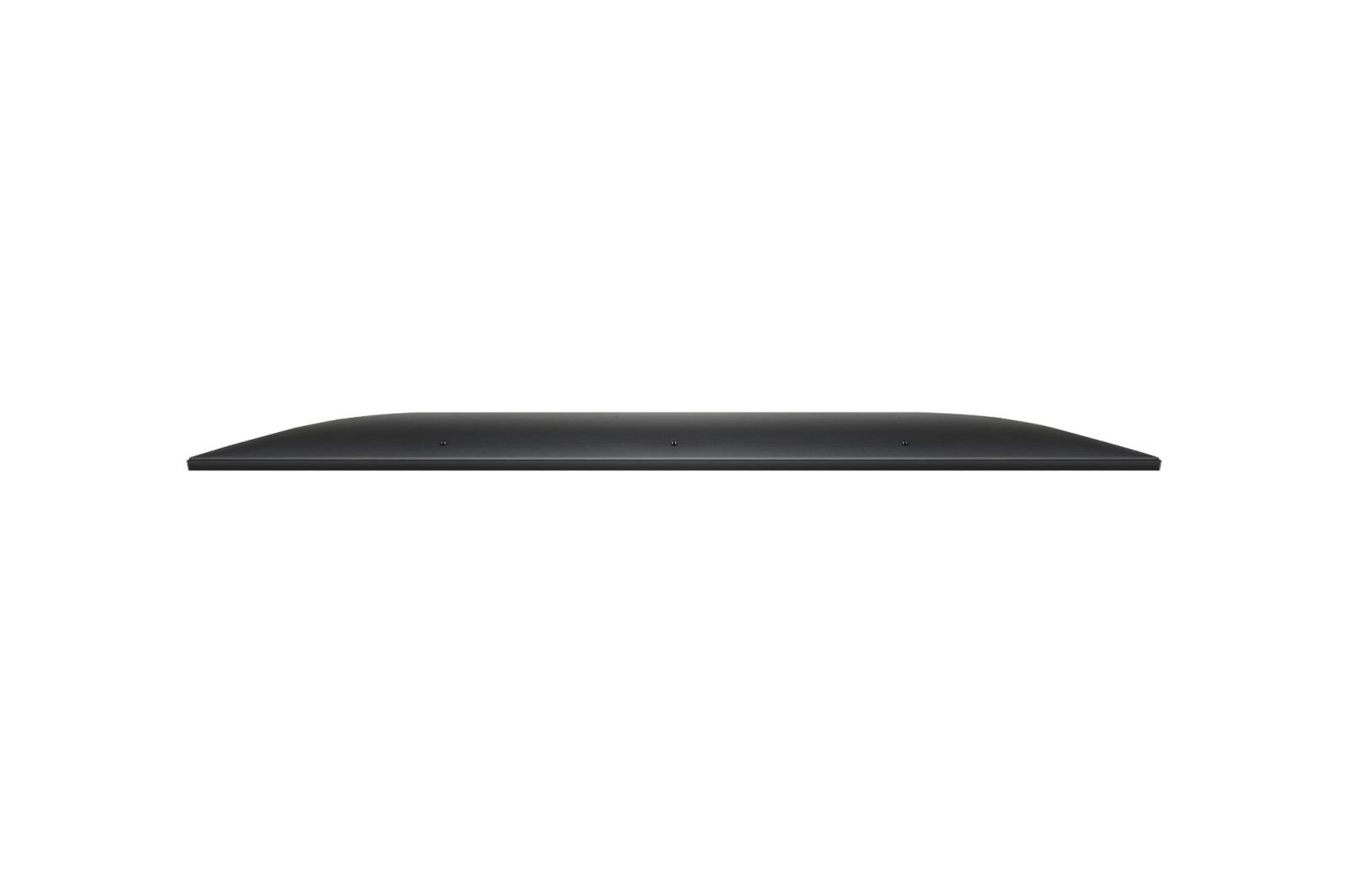

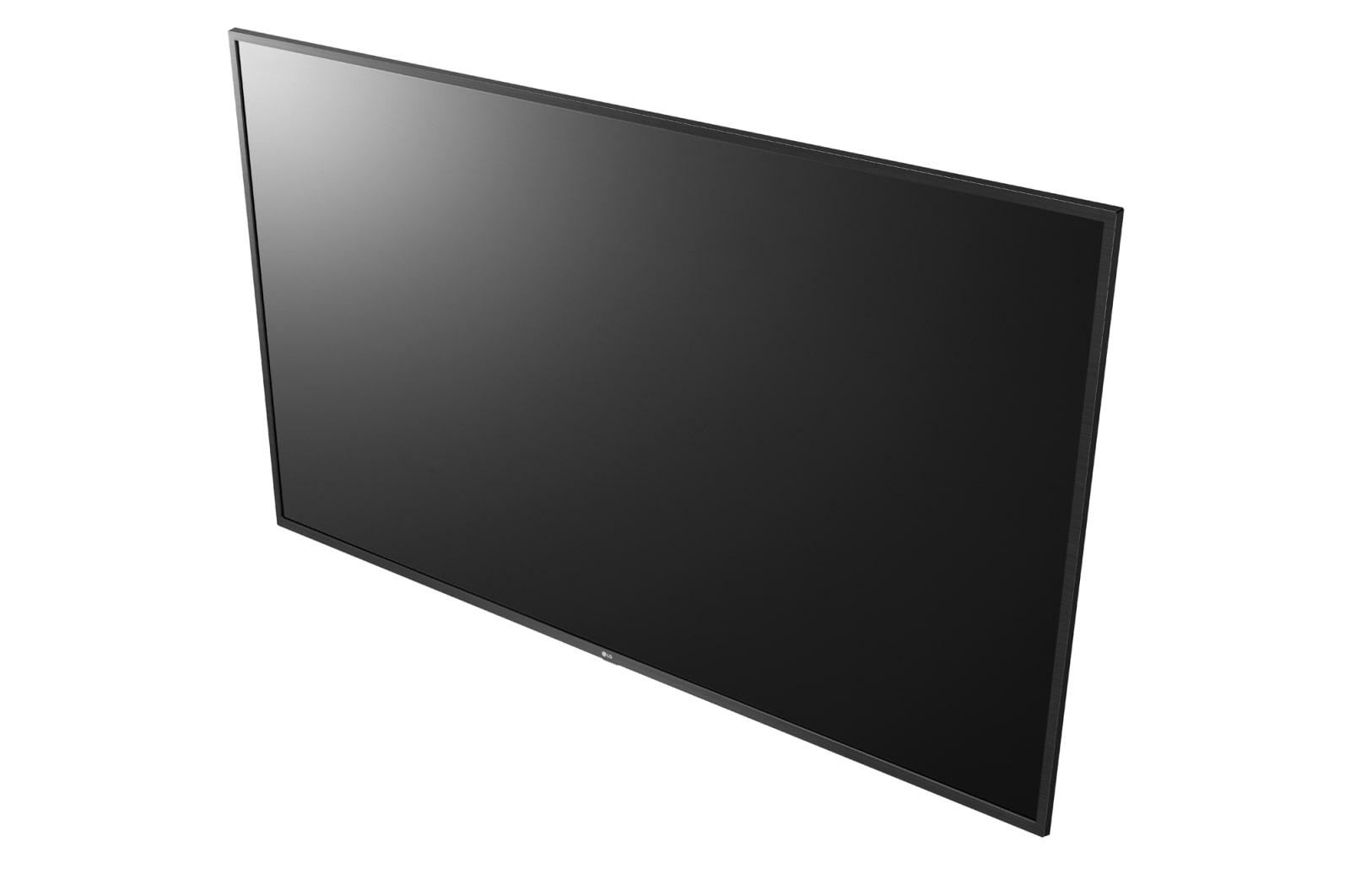

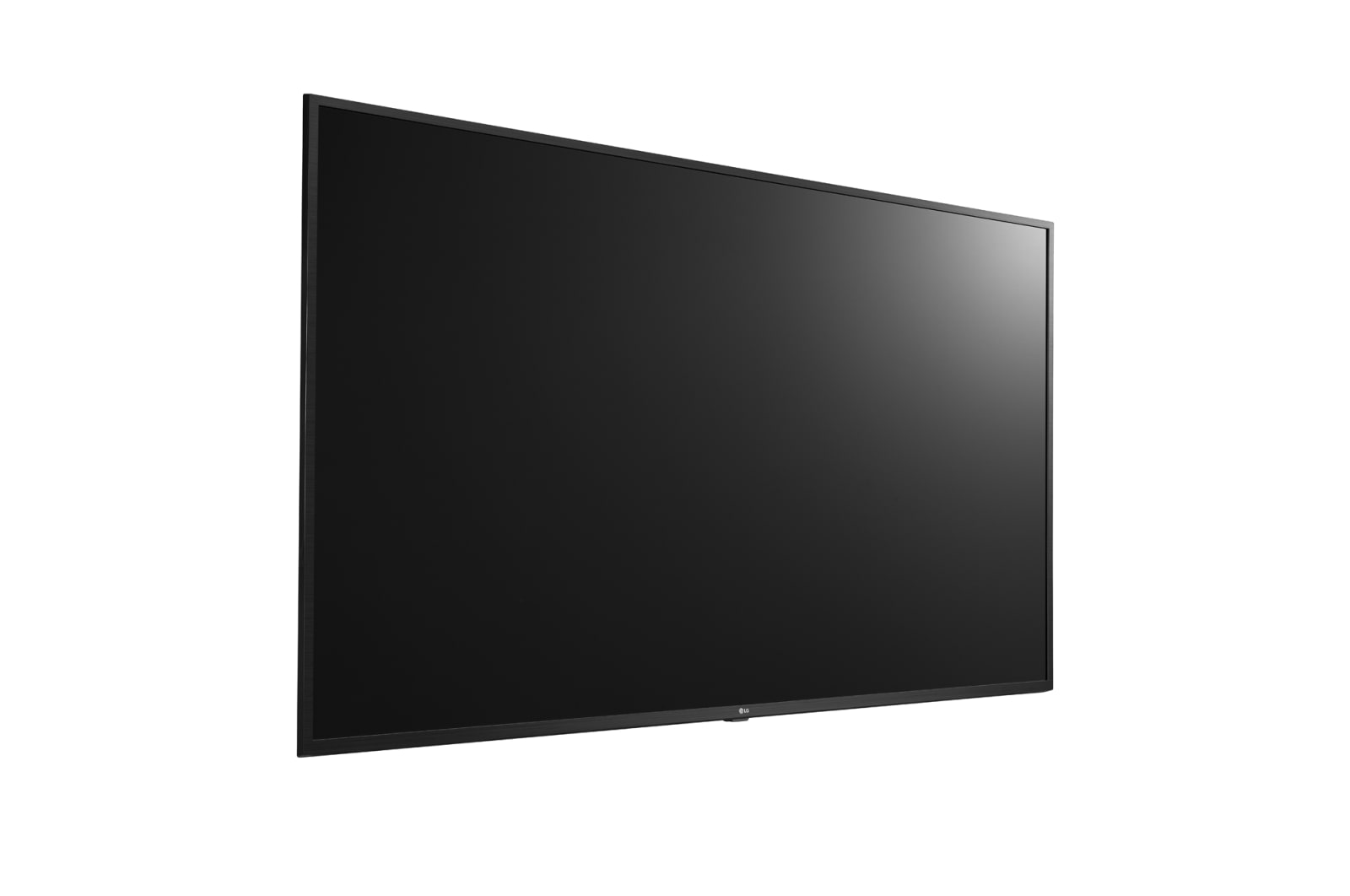

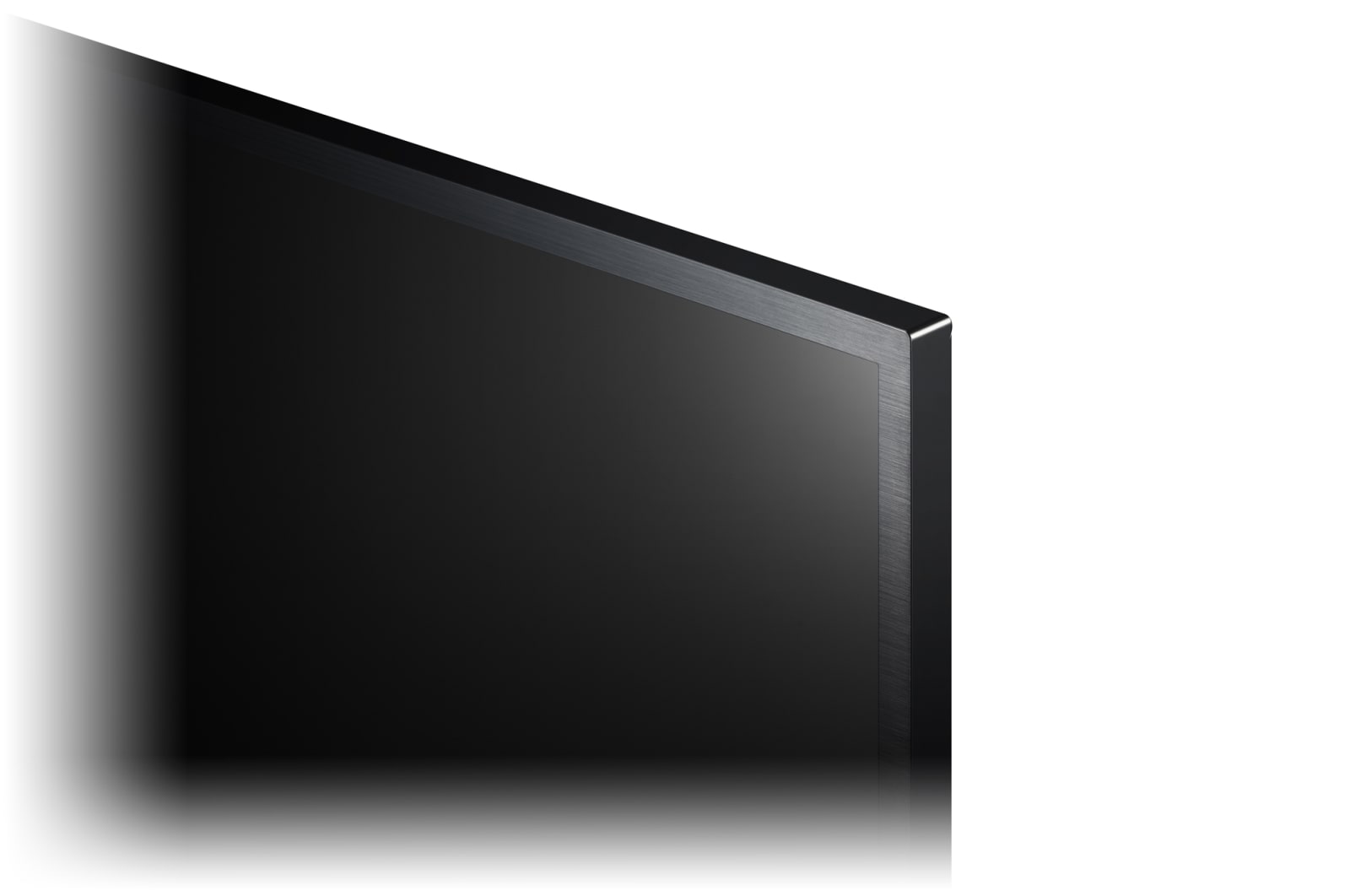

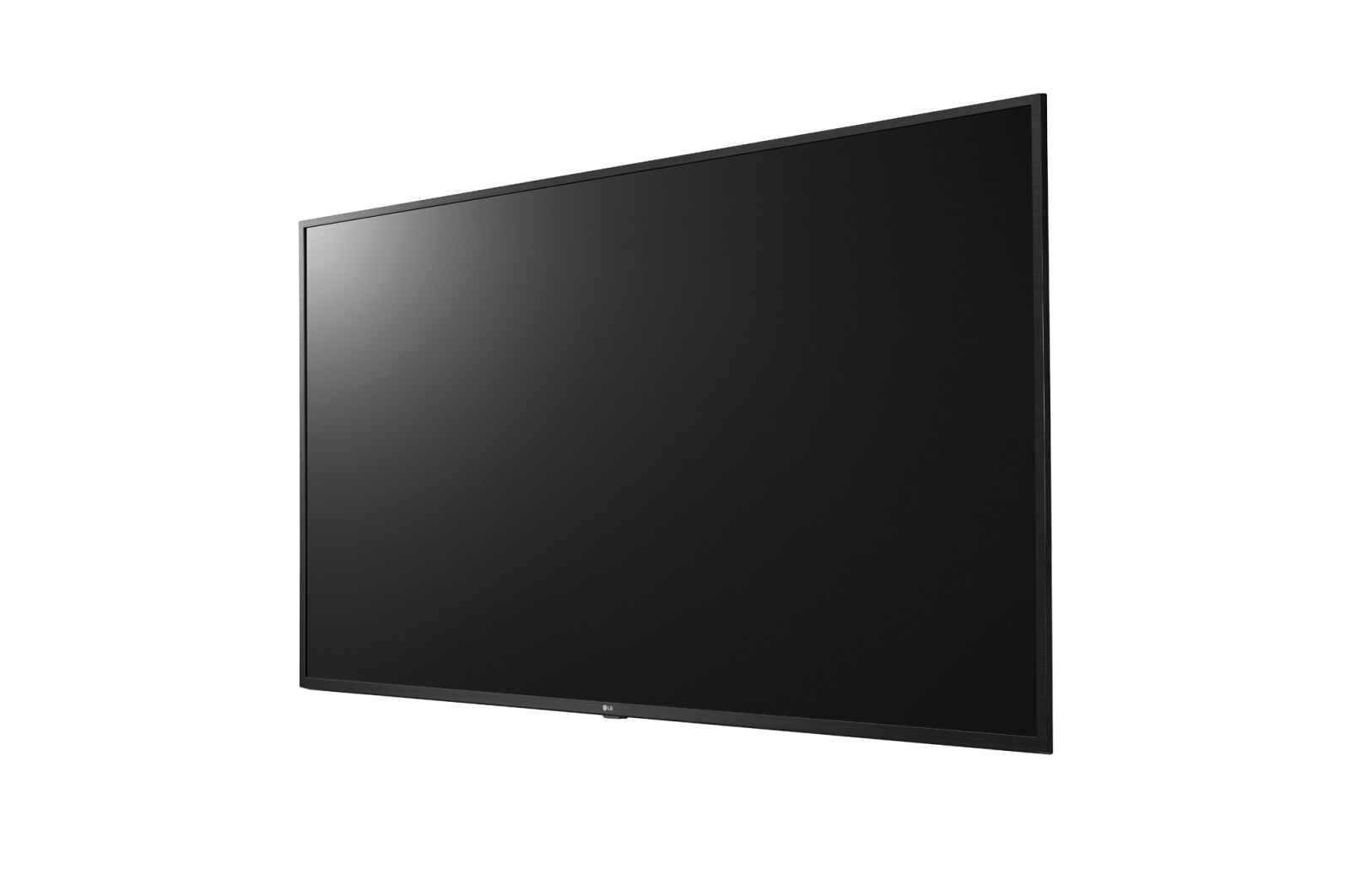

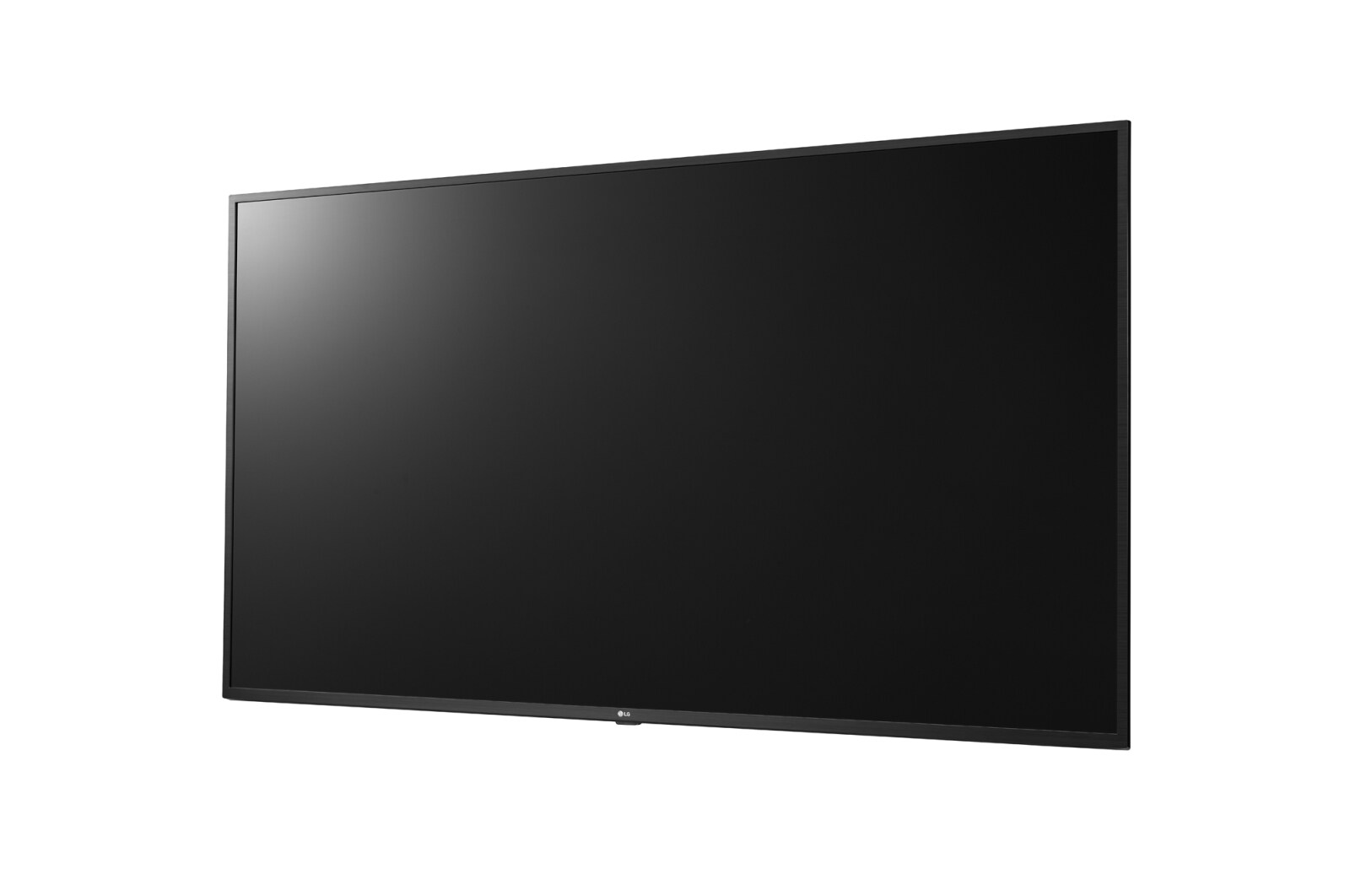

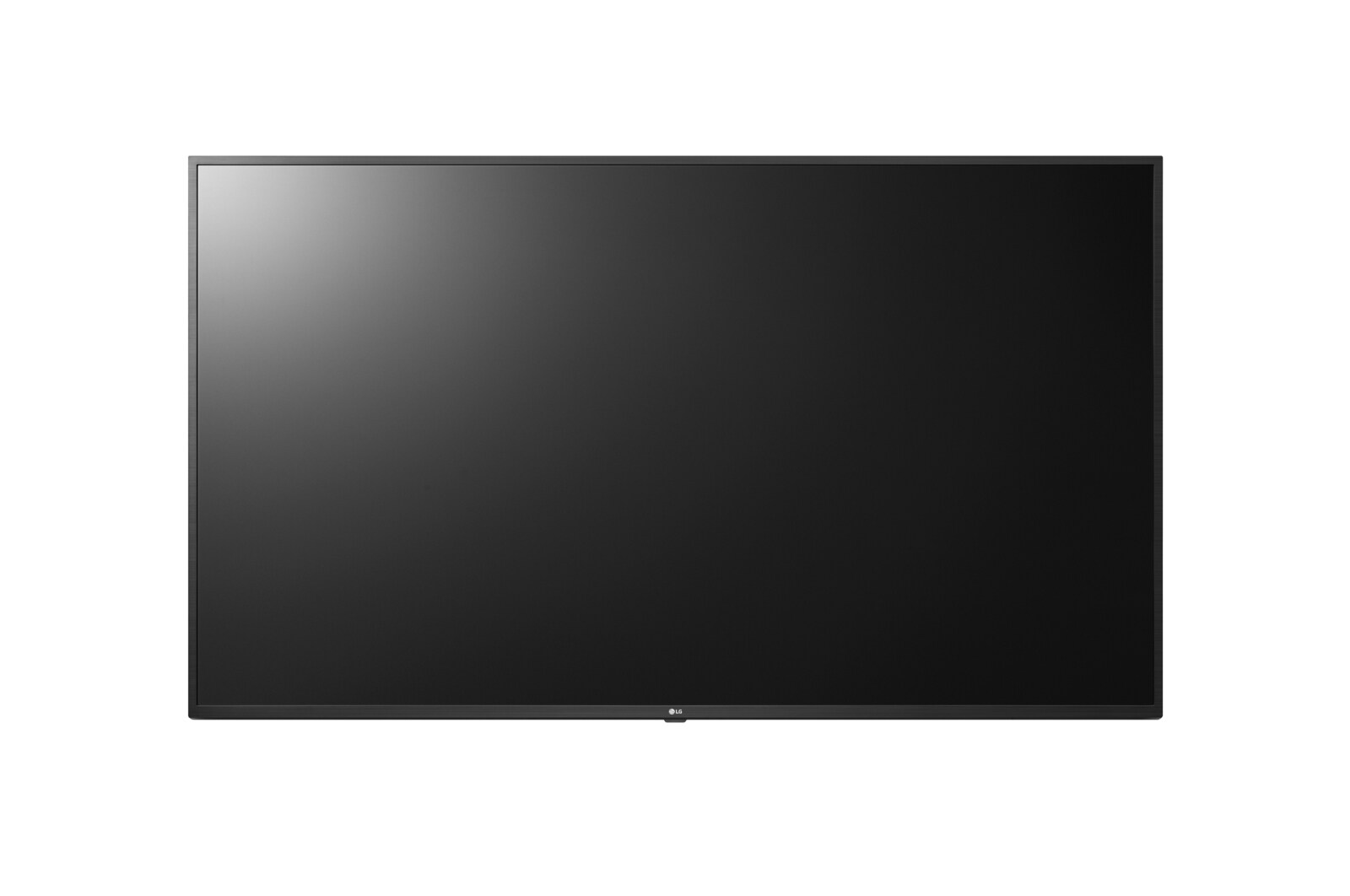

Gallery
All Spec
INFO
-
Category
Smart TV Signage
DESIGN
-
Tool Name
UM73
-
Stand Type
2 Pole
-
Front Color
Ceramic Black
DISPLAY
-
Size (Inch)
65
-
Resolution
4K Ultra HD (3840 x 2160)
-
Brightness (Typ.)
400 nit
VIDEO
-
HDR_HDR 10 Pro
YES
-
HDR_HLG (Hybrid Log Gamma)
YES
AUDIO (SOUND)
-
Speaker (Audio Output)
20W
-
LG Sound Sync
YES
BROADCASTING SYSTEM
-
Digital
DVB-T2/C/S2
-
Teletext (Auto Teletext)
YES
STANDARD
-
Safety
CB, CU TR
-
EMC
CE
SMART FUNCTION
-
webOS version
webOS 4.5
-
Web Browser
YES
-
Bluetooth
YES
-
Soft AP
YES
-
Screen Share
YES
-
DIAL
YES
-
Bluetooth Audio Playback
YES
HOSPITALITY FEATURE
-
USB Cloning
YES
-
WOL
YES
-
SNMP
YES
-
Diagnostics
YES (Self Diagnostics(USB))
-
Simplink(HDMI-CEC) (Version)
YES (1.4)
-
IR Out
YES (RS-232C, HDMI)
-
Multi IR Code
YES
-
Hotel Mode / PDM / Installer Menu
YES
-
Welcome Screen (Splash Image)
YES
-
Insert Image
YES
-
One Channel Map
YES
-
External Speaker Out / Line Out
YES (Ext. Speaker Out)
-
Lock mode
YES (Limited)
-
RJP (Remote Jack Pack) Compatibility
YES
-
Energy Saving mode
YES
VERTICAL FUNCTION (CORPORATE/RETAIL)
-
Crestron Certi. Compatibility
YES
-
DPM (Digital Power Management)
YES
-
Time scheduler
YES
-
RTC (Real Time Clock)
YES
-
NTP sync timer
YES
-
BEACON
YES
-
Embedded CM (Contents Manager)
YES
-
Embedded GM (Group Manager)
YES
SUPERSIGN SW COMPATIBILITY
-
Control / Control Plus
YES
-
CMS(Premium)
YES
-
Simple Editor
YES
CONNECTIVITIES
-
HDMI In
YES (3ea)
-
USB (Ver.)
YES (1ea / 2.0)
-
RF In
YES (2ea)
-
Digital Audio Out (Optical)
YES
-
External Speaker Out(3.5mm Phone jack)
YES
-
CI Slot
YES
-
RJ45 (Usage Purpose)
YES (Ethernet)
-
RS-232C (D-Sub 9pin / Phone jack)
YES (D-Sub 9pin)
-
LG SVC only (Phone jack type)
YES
MECHANICAL
-
VESA Compatible
300 x 300 mm
-
Kensington Lock
YES
DIMENSIONS/WEIGHT
-
Dimension with Stand (W x H x D)
1436 x 914 x 269 mm
-
Dimension without Stand (W x H x D)
1463 x 850 x 87.8 mm
-
Dimension in Shipping (W x H x D)
1600 x 970 x 190 mm
-
Bezel Width (L/R/U/B, On Bezel)
17.0/17.0/17.0/23.8 mm
-
Bezel Width (L/R/U/B, Off Bezel)
15.5/15.5/15.5/22.3 mm
-
Weight with Stand
21.6 kg
-
Weight without Stand
21.3 kg
-
Weight in Shipping
28.4 kg
POWER SPEC.
-
Power Consumption(Max)
206.6W
-
Power Consumption(Typ)
182.6W
-
Standby Power Consumption
Under 0.5W
ACCESSORIES
-
Remote type
S-Con
-
Power Cable
YES (1.5M, Angle Type)
-
