webOS Box

WP402-B

webOS Box

()

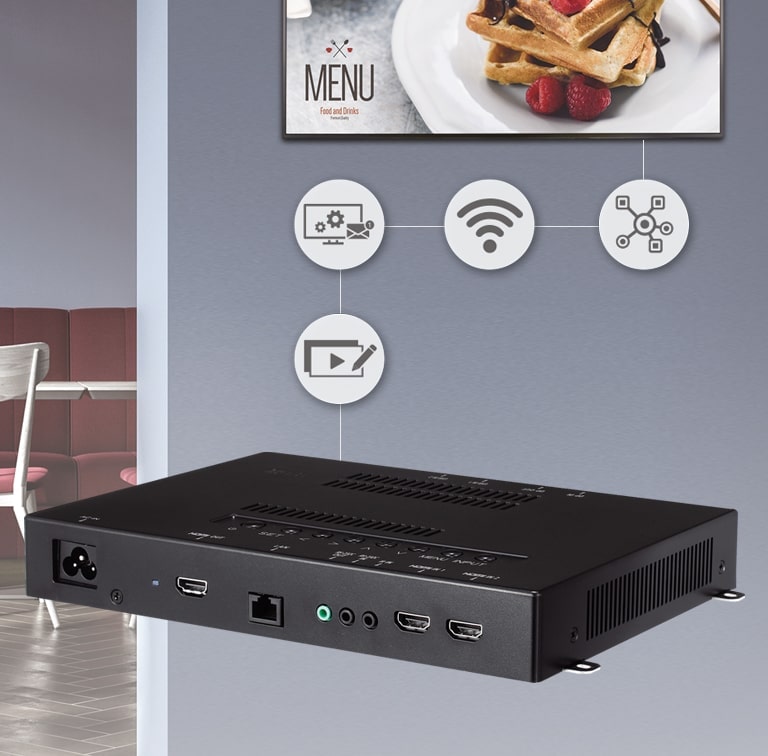

WP402 is connected to LG digital signage to perform several functions.

The User-Friendly Smart Signage Platform

The WP402 webOS box operates webOS 4.0, the enhanced user-friendly LG smart signage platform, and is attached to existing LG digital signages and upgrades them regardless of their original platform. It can execute several tasks at once while providing smooth content playback, and provides an excellent user experience.

* All images in this web page are for illustrative purposes only and may differ from the actual product.

Great Scalability

Upgrade to the webOS 4.0 Smart Signage Platform

The WP402 may be applied towards any type of LG digital signages regardless of its platform. The webOS box provides user-friendly smart functions with dedicated menus essential for business use. This way, users are able to easily manage and distribute content or develop web-based applications for multiple signages simultaneously.

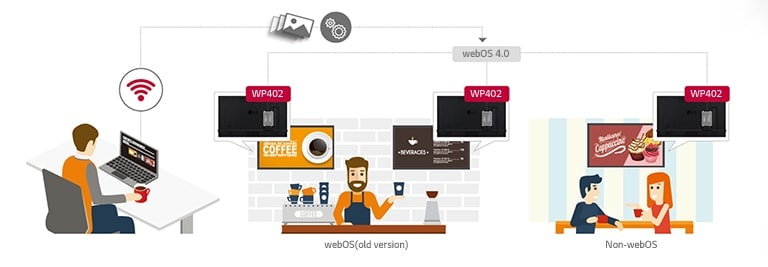

This image shows that WP402 upgrades webOS(old version) and Non-webOS type of LG digital signages to webOS 4.0 Smart Signage Platform. In this way, users easily manage and distribute web-based applications.

WP402 supports the play of UHD video, and this shopping mall digital signage scene is one of examples.
High Performance Media Player

UHD Video Playback Supported

The WP402 supports Ultra HD high-quality video playback which delivers color and details of content vividly, with four times higher definition than FHD. Only a single webOS box is required for this superior picture quality.

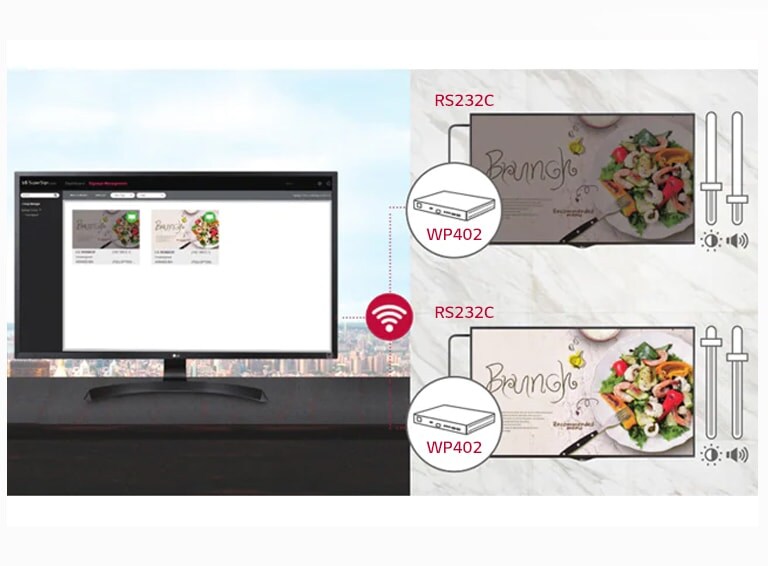

WP402 allows the users to flexibly control the brightness and volume of multiple LG digital signages through RS-232C cable connection.
High Performance Media Player

Display Control Capability

Beyond content management, control commands from the WP402 can be sent to LG digital signages through the RS232C cable connection. It allows users to flexibly set up display values such as power, brightness or volume for optimal operation.

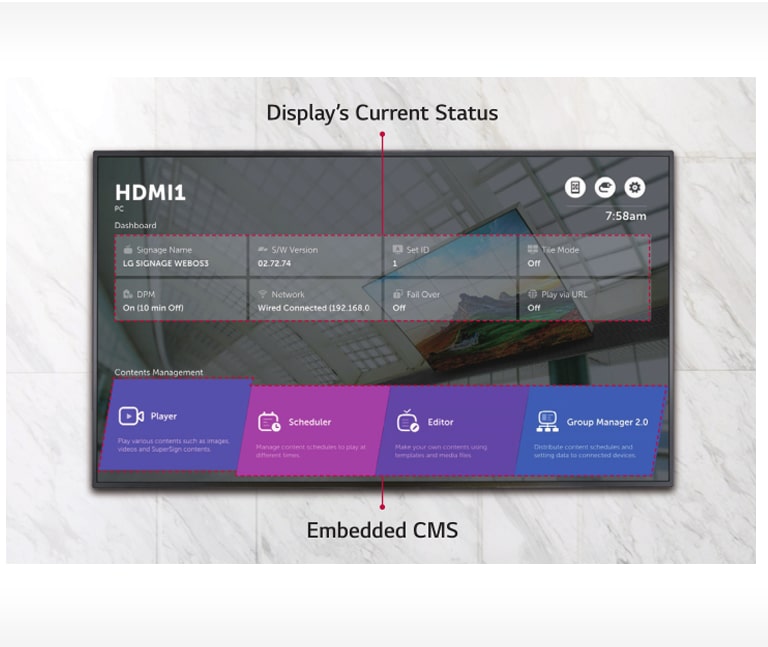

WP402 provides a home menu showing display’s current status and embedded CMS.
User-Friendly Smart Platform

All-in-One Home Menu

The WP402 offers a signage-dedicated home menu that shows key information related to signage operation at a glance. A dashboard showing the status of devices, a content management menu, and shortcuts leading to quick settings greatly enhance user convenience.

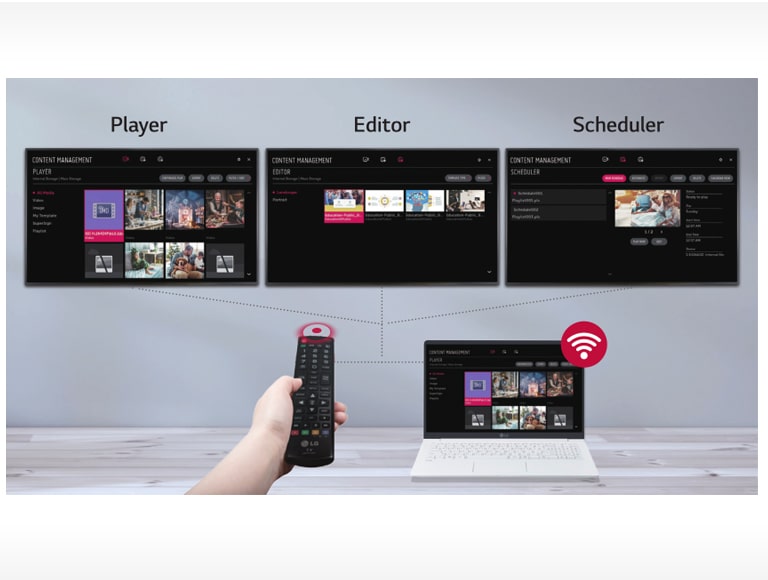

Users can set up players, editors, schedulers, etc. for displays using various devices from remote controls to laptops.
User-Friendly Smart Platform

Embedded Content Management

The embedded CMS(Content Management System) allows users to edit content using internal/external sources and set playlists to play at the desired schedule. Users can easily explore and manage content through the intuitive GUI, using various input devices, from a remote control to a laptop.

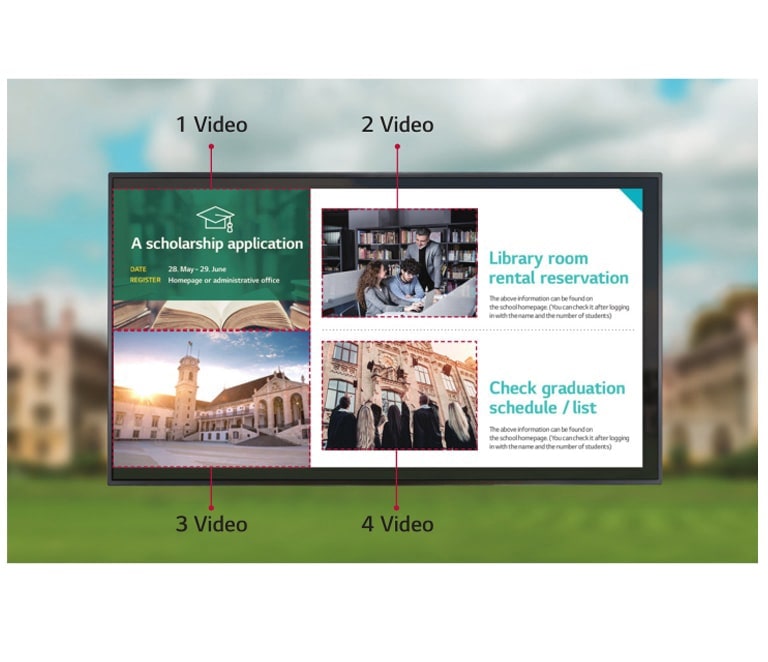

It plays 4 videos simultaneously and distribute content through multi video tags feature.
Flexible Operation

Multi Video Tags

Several different videos can be played at the same time using the multi video tags feature. This gives you greater flexibility to organize and deploy content when various content items need to be delivered simultaneously via web apps.

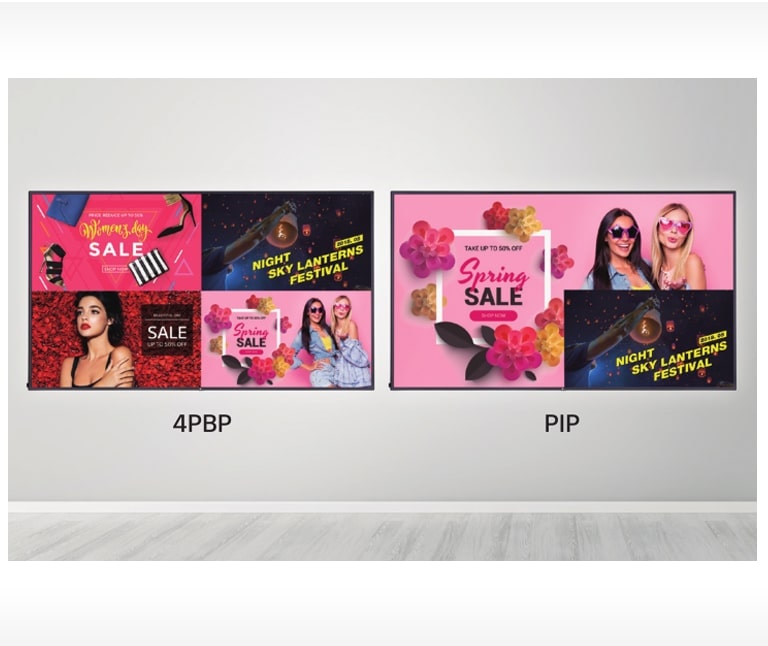

PBP provides 4 screens for 1 display, and PIP consists of the main screen and second screen in various layouts.
Flexible Operation

Multi Screen with PBP/PIP

PBP(Picture-By-Picture) features multi screen in a single display with upto 4 input sources while PIP(Picture-In-Picture) supports playing both main screen and sub screen at the same time with various layouts. This gives great flexibility to allocate space for each content souce.
WP402 is compatible with LG SuperSign Solutions and uses SuperSign to facilitate the creation and distribution of various contents.
Flexible Operation

Compatibility with LG SuperSign Solutions

LG SuperSign is a comprehensive and indispensable software solution for the integrated management of LG digital signages. With SuperSign, content creation and distribution gets easier and centralized monitoring and control becomes simpler, helping your business save time and operate more effectively across different locations.
LG employees are remotely monitoring LG digital signage installed in other locations using a cloud-based LG monitoring solution.
Flexible Operation

Real-time LG ConnectedCare

Maintenance is easy and fast with the optional LG ConnectedCare service, a cloud service solution provided by LG. It remotely manages the status of displays in client workplaces for fault diagnosis and remote-control services, enabling the stable operation of clients' businesses.

* The availability differs by regions.

Print

All Spec

CONNECTIVITY

  • HDMI In

    YES (2ea)

  • HDMI In (HDCP Ver.)

    2.2

  • DP In

    YES (HDCP 1.3)

  • DVI-D In

    NO

  • RGB In

    NO

  • Audio In

    NO

  • RS232C In

    YES

  • RJ45(LAN) In

    YES (1ea)

  • IR In

    YES

  • USB In

    USB2.0 Type A (2ea)

  • HDMI Out

    YES

  • DP Out

    YES

  • Audio Out

    NO

  • Touch USB

    NO

  • External Speaker Out

    NO

  • RS232C Out

    YES

  • RJ45(LAN) Out

    NO

  • IR Out

    NO

  • Daisy Chain

    NO

MECHANICAL SPECIFICATION

  • Bezel Color

    Black

  • Bezel Width

    N/A

  • Weight (Head)

    0.87Kg

  • Weight (Head+Stand)

    N/A

  • Packed Weight

    1.77Kg

  • Monitor Dimensions (W x H x D)

    258.0 x 36.5 x 186.0mm

  • Monitor Dimension with Stand (W x H x D)

    N/A

  • Carton Dimensions (W x H x D)

    359.0 x 124.0 x 314.0mm

  • Handle

    NO

  • VESA Standard Mount Interface

    N/A

FEATURE - HARDWARE

  • Internal Memory (eMMC)

    8GB

  • Wi-Fi/BT (Built-in)

    YES

  • Temperature Sensor

    YES

  • Auto Brightness Sensor

    NO

  • Pixel Sensor

    NO

  • Proximity Sensor

    NO

  • Current Sensor

    NO

  • BLU Sensor

    NO

  • Humidity Sensor

    NO

  • Acceleration(Gyro) Sensor

    NO

  • Power Indicator

    YES

  • Local Key Operation

    YES

  • FAN (Built-in)

    NO

FEATURE - SOFTWARE

  • OS Ver. (webOS)

    webOS 4.0

  • Local Contents Scheduling

    YES

  • Group Manager

    YES

  • USB Plug & Play

    YES

  • Fail over

    YES

  • Booting Logo Image

    NO

  • No Signal Image

    YES

  • RS232C Sync

    NO

  • Local Network Sync

    YES

  • Backlight Sync

    NO

  • PIP

    YES

  • PBP

    YES (4PBP)

  • Screen Share

    YES

  • Video Tag

    YES (4 Video Tag)

  • Play via URL

    YES

  • Screen Rotation

    YES

  • External Input Rotation

    YES

  • Gapless Playback

    YES

  • Tile Mode Setting

    YES

  • Setting Data Cloning

    YES

  • SNMP

    YES

  • ISM Method

    YES

  • Auto Set ID

    NO

  • Status Mailing

    YES

  • Control Manager

    YES

  • Cisco Certification

    NO

  • Crestron Connected

    NO

  • Smart Energy Saving

    NO

  • PM mode

    NO

  • Wake on LAN

    YES

  • Network Ready

    NO

  • Beacon

    YES

  • HDMI-CEC

    YES

  • SI Server Setting

    YES

  • webRTC

    YES

  • Pro:Idiom

    YES

  • Brightness Compensation

    NO

  • W/B Setting by Grey scale

    NO

  • Scan Inversion

    NO

ENVIRONMENT CONDITIONS

  • Operation Temperature

    0 °C to 40 °C

  • Operation Humidity

    10 % to 80 %

POWER

  • Power Supply

    AC 100-240V~, 50/60Hz

  • Power Type

    Built-in Power

POWER CONSUMPTION

  • Typ.

    23W

  • Max.

    27W

  • BTU (British Thermal Unit)

    78.48 BTU/Hr(Typ.), 92.13 BTU/Hr(Max.)

  • Smart Energy Saving (70%)

    N/A

  • DPM

    0.5W(WOL Off)

  • Power off

    0.5W

SOUND

  • Speaker (Built-in)

    NO

CERTIFICATION

  • Safety

    CB / NRTL

  • EMC

    FCC Class "A" / CE Class "A"

  • ERP / Energy Star

    YES / NO

  • ePEAT(US only)

    NO

SOFTWARE COMPATIBILITY

  • SuperSign CMS

    YES

  • SuperSign Control+

    YES

  • SuperSign WB

    YES

  • SuperSign Cloud

    NO

  • Promota

    YES

  • Mobile CMS

    NO

  • Connected Care

    YES

LANGUAGE

  • OSD

    English, French, German, Spanish, Italian, Korean, Chinese(Simplified), Chinese(Original), Portugues(Brazil), Swedish, Finnish, Norwegian, Danish, Russian, Japanese, Portugues(Europe), Dutch, Czech, Greek, Türkçe, Arabic

ACCESSORY

  • Basic

    Remote Controller(include battery 2ea), Power Cord, QSG, HDMI Cable, Regulation Book, Phone to RS232C Gender

  • Optional

    NO

To access more technical documentation and resources, please visit the LG B2B partner portal.
