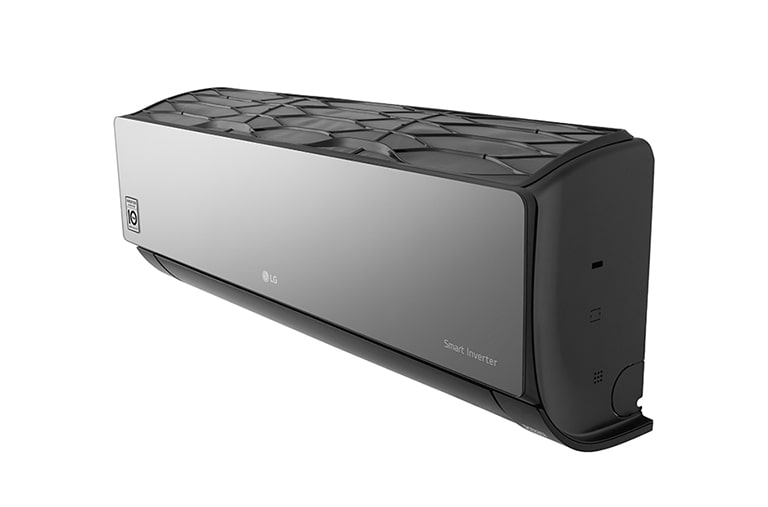

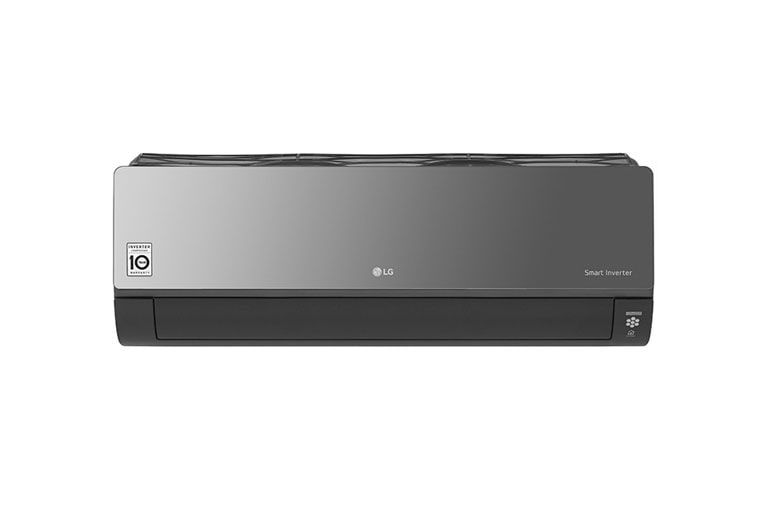

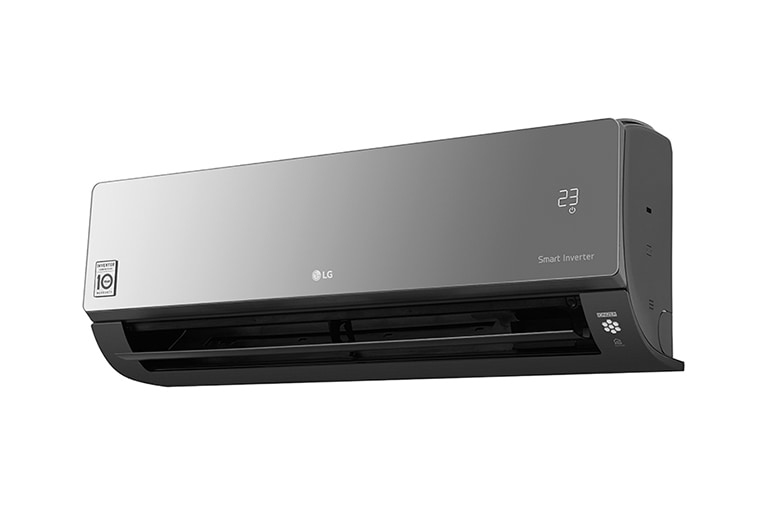

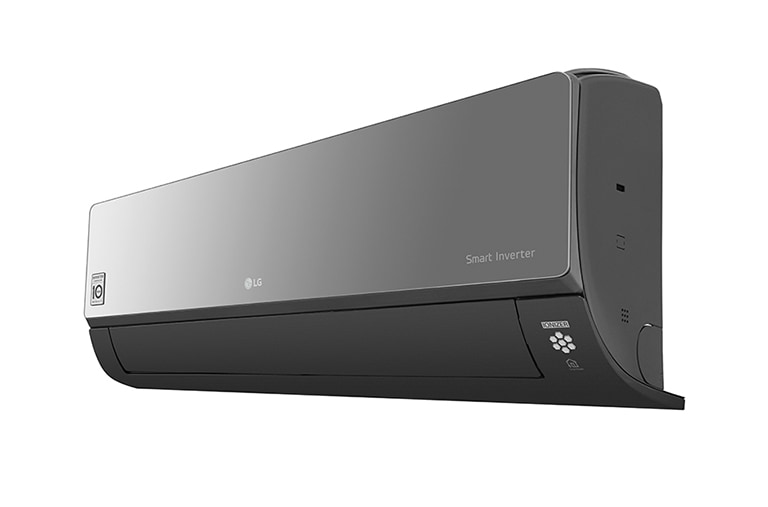

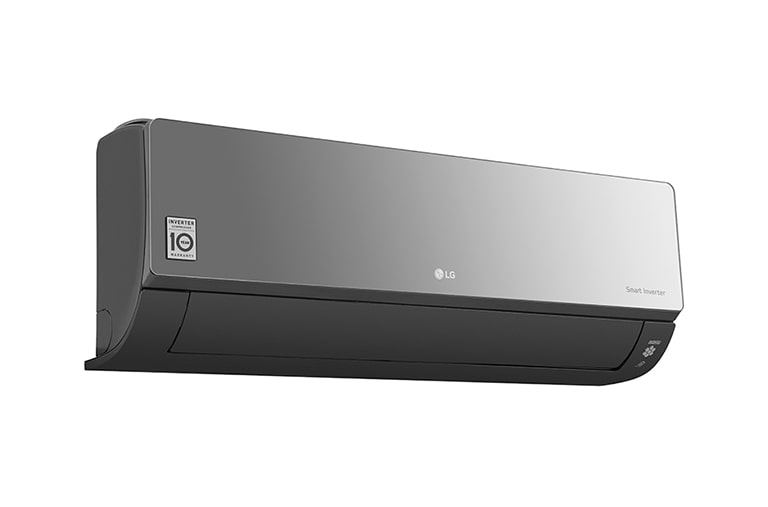

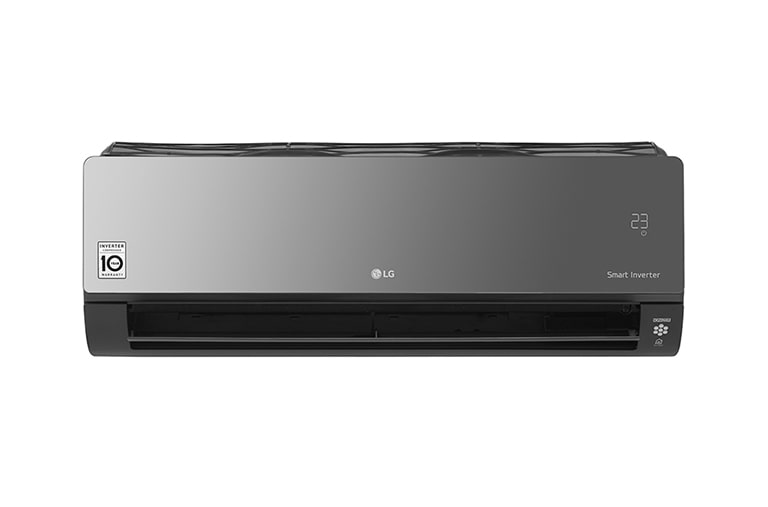

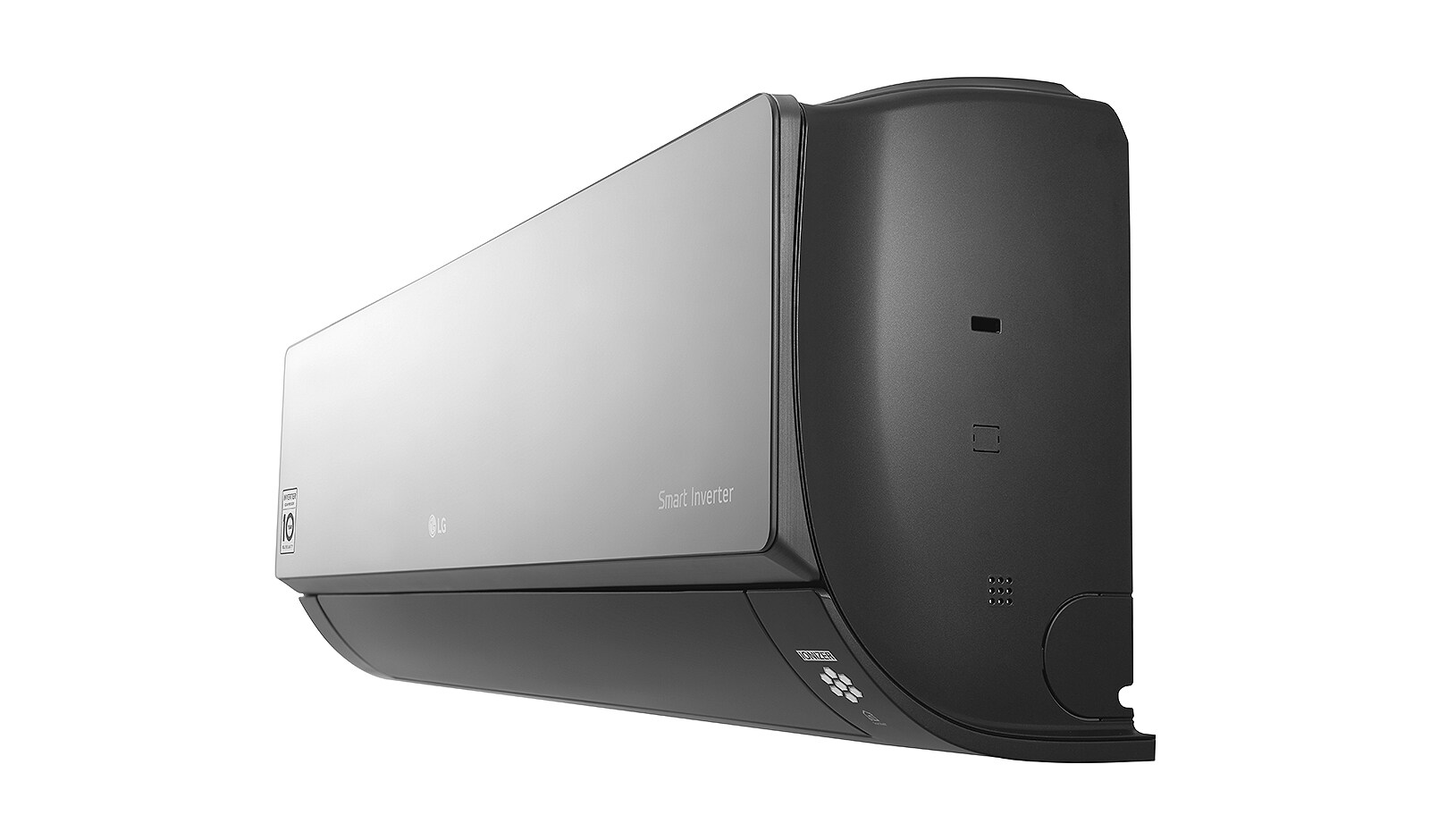

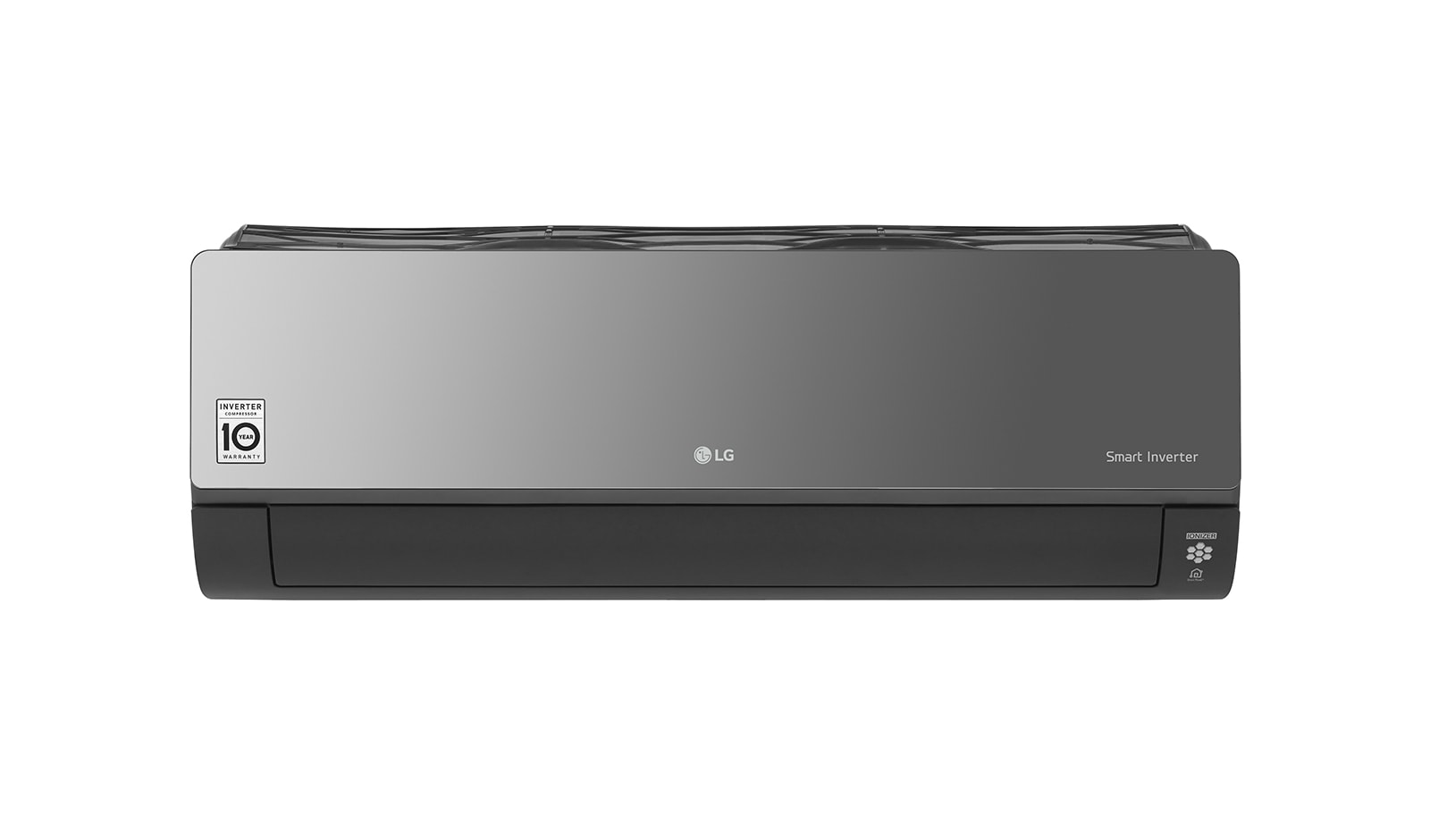

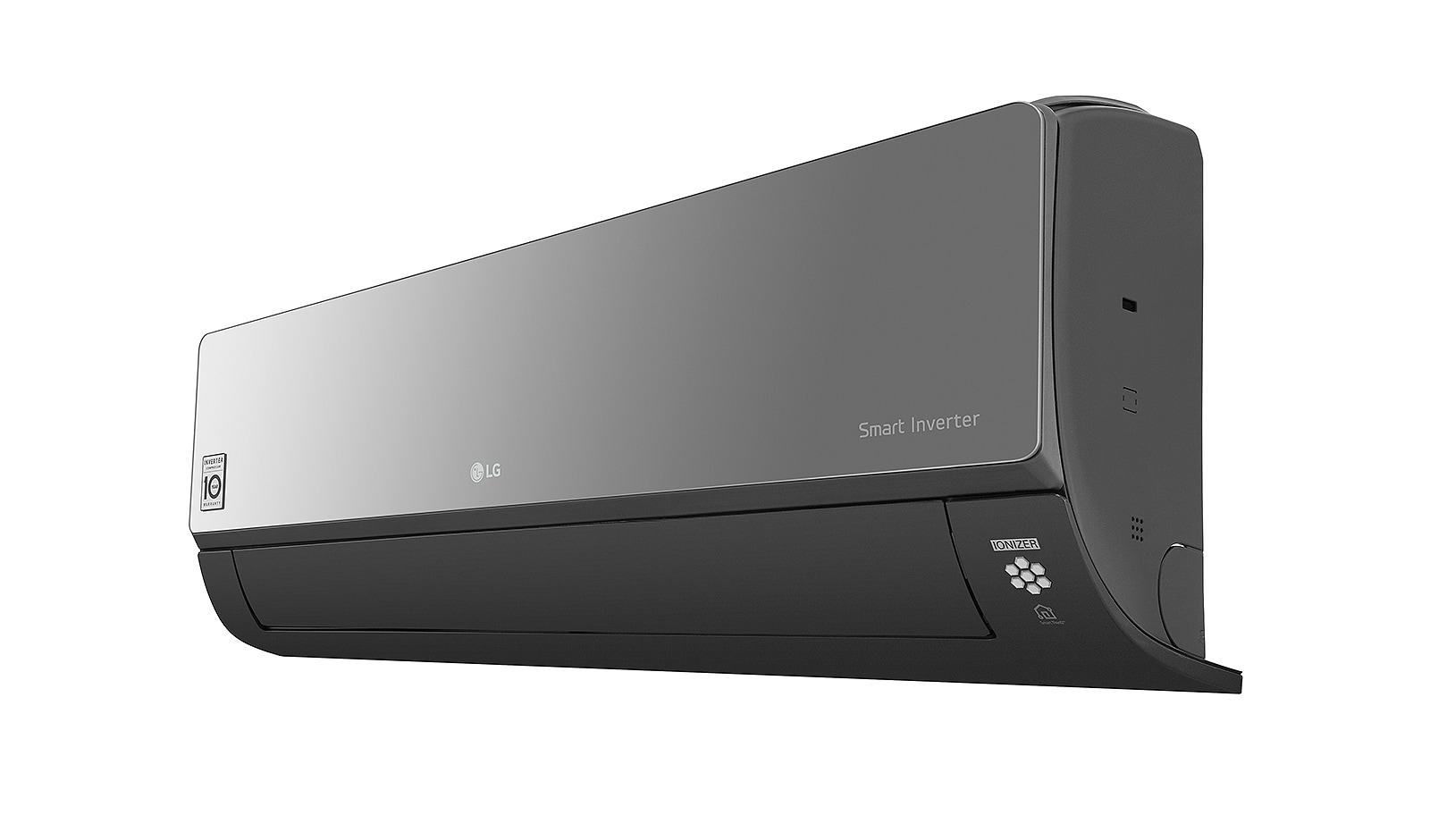

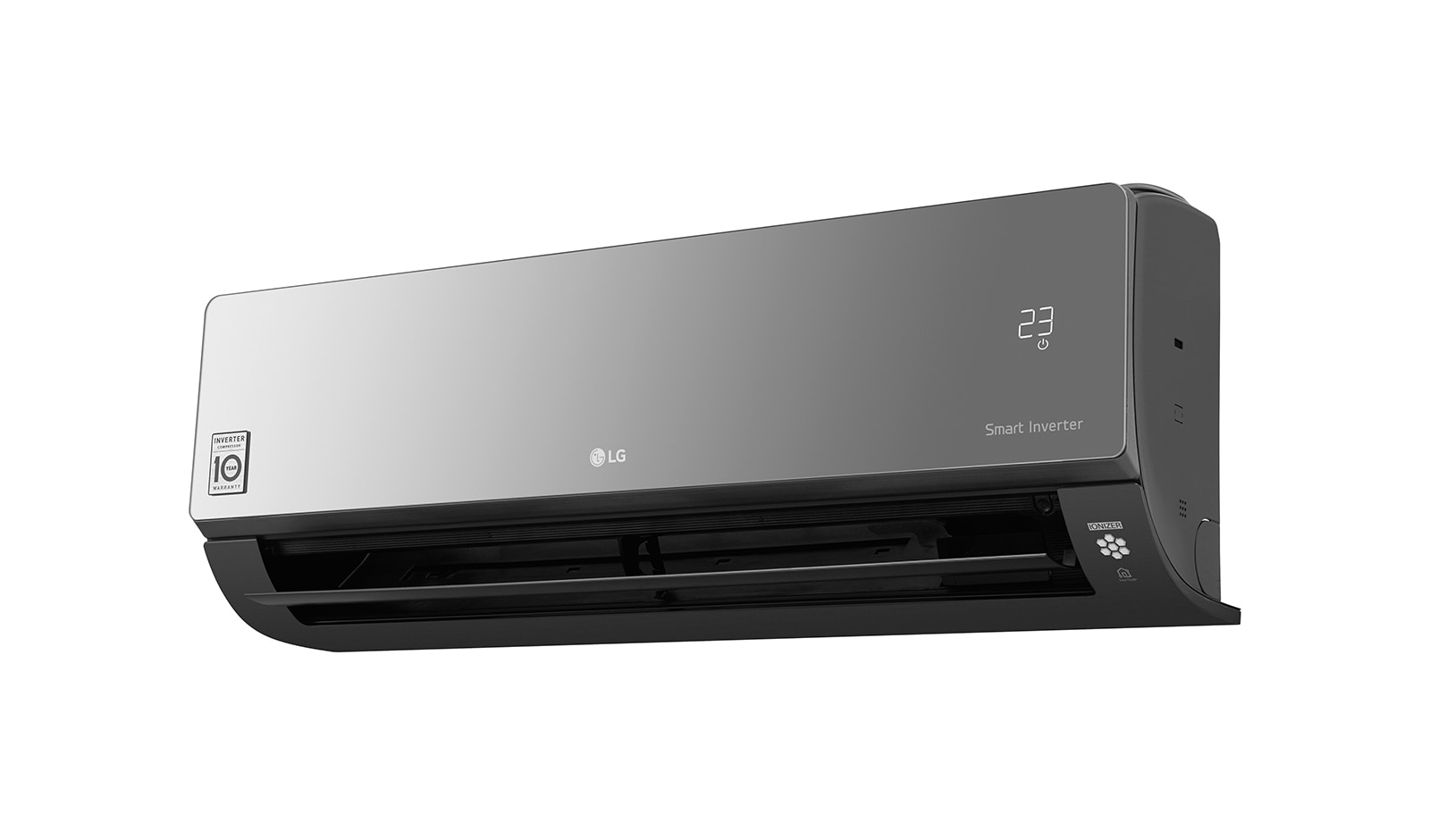

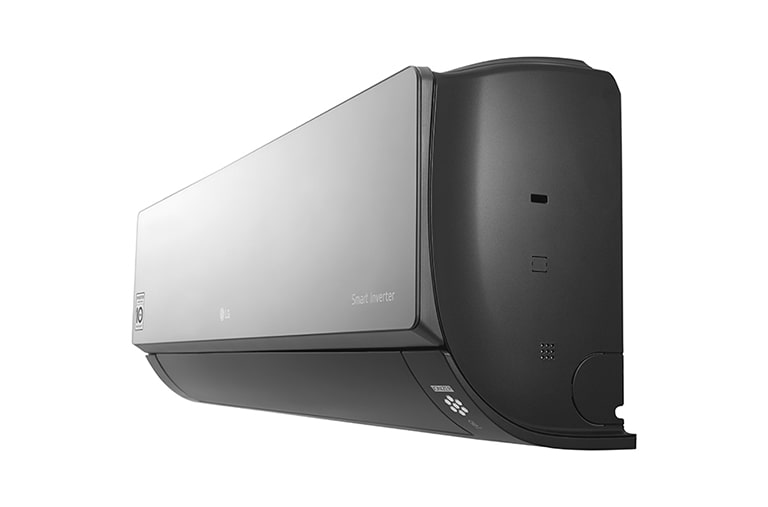

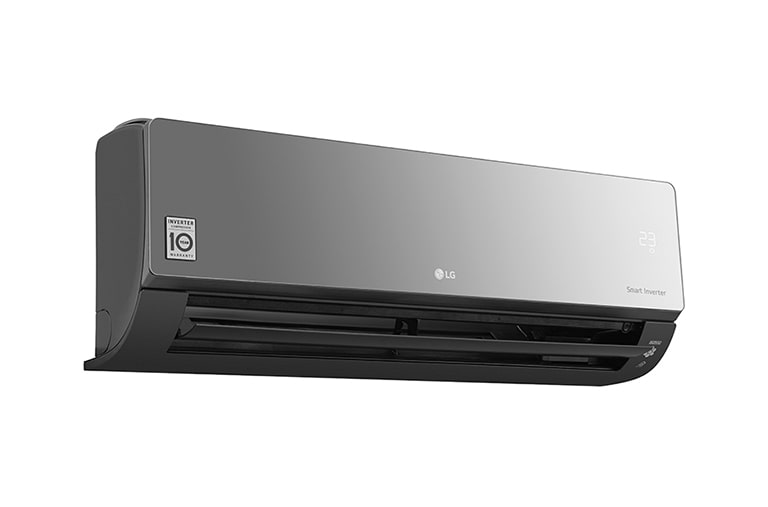

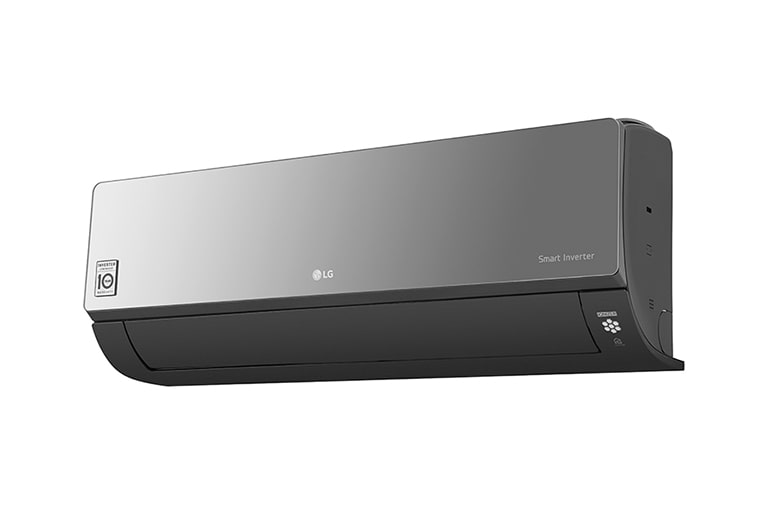

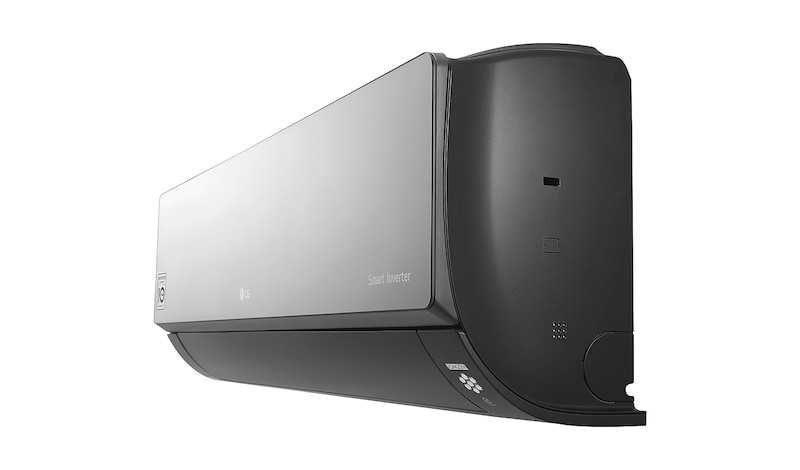

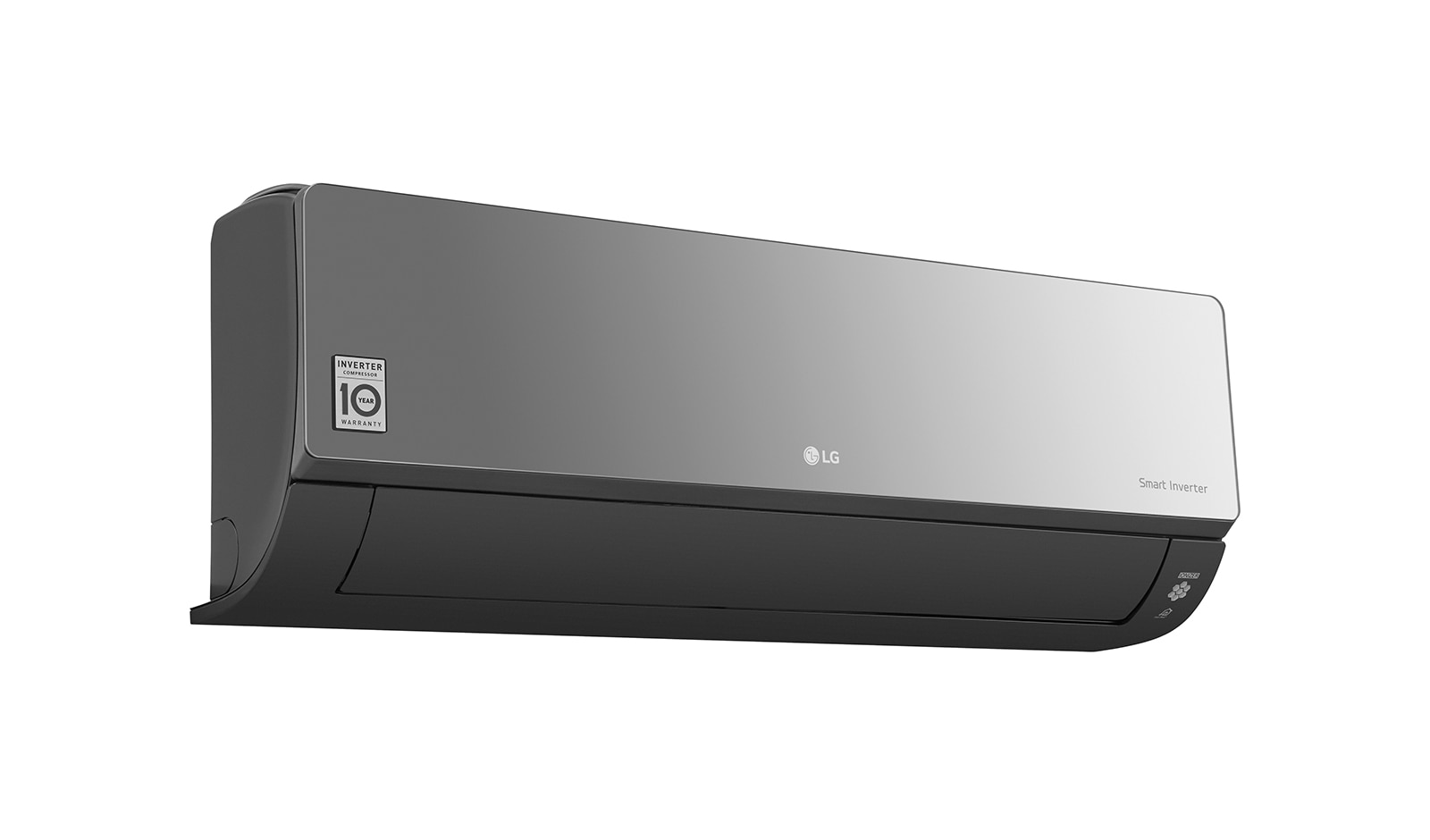

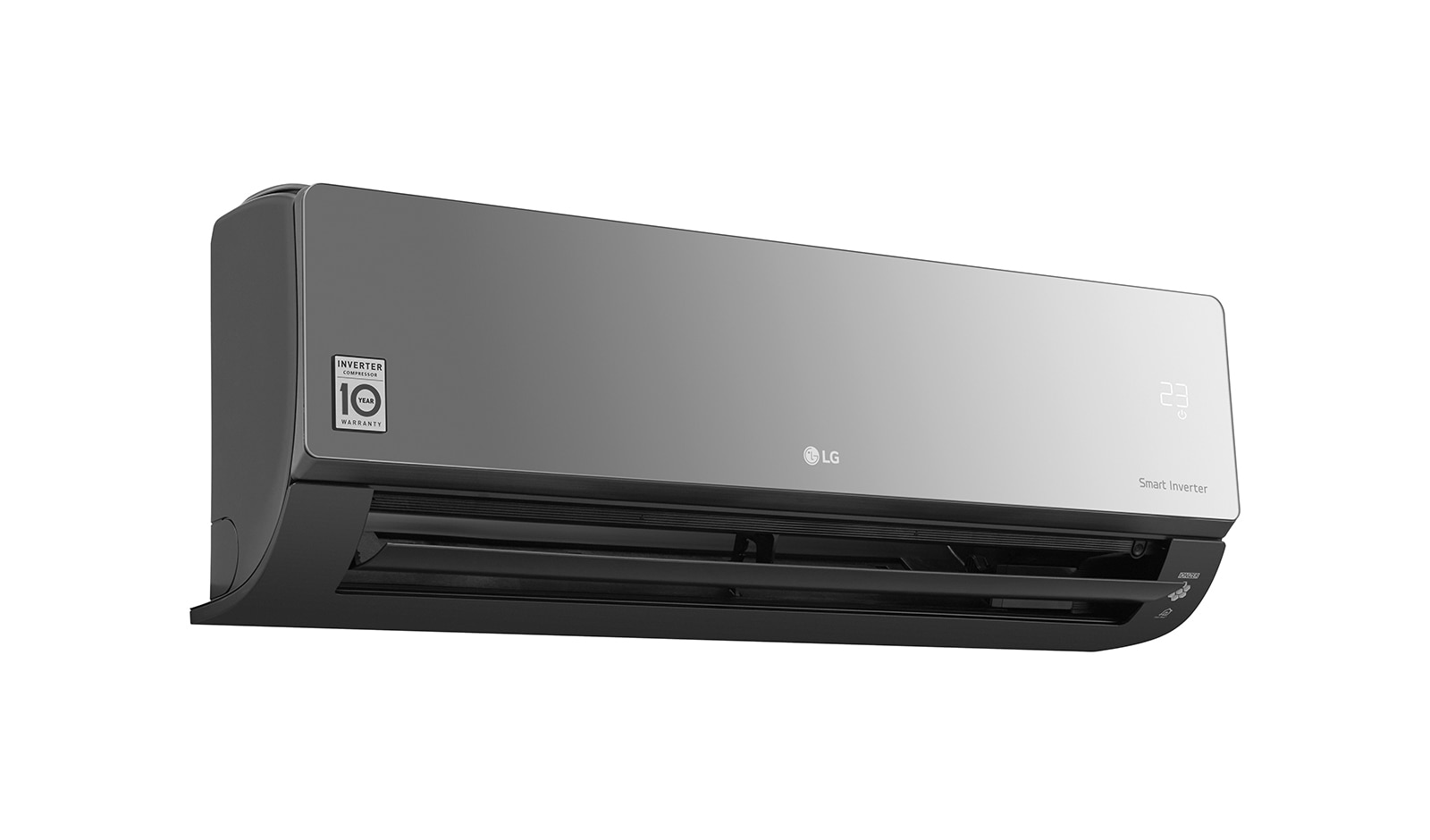

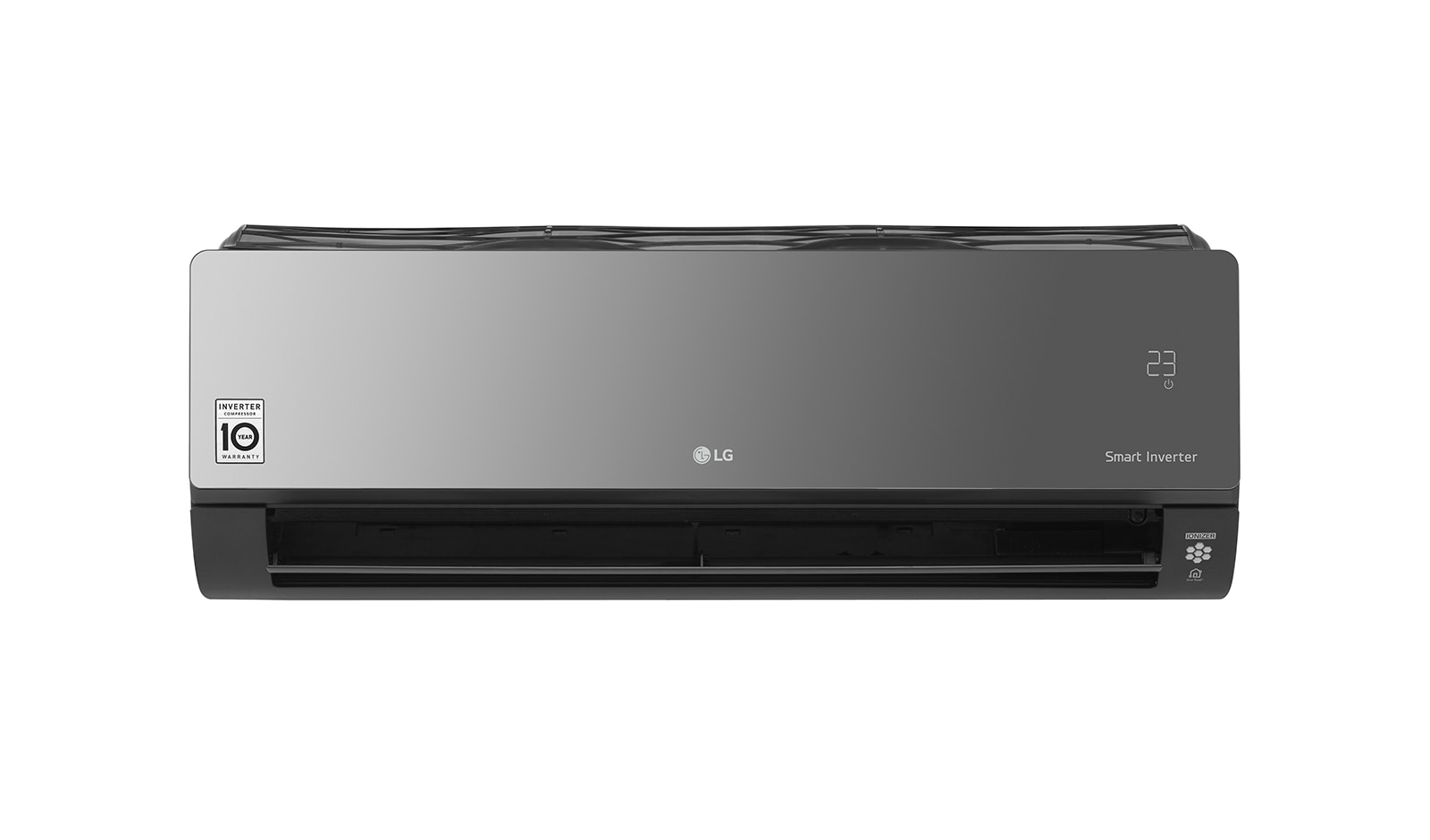

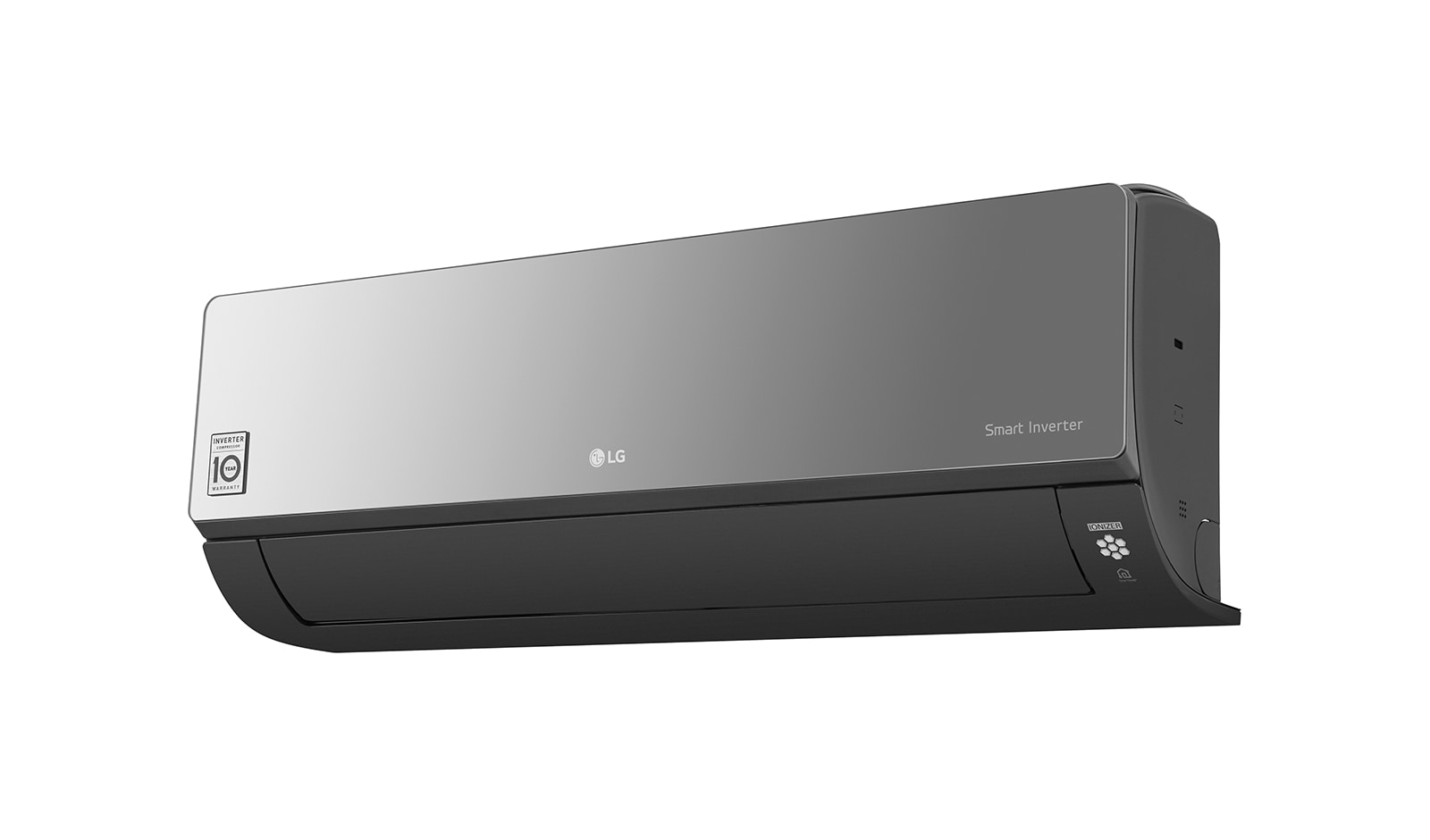

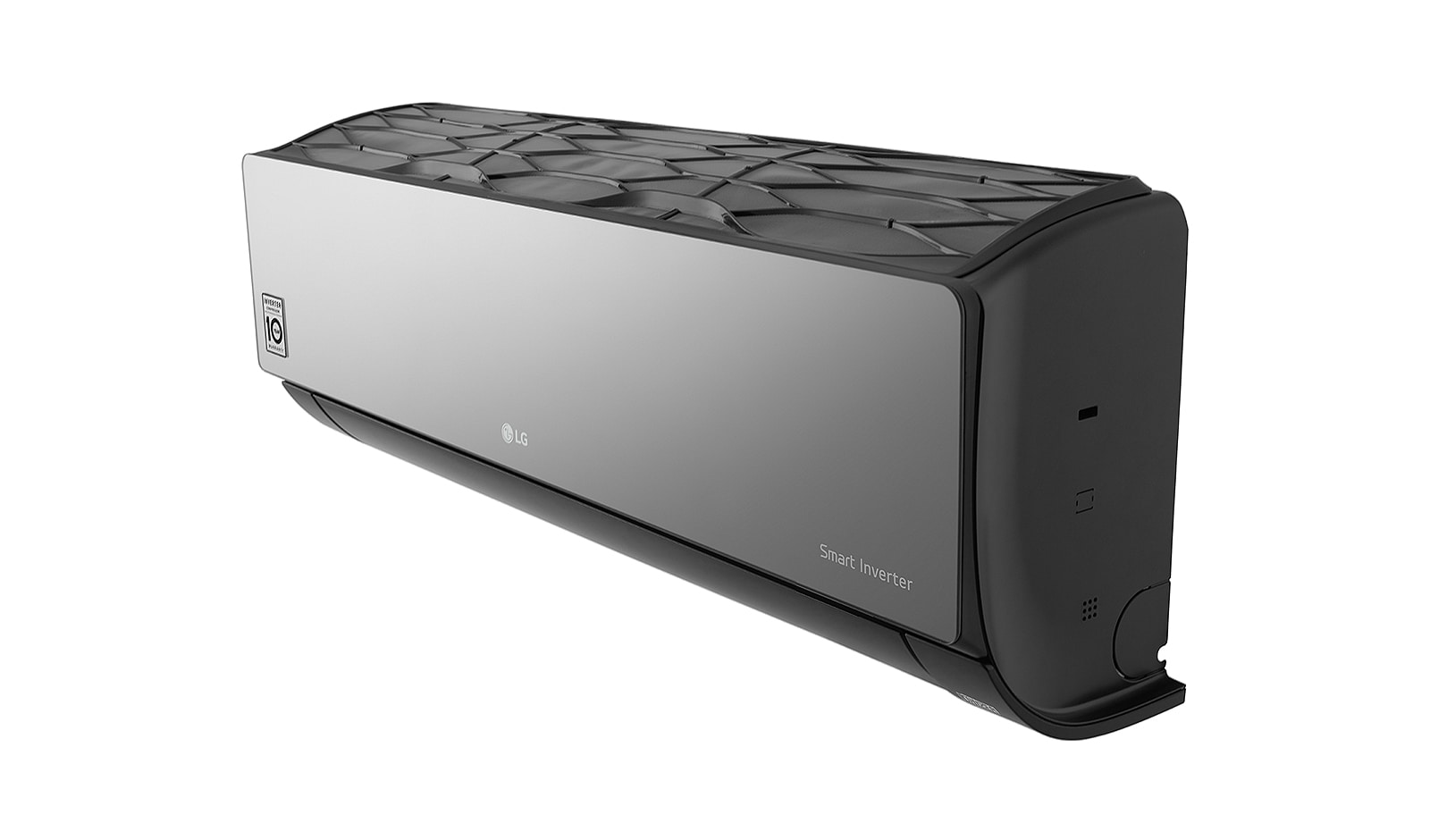

Dual Inverter ARTCOOL 9000 BTU Heat & Cool Split Air Conditioner with Wi-Fi control and Ionizer
![](/content/dam/channel/wcms/za/images/residential-air-conditioners/a096jh_nc0_efsa_za_c/A096JH_450_310717_edit.jpg)
Summary
DIMENSIONS
![](/content/dam/channel/wcms/za/images/spec/A096JH_Spec_Dimension_08102018_M.jpg)
All Spec
GENERAL SPECIFICATIONS
-
Cooling Capacity
2.64 kW, 9000 Btu/h
-
Heating Capacity
2.84 kW, 9690 Btu/h
-
Compressor Type
Single Rotary
-
Refrigerant
R410A
-
EER
3.40 W/W, 11.60 (Btu/h)/W
-
COP
3.80 W/W, 12.97 (Btu/h)/W
INDOOR
-
Fan Type
Cross Flow Fan
-
Motor Output
30W
-
Sound Pressure Level
41 / 35 / 27 / 19 dB(A)41 / 35 / 30 dB(A)
-
Air Flow Rate
9.8 / 8.7 / 7.5 / 4.2 ㎥/min346.1 / 307.2 /264.8 /148.3 CFM10.5 / 9 / 7 / 5.5 ㎥/min370.7 / 317.8 / 247.2 /194.2 CFM
OUTDOOR
-
Fan Type
Propeller Fan
-
Motor Type
AC
-
Sound Pressure Level
50 dB(A)52 dB(A)
-
Air Flow Rate
27.0 ㎥/min
-
Piping
Ø 6.35 mm, Ø 9.52 mm
-
Drain Hose Size
28.0, 16.4 mm, 1.10, 0.65 in.
POWER
-
Cooling
776 W
-
Heating
747 W
-
Cooling Running Current
3.70 A
-
Heating Running Current
3.50 A
-
Power Supply
220~240 Ø, V, Hz
-
Available Voltage Range
187 ~ 276 V
-
Power Factor
93.0%
-
Circuit Breaker
15 A
DIMENSIONS
-
Indoor Dimensions
837 mm X 308 mm x 192 mm
-
Indoor Weight
9.7Kg, 12Kg
-
Outdoor Dimensions
717 mm X 483 mm x 230 mm
-
Outdoor Weight
25.8Kg, 30.1Kg
BETWEEN INDOOR & OUTDOOR
-
Piping length
5.0 m
-
Max. Elevation Difference
7 m
-
Piping Connection Heat Insulation
Both liquid and gas pipes
