Single Split Standard (3 516kW cooling, 3 867kW Heating)
All Spec

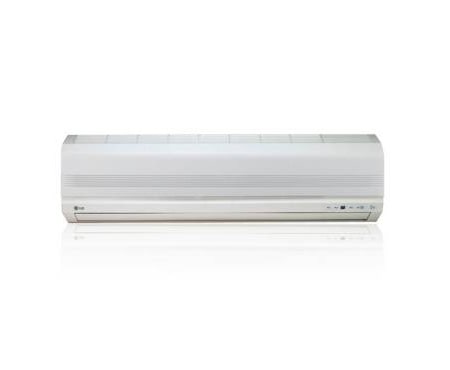

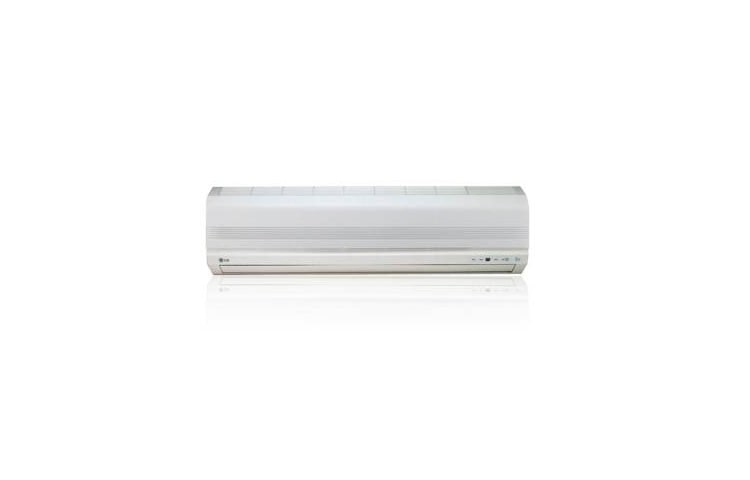

INDOOR UNIT
-
Nominal Capacity (Cooling)
12 000 Btu/hr, 3 516 KW
-
Nominal Capacity (Heating)
13 200 Btu/hr, 3 867 kW
-
Running Current (Cooling)
6.0 A
-
Running Current (Heating)
4.8 A
-
Power Supply (Ø / V /Hz)
1 / 220 – 240 / 50
-
Operational Temp. Range (Cooling)
18 ˚C
-
Operational Temp. Range (Heating)
30 ˚C
-
Air Circulation (CMM /CFM)
8.8 (311)
-
Sound Level (H / M / L)
37 / 33 / 30 ( dB(A) ±3 )
-
Dehumidification Rate
1.5 (3.20) l/h
-
Dimensions (WxHxD) - Body
840 x 270 x 153 mm
-
Dimensions (WxHxD) - Ind.Panel
33.1 x 10.6 x 6.1 mm
-
Weight (Body)
7 kg
-
Drain Hose
12.2 mm
-
Piping Connections (Liquid)
6.35 (1/4) mm(inch)
-
Piping Connections (Gas)
12.7 (1/2) mm(inch)

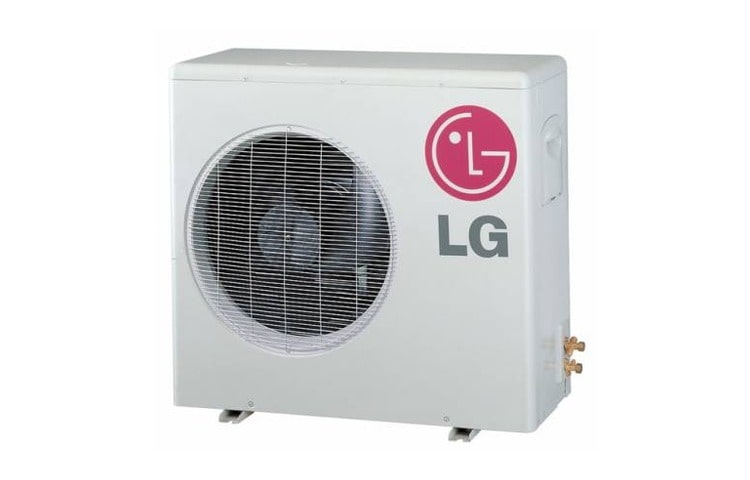

OUTDOOR UNIT
-
Compressor (Capacity)
12 000 Btu/hr
-
Compressor (Type)
Rotary
-
Refrigerant Charge
830g (R22 type)
-
Fan Motor (Input/Output)
63.2 / 25 W
-
Fan Motor (Type)
AC Induction
-
Noise Level
49 dB(A) ±3
-
Dimensions
770 x 245 x 540 mm
-
Net Weight
25 kg
-
Power Supply Cable
3 x 0.75 (No *mm²)
-
Blower Motor
34.3 / 15.1 W (Input / Output)
-
Max Piping
7 / 15 m (Elevation/Length)
-
Drain Hose
26.5 mm
-
Running Current
6.0 / 4.8 A (Cooling/Heating)
-
Air Circulation (CMM / CFM)
23 (812)
