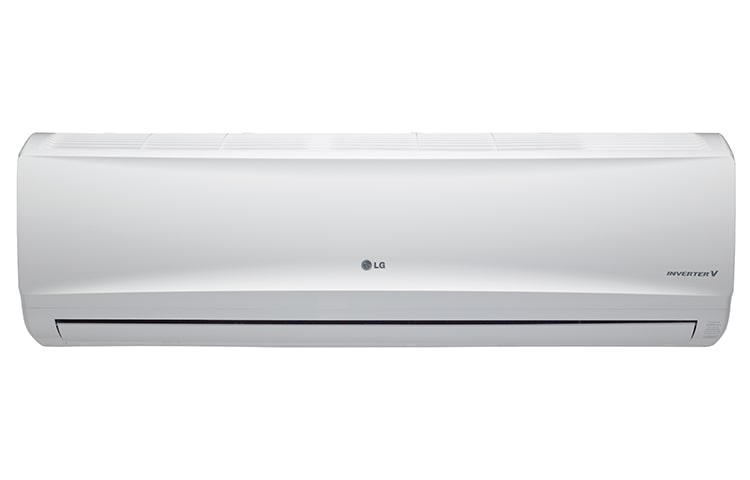

M-Range 18000 btu Air Conditioner
All Spec
GENERAL SPECIFICATIONS
-
Cooling Capacity
1.08~4.98~5.12 kW
-
Heating Capacity
1.08~5.28~6.10 kW
-
Power Input Cooling
1,560 W
-
Power Input Heating
1540 W
-
Running Current Cooling
7.3 A
-
Running Current Heating
6.9 A
-
EER
3.21 W/W
10.97 Btu/h.W -
COP
3.61 W/W
-
Power Supply
1 Ø / 220~240 V / 50 Hz
-
Air Flow Rate Indoor,Max
17.4(614) m3 /min(CFM)
-
Air Flow Rate Outdoor,Max
38 (1342) m3 /min(CFM)
-
Sound Level Indoor,H/M/L
42/40/35/29 dB(A)±3
-
Sound Level Outdoor,Max
51 dB(A)±3
-
Refrigerant charge (at 5m)
R410A,960(33.86) g(oz)
-
Additional Refrigerant charge
30(1.05) g/m(oz/ft)
-
Piping Connections Liquid Side
6.35(1/4) mm(in)
-
Piping Connections Gas Side
12.70(1/2) mm(in)
-
Piping Connections Drain Hose (O.D/I.D)
21.5/16(0.85/0.63) mm(in)
-
Dimensions Indoor (W*H*D)
885x296x230 mm
-
Dimensions Outdoor (W*H*D)
770x545x288 mm
-
Net Weight Indoor
9.5 kg
-
Net Weight Outdoor
32.5 kg
-
Operation Range Cooling(Outdoor)
18 ~ 48 °C
-
Operation Range Heating(Outdoor)
-5 ~ 24 °C
-
Max. Piping length
20 m
-
Max. Elevation Difference
10 m
