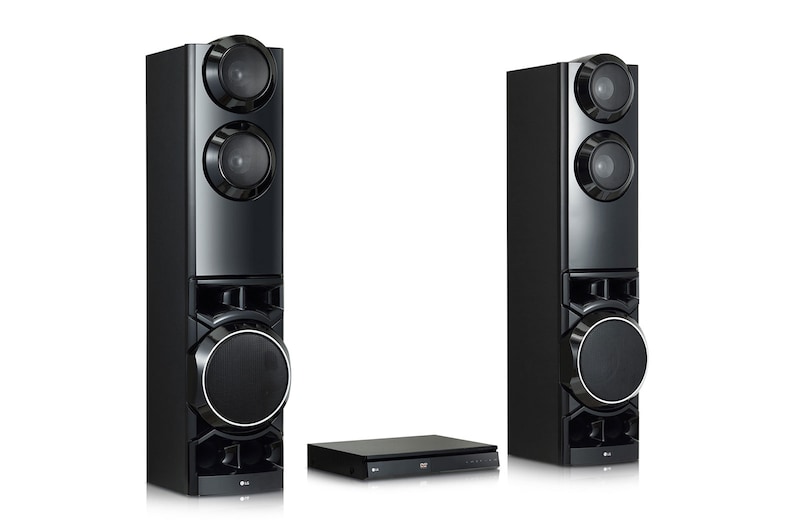

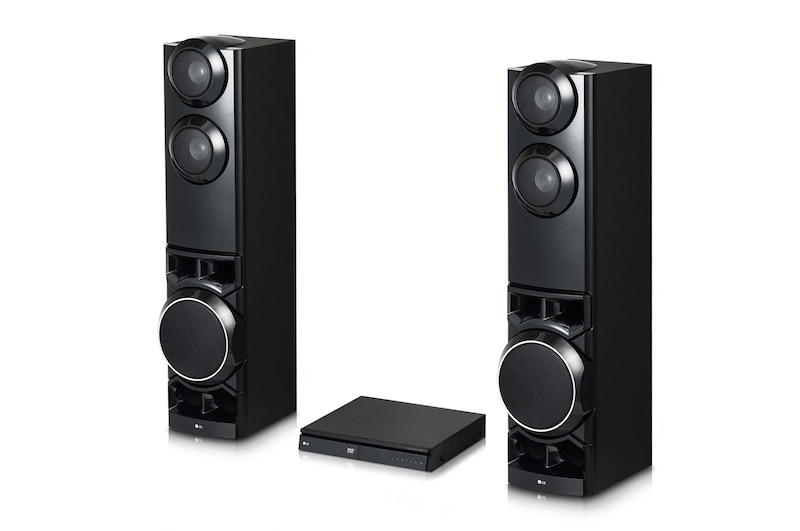

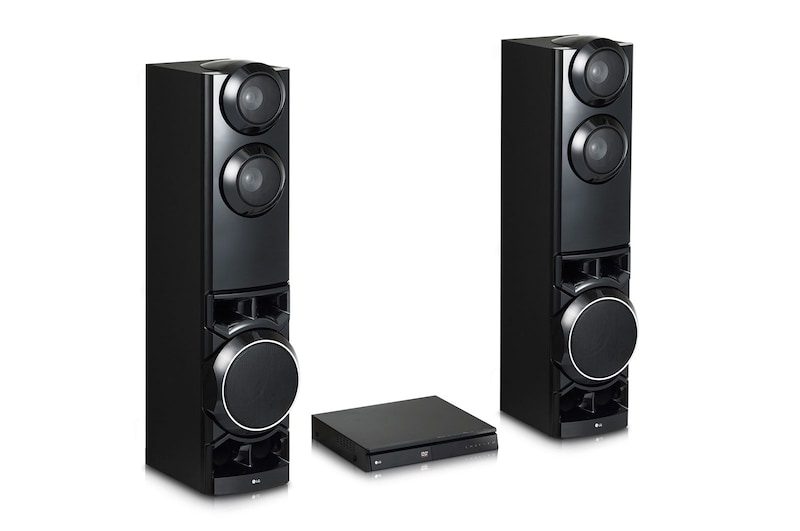

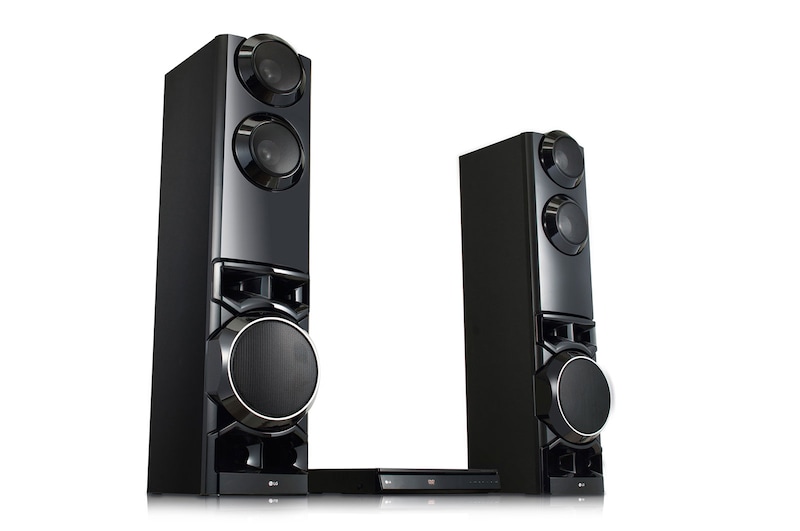

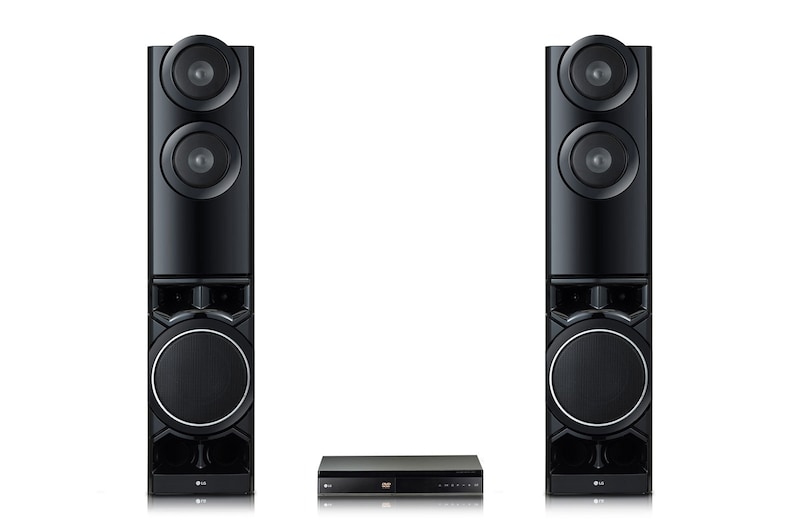

LG Home Theater LHD687

Specs

Reviews

Support

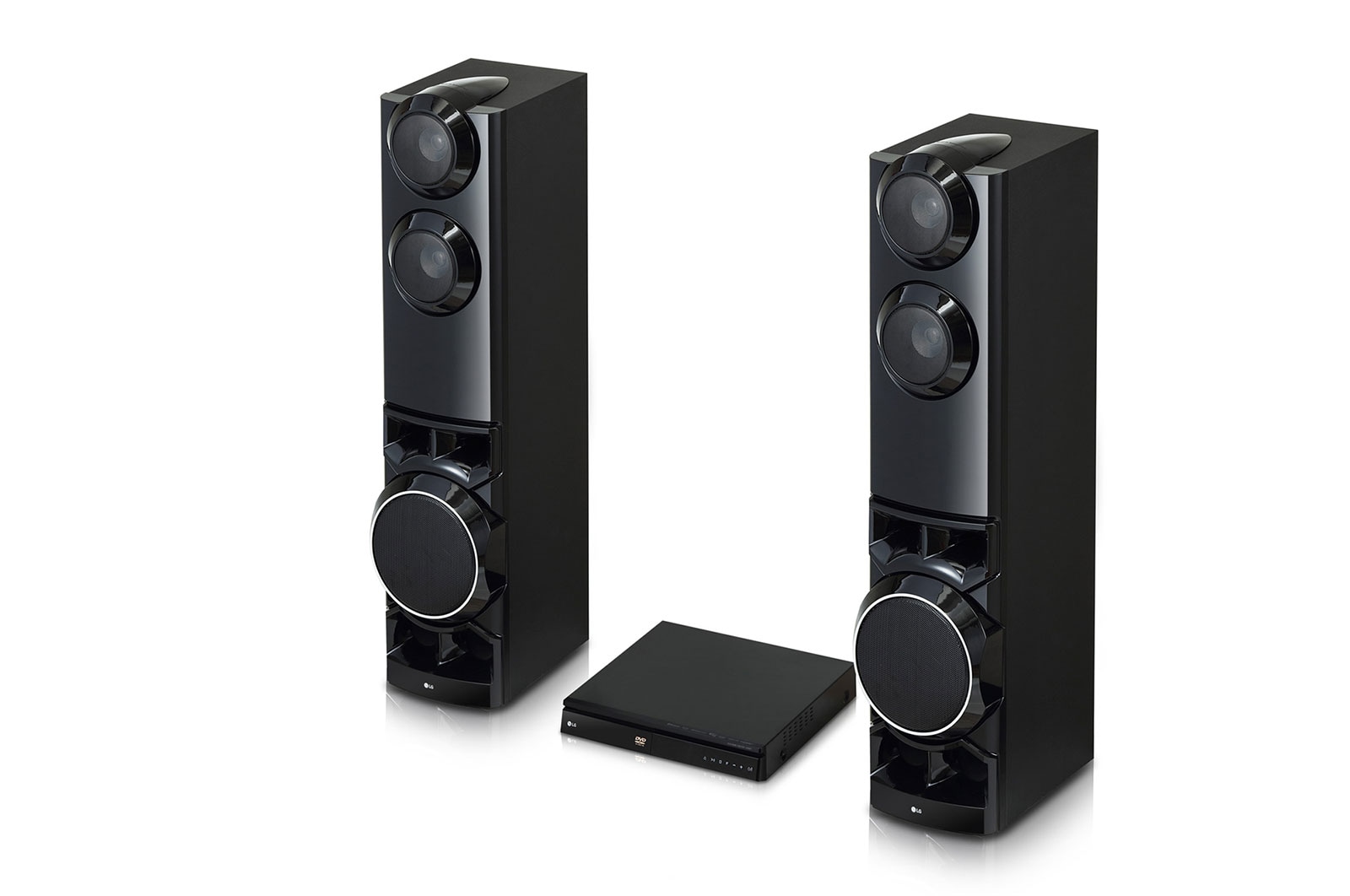

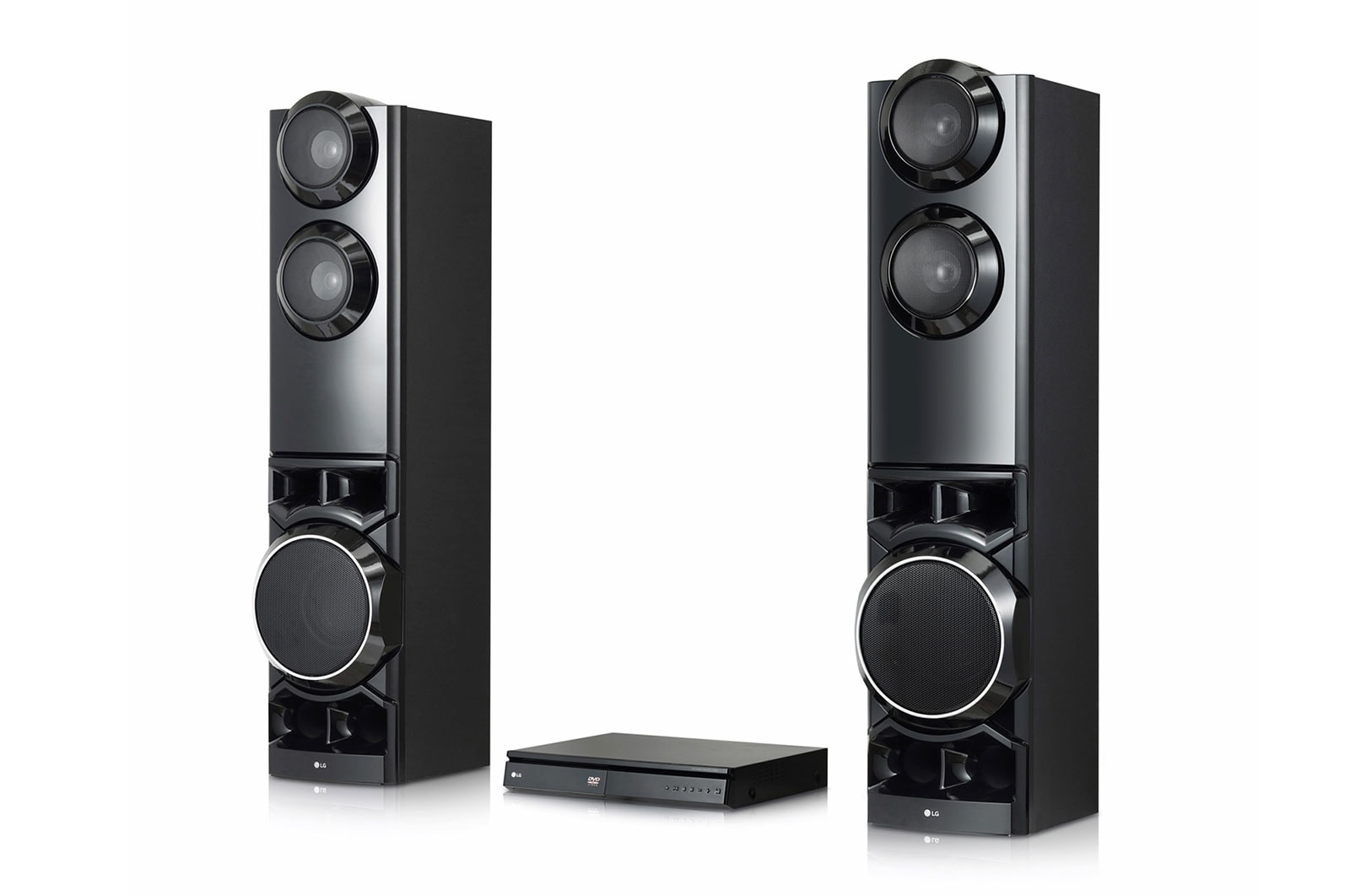

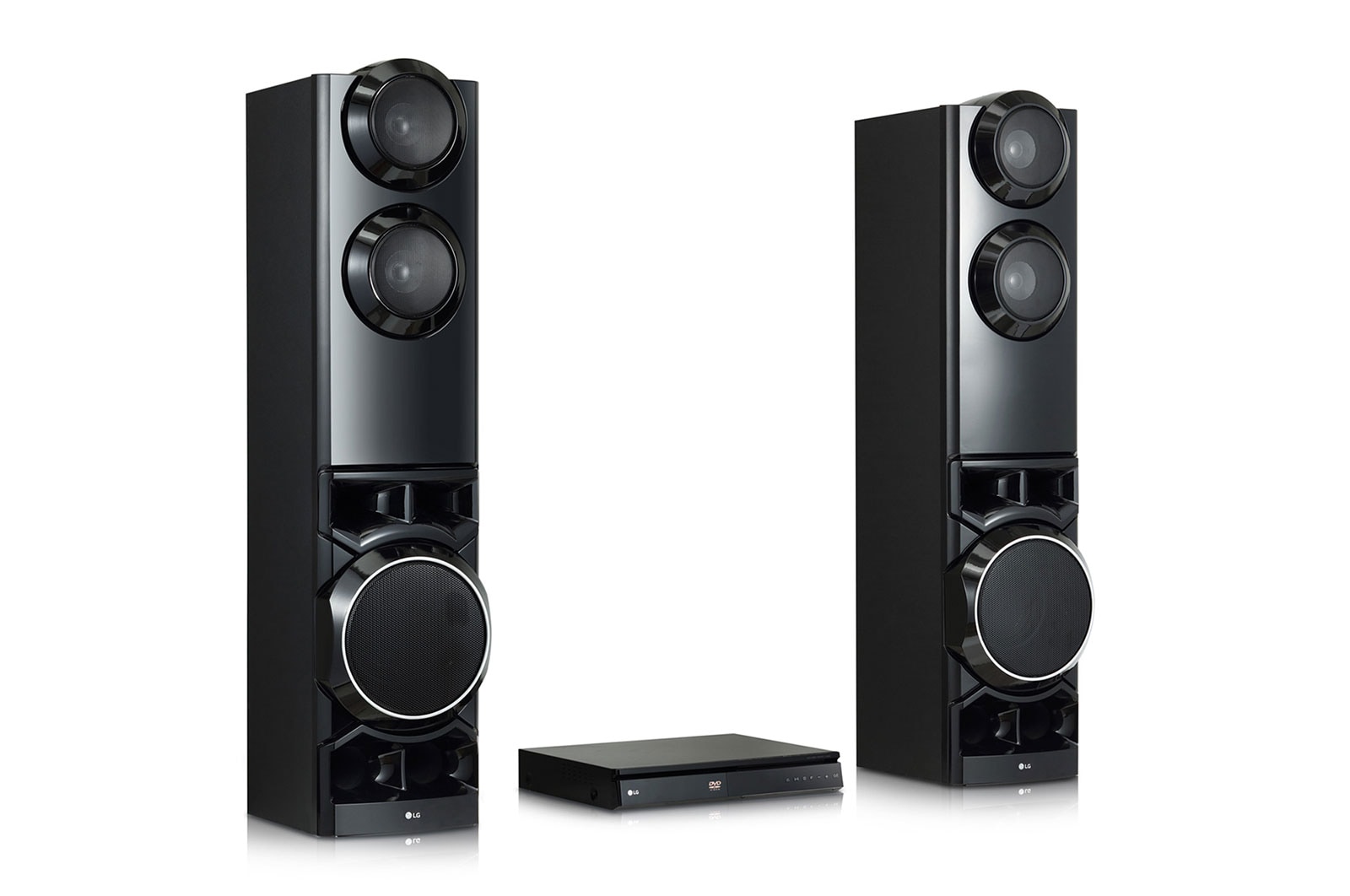

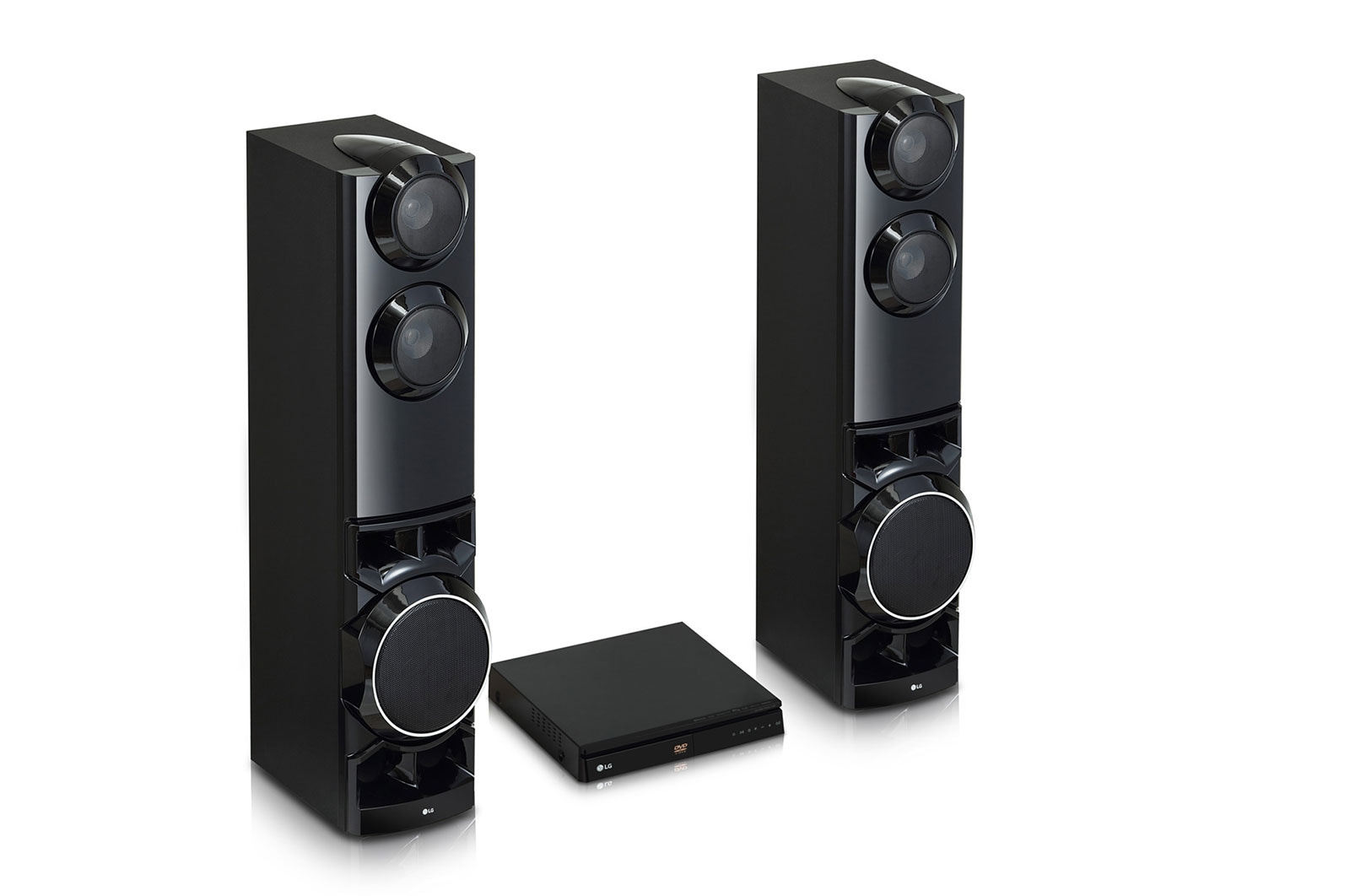

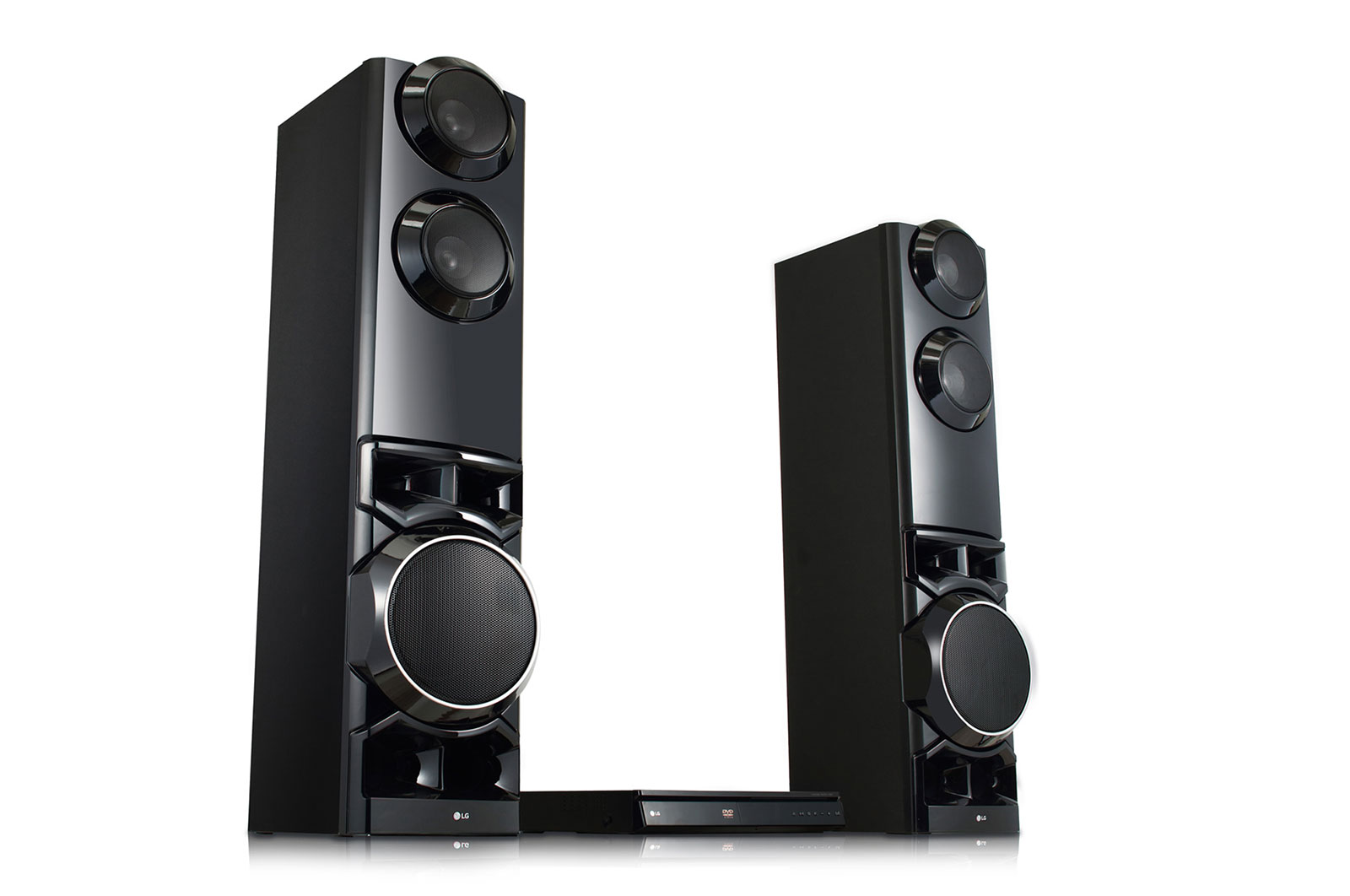

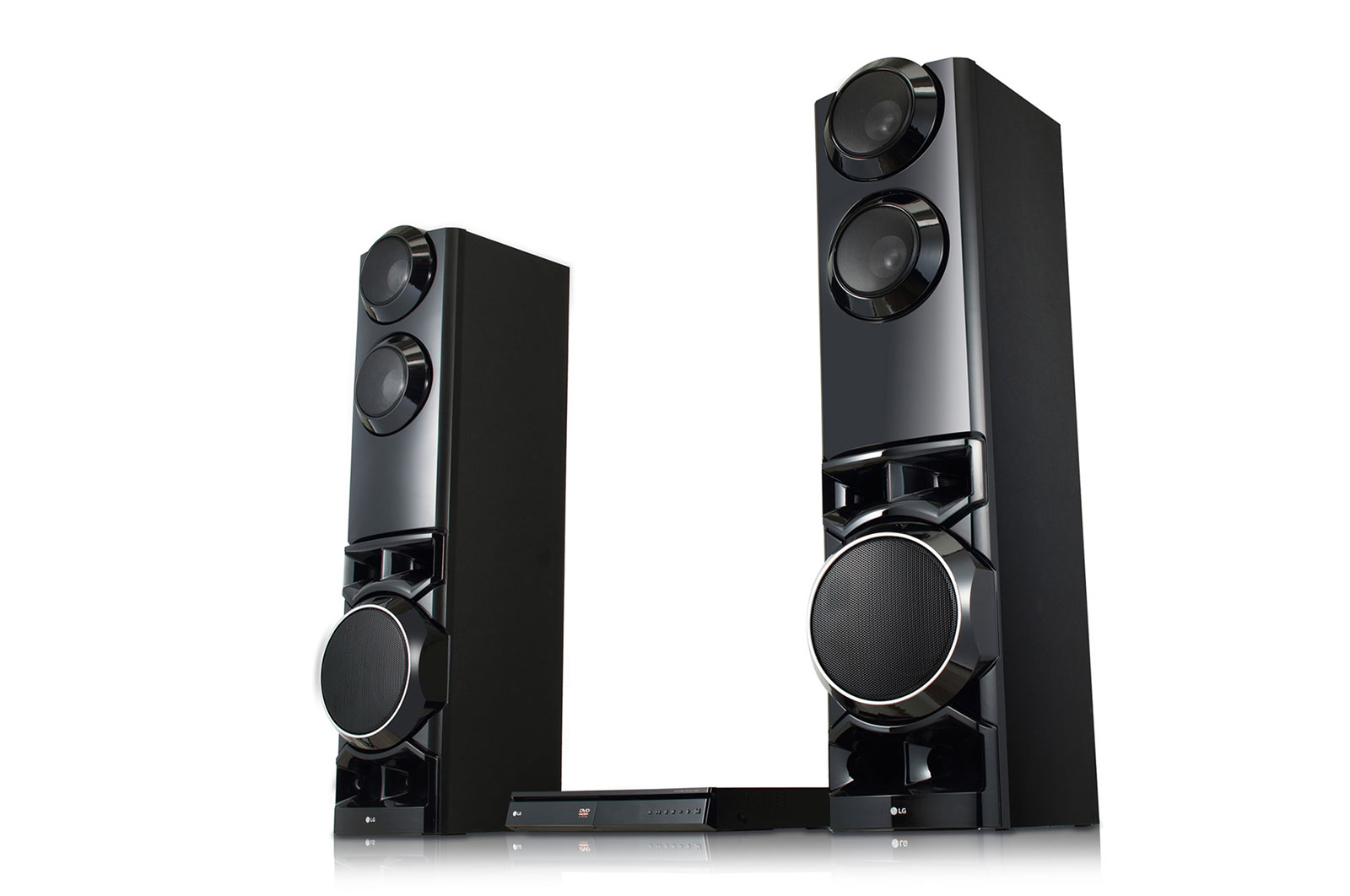

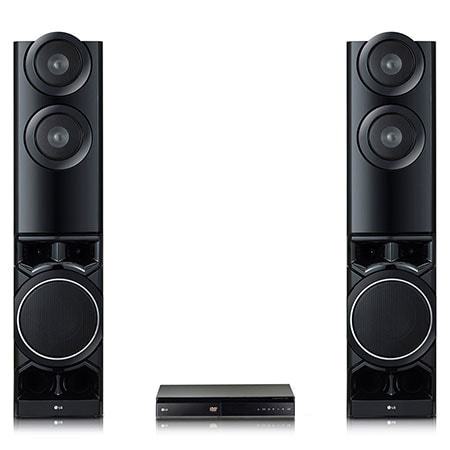

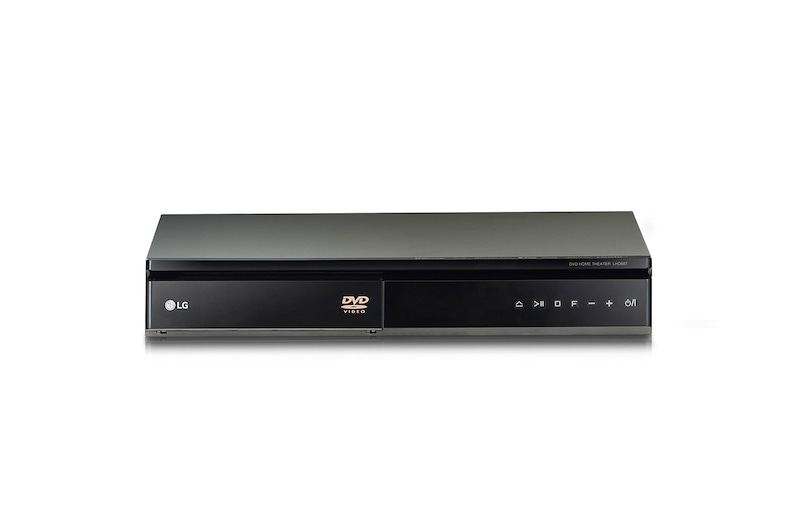

LG Home Theater LHD687

LG Home Theater LHD687

lhd687
()
  • LG Home Theater LHD687, lhd687
  • LG Home Theater LHD687, lhd687
  • LG Home Theater LHD687, lhd687
  • LG Home Theater LHD687, lhd687
  • LG Home Theater LHD687, lhd687
  • LG Home Theater LHD687, lhd687
  • LG Home Theater LHD687, lhd687
  • LG Home Theater LHD687, lhd687
  • LG Home Theater LHD687, lhd687
  • LG Home Theater LHD687, lhd687
  • LG Home Theater LHD687, lhd687
LG Home Theater LHD687, lhd687
LG Home Theater LHD687, lhd687
LG Home Theater LHD687, lhd687
LG Home Theater LHD687, lhd687
LG Home Theater LHD687, lhd687
LG Home Theater LHD687, lhd687
LG Home Theater LHD687, lhd687
LG Home Theater LHD687, lhd687
LG Home Theater LHD687, lhd687
LG Home Theater LHD687, lhd687
LG Home Theater LHD687, lhd687

Key Features

  • 4.2 ch & 1,250 Watt
  • Dual Subwoofers Built-in
  • Space Saving & Simple Installation
  • Bluetooth music streaming
  • TV Sound Sync
More
Print

All Spec

MODEL INFORMATION

  • System

    LHD687-FC

  • Speaker System

    S60T1

SIZE(W X H X D, MM)

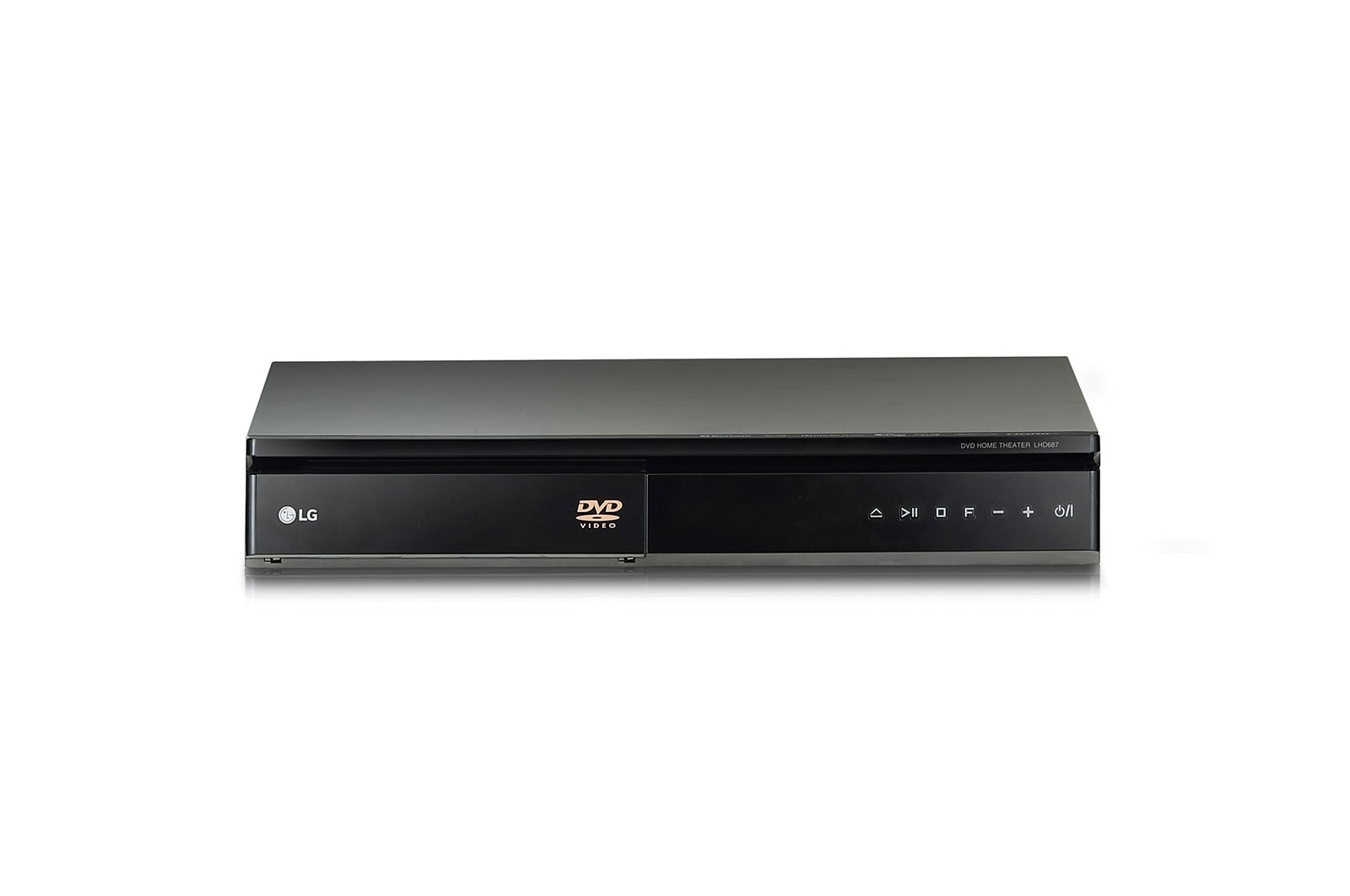

  • Main

    360 X 58 X 298.5

  • Front Speaker

    233 X 998 X 300

CH

  • CH

    4.2

POWER OUTPUT THD 10%

  • Total

    1250W (Only bypass Condition_measure, THD 25%)

  • Front L/R

    200/200

  • Surround L/R

    200/200

  • Sub-Woofer

    200/200

DESIGN(MAINSET)

  • Front & Rear cabinet (tray)

    Yes

3D COMPATIBILITY

  • 3D / 2D

    2D

IN & OUT(FRONT)

  • Display

    FLD

  • USB

    1

  • Mic

    2

  • Audio In

    Yes

IN & OUT(REAR)

  • Video Out (Composite)

    Yes

  • Audio Input (Audio L/R)

    Yes

  • Audio Input (Optical)

    1

  • HDMI (Out)

    1

  • FM

    Yes

  • Speaker Terminal (Composing of channel)

    Front (2) Surround (2) Woofer (2)

  • Speaker Terminal (Terminal Type)

    Front (Spring) Surround (Spring) Woofer (LAN)

CONVENIENCE

  • SIMPLINK

    Yes

  • Speaker Level Trim

    Yes

  • Speaker Distance (channel delay)

    Yes

  • Test Tone

    Yes

  • Mute

    Yes

  • A/V Sync Delay(Audio Delay)

    Yes

  • Dimmer

    Yes

  • Sleep

    Yes

  • Volume on TV

    Yes

  • USB Direct Recording

    Yes (EU, CIS suffix don't support it)

  • TV Sound (direct key) / TV Sound connect (Auto PWR on/off by optical)

    Yes

  • TV Sound Sync (Optical / Bluetooth)

    Yes

  • Dynamic Range Control

    Yes

  • Bluetooth (Rx /Tx)

    Yes

KARAOKE

  • Mic Volume / Echo Volume

    Yes

  • Fanfare

    Yes

  • Scoring

    Yes

  • CD Voice Remover

    Yes

FCC

  • Closed Caption

    Yes

PLAYABLE DISC TYPE

  • DVD(NTSC)

    Yes

  • DVD(PAL)

    Yes

  • DVD-R

    Yes

  • DVD-RW(Video/VR Mode)

    Yes

  • DVD+R

    Yes

  • DVD+RW(Video mode)

    Yes

  • Video CD/Super VCD

    Yes/Yes

  • Audio CD

    Yes

  • CD-R/CD-RW

    Yes

VIDEO FORMAT

  • MPEG2

    Yes

  • XVID

    Yes

AUDIO FORMAT(DECODING)

  • LPCM

    LPCM

  • Dolby Digital

    Yes (Dolby Audio)

  • MPEG 1/2 L2

    Yes

  • MP3/ID3 Tag

    Yes/Yes

  • WMA

    Yes

GRAPHICS/SUBTITLE FORMAT

  • Format

    2bit/ 8bit Sub-picture (Text-based Subtitle)

VIDEO FEATURES

  • Video DAC

    148MHZ/12bit

  • NTSC/PAL Hz

    60Hz/50Hz

  • Resolution

    upto 1080p24/60Hz

VBI

  • WSS/CGMS-A/Closed Caption/Macrovsion

    Yes

  • NTSC⇔PAL Conversion

    Yes

  • Last Scene memory

    Yes

  • Screen Saver

    Yes

  • Auto Power Off

    Yes

  • Parental Lock

    Yes

  • Initial logo

    Yes

  • 1080p Upscaling

    Yes

TRICK PLAY

  • Fast Forward

    Yes

  • Fast Back

    Yes

  • Forword Slow

    Yes

  • Reverse Slow

    Yes

  • Pause

    Yes

  • Forward Step

    Yes

SEARCH

  • Title/Track

    Yes

  • Chapter

    Yes

  • Time

    Yes

REPEAT PLAY

  • Title/Track

    Yes

  • Chapter

    Yes

RESUME STOP

  • Resume Stop

    Yes

PLAY MODE

  • Random

    Yes

POWER

  • Power Off Consumption

    0.5W↓

  • Power Consumption

    145W

RADIO

  • Tuner Type

    PLL

  • Tuning Up/Down

    Yes

  • Preset Up/Down

    Yes

  • Band

    Yes

  • Preset Memory

    50 Stations

SPEAKER FRONT

  • Model Name

    S60T1-S

  • SPL

    82dB

  • System

    Closed Type

  • Woofer Unit

    3" Paper

  • Impedance

    3Ω

  • Magnetic Shielding

    Non-Shielded

SPEAKER REAR

  • Model Name

    built in front speaker

  • SPL

    82dB

  • System

    Closed Type

  • Woofer Unit

    3" Paper

  • Impedance

    3Ω

  • Magnetic Shielding

    Non-Shielded

SPEAKER SUBWOOFER

  • Model Name

    built in front speaker

  • SPL

    83dB

  • System

    Bass Reflex

  • Woofer Unit

    6.5" Paper (1EA)

  • Impedance

    3Ω

  • Magnetic Shielding

    Non-Shield

EQUALIZER

  • Standard

    Yes

  • USER EQ

    Yes

  • BASS BLAST

    Yes

  • Football

    Yes

MANUAL

  • Type

    Printing Book

  • Full Manual / Simple Manual

    Simple Manual

  • Warranty Card

    Yes

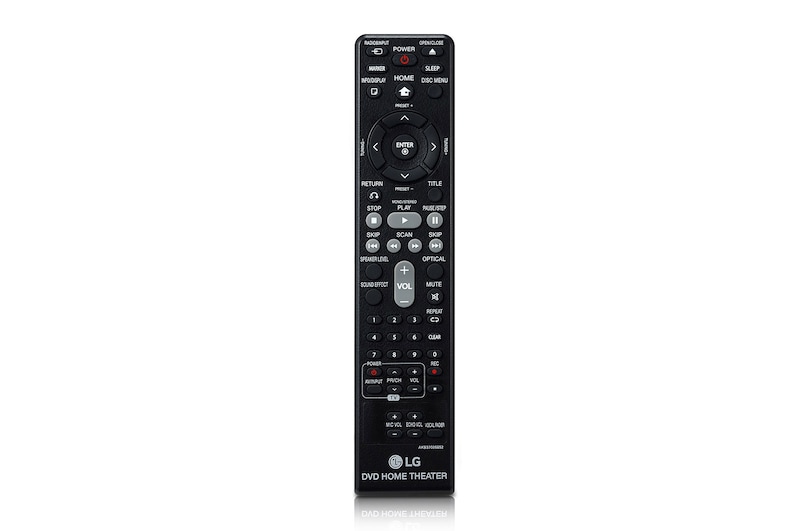

ACCESSORY(REMOTE CONTROL)

  • Type

    CB1

  • Battery(Size)

    AAA*1

ACCESSORY(OTHERS)

  • Batteries (Remote Controller)

    Yes

  • FM / AM Antenna

    Yes

  • RCA Code(Video), Yellow, 1P

    Yes

  • HDMI Cable

    △ (1.5M

  • Carton Box Type (Tip-on, Offset, Flexo)

    Flexo
