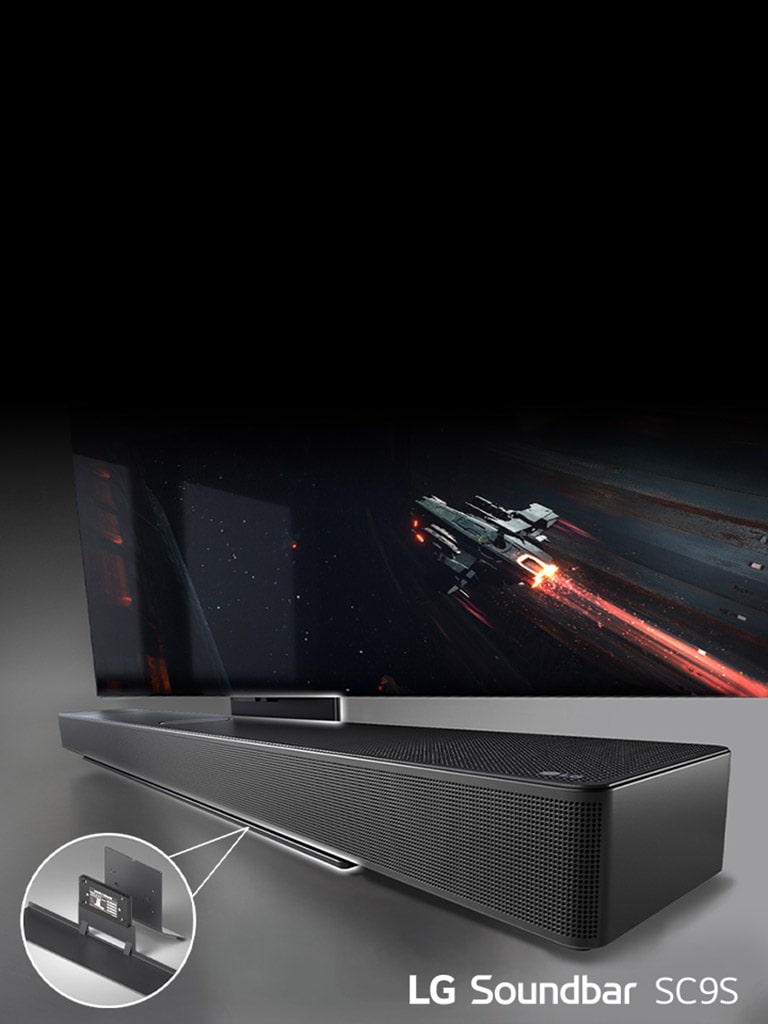

Diagonal view of the LG OLED C Series TV and SC9S Sound Bar. Highlights are shown on the sound bar to highlight the SC9S Sound Bar's WOW Bracket. On the bottom left, the WOW Bracket images is enlarged.
*Bracket compatible with LG OLED TV C2/C3, 55", 65", 77".
*All Pictures shown are for illustaration purpose only.
**It has an exclusive bracket that are compatible with LG OLED evo C2/C3/C4 Series 195cm/77",164cm/65",139cm/55".

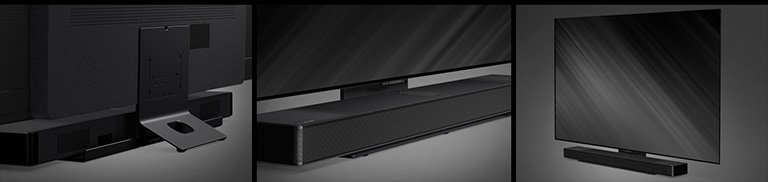

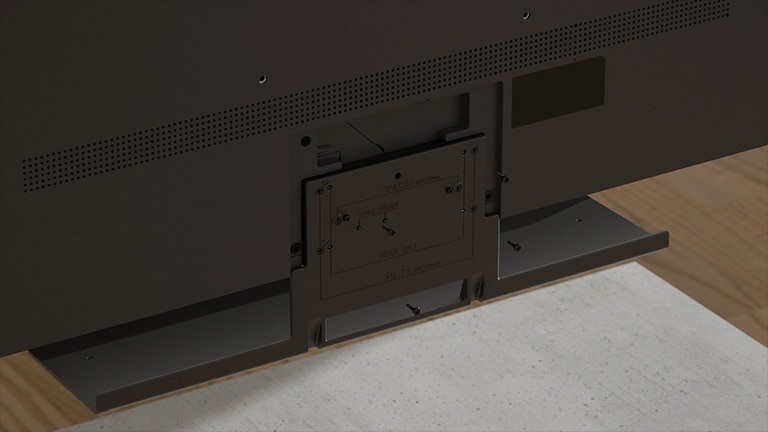

A video clip is available on the above. Below 3 gray-filtered images are shown, a bracket, stand and a wall-mount TV from the left.
*Bracket compatible with LG OLED evo C2 / C3 / C4 Series 195cm/77”, 164cm/65”, 139cm/55”
Variously figured blue-colored sound waves are being released from Sound Bar and TV.
*Screen images simulated.
*WOW Orchestra Compatible TVs: OLED M4/G4/C4/B4/Z3/M3/G3/C3/B3/A3/Z2/G2/C2/CS/B2/A2, QNED 99/95/90/85/80. Compatible TVs may vary by year of release. QNED 80 support limited to 2022 and 2023 models.
*Please note that services may not be available at the time of purchase. A network connection is required for updates.
*WOW Orchestra may vary depending on soundbar model.
*Screen images simulated.
*WOW Orchestra Compatible TVs: OLED M4/G4/C4/B4/Z3/M3/G3/C3/B3/A3/Z2/G2/C2/CS/B2/A2, QNED 99/95/90/85/80. Compatible TVs may vary by year of release. QNED 80 support limited to 2022 and 2023 models.
*Please note that services may not be available at the time of purchase. A network connection is required for updates.
*WOW Orchestra may vary depending on soundbar model.
*Screen images simulated.
*WOWCAST Compatible TVs : OLED M4/G4/C4/B4/M3/G3/C3/B3/A3, QNED 99/95/90/85. Compatible TVs may vary by year of release.
*Please note that services may not be available at the time of purchase. A network connection is required for updates.
*WOWCAST Ready may vary depending on soundbar model.
Variously formed blue sound waves are being released from the Soundbar and TV to all over the living room.
*Dolby and Dolby Vision are registered trademarks of Dolby Laboratories Licensing Corporation.
**The double-D symbol is a trademark of Dolby Laboratories Licensing Corporation.
A Soundbar is placed on the cabinet and blue circled sound waves are arising from Soundbar to right in front of the TV.
Blue dome-shaped, 3 layered sound wavers are covering Soundbar and TV hung on the wall in the living room.
*’Triple Level Spatial Sound’ is available in CINEMA / AI Sound Pro Mode of Soundbar .
**The mid-layer is created using Soundbar ’s speaker channel. The sound of the front and front-top speakers are synthesized to build a sound field.
***If there is no rear speaker, the rear field cannot be created.

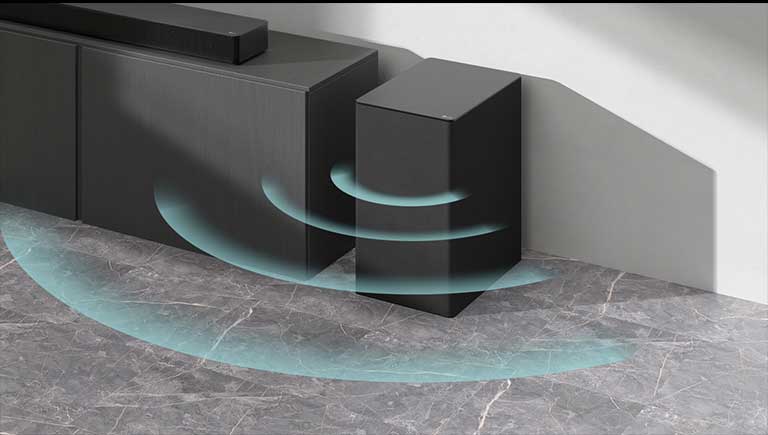

A Soundbar is placed on the cabinet. Beside a wireless subwoofer placed on the floor. Blue sound graphics are coming out from the subwoofer.
Soundbar and TV are placed on the white table and 7 white horses are shown on the TV.
The Soundbar is placed on the cabinet and racing game scene is shown on the TV coneected to the Soundbar . A game console is on the bottom right side of the picture hold by two hands.
*Both TV and Soundbar must support VRR/ALLM.
**Console has to support VRR. VRR pass though limited to 60Hz content.

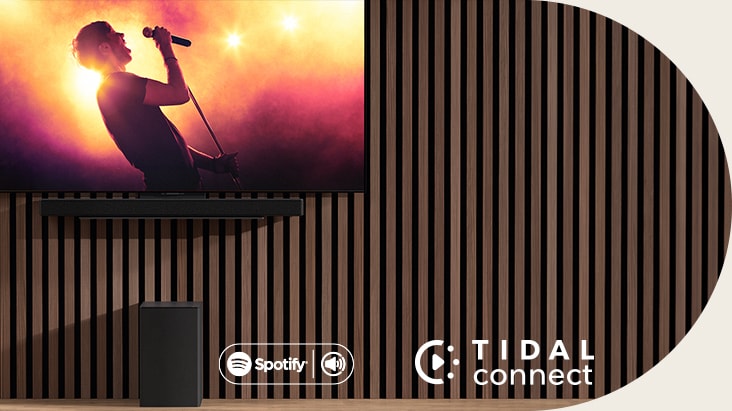

LG OLED C is placed on the wall, below LG Soundbar SC9S is placed through an exclusive bracket. Subwoofer is placed underneath. TV shows a concerts scene.
*Official MQA recording required.
The Soundbar is hung on the wall with the TV right above. Sound waves are crossing between them changing their colors from red to blue.
*Some features require 3rd party subscription or account.
**Google is a trademark of Google LLC.
***The Google Assistant is not available in certain languages and countries.
****Amazon, Alexa, and all related marks are trademarks of Amazon.com, Inc. or its affiliates.
*Available on AI Sound Pro, Cinema, Clear Voice Pro, Sports, Game modes.
**9.1.5Ch output depends on channel configuration.
*AI Room Calibration Pro is a automatic sound tuning technology that compensates for the environment the Soundbar is placed, by using Algorithms that improve the Soundbar ’s sonic performance.
There are three lifestyle images. From top to bottom: three men are enjoying a concert video in the living room. There's an LG TV on the wall displaying a music recording scene, and the LG TV on the wall showing a breaking dance scene in a diagonal view.
An aerial photo of green forest
Gray cubes with different heights are placed randomly.
*The above image is for representative purpose.

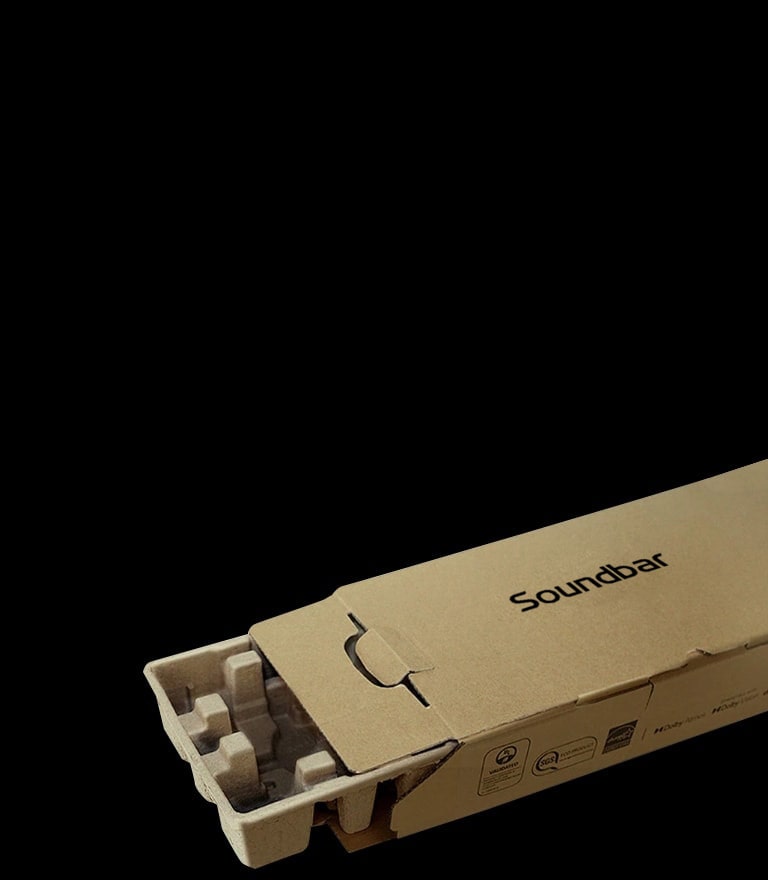

The Soundbar box is placed on the right side of picture, opened to show its EPS foam filling material.
*SGS is a Swiss multinational company that provides inspection, verification, testing, and certification services.
**The above image is for representative purpose, actual image of the product may vary.
Power Consumption
Networked standby: 2.0 W
AC adapter
Model: MS-Z2610R230-065E0-P
Manufacturer: MOSO POWER SUPPLY TECHNOLOGY CO., LTD.
Input: 100 - 240 V ~ 50/60 Hz
Output: 23 V = 2.61 A

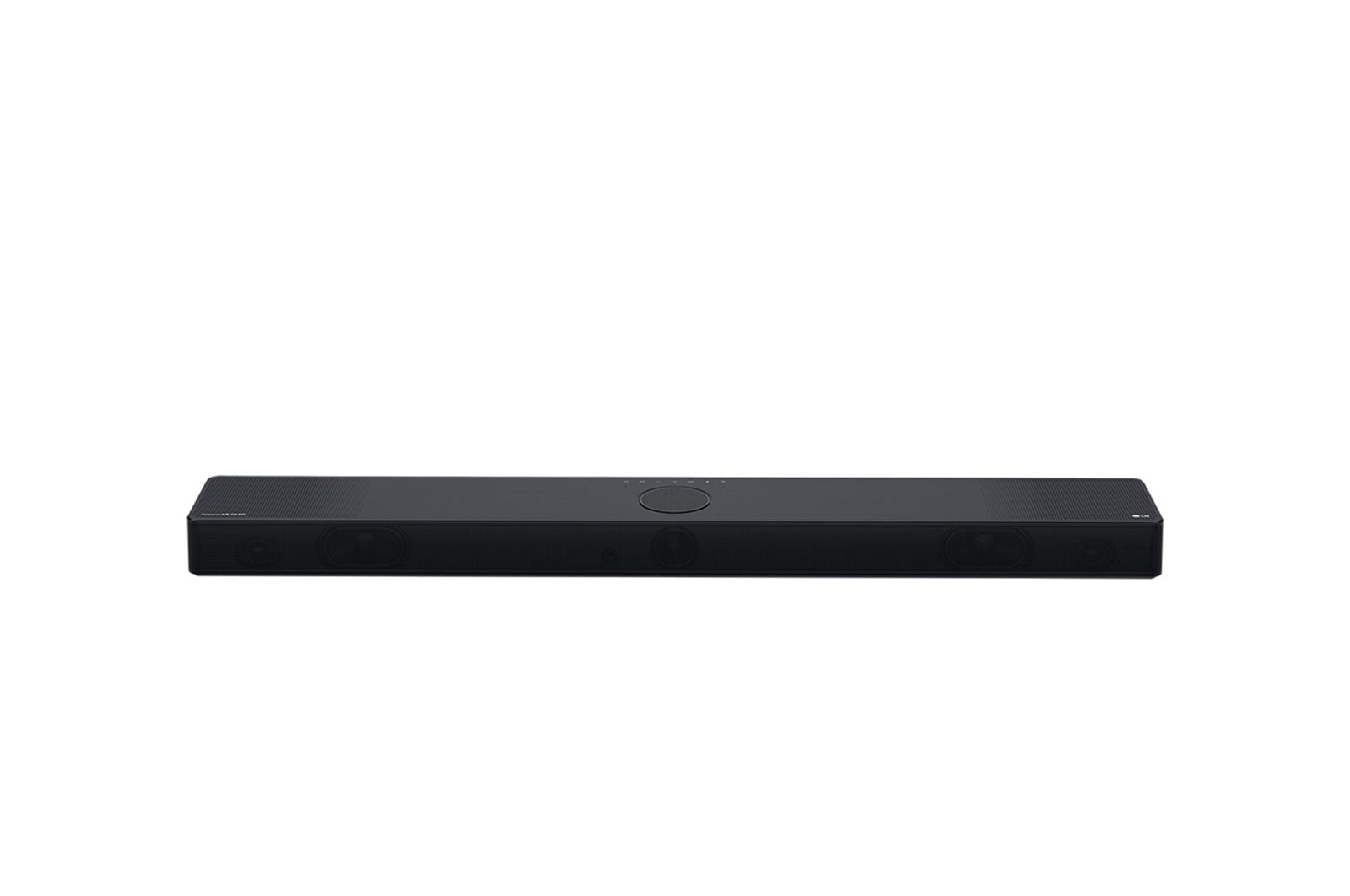

Dimensions (W x H x D)
Approx. 975.0 mm x 63.0 mm x 125.0 mm (including the base)
Operation Temperature Range
5 °C - 40 °C
Operation Humidity Range
5 % - 80 % RH
Bus Power Supply (USB)
5 V = 500 mA
Available Digital Input Audio Sampling Frequency
32 kHz, 44.1 kHz, 48 kHz, 88.2 kHz, 96 kHz, 176.4 kHz, 192 kHz
Available Digital Input Audio format
Dolby Digital, Dobly Digital Plus, Dolby TrueHD, Dolby Atmos, DTS Digital Surround, DTS-HD HRA, DTS-HD MA, DTS:X, IMAX DTS, IMAX DTS:X, PCM
OPTICAL IN
3.0 V (p-p), (optical audio connection terminal) × 1
HDMI™ IN
19-pin (Type A, HDMI™ connection terminal) × 1
HDMI™ -> TV (eARC / ARC)
19-pin (Type A, HDMI™ connection terminal) × 1 4K resolution is supported for 4K sources applied with HDCP 2.3.
Total
400 W RMS
Front
30 W RMS × 2 (Impedance: 6 Ω, THD 10 %)
Centre
30 W RMS (Impedance: 6 Ω, THD 10 %)
Top (Overhead)
30 W RMS × 2 (Impedance: 6 Ω, THD 10 %)
Top centre (Overhead)
30 W RMS (Impedance: 6 Ω, THD 10 %)
Subwoofer
220 W RMS (Impedance: 3 Ω, THD 10 %)
Power Requirement
Refer to the main label on the Wireless Subwoofer.
Power Consumption
Refer to the main label on the Wireless Subwoofer.

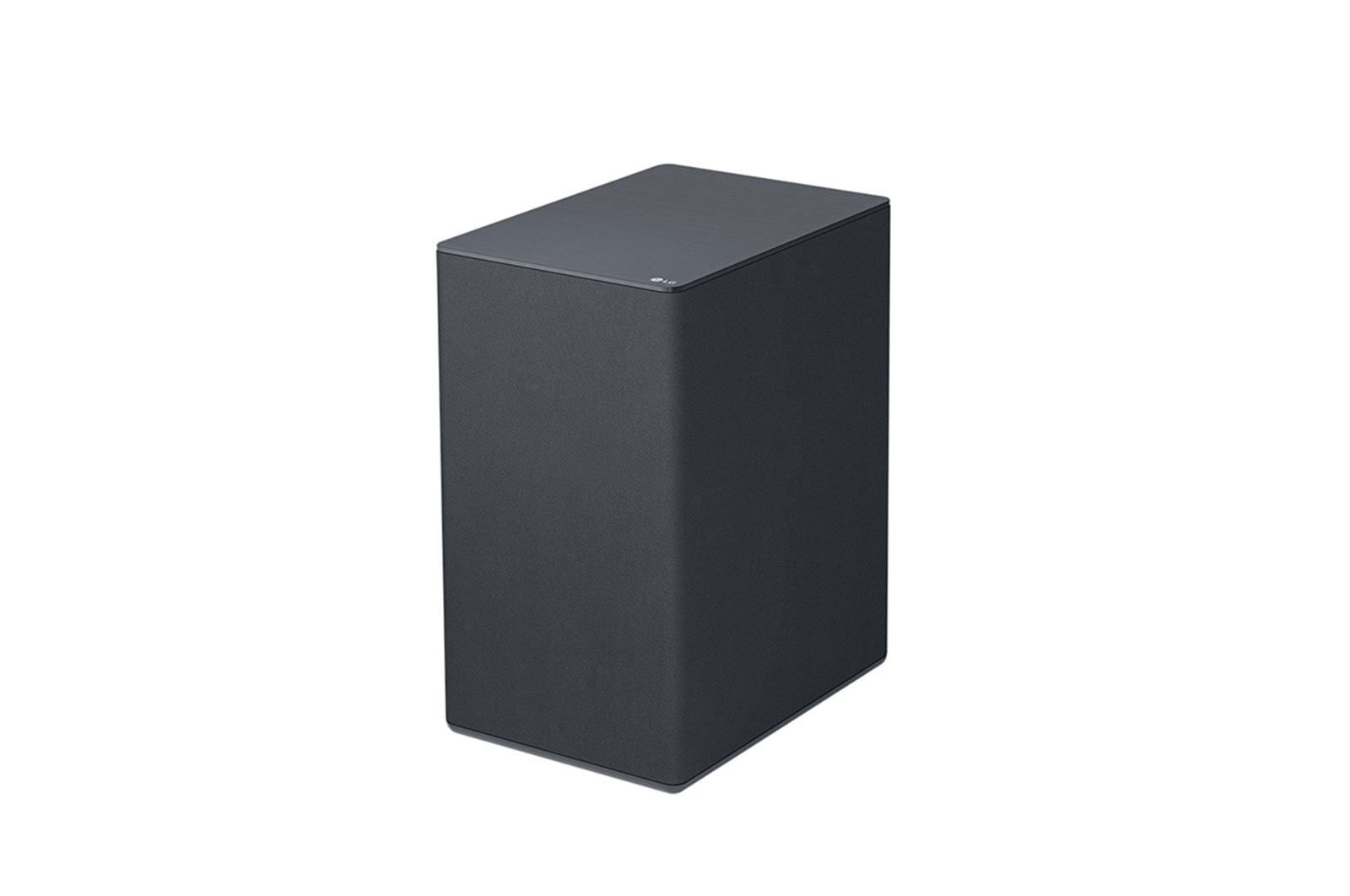

Type
1-way 1 speaker
Impedance
3 Ω
Rated power
220 W RMS
Max. Power
440 W RMS
Dimensions (W x H x D)
Approx. 221.0 mm x 390.0 mm x 313.0 mm
Wireless LAN (Internet antenna)
802.11a/b/g/n Wi-Fi network compatible
Type
1-way 1 speaker
Impedance
3 Ω
Rated power
70 W RMS
Max. power
140 W RMS
Dimensions (W x H x D)
Approx. 100.0 mm x 140.0 mm x 100.0 mm
