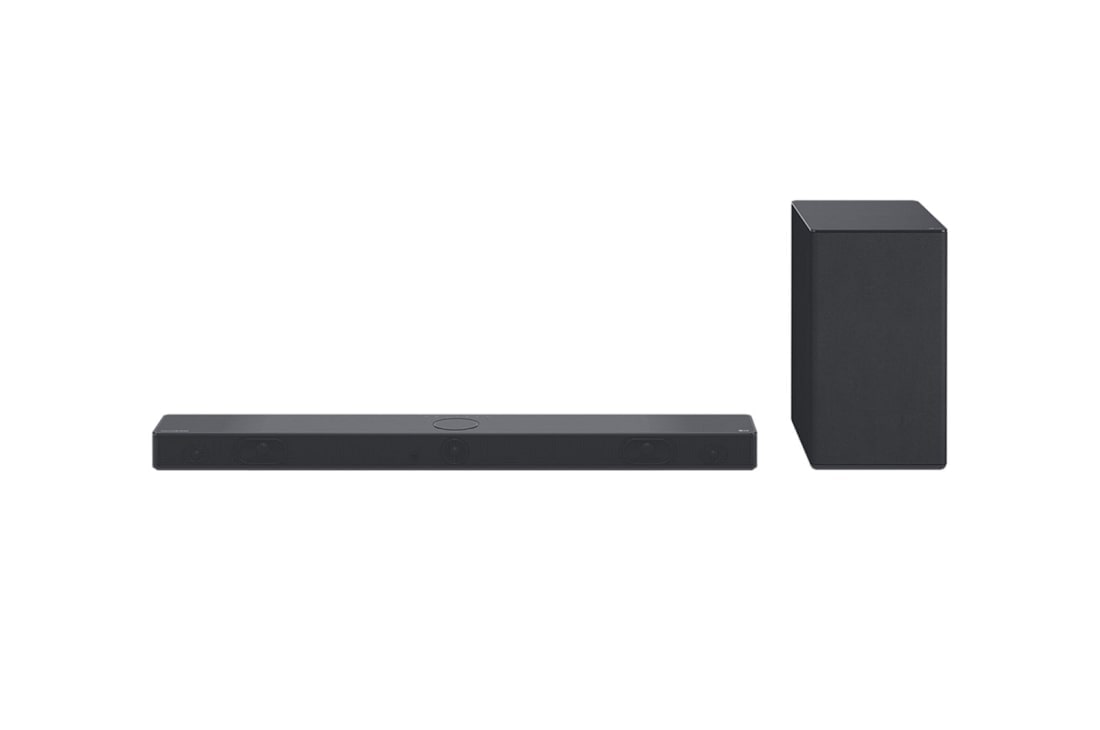

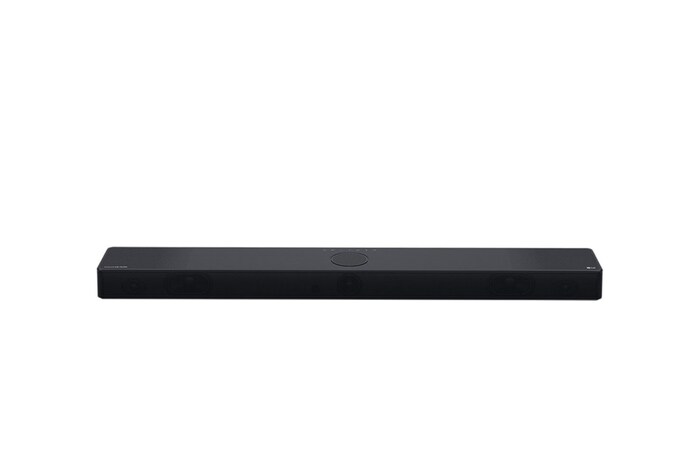

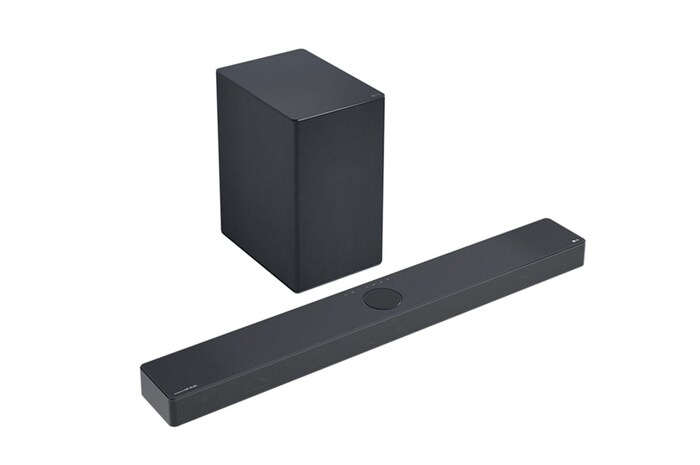

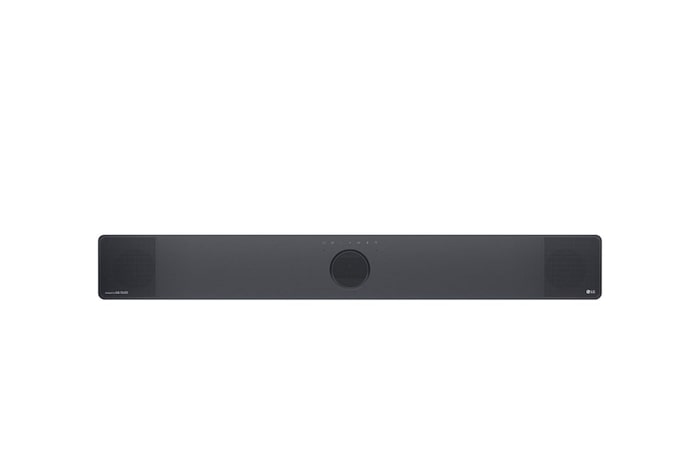

LG SC9S soundbar for OLED C Series

Networked standby: 2.0 W

Model: MS-Z2610R230-065E0-P
Manufacturer: MOSO POWER SUPPLY TECHNOLOGY CO., LTD.
Input: 100 - 240 V ~ 50/60 Hz
Output: 23 V = 2.61 A

Approx. 975.0 mm x 63.0 mm x 125.0 mm (including the base)

5 °C - 40 °C

5 % - 80 % RH

5 V = 500 mA

32 kHz, 44.1 kHz, 48 kHz, 88.2 kHz, 96 kHz, 176.4 kHz, 192 kHz

Dolby Digital, Dobly Digital Plus, Dolby TrueHD, Dolby Atmos, DTS Digital Surround, DTS-HD HRA, DTS-HD MA, DTS:X, IMAX DTS, IMAX DTS:X, PCM

3.0 V (p-p), (optical audio connection terminal) × 1

19-pin (Type A, HDMI™ connection terminal) × 1

19-pin (Type A, HDMI™ connection terminal) × 1 4K resolution is supported for 4K sources applied with HDCP 2.3.

400 W RMS

30 W RMS × 2 (Impedance: 6 Ω, THD 10 %)

30 W RMS (Impedance: 6 Ω, THD 10 %)

30 W RMS × 2 (Impedance: 6 Ω, THD 10 %)

30 W RMS (Impedance: 6 Ω, THD 10 %)

220 W RMS (Impedance: 3 Ω, THD 10 %)

Refer to the main label on the Wireless Subwoofer.

Refer to the main label on the Wireless Subwoofer.

1-way 1 speaker

3 Ω

220 W RMS

440 W RMS

Approx. 221.0 mm x 390.0 mm x 313.0 mm

802.11a/b/g/n Wi-Fi network compatible

1-way 1 speaker

3 Ω

70 W RMS

140 W RMS

Approx. 100.0 mm x 140.0 mm x 100.0 mm
