GPEJ* Specifications are subject to change without notice. Please make sure to check the product manual for details about product usage.

Inquiry to Buy
Add to Wishlist
EXTENDEDCARE PLANS

KEY FEATURES

  • Direct View LED Display with 10 mm Pixel Pitch
  • Brightness Peak 6,000 nits
  • Service Access: Front and Rear
  • IP Rating: IP65
  • Protective Design for Players
  • Smooth Playback in Dynamic Motion

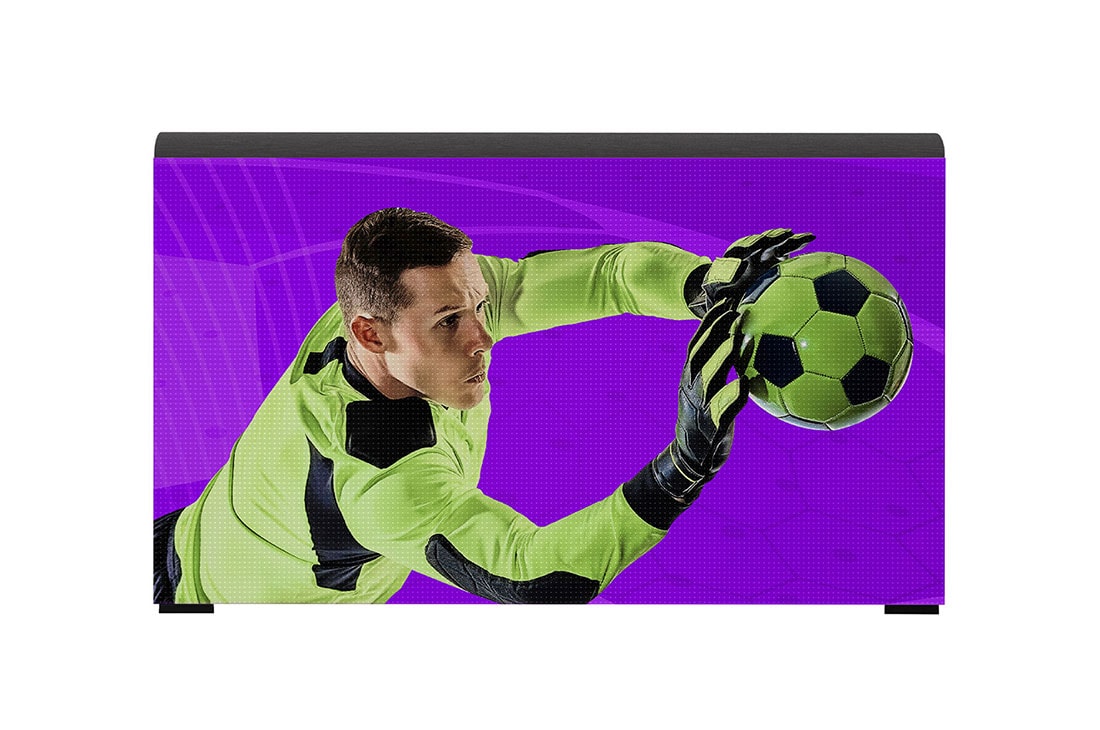

10 mm GPEJ Direct View LED for Stadiums with IP65 rated rating, HDR10/HDR10 Pro Support, & SuperSign CMS
$

Outdoor LED for Stadium Perimeter

*All images in this page are for illustrative purposes only.

Design for Various Situations in Field

Multiple rollers and hinges in multiple places to allow immediate access to the site in the case of an emergency, making it easy and convenient to create a safety gate and emergency exit.
*All images in this page are for illustrative purposes only.

Outstanding Visibility

By offering 6,000 nits of brightness, this display dazzles outdoors even in direct sunlight, instantly capturing attention and effectively delivering content.
*All images in this page are for illustrative purposes only.

Smooth Playback in Dynamic Motion

GPEJ series offers a high refresh rate of 7,680 Hz, giving viewers a clear view by reducing the black bars, blurring, and flickering that commonly occur during video playback.

*A higher refresh rate than the 4,000 Hz in the existing LBB series.
*All images in this page are for illustrative purposes only.

Reliable Weatherproof Design

GPEJ is IP65 certified on both front and back, allowing for stable operation in rainy and dusty environments.
*All images in this page are for illustrative purposes only.

Compatibility with LG Software Solutions

When connected with LG's CVEA system controller, the GPEJ series is compatible with LG software solutions including SuperSign CMS, LED Assistant, and ConnectedCare, which help the operation of business.
*The availability of the 'LG ConnectedCare' service differs by region, and it needs to be purchased separately. Please contact the LG sales representative in your region for more details.
*Items that can be monitored by LG ConnectedCare : Main Board (Temp., Signal Status, FPGA Ver, Ethernet Connection Status), Receiving Card (Temp., LED Power)
*Actual GUI may vary in different webOS versions.
*LG Software solutions need to be purchased separately.

PHYSICAL PARAMETERS

    • Pixel Configuration
    • Single SMD
    • Pixel Pitch (mm)
    • 10.00
    • Module Resolution (W × H)
    • 40 × 30
    • Module Dimensions (W x H, in. / mm)
    • 15.7 x 11.8 / 400 x 300
    • Weight per Module (Ibs. / kg)
    • 3.6 / 1.65
    • No. of Modules per Cabinet (W × H)
    • 4 × 3
    • Cabinet Resolution (W × H)
    • 160 × 90
    • Cabinet Dimensions (W x H x D, in. / mm)
    • 63 x 35.4 x 4.1 / 1600 x 900 x 105
    • Cabinet Surface Area (ft² / m²)
    • 15,500 / 1,440
    • Weight per Cabinet (Ibs. / kg)
    • 121.3 / 55
    • Weight per Square Meter (Ibs./ft² / kg/m²)
    • 7.8 / 38.2
    • Physical Pixel Density (pixels/m²)
    • 14,400
    • Flatness of Cabinet (mm)
    • ±1.0
    • Cabinet Material
    • Al
    • Service Access
    • Front and Rear

OPTICAL SPECIFICATIONS

    • Max Brightness After Calibration
    • 6,000 nits
    • Color Temperature (K)
    • 3,500-8,500
    • Visual Viewing Angle (H × V)
    • 160° × 110°
    • Brightness Uniformity
    • 97%
    • Color Uniformity
    • ±0.05 Cx, Cy
    • Contrast Ratio
    • 7,000 : 1
    • Processing Depth (bit)
    • 16 (HDR10, HDR10 Pro)

ELECTRICAL SPECIFICATIONS

    • Power Consumption (W/Cabinet, Max.)
    • 1,000
    • Power Consumption (W/Cabinet, Avg.)
    • 400
    • Power Consumption (W/m², Max.)
    • 694
    • Heat Dissipation (BTU/h/Cabinet, Max.)
    • 3,413
    • Heat Dissipation (BTU/h/Cabinet, Avg.)
    • 1,365
    • Heat Dissipation (BTU/h/m², Max.)
    • 2,368
    • Power Supply (Vac)
    • 100 to 240
    • Frame Rate (Hz)
    • 50 / 60
    • Refresh Rate (Hz)
    • 7,680

OPERATION SPECIFICATIONS

    • LED Lifetime (Half brightness)
    • Up to 100,000 hours
    • Operating Temperature (°F / °C)
    • -22° to 122° / -30° to 50°
    • Operating Humidity
    • 0-90% RH
    • IP Rating Front / Rear
    • IP65 / IP65

WARRANTY

    • Warranty
    • 3 Year Limited

CERTIFICATION

    • Certification
    • CE / FCC / ETL

ENVIRONMENT

    • Environment
    • RoHS, REACH

CONTROLLER

    • Controller
    • CVEA

90 DEGREE CORNER CUT

    • 90 Degree corner cut
    • Yes

Specification Sheet
