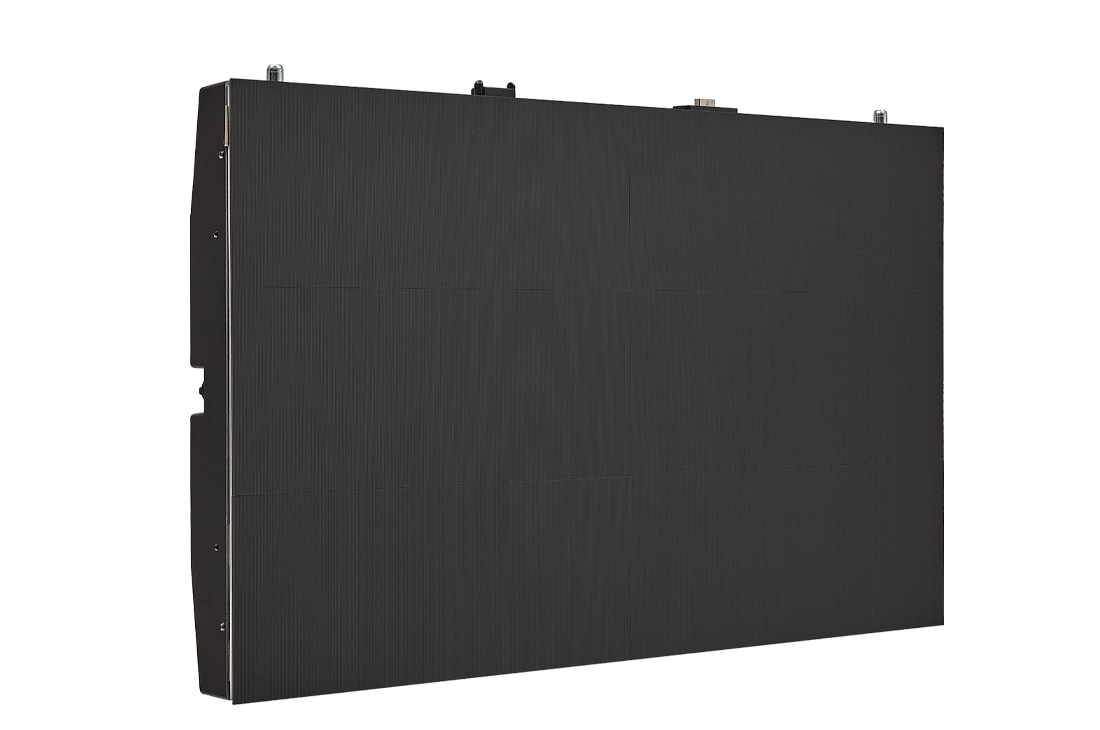

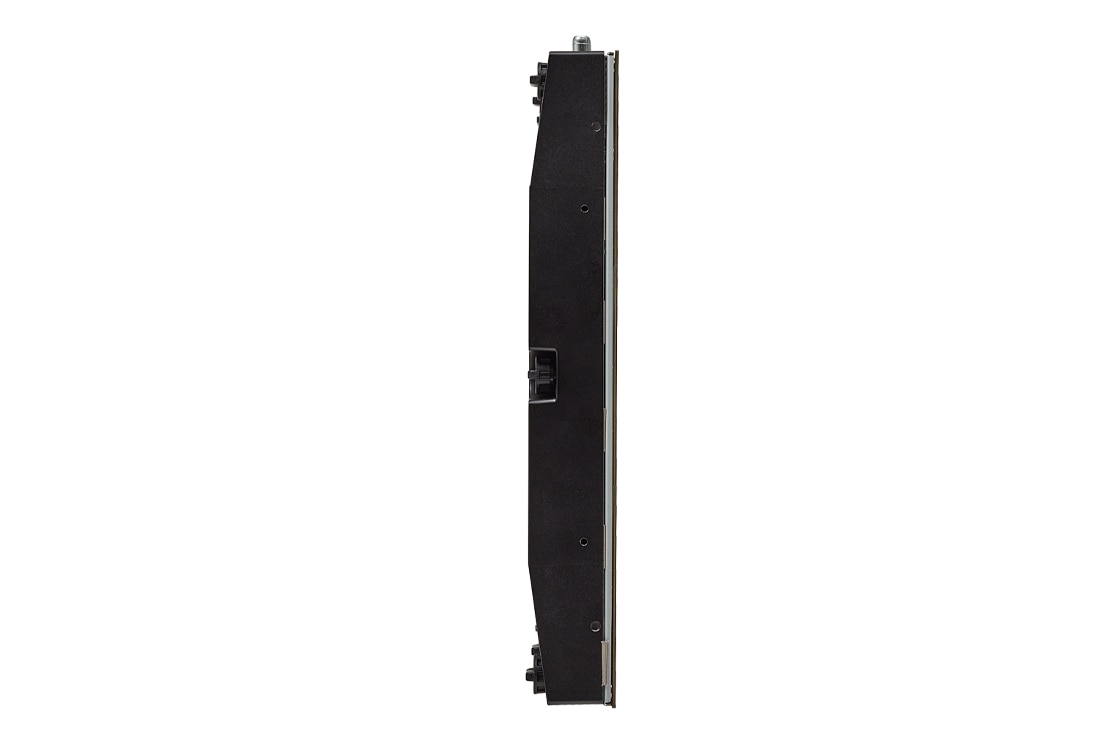

LSAP MAGNIT Pro MicroLED for Megapixel VR HELIOS® Controller, with IP50 Front & IP20 Rear, & LG Software Compatible
$
MAGNIT MicroLED Display with
MVR Controller
*Image simulation for illustration purposes only.

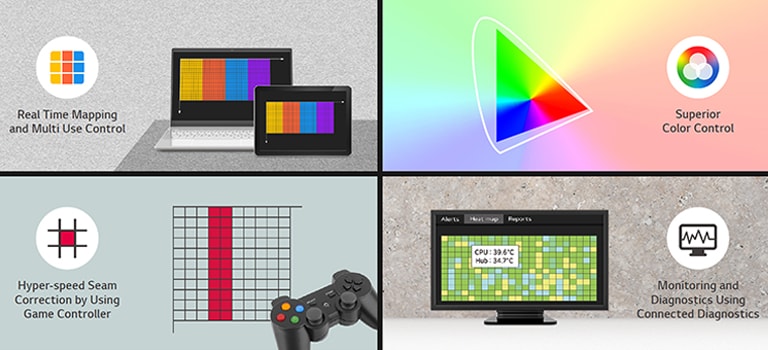

Powerful UI/UX with
MVR Controller
With the MVR controller, LSAP has the capability to utilize powerful UX and UI functionalities. Real-Time Mapping and Multi-User Control, Superior Color Control, Hyper-Speed Seam Correction using a game controller, and Monitoring and Diagnostics through connected diagnostics are all available. MRV Controller purchased separately.
Enhanced Uniformity with
LG Surface Treatment (LST) Technology
LG MAGNIT's innovative Chip Transfer and Surface Treatment Technology enhances white uniformity and reduces color distortion from virtually any angle, delivering a wide-angle viewing experiences. This technology ensures remarkable color uniformity, resulting in stunning image quality.
Technology-LG-MAGNIT-LED-Signage-ID-D.jpg)
Technology-LG-MAGNIT-LED-Signage-ID-M.jpg)

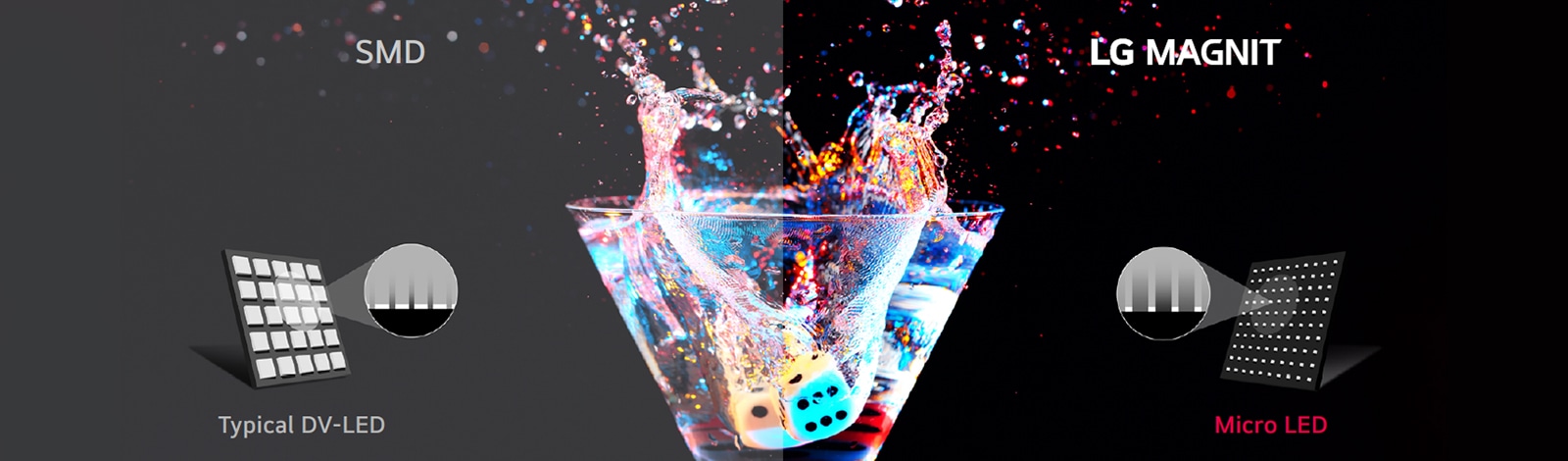

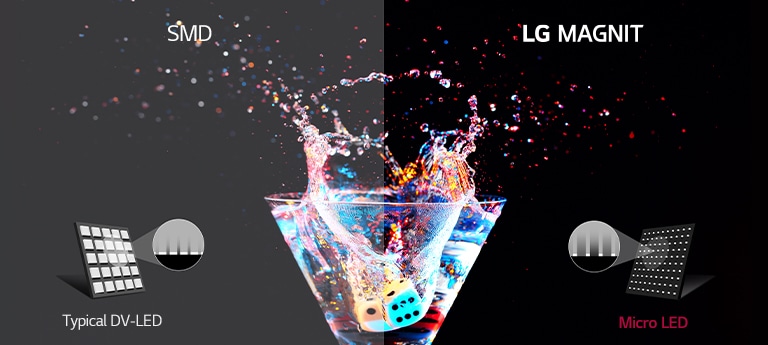

Achieving True Black with
Direct Chip Mounting
LG MAGNIT's advanced and precise method for direct bonding micro-sized chips onto circuit boards combined with the black coating technology, creates a stunning black expression that stands out compared to SMD-type LED displays. This makes it the ideal choice for displaying content that requires deep black color, ensuring that every image is rich, vibrant, and true to life.
*Based on comparison against LG's conventional LED Signage
Colors as Intended
The narrow wavelength of the LED chip allows uniform color across the screen. And with the support of Gamut Transfer technology, color is displayed close to the original color. This can be essential for some businesses.
Care Less with Sturdy Design
Through several layers of coated film, LG MAGNIT can protect its LED chips from risks caused by water drops, dust, static electricity or physical impacts. Considering that it is usually installed in public places where many people come and go, its stability is vitally important to minimize unforeseen accidents. The front is IP50 rated, while the back is IP20 rated.
*Based on in-house testing in accordance with the certification criteria, or under actual operating conditions.
PHYSICAL PARAMETERS
-
- Pixel Configuration
- COB
- Pixel Pitch (mm)
- 0.938
-
- Module Resolution (W × H)
- 320 × 120
- Module Dimensions (W x H, in. / mm)
- 11.8 x 4.4 / 300 x 112.5
-
- Weight per Module (Ibs. / kg)
- 0.42 / 0.19
- No. of Modules per Cabinet (W × H)
- 2 × 3
-
- Cabinet Resolution (W × H)
- 640 × 360
- Cabinet Dimensions (W x H x D, in. / mm)
- 23.6 x 13.3 x 1.8 / 600 x 337.5 x 44.9
-
- Cabinet Surface Area (ft² / m²)
- 2.2 / 0.203
- Weight per Cabinet (Ibs. / kg)
- 16.8 / 7.6
-
- Weight per Unit Area (Ibs./ft² / kg/m²)
- 7.7 / 37.5
- Physical Pixel Density (pixels/m²)
- 1,137,778
-
- Flatness of Cabinet (mm)
- ±0.5
- Cabinet Material
- Die Casting Aluminum
-
- Service Access
- Front and Rear
OPTICAL SPECIFICATIONS
-
- Max. Brightness (After Calibration, nits)
- 600 (Max.)
- Color Temperature (K)
- 2,000-10,000 / Default 6,504
-
- Visual Viewing Angle (H × V)
- 160 × 160
- Brightness Uniformity
- ≥ 95%
-
- Color Uniformity
- ±0.02 Cx, Cy
- Contrast Ratio
- 100,000: 1 (Max.)
-
- Processing Depth (bit)
- 22 (Internal Processing (HDR10))
ELECTRICAL SPECIFICATIONS
-
- Power Consumption (W/Cabinet, Max.)
- 68
- Power Consumption (W/Cabinet, Avg.)
- 47
-
- Power Consumption (W/m², Max.)
- 336
- Heat Dissipation (BTU/h/Cabinet, Max.)
- 232
-
- Heat Dissipation (BTU/h/Cabinet, Avg.)
- 160° x 160°
- Heat Dissipation (BTU/h/m², Max.)
- 1,146
-
- Power Supply (Vac)
- 100 to 240
- Frame Rate (Hz)
- 23.98 / 24 / 25 / 29.97 / 30 / 50 / 59.94 / 60
-
- Refresh Rate (Hz)
- 3,840
OPERATION SPECIFICATIONS
-
- LED Lifetime (Half brightness)
- Up to 100,000 hours
- Operating Temperature (°F / °C)
- 32 to 104 / 0 to 40
-
- Operating Humidity
- 10-80% RH
- IP Rating Front / Rear
- IP50 / IP20
Standard
-
- Certification
- IEC 62368-1, EMC Class A, BS476 Part7 Class2Y
Warranty & Other
-
- Warranty
- 3 Year Limited
ENVIRONMENT
-
- Environment
- RoHS/REACH
- Controller
- Megapixel VR HELIOS
-
- 90 Degree Corner Cut
- No
Max Output Range
-
- Loading Capacity
- 8,192 × 4,320 @ 60 Hz
- Output Resolution
- 35.3 Million Pixels
INPUT
-
- Input
- HDMI 2.0, HDCP 2.2, DP 1.4 (HBR3), SDI (4 × 12G-SDI), OPS (ST2110)
OUTPUT
-
- Output
- Optic (To LED Screen) (8 × 10G)
Control
-
- LAN
- Yes
- GenLock
- Yes (In)
Video Processing
-
- Video Processing
- Brightness Adjustment, Chroma Adjustment, Improved Grayscale at Low Brightness, Scaling, HDR (PQ, HLG, Custom), EDID Custom
Application
-
- Application
- SuperSign CMS (Cross-platform Web Interface), webOS API, Configuration SW (Cross-platform Web Interface)
MECHANICAL
-
- Size (W × H × D, in. / mm)
- 19 x 1.7 x 15.5 / 481.5 x 44.2 x 393
- Weight (lbs. / kg)
- 12.6 / 5.7
