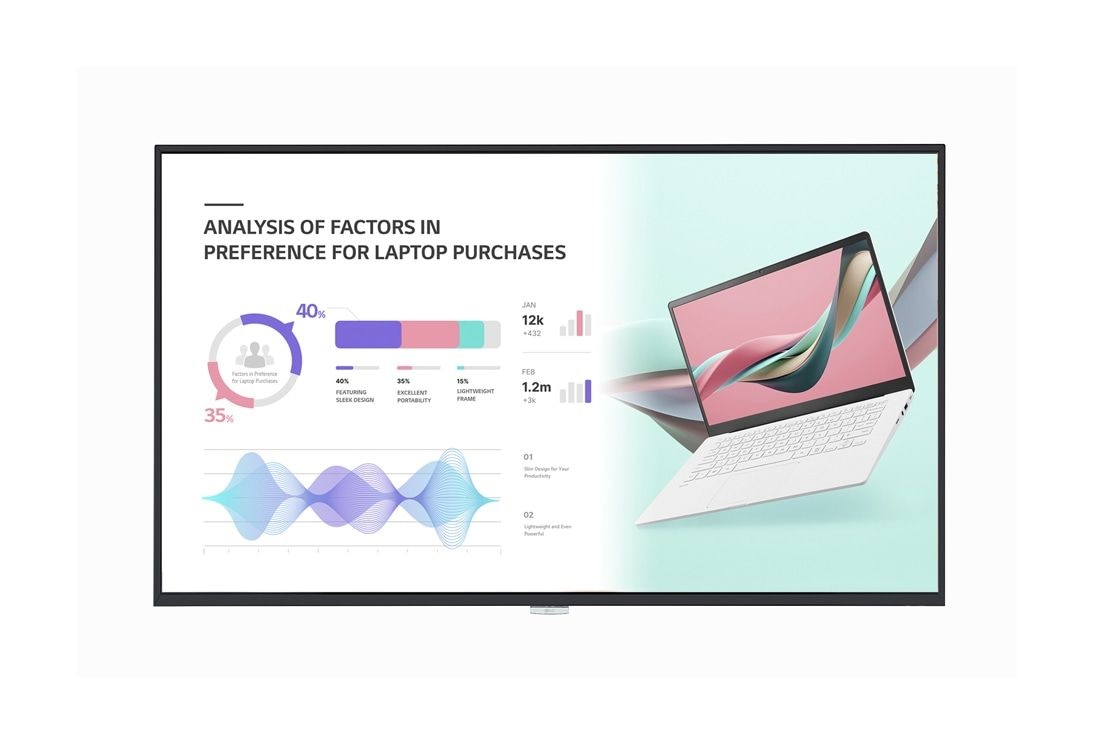

New High Haze UHD Standard Signage

Key Features

component-OBScountrySelectDesc

New High Haze UHD Standard Signage
TYPE
  • Type
    Standard
PANEL
  • Screen Size
    43"
    Panel Technology
    IPS
  • Back Light Type
    Edge
    Aspect Ratio
    16 : 9
  • Native Resolution
    3840 x 2160 (UHD)
    Refresh Rate
    60Hz
  • Brightness
    500nit (Typ.)
    Contrast Ratio
    1,200:1
  • Dynamic CR
    1,000,000:1
    Color Gamut
    BT709 95%
  • Viewing Angle(H x V)
    178 x 178
    Color Depth
    8bits + FRC, 1.07Billion colors
  • Response Time
    8ms (G to G)
    Surface Treatment(Haze)
    25%
  • Life time
    50,000Hrs (Min.)
    Operation Hours (Hours/Day)
    24/7
  • Portrait / Landscape
    Yes / Yes
CONNECTIVITY
  • Input
    HDMI (3, HDMI1/HDMI2 : HDCP 2.2/1.4, HDMI3 : HDCP 1.4), DP (1, HDCP2.2/1.3), DVI-D (HDCP1.4), Audio In, RS232C IN (1, 4pin Phone-jack), RJ45(LAN), IR IN, USB2.0 Type A(1)
    Output
    HDMI Out, Audio Out, RS232C OUT (1, 4pin Phone-jack)
MECHANICAL SPECIFICATION
  • Bezel Color
    Black
    Bezel Width
    T/R/L: 8.4mm, B: 14.4mm
  • Weight(Head)
    11.2Kg
    Weight(Head+Stand)
    11.8Kg
  • Packed Weight
    13.7 kg
    Monitor Dimension(W x H x D)
    962.5 x 568.0 x 39.9mm
    (with LG Logo)
  • Monitor Dimensions with Stand(W x H x D)
    962.5 x 613.1 x 290.0mm
    Carton Dimensions(W x H x D) (Box outer size)
    1060.0 x 660.0 x 152.0mm
  • VESA™ Standard Mount Interface
    200 x 200
KEY FEATURE
  • Key features
    Internal Memory 16 GB, Built-in Wi-Fi, Temperature Sensor, Auto Brightness sensor, Acceleration(Gyro) Sensor, Local Key Operation, webOS6.0, Embedded CMS (Local Contents Scheduling, Group Manager), USB Plug & Play, Fail over, Background Image (Booting Logo Image, No Signal Image), Sync Mode (RS-232C Sync, Local Network Sync), Multi-screen (PIP, PBP (4)), Screen Share, Video Tag (4), Play via URL, Rotation (Screen Rotation, External Input Rotation), Gapless Playback, Tile Mode Setting (Max. 15 × 15), Setting Data Cloning, SNMP, ISM Method, Auto Set ID, Status Mailing, Control Manager, 3rd Party Compatibility (Crestron Connected), Power (Smart Energy Saving, PM mode, Wake on LAN, Network Ready), Beacon, HDMI-CEC, SI Server Setting, webRTC, Pro:Idiom
ENVIRONMENT CONDITIONS
  • Operation Temperature
    0 °C to 40 °C
    Operation Humidity
    10 % to 80 %
POWER
  • Power Supply
    AC 100-240V~, 50/60Hz
    Power Type
    Built-In Power
POWER CONSUMPTION
  • Typ.
    80W
    Max.
    120W
  • BTU (British Thermal Unit)
    273 BTU/Hr(Typ.), 410 BTU/Hr(Max.)
    Smart Enegy Saving(~70%)
    56W
  • DPM
    0.5W
    Power off
    0.5 W
SOUND
  • Speaker
    Yes
CERTIFICATION
  • Safety
    CB / NRTL
    EMC
    FCC Class "A" / CE / KC
  • ErP / Energy Star
    Yes (NewErP) / Yes
OPS Compatibility
  • OPS type compatible
    Yes
SOFTWARE COMPATIBILITY
  • SuperSign CMS
    Yes
    SuperSign Control / Control+
    Yes / Yes
  • SuperSign WB
    Yes
    SuperSign Media Editor
    Yes
  • Mobile CMS
    Yes
    Signage 365 Care
    Yes
Language
  • OSD
    English, French, German, Spanish, Italian, Korean , Chinese(Simplified), Chinese(Original), Portugues(Brazil), Swedish, Finnish, Norwegian, Danish, Russian, Japanese, Portugues(Europe), Dutch, Czech, Greek, Turkish, Arabic
ACCESSORY
  • Basic
    Remote Controller(include battery 2ea), Power Cord, QSG, Regulation Book, Phone to RS232C Gender
    Optional
    Stand(ST-653T), Wall bracket(LSW240B), OPS Kit(KT-OPSF)
SPECIAL FEATURE
  • Tilt(Facedown)
    Yes (Max 15º degree, 30ºC temperature, humidity 50%)
    IP Rating
    IP5X
