49UH5J-H component-copyModelName

LG 49 Inch New High Haze UHD Standard Signage

LG LG 49 Inch New High Haze UHD Standard Signage, Front view with infill image, 49UH5J-H, thumbnail 1

LG LG 49 Inch New High Haze UHD Standard Signage, Front view, 49UH5J-H, thumbnail 2

LG LG 49 Inch New High Haze UHD Standard Signage, -45 degree side view, 49UH5J-H, thumbnail 3

LG LG 49 Inch New High Haze UHD Standard Signage, -90 degree side view, 49UH5J-H, thumbnail 4

LG LG 49 Inch New High Haze UHD Standard Signage, +45 degree side view, 49UH5J-H, thumbnail 5

LG LG 49 Inch New High Haze UHD Standard Signage, +90 degree side view, 49UH5J-H, thumbnail 6

LG LG 49 Inch New High Haze UHD Standard Signage, Rear view, 49UH5J-H, thumbnail 7

LG LG 49 Inch New High Haze UHD Standard Signage, Top view, 49UH5J-H, thumbnail 8

LG LG 49 Inch New High Haze UHD Standard Signage, -45 degree side view with stand, 49UH5J-H, thumbnail 9

ADD TO WISHLIST

Discontinued

49UH5J-H component-copyModelName

LG 49 Inch New High Haze UHD Standard Signage

Name: LG 49 Inch New High Haze UHD Standard Signage
Brand: LG UAE
SKU: 49UH5J-H
Rating: 0 (0 reviews)

Key Features

Brightness(Typ.) : 500 cd/m²
Surface Treatement (Haze) : 28%
Bezel : 9.9 mm (T/R/L), 14.4 mm (B)
Depth : 39.9 mm
Interface : HDMI(3)/ DP/ DVI-D/ USB 2.0/ RS232C/ RJ45/ Audio/ IR
Built-in Speaker

Choose your Size

Find a Dealer

Add to Compare

component-OBScountrySelectDesc

Key Features

Brightness(Typ.) : 500 cd/m²
Surface Treatement (Haze) : 28%
Bezel : 9.9 mm (T/R/L), 14.4 mm (B)
Depth : 39.9 mm
Interface : HDMI(3)/ DP/ DVI-D/ USB 2.0/ RS232C/ RJ45/ Audio/ IR
Built-in Speaker

Choose your Size

Add to Compare

component-OBScountrySelectDesc

component-copyModel-toastMsg

LG 49 Inch New High Haze UHD Standard Signage

New High Haze UHD
Standard Signage

A screen showing the meeting’s contents is installed on the meeting room’s wall.

*All images in this web page are for illustrative purposes only.

Proper Display Brightness

With a recommend brightness of 500 cd/m² for an indoor display, the UH5J-H series clearly deliver content and attract public attention, making it the most suitable display for marketing in meeting rooms, airports, retail, shopping malls etc.

UH5J-H has a brightness of 500 nits, so it is clearly visible, even under strong light.

*Actual images available may differ from the example images shown.

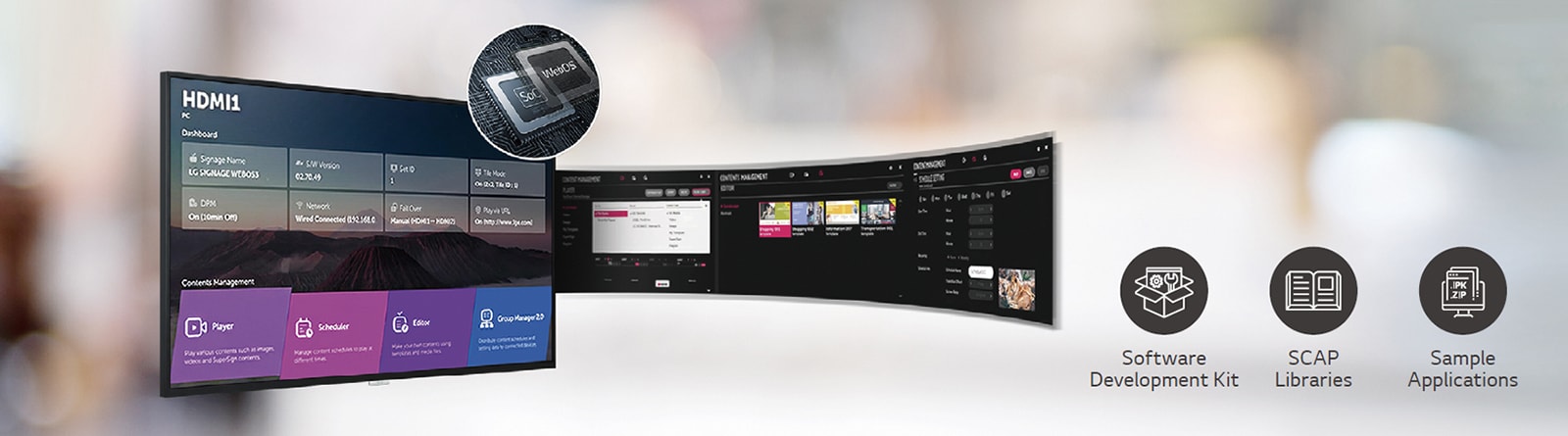

High-Performance with webOS

LG webOS platform enhances user convenience with intuitive GUI and simple app development tools.

A number of tasks can be done at the same time with the intuitive GUI.

Conformal Coating

In various places the UH5J-H series is unable to avoid exposure to environments containing dust, humidity, etc. which may hamper performance over time. The conformal coating on power board reduces these risks by protecting UH5J-H series from salt, dust, iron powder, humidity, etc.

*Actual images (signage display) available may differ from the example images shown.

UH5J-H is IP5x certified, so it is protected from dust and has less risk of performance degradation.

IP5x Certified Design

The IP5x Dust-Proof Certification ensures that the product is protected from dust, reducing the risk of performance degradation.

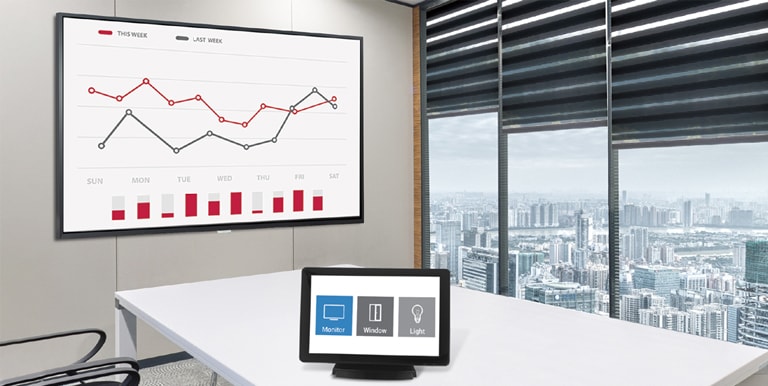

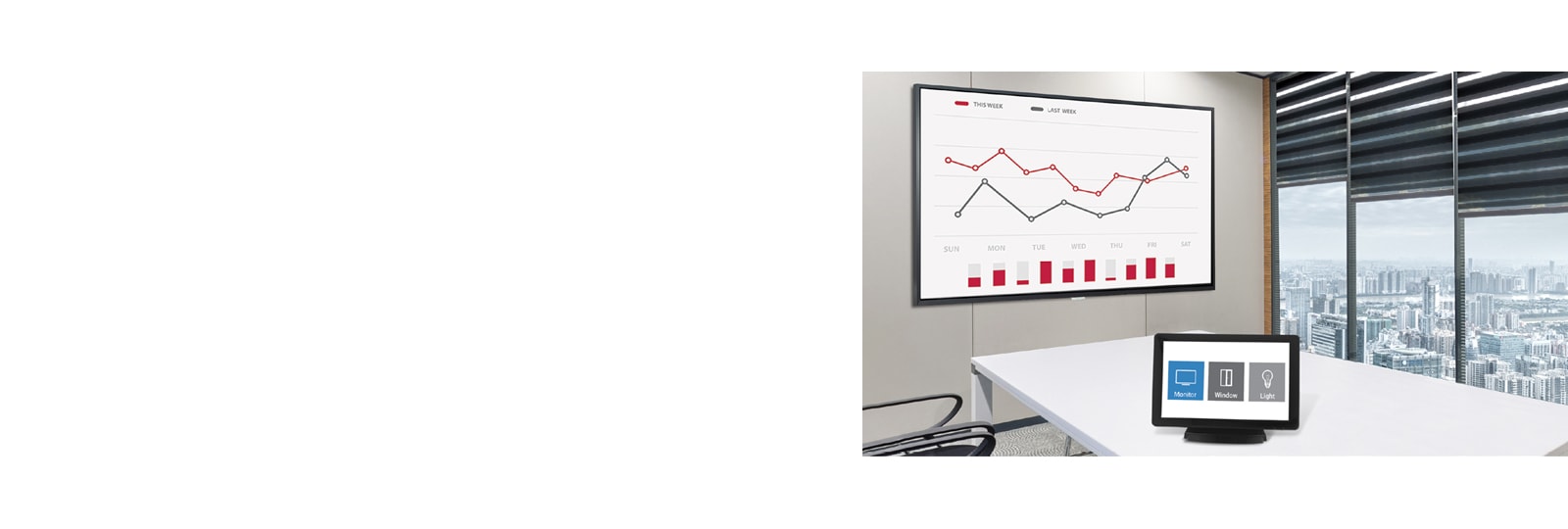

The AV control system helps users control the UH5J-H.

Compatible with AV Control System

The UH5J-H series has supported Crestron Connected® for high compatibility with professional AV controls to achieve seamless integration and automated control*, boosting business management efficiency.

*Network based control

TYPE

Type

Standard

PANEL

Screen Size

49"

Panel Technology

IPS
Back Light Type

Edge

Aspect Ratio

16 : 9
Native Resolution

3840 x 2160 (UHD)

Refresh Rate

60Hz
Brightness

500nit (Typ.)

Contrast Ratio

1,000:1
Dynamic CR

1,000,000:1

Color Gamut

BT709 95%
Viewing Angle(H x V)

178 x 178

Color Depth

10bit(D), 1.07Billion colors
Response Time

8ms (G to G)

Surface Treatment(Haze)

28%
Life time

50,000Hrs (Min.)

Operation Hours (Hours/Day)

24/7
Portrait / Landscape

Yes / Yes

CONNECTIVITY

Input

HDMI (3, HDMI1/HDMI2 : HDCP 2.2/1.4, HDMI3 : HDCP 1.4), DP (1, HDCP2.2/1.3), DVI-D (HDCP1.4), Audio In, RS232C IN (1, 4pin Phone-jack), RJ45(LAN), IR IN, USB2.0 Type A(1)

Output

HDMI Out, Audio Out, RS232C OUT (1, 4pin Phone-jack)

MECHANICAL SPECIFICATION

Bezel Color

Black

Bezel Width

T/R/L: 9.9mm, B: 14.4mm
Weight(Head)

15.4Kg

Weight(Head+Stand)

16.0Kg
Packed Weight

18.8Kg

Monitor Dimension(W x H x D)

1098.6 x 644.5 x 39.9mm
(with LG Logo)
Monitor Dimensions with Stand(W x H x D)

1098.6 x 694.3 x 290.0mm

Carton Dimensions(W x H x D) (Box outer size)

1197.0 x 775.0 x 162.0mm
VESA™ Standard Mount Interface

300 x 300

KEY FEATURE

Key features

Internal Memory 16 GB, Built-in Wi-Fi, Temperature Sensor, Auto Brightness sensor, Acceleration(Gyro) Sensor, Local Key Operation, webOS6.0, Embedded CMS (Local Contents Scheduling, Group Manager), USB Plug & Play, Fail over, Background Image (Booting Logo Image, No Signal Image), Sync Mode (RS-232C Sync, Local Network Sync), Multi-screen (PIP, PBP (4)), Screen Share, Video Tag (4), Play via URL, Rotation (Screen Rotation, External Input Rotation), Gapless Playback, Tile Mode Setting (Max. 15 × 15), Setting Data Cloning, SNMP, ISM Method, Auto Set ID, Status Mailing, Control Manager, 3rd Party Compatibility (Crestron Connected), Power (Smart Energy Saving, PM mode, Wake on LAN, Network Ready), Beacon, HDMI-CEC, SI Server Setting, webRTC, Pro:Idiom

ENVIRONMENT CONDITIONS

Operation Temperature

0°C to 40°C

Operation Humidity

10% to 80%

POWER

Power Supply

AC 100-240V~, 50/60Hz

Power Type

Built-In Power

POWER CONSUMPTION

Typ.

100W

Max.

140W
BTU (British Thermal Unit)

342 BTU/Hr(Typ.), 478 BTU/Hr(Max.)

Smart Enegy Saving(~70%)

70W
DPM

0.5W

Power off

0.5W

SOUND

Speaker

Yes

CERTIFICATION

Safety

CB / NRTL

EMC

FCC Class "A" / CE / KC
ErP / Energy Star

Yes (NewErP) / Yes

OPS Compatibility

OPS type compatible

Yes

SOFTWARE COMPATIBILITY

SuperSign CMS

Yes

SuperSign Control / Control+

Yes / Yes
SuperSign WB

Yes

SuperSign Media Editor

Yes
Mobile CMS

Yes

Signage 365 Care

Yes

Language

OSD

English, French, German, Spanish, Italian, Korean , Chinese(Simplified), Chinese(Original), Portugues(Brazil), Swedish, Finnish, Norwegian, Danish, Russian, Japanese, Portugues(Europe), Dutch, Czech, Greek, Turkish, Arabic

ACCESSORY

Basic

Remote Controller(include battery 2ea), Power Cord, QSG, Regulation Book, Phone to RS232C Gender

Optional

Stand(ST-653T), Wall bracket(LSW350B), OPS Kit(KT-OPSF)

SPECIAL FEATURE

Tilt(Facedown)

Yes (Max 30º degree, 30ºC temperature, humidity 50%)

IP Rating

IP5X
