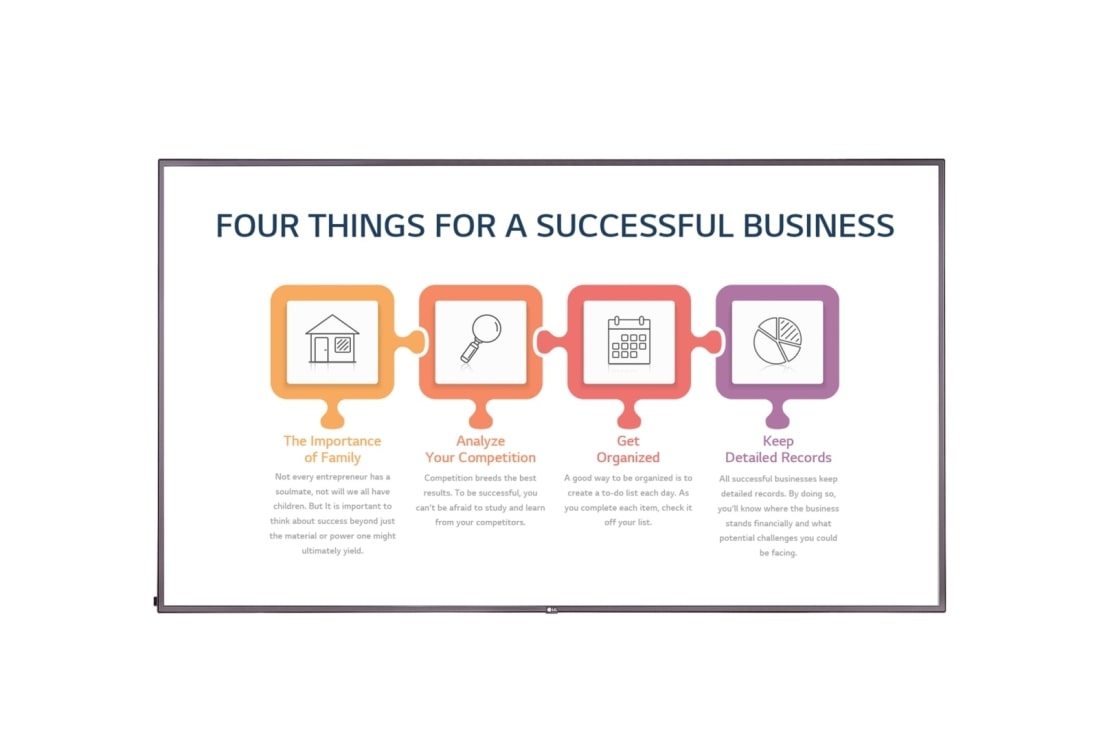

UHD Large Screen Signage

Key Features

Choose your Size

component-OBScountrySelectDesc

UHD Large Screen Signage
PANEL
  • Screen Size
    75
    Panel Technology
    IPS
  • Native Resolution
    3,840 x 2,160 (UHD, RGB)
    Brightness
    350nit (Typ.)
  • Contrast Ratio
    1,100:1
    Dynamic CR
    1,000,000:1
  • Color Gamut
    BT709 95%
    Viewing Angle(H x V)
    178 x 178
  • Color Depth
    10bib, 1.07Billion colors
    Response Time
    6ms (G to G)
  • Surface Treatment(Haze)
    Haze 28%
    Operation Hours (Hours/Day)
    24/7
  • Portrait / Landscape
    Yes / Yes
CONNECTIVITY
  • Input
    HDMI (3, HDCP2.2/1.4), RS232C IN (1, 4pin Phone-jack), RJ45(LAN), IR IN, USB2.0 Type A
    Output
    Audio Out, RS232C OUT (1, 4pin Phone-jack)
MECHANICAL SPECIFICATION
  • Bezel Color
    Black
    Bezel Width
    Even bezel : 14.9mm
  • Weight (Head)
    41.5 kg
    Monitor Dimension(W x H x D)
    1682.4 x 960.3 x 57.9mm
    (without Handle and LG Logo)
  • Handle
    Yes
    VESA™ Standard Mount Interface
    600 x 400
ENVIRONMENT CONDITIONS
  • Operation Temperature
    0 °C to 40 °C
    Operation Humidity
    10% to 80%
POWER
  • Power Supply
    AC 100-240V~, 50/60Hz
    Power Type
    Built-In Power
POWER CONSUMPTION
  • Typ.
    180W (TBD)
    Max.
    260W (TBD)
  • BTU (British Thermal Unit)
    614.25 BTU/Hr(Typ.), 887.25 BTU/Hr(Max) (TBD)
SOUND
  • Speaker
    Yes
CERTIFICATION
  • Safety
    CB / NRTL
    EMC
    FCC Class “A” / CE / KC
  • ErP / Energy Star
    Yes / Energy Star 8.0
SOFTWARE COMPATIBILITY
  • SuperSign CMS
    Yes
    SuperSign Control / Control+
    Yes
  • SuperSign WB
    Yes
    SuperSign Media Editor
    Yes
  • LG ConnectedCare
    Yes
ACCESSORY
  • Basic
    Remote Controller., Power Cord, QSG, Regulation Book, Phone to RS232C Gender
    Optional
    LSW640A/B(Wall Mount),Touch overlay(KT-T75E)
