98UM3DG-H component-copyModelName

98 Inch UHD Large Screen Signage

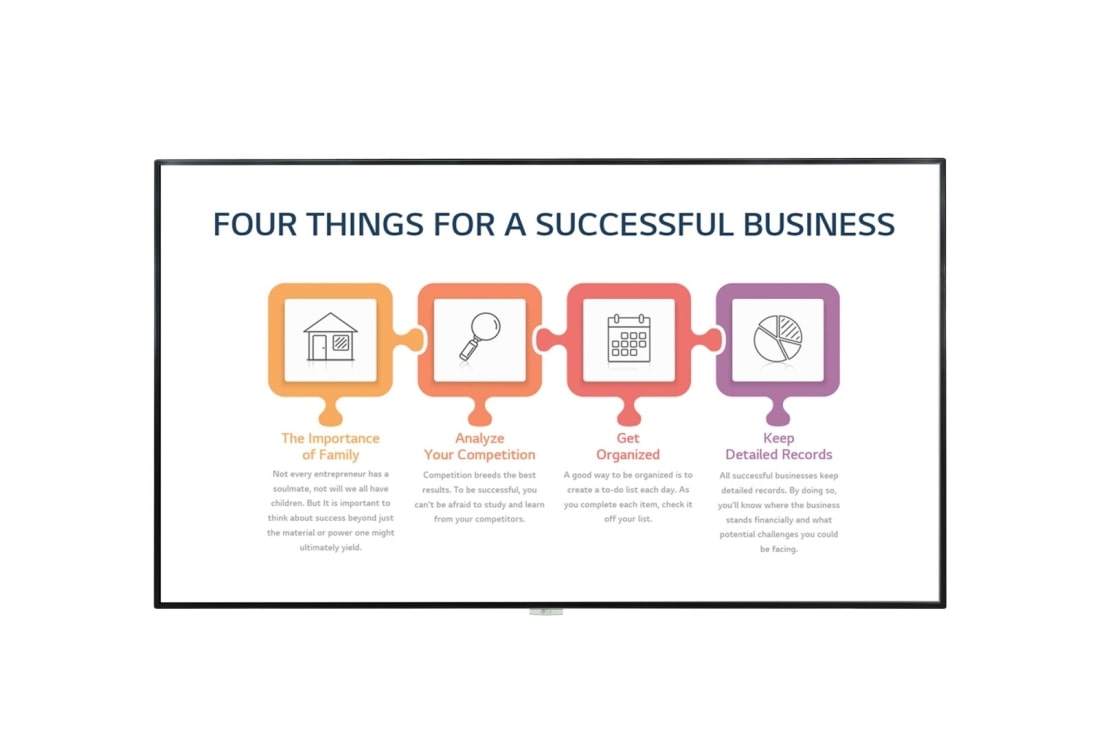

LG 98 Inch UHD Large Screen Signage , 98UM3DG-H, thumbnail 1

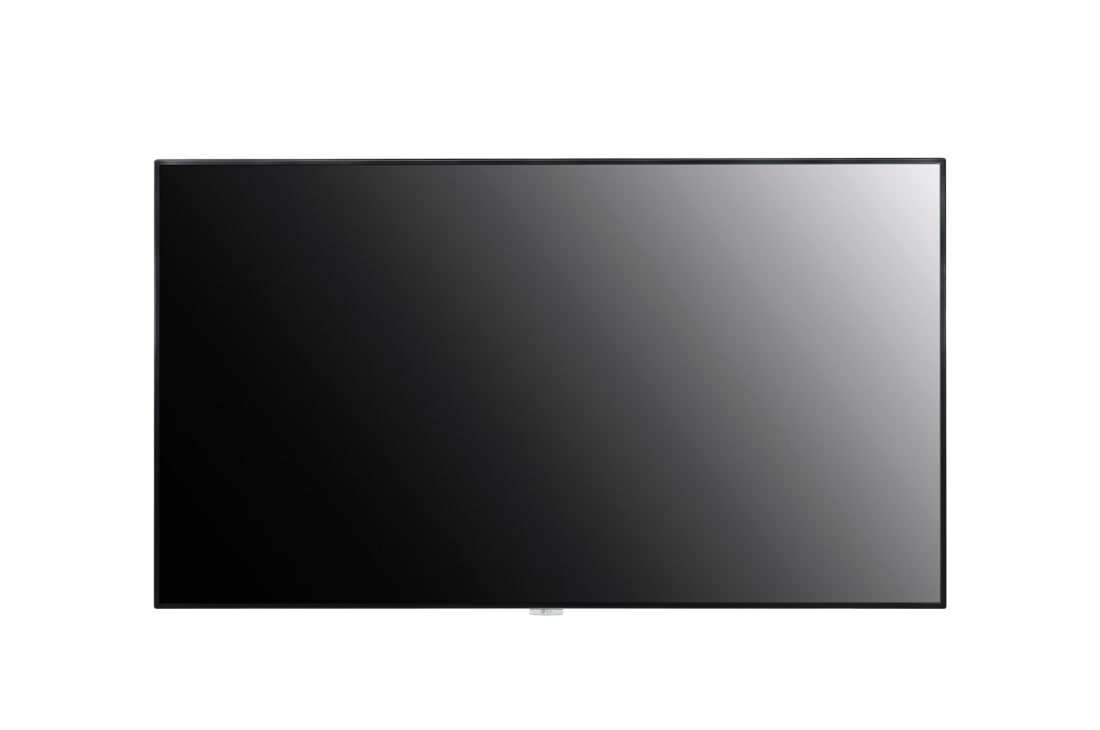

LG 98 Inch UHD Large Screen Signage , 98UM3DG-H, thumbnail 2

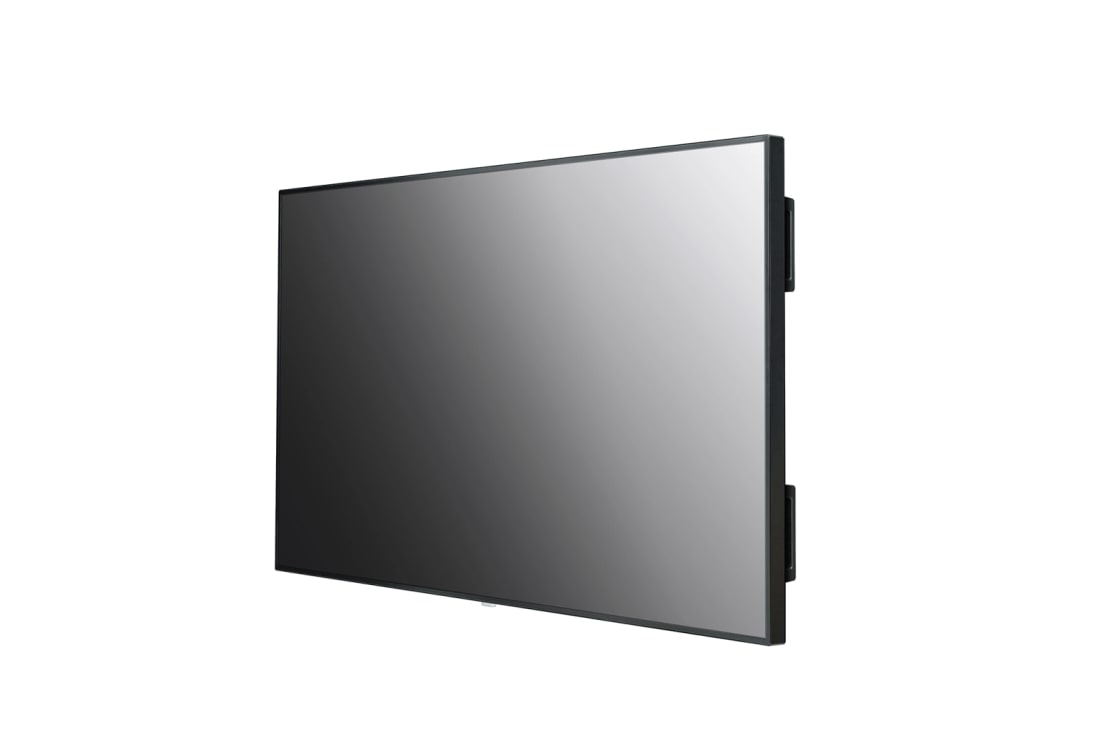

LG 98 Inch UHD Large Screen Signage , 98UM3DG-H, thumbnail 3

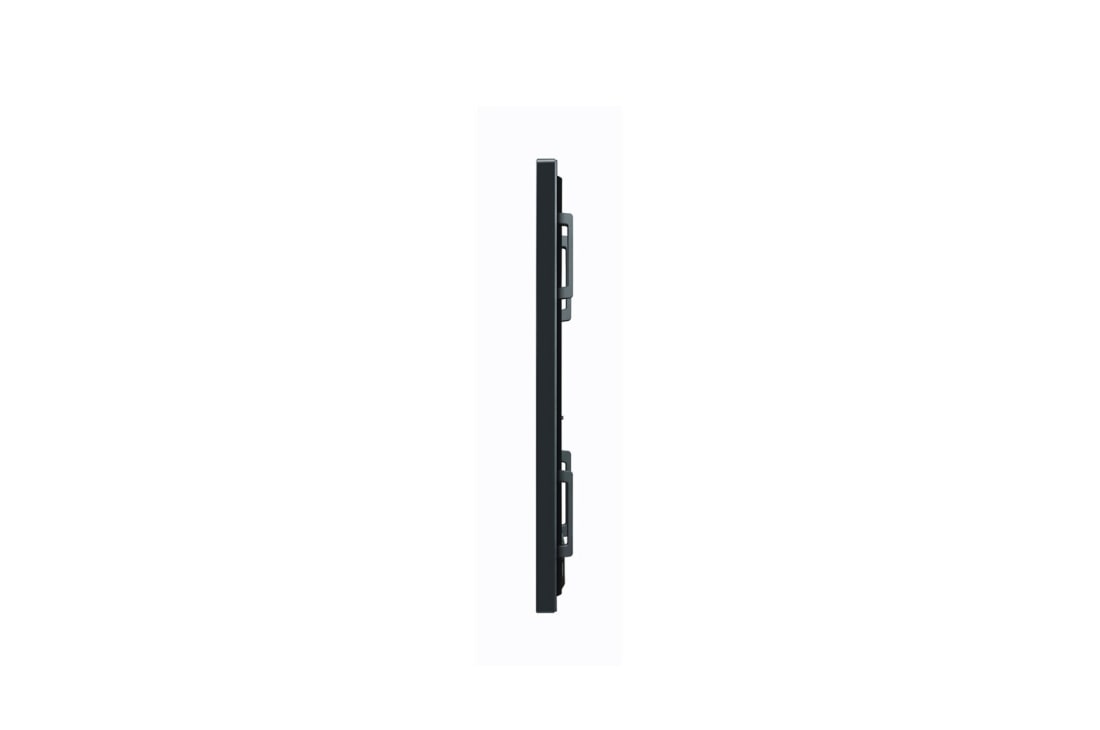

LG 98 Inch UHD Large Screen Signage , 98UM3DG-H, thumbnail 4

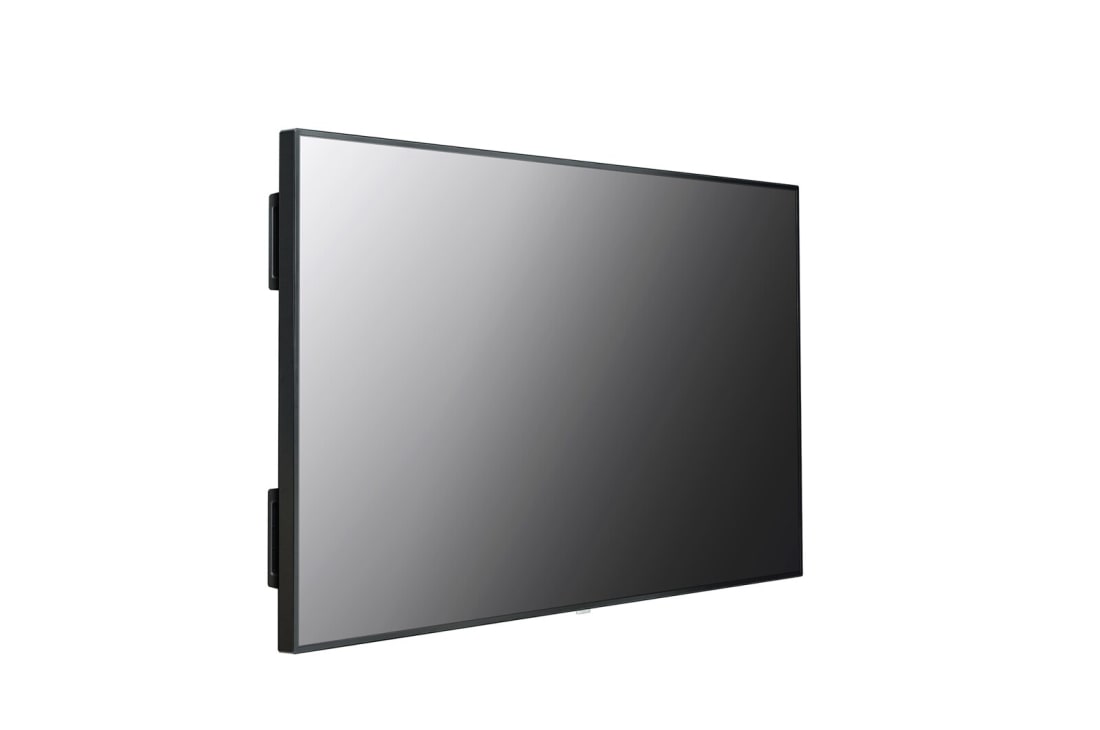

LG 98 Inch UHD Large Screen Signage , 98UM3DG-H, thumbnail 5

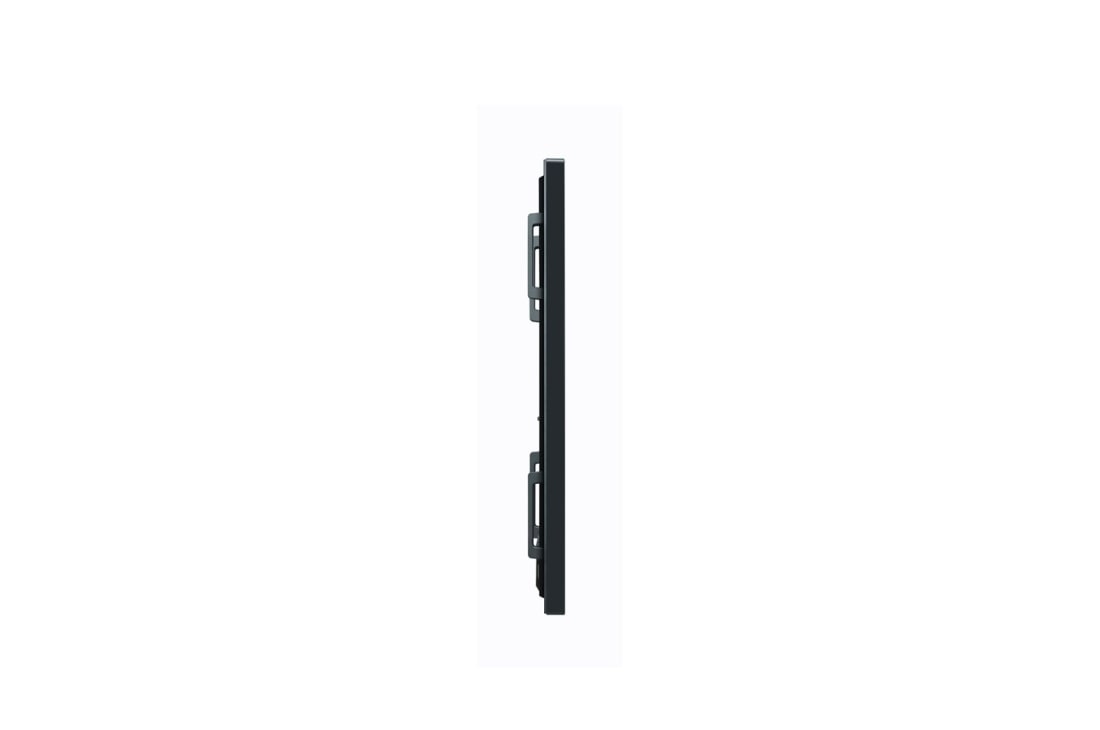

LG 98 Inch UHD Large Screen Signage , 98UM3DG-H, thumbnail 6

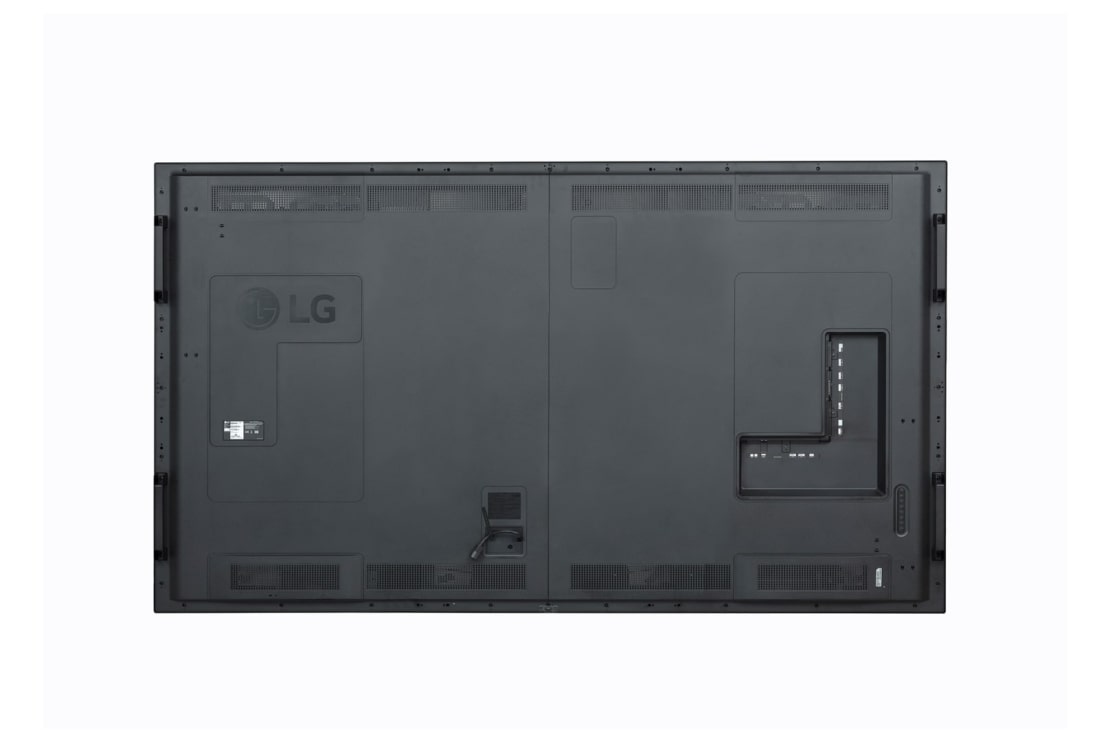

LG 98 Inch UHD Large Screen Signage , 98UM3DG-H, thumbnail 7

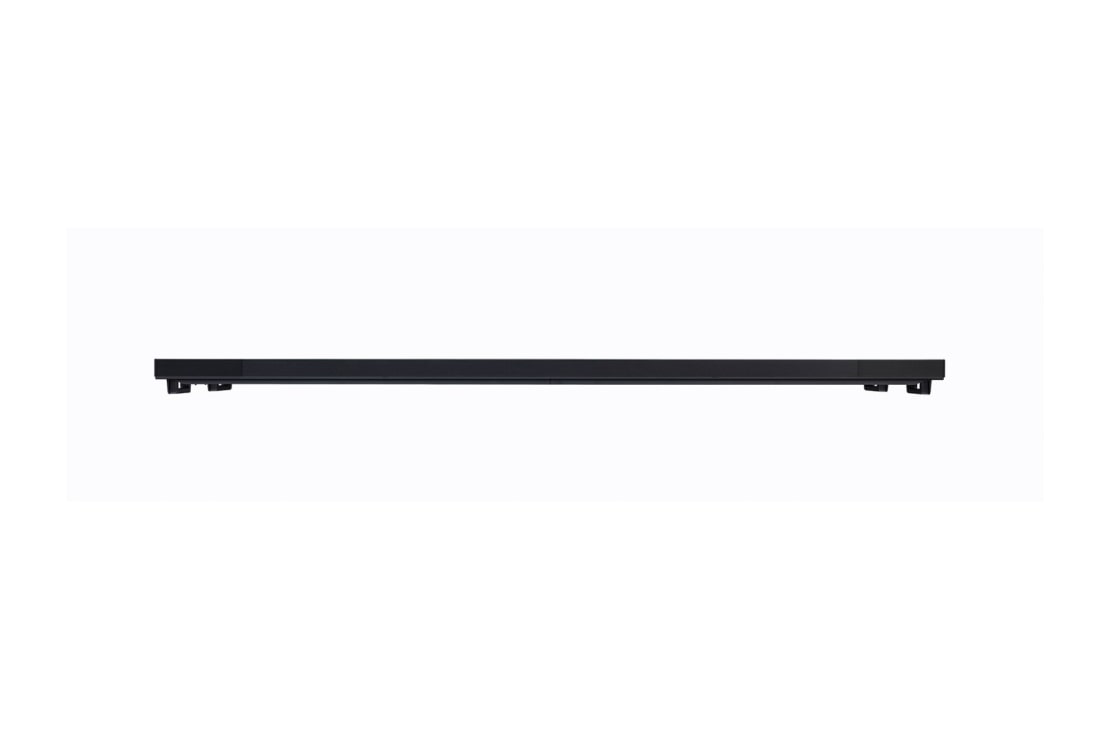

LG 98 Inch UHD Large Screen Signage , 98UM3DG-H, thumbnail 8

ADD TO WISHLIST

Discontinued

98UM3DG-H component-copyModelName

98 Inch UHD Large Screen Signage

Name: 98 Inch UHD Large Screen Signage
Brand: LG UAE
SKU: 98UM3DG-H
Rating: 0 (0 reviews)

Key Features

Brightness(Typ.) : 350 cd/m²
Surface Treatement (Haze) : 28%
Bezel : 14.9 mm (Even Bezel)
Depth : 83.8 mm (without Handle)
Interface : HDMI(3)/ USB 2.0/ RS232C/ RJ45/ Audio Out / IR In
Built-in Speaker

Choose your Size

Find a Dealer

Add to Compare

component-OBScountrySelectDesc

Key Features

Brightness(Typ.) : 350 cd/m²
Surface Treatement (Haze) : 28%
Bezel : 14.9 mm (Even Bezel)
Depth : 83.8 mm (without Handle)
Interface : HDMI(3)/ USB 2.0/ RS232C/ RJ45/ Audio Out / IR In
Built-in Speaker

Choose your Size

Add to Compare

component-OBScountrySelectDesc

component-copyModel-toastMsg

98 Inch UHD Large Screen Signage

LG UHD Large Screen Signage

People sitting in the conference room are looking at the big screen and having a meeting.

* All images in this web page are for illustrative purposes only and may differ from the actual product.

The image compares that one with Non-glare Coating and the other without Non-glare coating. And it shows that a screen with Non-glare Coating can be seen clearly under the light compared to the screen that do not.

SUPERB PICTURE QUALITY

Clear View with Non-glare Coating

Viewers can be annoyed by unnecessary reflections when watching a screen under brightly lit conditions. The UM3DG-H series has reduced such inconveniences by increasing the level of haze, which enhances visibility and text readability.

* The images listed are for reference only and the actual reflection can be different.

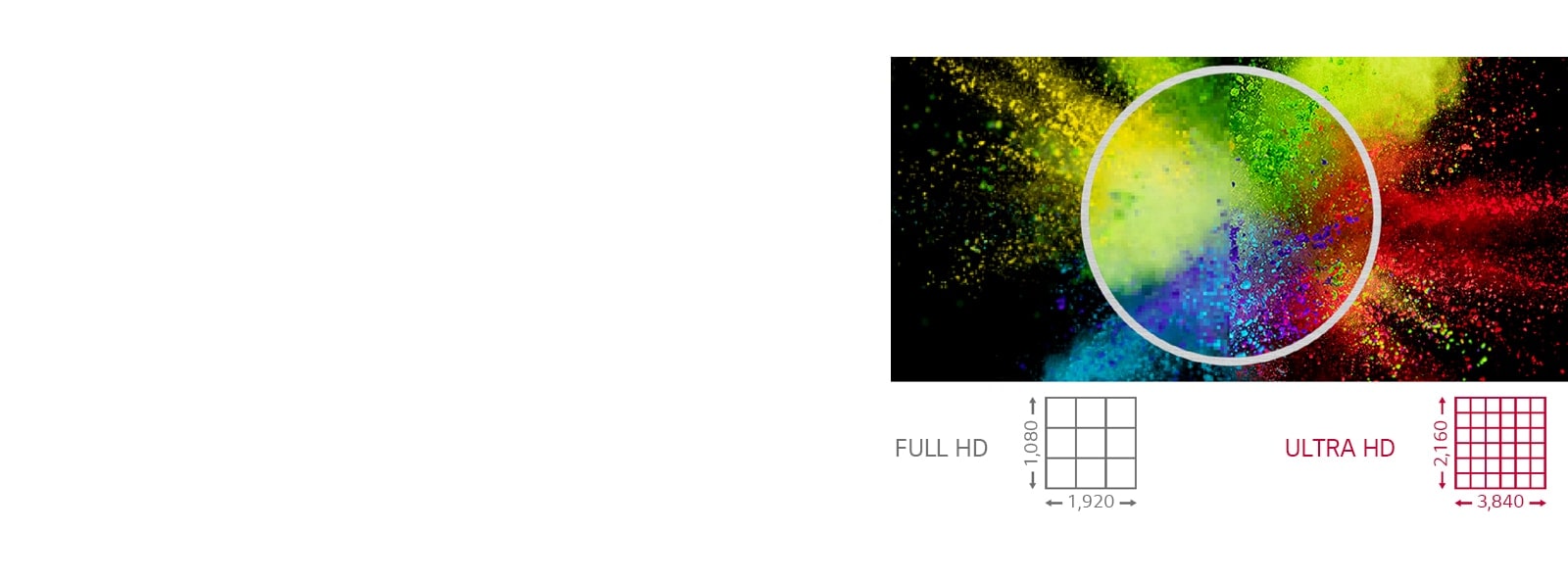

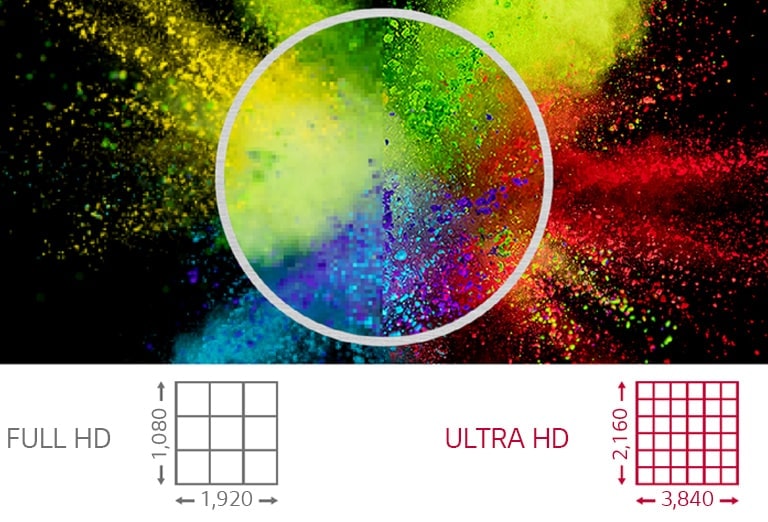

This image illustratively compares FHD resolution and UHD resolution. This image indicates that the screen with UHD has 4 times higher resolution than FHD, so contents can be seen more vivid and colorful.

SUPERB PICTURE QUALITY

ULTRA HD Resolution

With the resolution that is 4 times higher than FHD, it makes the color and details of the contents more vivid and realistic. In addition, the wide viewing angle applied with an IPS panel, provides clear contents.

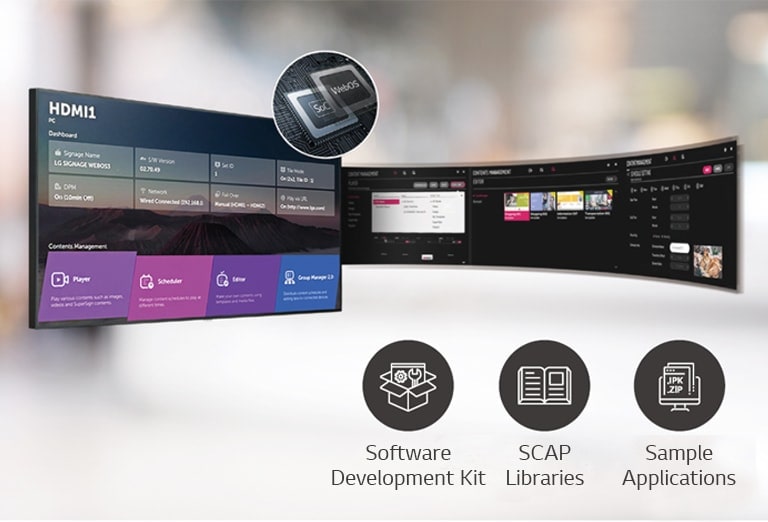

This image show that several tasks can be done at the same time with the intuitive GUI.

webOS SMART SIGNAGE

High-Performance with webOS

Built-in Quad Core SoC can execute several tasks at once while providing smooth content playback. Also, LG webOS smart signage platform enhances user convenience with intuitive GUI and provides to SI or/and developers simple app development tools such as SDK (Software Development Kit), SCAP, sample applications.

webOS SMART SIGNAGE

Various Sensor Connection

LG webOS smart signage platform helps to easily provide value-added solutions by supporting simple connections with external sensors* such as GPIO, NFC/RFID, temperature sensors, etc, via USB plug-in.

* External sensors need to be purchased separately and tested for compatibility with webOS platform.

One signage on the wall has the built-in speaker which making the sound rich.

USER CONVENIENCE

Built-in Speaker

Contents will be enriched with sound effects from built-in speakers, without the need for purchasing or installing external speakers.

The UM3DG-H series is on the wall and a woman using a personal PC and mobile phone. And this image shows that the signage can be connected wirelessly to the PC and mobile phone she is holding.

USER CONVENIENCE

Wireless Access Point

The UM3DG-H series operates as a virtual router which can be a wireless access point for mobile devices.

* Maximum 10 units of the mobile devices can be connected via softAP

This is one of meeting room with the signage and one of AV control system which helps users control the UM3DG-H series.

MEETING ROOM SOLUTION

Compatible with AV Control System

The UM3DG-H series supports Crestron Connected® for high compatibility with professional AV controls to achieve seamless integration and automated control*, boosting business management efficiency.

* Network based control

A video conference is being held as people are screened on signage installed on the wall.

MEETING ROOM SOLUTION

Compatible with Video Conference System

For the optimum visual meeting, the UM3DG-H series supports its compatibility with Cisco System that offers powerful and integrated control* for a smarter video conference.

* Using an HDMI cable connection

This image shows that the content set on the Control Manager and the content displayed on the signage are same. And it indicates that UM3DG-H series can be remotely controlled and monitored in a different place with devices such as a mobile phone and a laptop, through the Control Manager.

EASY MANAGEMENT

Mobile & Web Monitoring

Through the Control Manager, the embedded web monitoring solution, you can control and monitor the status of the UM3DG-H series displays in different locations in real-time. It is available on internet connected devices, allowing you to flexibly and rapidly respond to emergency situations.

* The mobile devices need be connected with the Signage IP address and can control one Signage at a time.

The LG employee is remotely monitoring the UM3DG-H series installed in a different place.

EASY MANAGEMENT

Real-time ConnectedCare Service

Maintenance is easy and fast with the optional ConnectedCare* service, a cloud service solution provided by LG. It remotely manages the status of displays in client workplaces for fault diagnosis and remote-control services, supporting the stable operation of clients' businesses.

* The availability of the 'LG ConnectedCare' service differs by region, and it needs to be purchased separately.
So please contact the LG sales representative in your region for more details.

PANEL

Screen Size

98"

Panel Technology

IPS
Native Resolution

3840 x 2160 (UHD)

Brightness

350nit (Typ.)
Contrast Ratio

1,200:1

Dynamic CR

1,000,000:1
Color Gamut

BT709 95%

Viewing Angle(H x V)

178 x 178
Color Depth

10bib, 1.07Billion colors

Response Time

8 ms (G to G)
Surface Treatment(Haze)

28%

Operation Hours (Hours/Day)

24/7
Portrait / Landscape

Yes / Yes

CONNECTIVITY

Input

HDMI (3, HDCP2.2/1.4), RS232C IN (1, 4pin Phone-jack), RJ45(LAN), IR IN, USB2.0 Type A

Output

Audio Out, RS232C OUT (1, 4pin Phone-jack)

MECHANICAL SPECIFICATION

Bezel Color

Black

Bezel Width

Even bezel : 14.9mm
Weight (Head)

81.1 kg

Monitor Dimension(W x H x D)

2191.8 x 1246.8 x 83.8mm (without Handle and LG Logo)
Handle

Yes

VESA™ Standard Mount Interface

800 x 400

ENVIRONMENT CONDITIONS

Operation Temperature

0 °C to 40 °C

Operation Humidity

10% to 80%

POWER

Power Supply

AC 100-240V~, 50/60Hz

Power Type

Built-In Power

POWER CONSUMPTION

Typ.

355W

Max.

435W
BTU (British Thermal Unit)

1211.44 BTU/Hr(Typ.), 1484.44 BTU/Hr(Max)

SOUND

Speaker

Yes

CERTIFICATION

Safety

CB / NRTL

EMC

FCC Class “A” / CE / KC
ErP / Energy Star

Yes / No

SOFTWARE COMPATIBILITY

SuperSign CMS

Yes

SuperSign Control / Control+

Yes / Yes
SuperSign WB

Yes

SuperSign Media Editor

Yes
LG ConnectedCare

Yes

ACCESSORY

Basic

Remote Controller., Power Cord, QSG, Regulation Book, Phone to RS232C Gender
