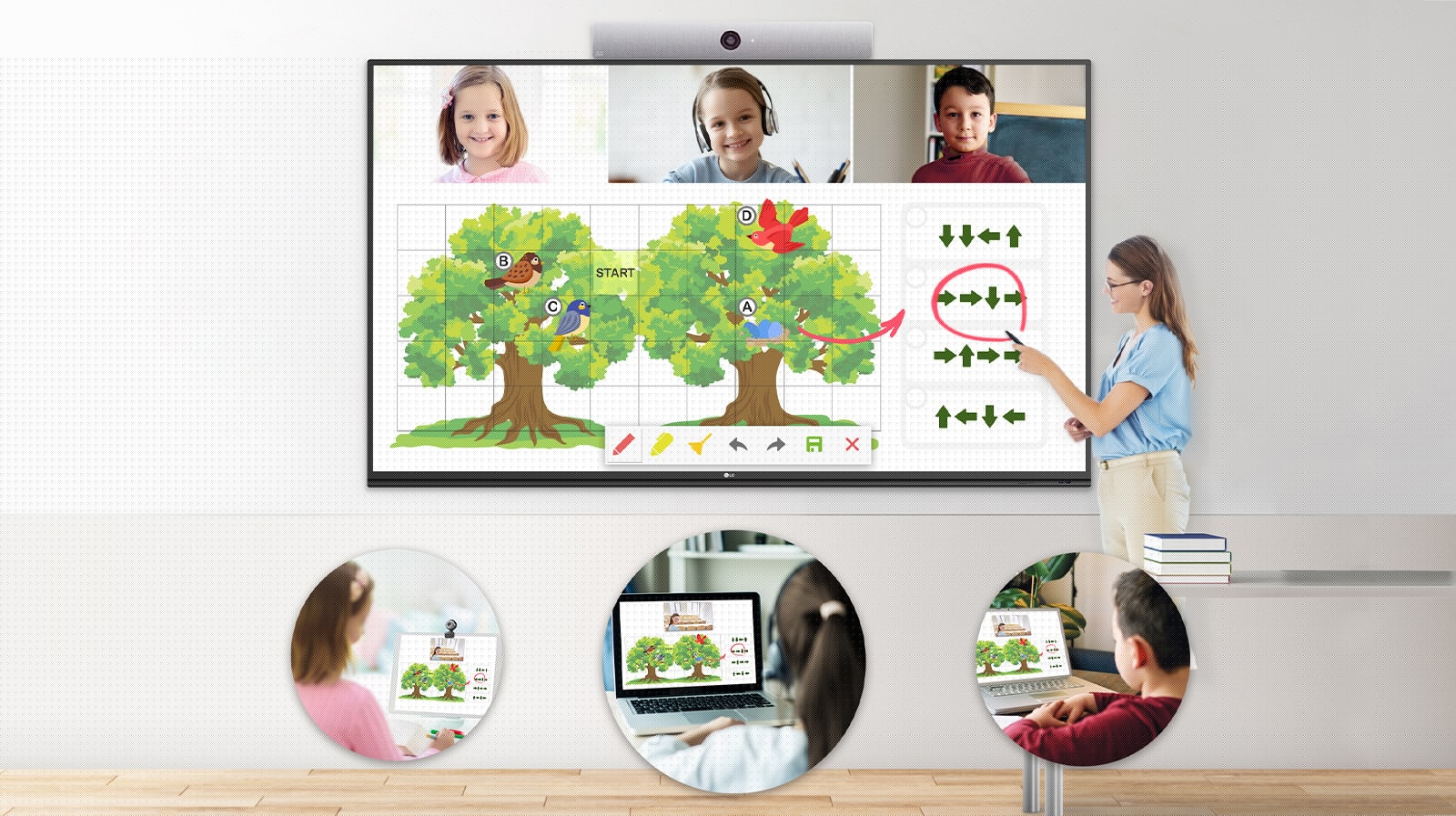

True Interactivity for
Bringing People Together

When the teacher marks it on the TR3PJ, it is displayed on the students' electronic device screens at the same time. When the teacher marks it on the TR3PJ, it is displayed on the students' electronic device screens at the same time.
* 86 inch
* All images are for illustrative purposes only.
** Video Conferencing Solutions need to be purchased separately.

Multi Touch & Writing

The TR3PJ series can simultaneously use up to 20 points of multi touch. This function offers a lifelike board writing experience and makes collaboration much easier.
Three children are drawing on the TR3PJ at the same time. Three children are drawing on the TR3PJ at the same time.

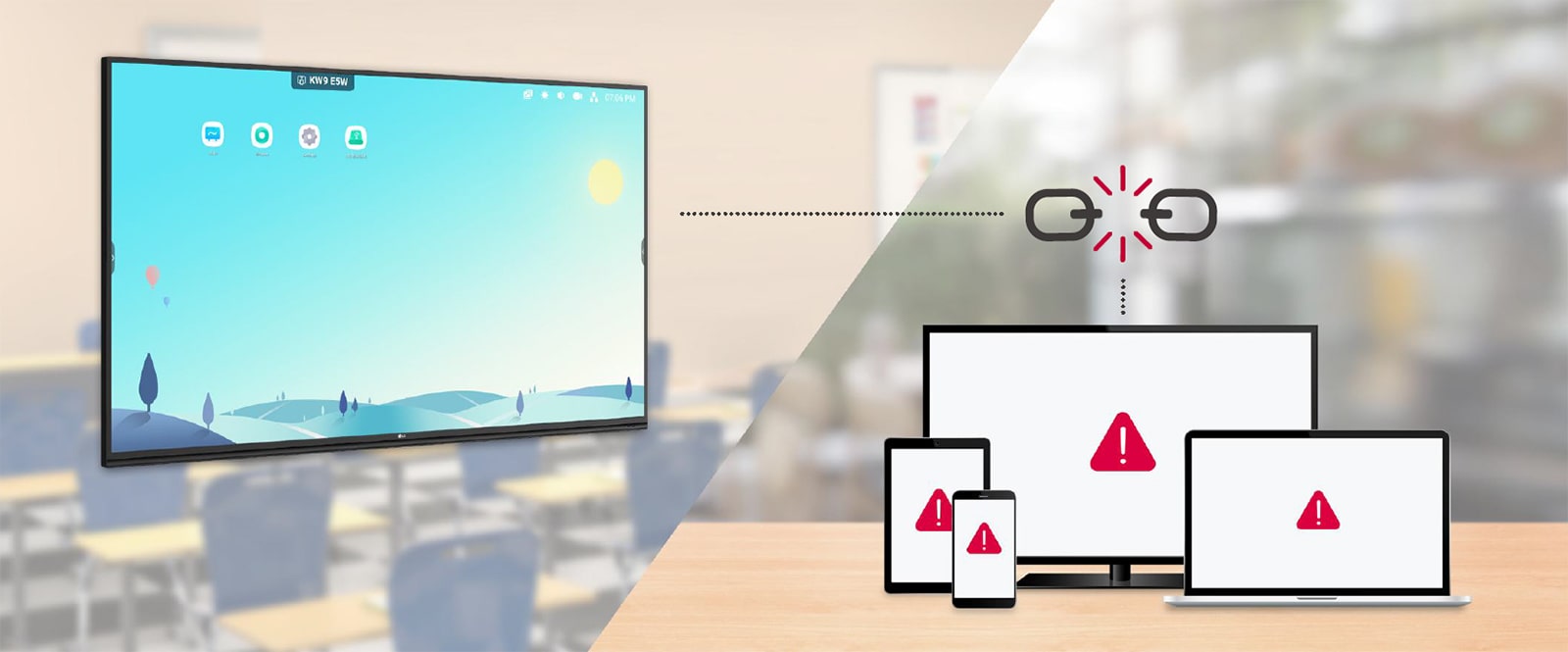

Secure Mode

Secured mode disables screen mirroring options for SSP (Screen Share Pro), which is an application that enables screen sharing between mobile devices and the display, to prevent any unauthorized contents to be shown via screen sharing functions in various devices.
Secure Mode for blocking unauthorized contents. Secure Mode for blocking unauthorized contents.

Partial Capture

Users can select the desired area of the screen to crop the image and store that in internal memory. Also, TR3PJ allows that send cropped images directly to email or note apps.
A woman captures part of the TR3PJ and explains it to the man. A woman captures part of the TR3PJ and explains it to the man.
PANEL
  • Screen Size
    65"
    Panel Technology
    VA
  • Back Light Type
    Direct
    Aspect Ratio
    16 : 9
  • Native Resolution
    3,840 x 2,160 (UHD)
    Refresh Rate
    60 Hz
  • Brightness
    490nit (wo Glass max),390nit (wo Glass typ), 335nit (wo Glass, min) 450nit (w Glass, max),350nit (w Glass, typ), 300nit (w Glass min)
    Contrast Ratio
    4,000:1
  • Color gamut
    NTSC 72%
    Viewing Angle (H x V)
    178 x 178
  • Color Depth
    8bit+FRC, 1.07Billion colors
    Response Time
    6.5ms(G to G)
  • Surface Treatment(Haze)
    Anti Glare,7Mohs, Haze 25%
    Life Time (Typ.)
    30,000 Hrs (Min.)
  • Operation Hours (Hours/Day)
    16/7
    Portrait / Landscape
    No / Yes
CONNECTIVITY(JACK INTERFACE)
  • Input - Digital - HDMI
    Yes (3), HDCP2.2/1.4
    Input - Audio In
    Yes(1)
  • Input - RS232C IN
    Yes(1)
    Input - RJ45(LAN)
    Yes(1)
  • Input - IR IN
    Yes(1)
    Input - USB
    USB3.0 Type A(4) USB2.0 Type A(1) USB3.1 Type C (1, USB-PD, DP-Alt. Mode)
  • Output - DP Out
    No, HDMI Out (1)
    Output - Audio Out
    Yes(1), Optical O(1)
  • Output - Touch USB
    Yes(2)
    Output - RJ45(LAN)
    Yes(1)
MECHANICAL SPECIFICATION
  • Bezel Color
    Black
    Bezel Width
    17.7/17.7/17.7/45.7mm
  • Weight (Head)
    40.20Kg
    Packed Weight
    48.8Kg
  • Monitor Dimension (W x H x D)
    1489×897×87mm
    Carton Dimensions(W x H x D) (Box outer size)
    1628×208×1005mm
  • Handle
    Yes
    VESA™ Standard Mount Interface
    600 x 400
KEY FEATURE
  • HW - Internal Memory
    32GB
    HW - Wi-Fi - Built-in
    Yes (Slot type)
  • HW - Power Indicator
    Yes
    HW - Local Key Operation
    Yes
  • SW - webOS ver.
    Android 9.0
    SW - Background Image - Booting Logo Image
    Yes
  • SW - Screen Share
    Yes (Screenshare pro)
    SW - 3rd Party Compatibility - Crestron Inside
    Yes
  • SW - Power - Smart Energy Saving
    Yes
    SW - Power - PM mode
    Yes
  • SW - Power - Wake on LAN
    Yes
    SW - Power - Network Ready
    Yes
  • SW - HDMI-CEC
    Yes
ENVIRONMENT CONDITIONS
  • Operation Temperature
    0 °C to 40 °C
    Operation Humidity
    10% ~90%RH
POWER
  • Power Supply
    AC 100-240V~, 50/60Hz
    Power Type
    Built-In Power
POWER CONSUMPTION
  • Typ.
    TBD
    Max.
    367W
  • BTU (British Thermal Unit)
    TBD

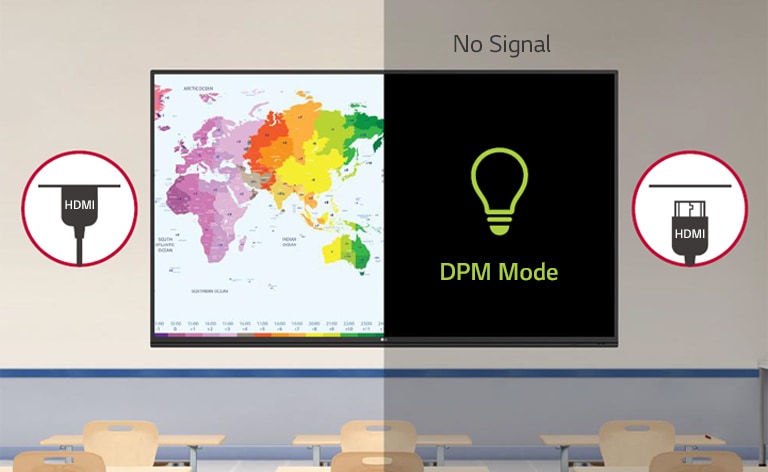

    DPM
    Yes
  • Power off
    0.5W↓
SOUND
  • Speaker
    Yes (12W x 2)
CERTIFICATION
  • Safety
    CB / NRTL
    EMC
    FCC Class “A” / CE
  • ErP / Energy Star
    Yes / No
OPS COMPATIBILITY

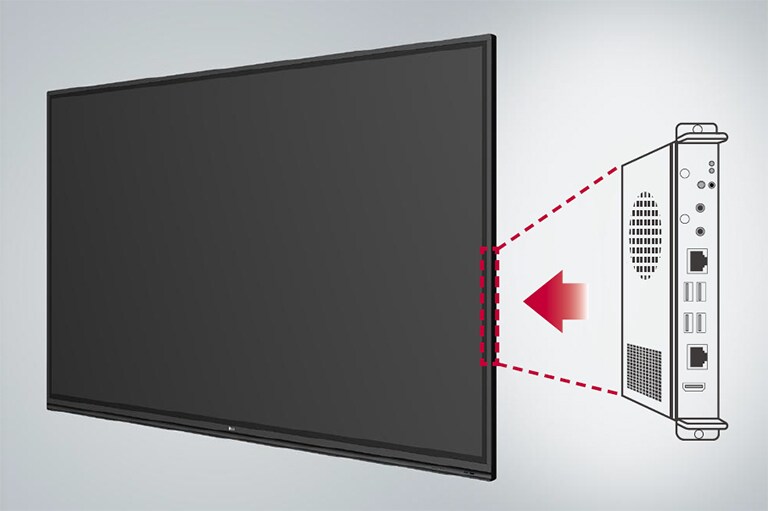

  • OPS Type Compatible
    Yes (Slot)
    OPS Power Built In
    Yes
SOFTWARE COMPATIBILITY
  • Signage 365 Care
    Yes
Language
  • OSD
    English, Simplified Chineses, Catalan, Czech, Denmark, Arabic(Egypt), Finnish, French, German, Greek, Italian, Japanese, Korean, Netherlands(Dutch), Norwegian, Polski, Portugues(Europe),Portugues(Brazil)
    Romanian, Russian, Spanish, Swedish, Turkish, Ukrainian, Traditional Chinese, Hungarian, Latvian, Thai
ACCESSORY
  • Basic
    Power Cord 3 M*1, USB Cable (Type A-Type B) 5 M*1, HDMI Cable 3 M*1, Writing Pen*2pcs, User Manual, QSG, Carton Box, Remote Controller(include battery 2ea), Wifi module
SPECIAL FEATURE
  • Touch - Available object size for touch
    Ø3 mm ↑
    Touch - Reponse Time(PC Win10)
    60ms ↓ (Android) 100ms ↓ (Windows)
  • Touch - Accuracy
    ±2mm
    Touch - Interface
    USB2.0
  • Touch - Protection Glass Thickness
    4T (Anti-Glare)
    Touch - Protection Glass Transmission
    87%
  • Touch - Operating System Support
    Windows 7/8/10/WindowsXP/Linux/Mac/Android (WindowsXP/Linux/Mac Support one point touch)
    Touch - Multi touch point
    Max 20 Points

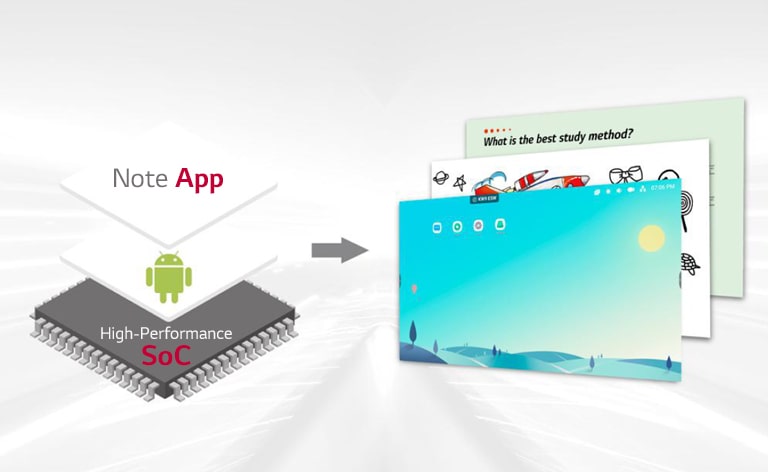

ANDROID SYSTEM

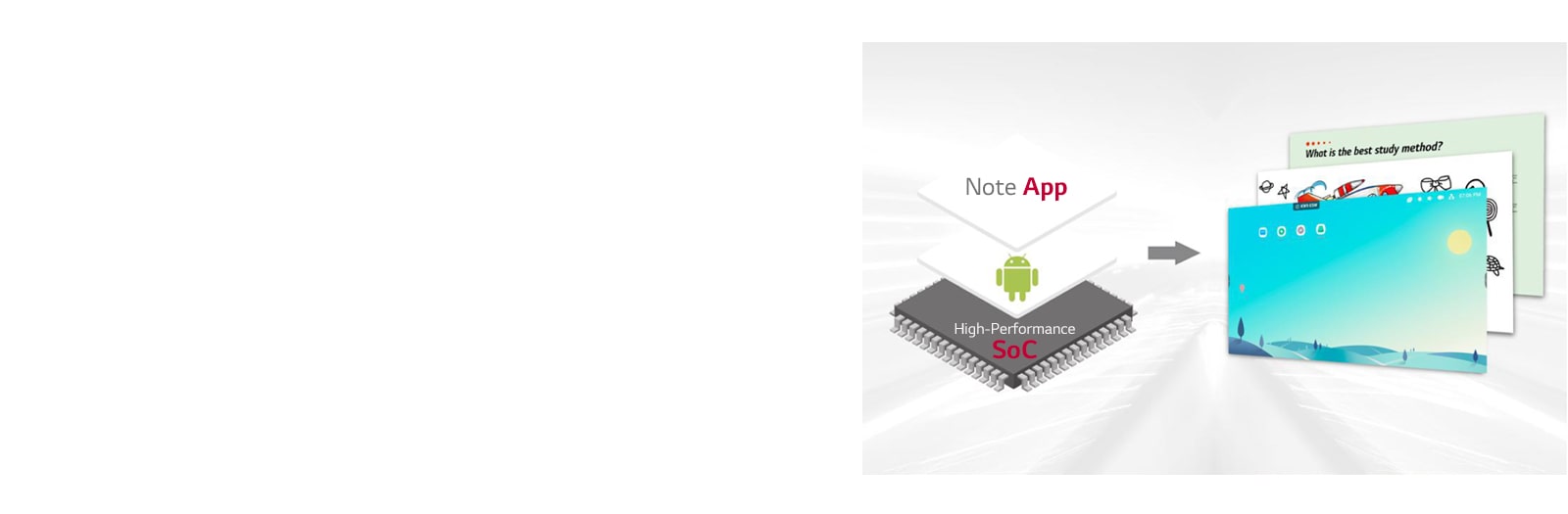

  • SoC
    Quad core A73
    GPU
    Dual Core Mail G51
  • Internal Memory - Storage
    32GB
    Internal Memory - RAM
    4GB
  • Wi-Fi
    802.11a/b/g/n/ac
    LAN
    Gigabit LAN
  • Bluetooth
    Bluetooth 5.0
