LG Dualcool Inverter Compressor STD 3 HP Cooling Energy Saving, Fast Cooling with 10 Years Warranty on Compressor

Features

Gallery

Specs

Reviews

Where to buy

Support

LG Dualcool Inverter Compressor STD 3 HP Cooling Energy Saving, Fast Cooling with 10 Years Warranty on Compressor

S4-Q24K23AE

LG Dualcool Inverter Compressor STD 3 HP Cooling Energy Saving, Fast Cooling with 10 Years Warranty on Compressor

(3)

*Residential Air Conditioners have five Years Warranty for the whole set.
*Normal Compressor has five years Warranty.
*Inverter Compressor has ten years Warranty.
*Product Shelf Life time is 7 years from warranty activation date.

*Please Contact Our Live Chat or our Call Center, to get the appropriate Product Capacity.
**If you buy a product that does not match your room specifications, it will not be installed.

Dual Inverter Compressor™ With 10 Year Warranty

LG's Dual Inverter Compressor™ solves improper, ineffective and noisy problems, resulting in an air conditioner that cools faster, lasts longer, and runs quieter. With the 10year warranty on the compressor, users can enjoy the benefits of LG air conditioner for a longer period of time.

Dual Inverter Compressor™

A compressor with a wider rotational frequency saves more energy and has a faster cooling range.

10 Year Warranty

Verification obtained from TUV Rheinland for 10-year product life cycle.

TUV Rheinland

TUV Rheinland, Verification on Fast Cooling & Power Saving Rate(US-W242Kxy0/TS-H2465DA0).
Watch the Full Movie

Energy Saving

Inverter Compressor constantly adjusts a compressor's speed to maintain desired temperature levels. Moreover, Dual Inverter Compressor™ with power saving operation range frequency saves more energy than conventional compressor.
Less Wrinkles, More Hygienic

Fast Cooling

LG air conditioner begins cooling the air fast using its high speed cooling range with Dual Inverter Compressor™, so it expels air farther and cool spaces faster.


Simple and Slim Design with Hidden Display

LG air conditioner‘s slim and modern design makes easy installation and convenient cleaning with EZ sliding filter. Moreover large hidden display is perfect for checking your energy display conveniently.
Low Noise

Low Noise

LG air conditioners operate at low sound levels, thanks to LG's unique skew fan and Dual Inverter Compressor™ which eliminate unnecessary noise and allow for smooth operation.

Quick and Easy Installation

LG air conditioners are designed for easier and more efficient installation, regardless of the surroundings and the number of persons involved in the installation process. By reducing the manpower and time required for installation, it is now possible to install more air conditioners at more homes in a shorter period of time.

Vertical 6 Steps Louver Control

Users can choose the vane direction among 6 preset positions to meet the exact wind blow direction you desire.

Dual Protection Filter

The Dual Protection Filter captures large dust particles.

Comfort Sleep

Comfort Sleep mode ensures the utmost comfort sleep environment by automatically adjusting 3 different functions(Indirect airflow/7hr off time set/Soft wind & sleep time logic) ,with the simple click of one button.

Auto Cleaning

The comprehensive auto cleaning function prevents the forming of
bacteria and mold on the heat exchanger and thus provides a more
pleasant and comfortable environment for the user.

Gold Fin™

The Gold Fin™ ensures that the surface is more resistant to corrosion
and enhances the durability of heat exchanger for a much longer period.

Jet Dry

Jet Dry technology places priority in dehumidification for areas with high humidity levels to keep your room dry and fresh.

Summary

Print

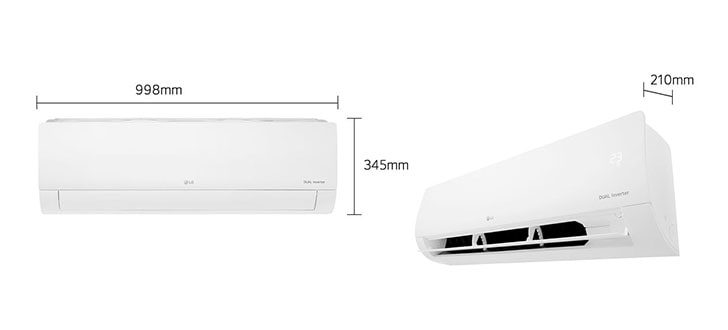

Dimension mm
998 × 345 × 210
Capacity [BTU]
24000
Main Technology
60% More Energy Saving With 30% Quick Cooling
Extra Spec
10 Years Compressor Warranty

All Spec

GENERAL SPECIFICATION

  • Cooling Capacity (Min ~ Rated ~ Max)

    1.03 ~ 6.45 ~ 7.18 KW
    3,500 ~ 22,000 ~ 24,500 Btu/h

  • Power Input - Cooling (Min ~ Rated ~ Max)

    240 ~ 1,980 ~ 2,400 W

  • Running Current - Cooling (Min ~ Rated ~ Max)

    1.40 ~ 9.40 ~ 10.5 A

  • EER

    11.11 (Btu/h)/W
    3.26 W/W

  • Energy Label Grade - Cooling

    A++++

  • Available Voltage Range

    187 ~ 253 V

  • Power Supply

    1, 220, 50 (Φ/V/Hz)

  • Power Factor - Cooling

    96%

  • Indoor - Air Flow Rate (Cooling, Max/H/M/L)

    20/15/13.5/10.5 m³/min

  • Indoor - Sound Pressure Level (Cooling, H/M/L/SL)

    53/47/42/34/31 dB(A)

  • Indoor - Dimensions (W × H × D) - Net

    998 × 345 × 210 mm

  • Indoor - Dimensions (W × H × D) - Shipping

    1053 × 424 × 278 mm

  • Indoor - Weight (Net)

    12.2 kg

  • Indoor - Weight (Shipping)

    14.4 kg

  • Outdoor - Sound Pressure Level (Cooling, Rated)

    55 dB(A)

  • Outdoor - Dimensions (W × H × D) - Net

    870 × 650 × 330 mm

  • Outdoor - Dimensions (W × H × D) - Shipping

    1045 × 710 × 458 mm

  • Outdoor - Weight (Net)

    42.0 kg

  • Outdoor - Weight (Shipping)

    49.0 kg

  • Compressor - Type

    Twin Rotary

  • Compressor - Motor Type

    BLDC

  • Fan (Indoor) - Type

    Cross Flow Fan

  • Fan (Indoor) - Motor Output

    58 W

  • Fan (Outdoor) - Type

    Propeller Fan

  • Fan (Outdoor) - Motor Output

    70 W

  • Heat Exchanger - Condenser (Material, Tube/Fin)

    Cupper

  • Heat Exchanger - Condenser (Corrosion Protection)

    Gold

  • Circuit Breaker

    20 A

  • Power Supply to Unit

    Outdoor

  • Piping - Size (Liquid)

    1/4 inch

  • Piping - Size (Gas)

    5/8 inch

  • Piping - Connections Method (Indoor/Outdoor)

    Flared/Flared

  • Drain Hose Size - O.D, I.D

    21.5,16.0 mm

  • Between Indoor & Outdoor - Piping Length (Min/Standard/Max)

    3/7.5/20 m

  • Between Indoor & Outdoor - Piping Length (No Charge)

    3.5 m

  • Between Indoor & Outdoor - Max. Elevation Difference

    10 m

  • Refrigerant - Type

    R410A

  • Refrigerant - Pre Charge

    1400 g

  • Refrigerant - Additional charge

    20 g/m

  • Product Type

    STD

  • Cooling System

    Cold only

FEATURES

  • Dual Inverter

    Yes

  • Faster Cooling

    Yes

  • Less Noise

    Yes

AIR CARE SYSTEM

  • Auto cleaning

    Yes

  • Plasmaster Ionizer

    Yes
