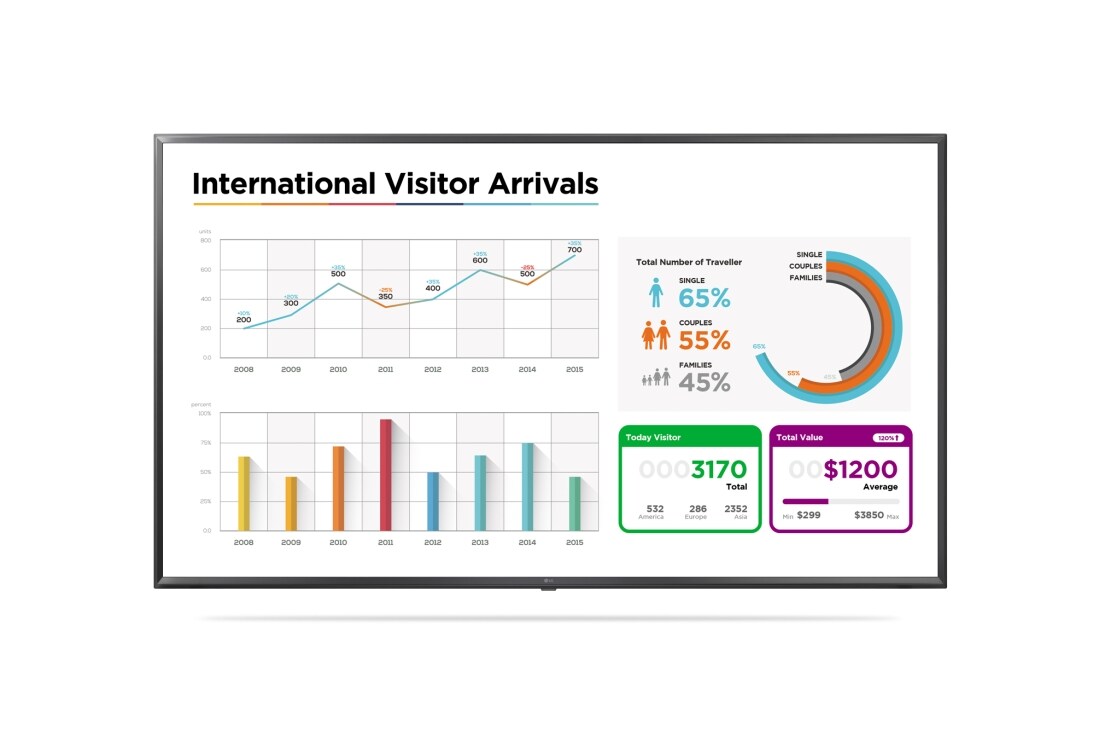

LG UL3E Series, 55UL3E-B (EU), thumbnail 1

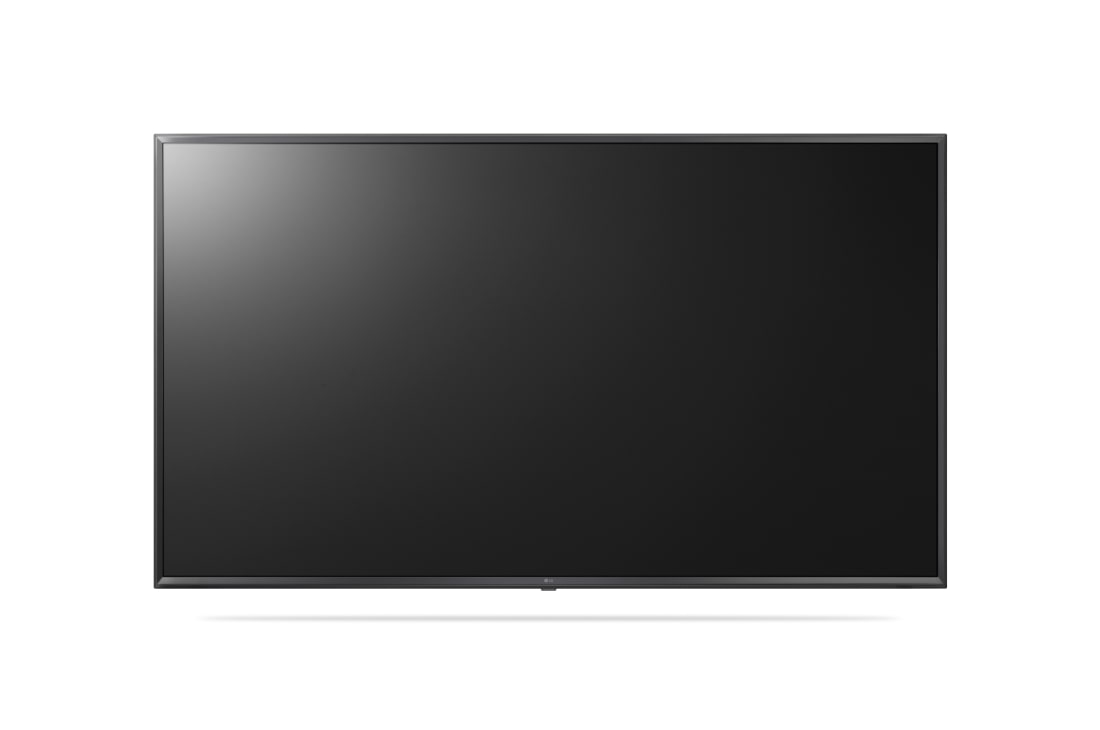

LG UL3E Series, 55UL3E-B (EU), thumbnail 2

LG UL3E Series, 55UL3E-B (EU), thumbnail 3

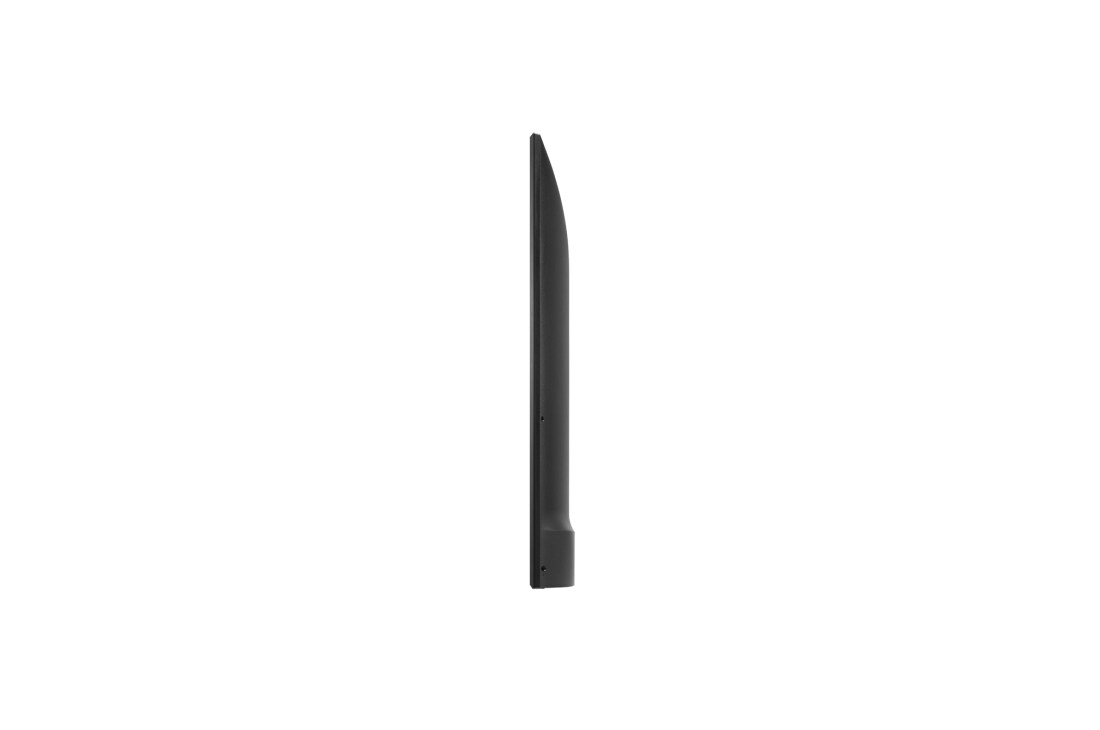

LG UL3E Series, 55UL3E-B (EU), thumbnail 4

LG UL3E Series, 55UL3E-B (EU), thumbnail 5

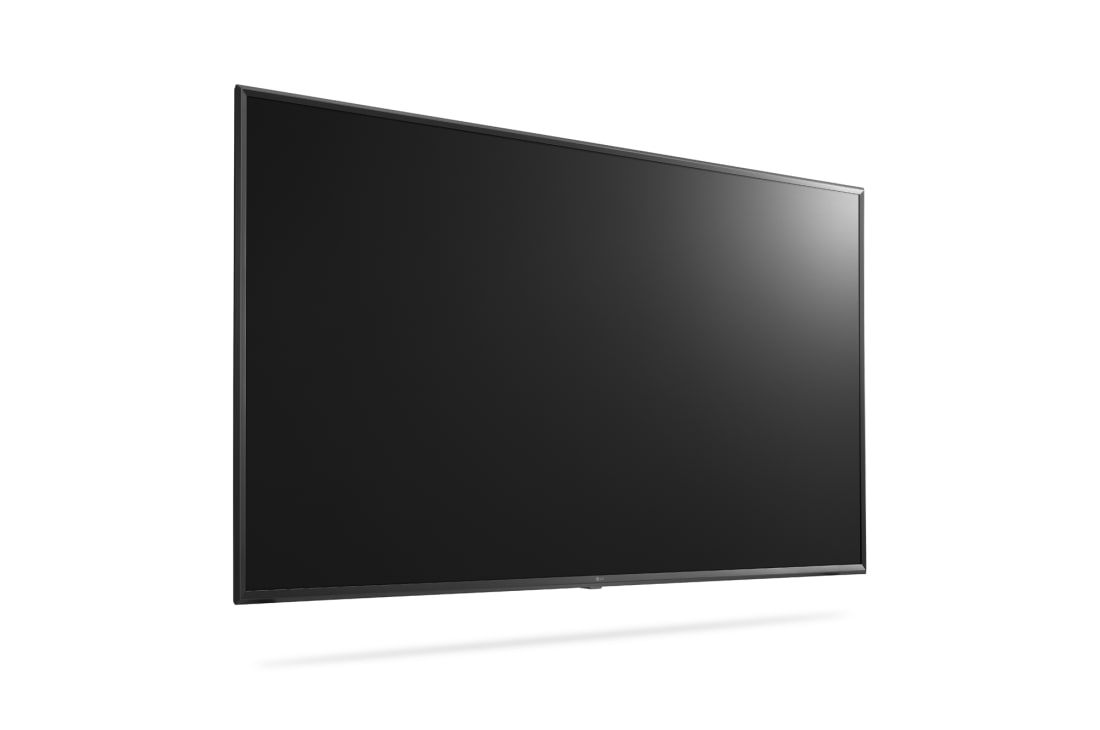

LG UL3E Series, 55UL3E-B (EU), thumbnail 6

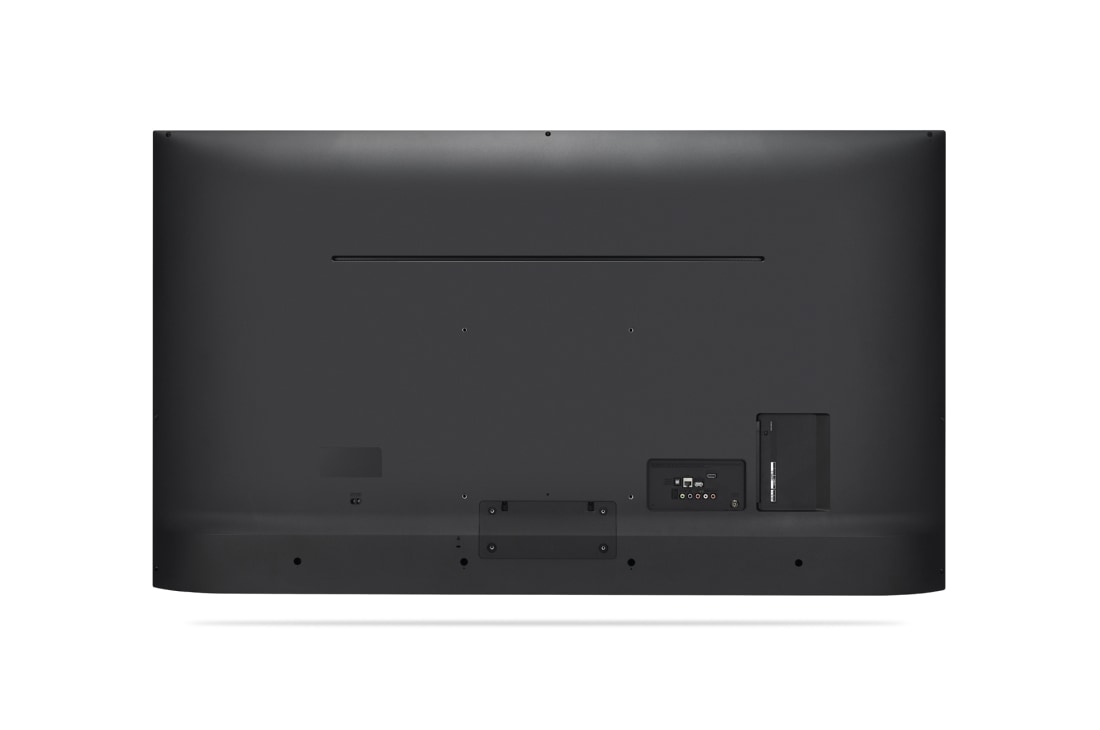

LG UL3E Series, 55UL3E-B (EU), thumbnail 7

Discontinued

55UL3E-B (EU) component-copyModelName

UL3E Series

Key Features

Brightness(Typ.) : 500 cd/m²
Bezel : 17.4 mm (T/L/R), 22.1mm (B)
Depth : 88.6 mm
Interface : HDMI(3) /USB / RS232C In/ RJ45 In/ Audio Out
Built-in Speaker

Choose your Size

Add to Compare

component-OBScountrySelectDesc

Key Features

Brightness(Typ.) : 500 cd/m²
Bezel : 17.4 mm (T/L/R), 22.1mm (B)
Depth : 88.6 mm
Interface : HDMI(3) /USB / RS232C In/ RJ45 In/ Audio Out
Built-in Speaker

Choose your Size

Add to Compare

component-OBScountrySelectDesc

component-copyModel-toastMsg

UL3E Series

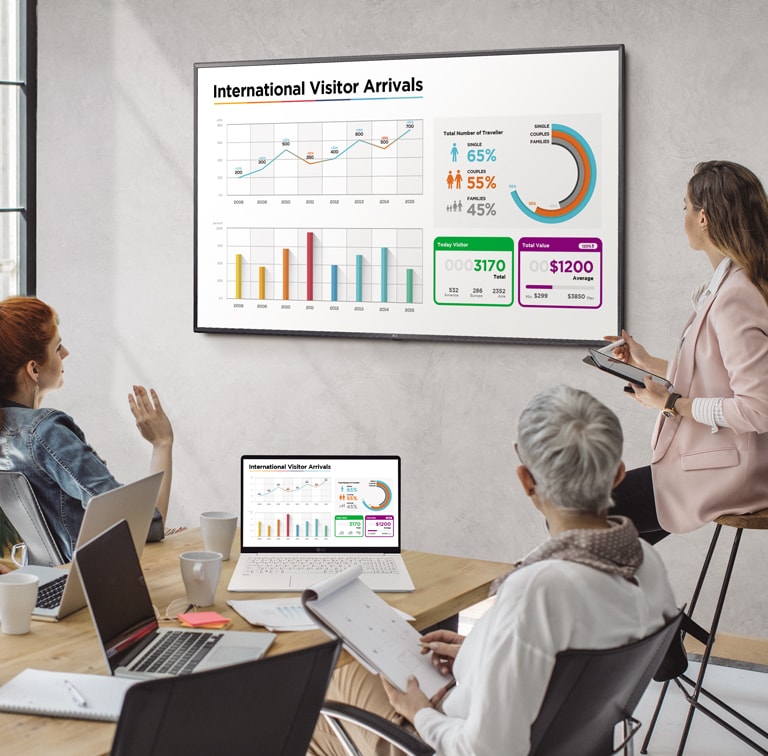

Clear Color Expression of UHD Content

An Ultra HD large display, the UL3E series will improve business productivity in any location. All content is delivered in vivid colors and with fine details, giving audiences a clearer viewing experience.

Superior Picture Quality

True Color, Wide View

LG IPS panel features a wide viewing angle to deliver clear content regardless of where meeting participants are seated. Each pixel in the IPS panel reproduces image colors true-to-life, without distortion.

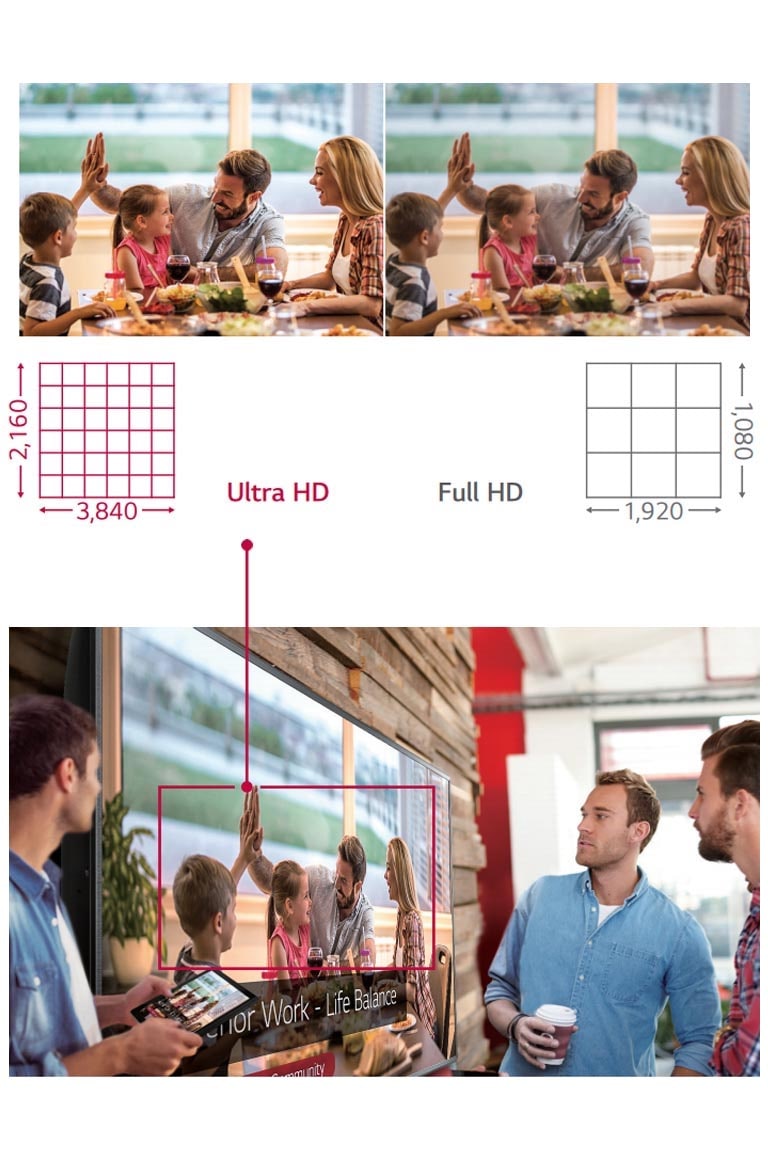

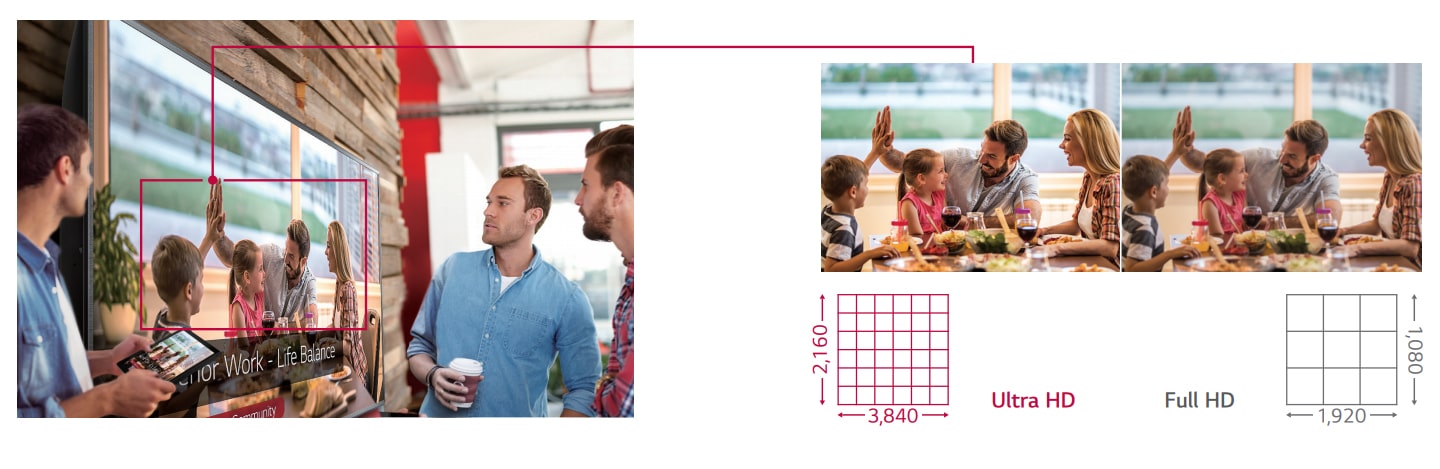

Vivid Color Details with Ultra HD

The UHD resolution allows users to view details even when zooming in on the display, with four times higher definition than FHD. The UL3E ensures stable UHD video playback with HEVC^{(High Efficiency Video Coding)}.

Wireless Solution

Content Sharing

Content Mirroring among devices is more convenient on a Wi-Fi network.
Real-time Promotion

With Beacon and BLE^{(Bluetooth Low Energy)}, shop managers can provide coupons and information in real-time.
Wireless Access Point

The UL3E series operates as a virtual router which can be an wireless access point for mobile devices.

ID-Standard-Premium-UL3E-B-EU-04-Embedded-Content-Management_1555973268808

PC-less Content Management

Embedded Content Management

The embedded CMS^{(Content Management System)} allows you to edit and play content, schedule a playlist and even group and control signages via remote control, mouse or even mobile phone, without needing a separate PC or software. This makes content management much easier and user-friendly.

ID-Standard-Premium-UL3E-B-EU-05-USB-Data-Cloning_1555973331166

PC-less Content Management

USB Data Cloning

USB data cloning makes managing multiple displays more efficient for optimal operation, since users don't have to set up each display one by one. Once users copy data to a USB in one display, it will be easily distributed to others through a USB plug-in.

ID-Standard-Premium-UL3E-B-EU-06-Compatibility-with-AV-Control-System_1555973408488

Easy Maintenance

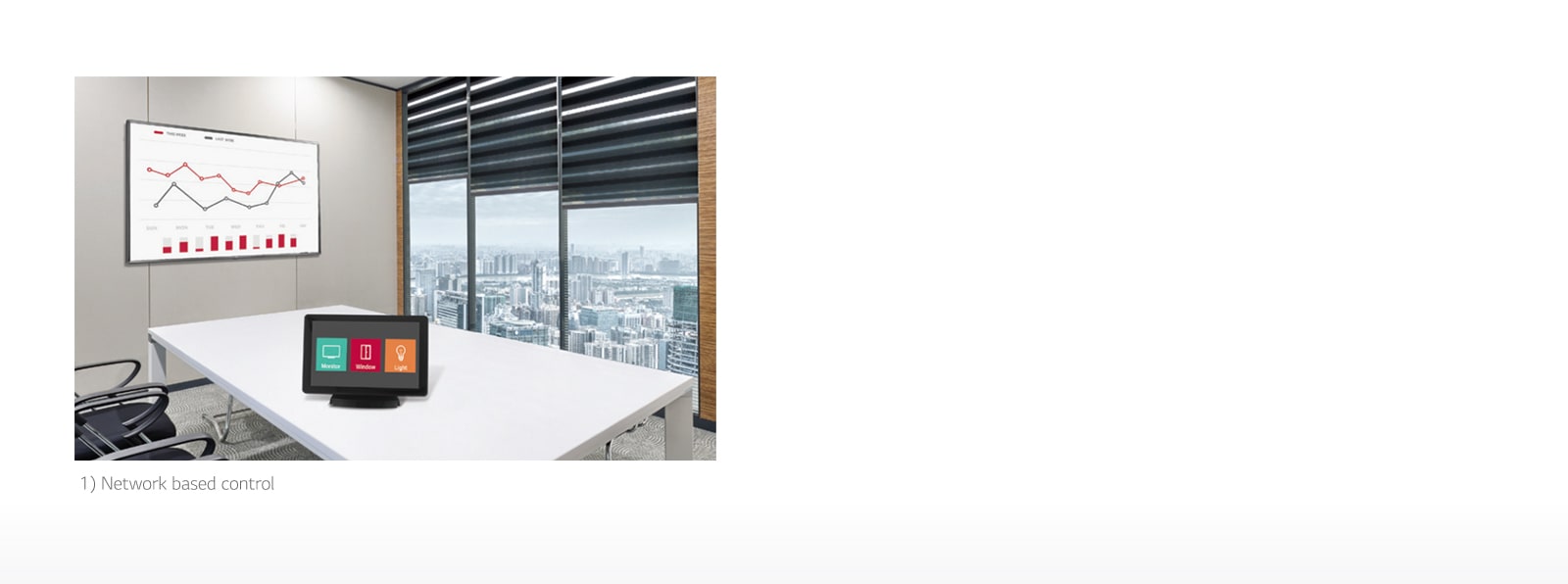

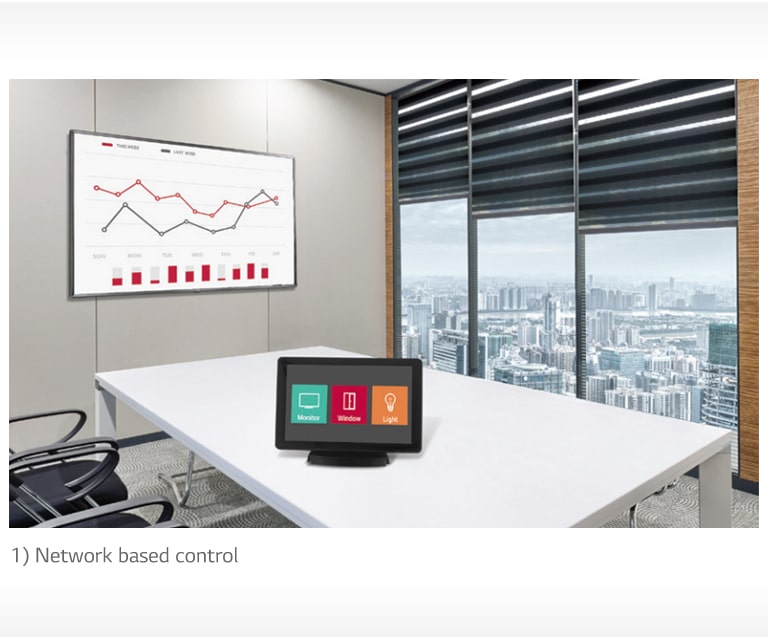

Compatibility with AV Control System

The UL3E series has been certified Crestron Connected^Ⓡ for a higher level of compatibility with professional AV controls to achieve seamless integration and automated control¹⁾, boosting business management efficiency.

Easy Maintenance

Real-Time Remote Monitoring

In case of malfunctions or errors, real-time remote care is available. When an error occurs, a notification can be sent through the SNMP^{(Simple Network Management Protocol)} protocol.

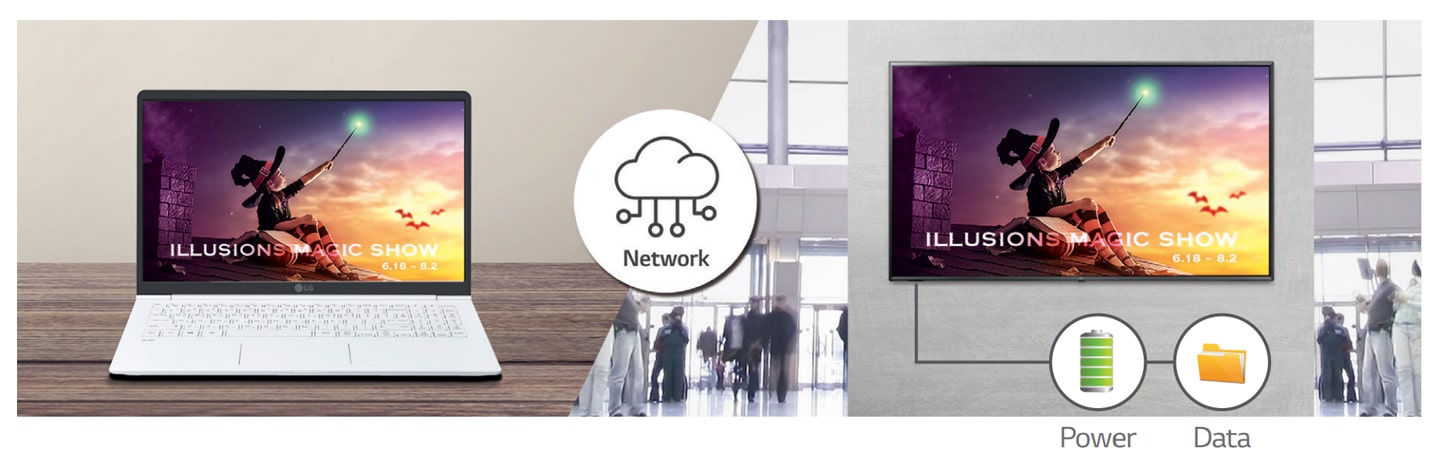

Power & Network in One Line

WOL^{(Wake-on-LAN)} enables users to send a message through network to turn on displays. This greatly simplifies the installation and maintenance processes as only a single wire is required for power and network connection.

Panel

Screen Size

55"

Native Resolution

3840 x 2160 (UHD)
Brightness(Typ.,cd/m²)

500

Connectivity

Input

HDMI (3), USB

Output

Audio (2), Digital Audio (Optical), Headphone
External Control

RS232C (Phone Jack Type) In, RJ45 In

Physical Specification

Bezel Width (T / B / L / R) *Off-bezel

17.4 / 22.1 / 17.4 / 17.4 mm

Monitor Dimension (W x H x D)

1,247 x 729 x 88.6 mm
Weight (Head)

13.7 kg

Carton Dimensions (W x H x D)

1,360 x 835 x 175 mm
Packed Weight

18.5 kg

VESA™ Standard Mount Interface

300 x 300 mm

Environment Conditions

Operation Temperature

0°C to 40°C

Operation Humidity

10% to 80%

Power

Power Supply

100-240V~, 50/60Hz

Power Type

Built-In Power
Power Consumption (Typ. / Max.)

125 W / 150 W

Certification

Safety

IEC 60065:2014

EMC

EN 55032 : 2015, EN 55022 : 2010, EN61000-3-2 : 2014, EN61000-3-3 : 2013, EN 55035 : 2017, EN 55024 : 2010, EN 301 489-1 V2.1.1, EN 301 489-3 V2.1.1, EN 301 489-17 V3.1.1
ErP

Yes (class A)

Software Compatibility

Content Management Software

SuperSign CMS

Control and Monitoring Software

SuperSign Control+

Accessory

Basic

Remote Controller, Regulation Book, Phone to D-Sub9 Gender

General

Region

Europe

Dimension
- [Dimension]55UL3E(UK63 Tool).dwg
- [Dimension]55UL3E(UK63 Tool).pdf
Datasheet
- UL3E_ Series_Datasheet_web_11904.pdf
Software

To download Software, Please visit the Software Download Page (Click).
Manual

To download Owner’s manual, User guide, Quick set-up guide, Please visit the Manual Download Page (Click).
