86UL3E-B (EU) component-copyModelName

86'' 350 nits UHD Signage

LG 86'' 350 nits UHD Signage, 86UL3E-B (EU), thumbnail 1

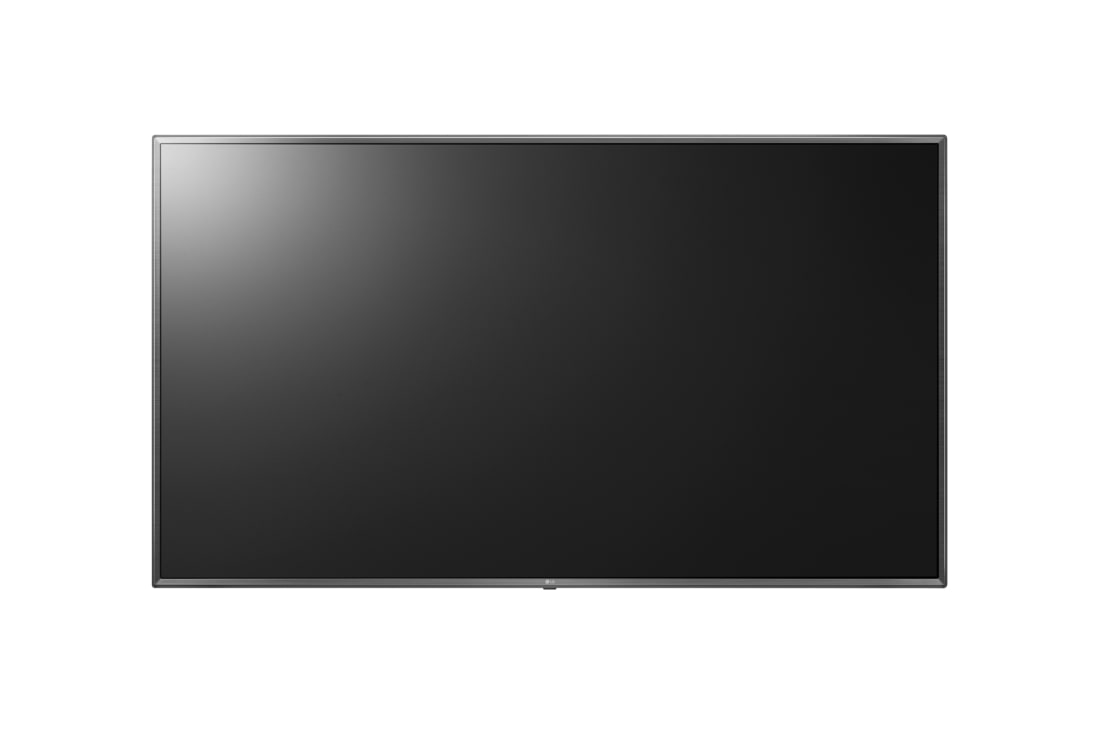

LG 86'' 350 nits UHD Signage, 86UL3E-B (EU), thumbnail 2

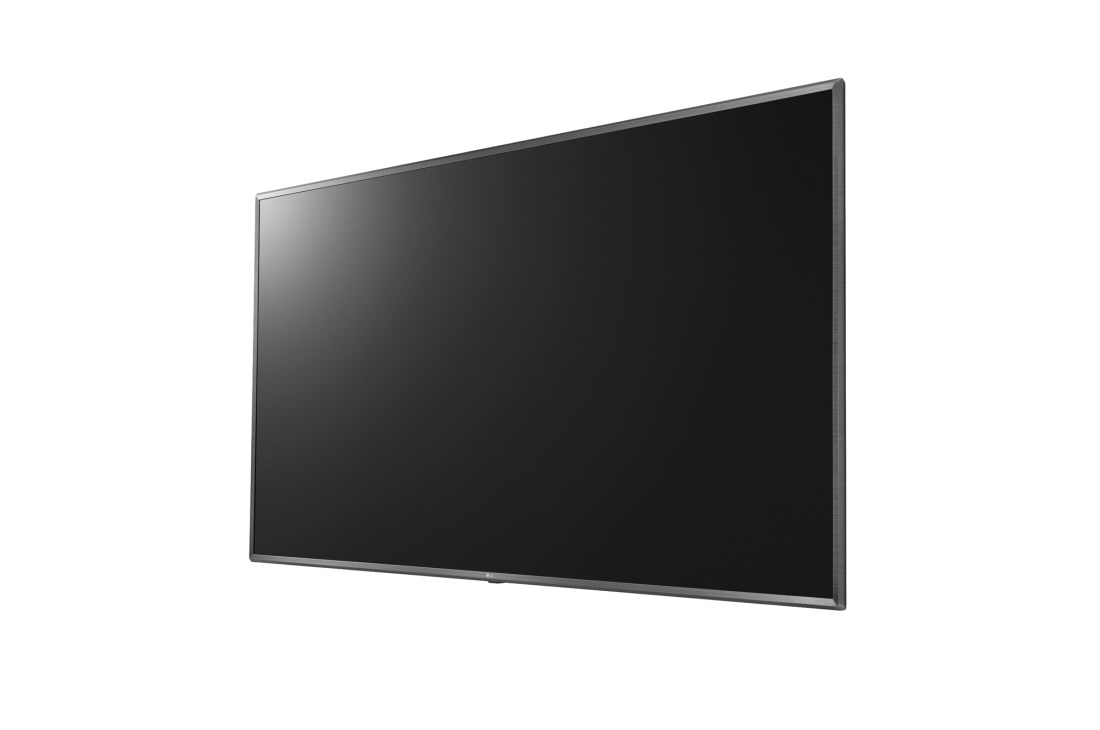

LG 86'' 350 nits UHD Signage, 86UL3E-B (EU), thumbnail 3

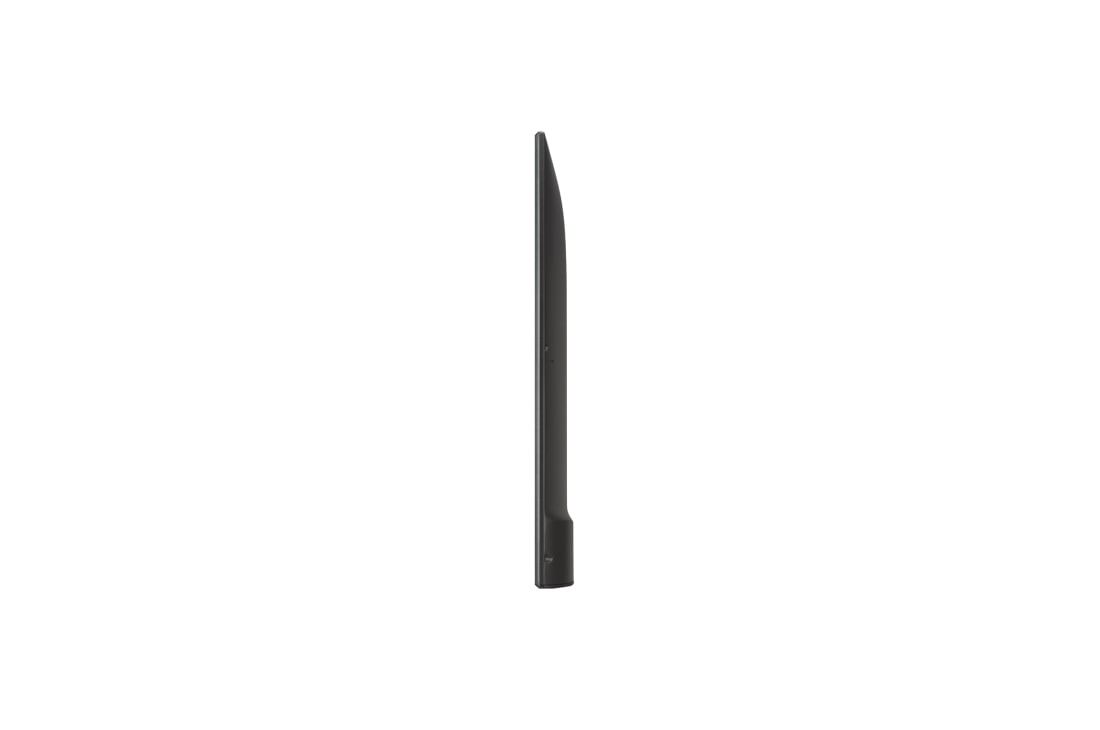

LG 86'' 350 nits UHD Signage, 86UL3E-B (EU), thumbnail 4

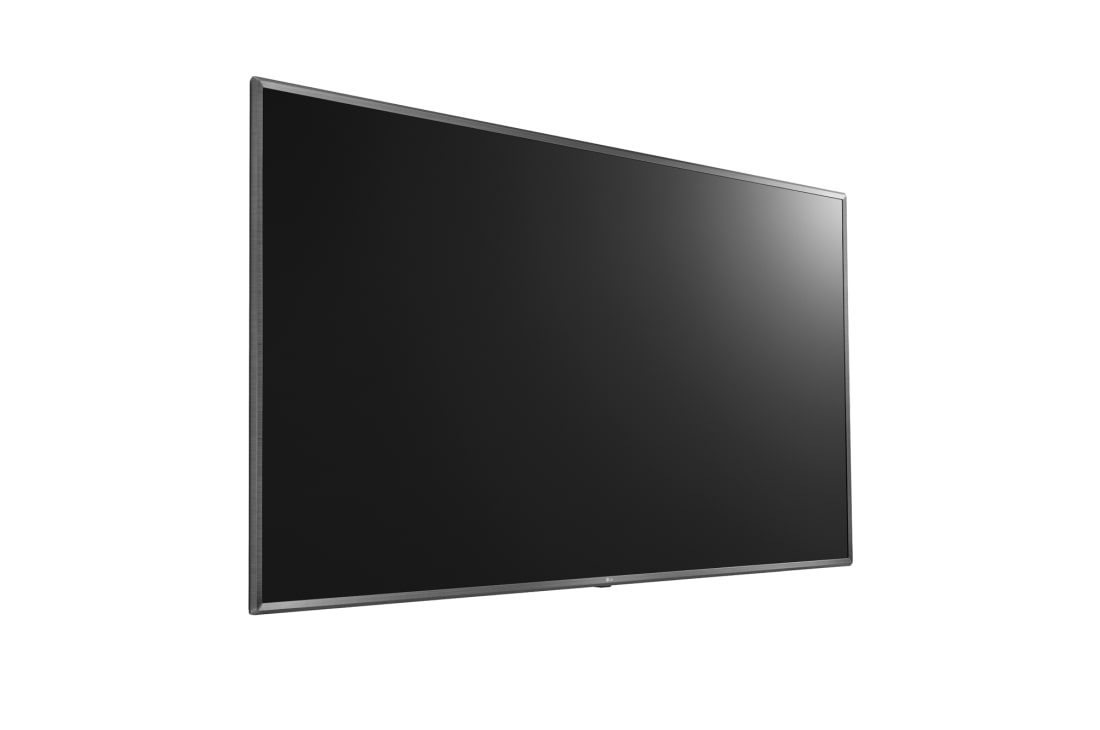

LG 86'' 350 nits UHD Signage, 86UL3E-B (EU), thumbnail 5

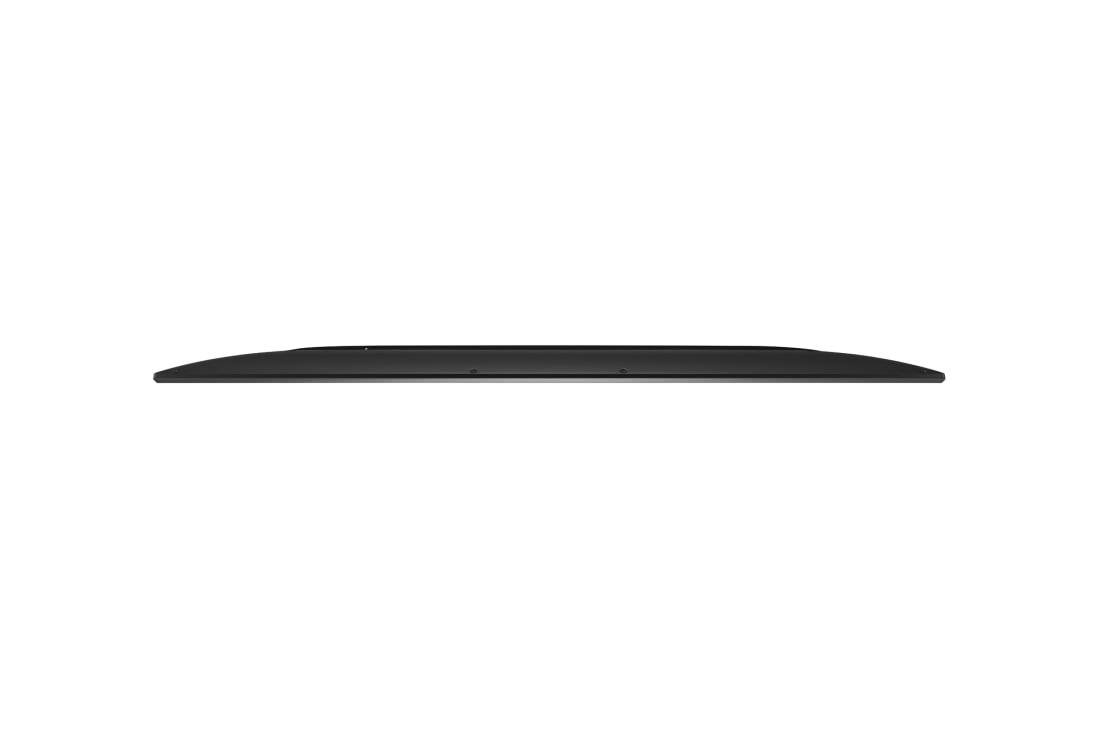

LG 86'' 350 nits UHD Signage, 86UL3E-B (EU), thumbnail 6

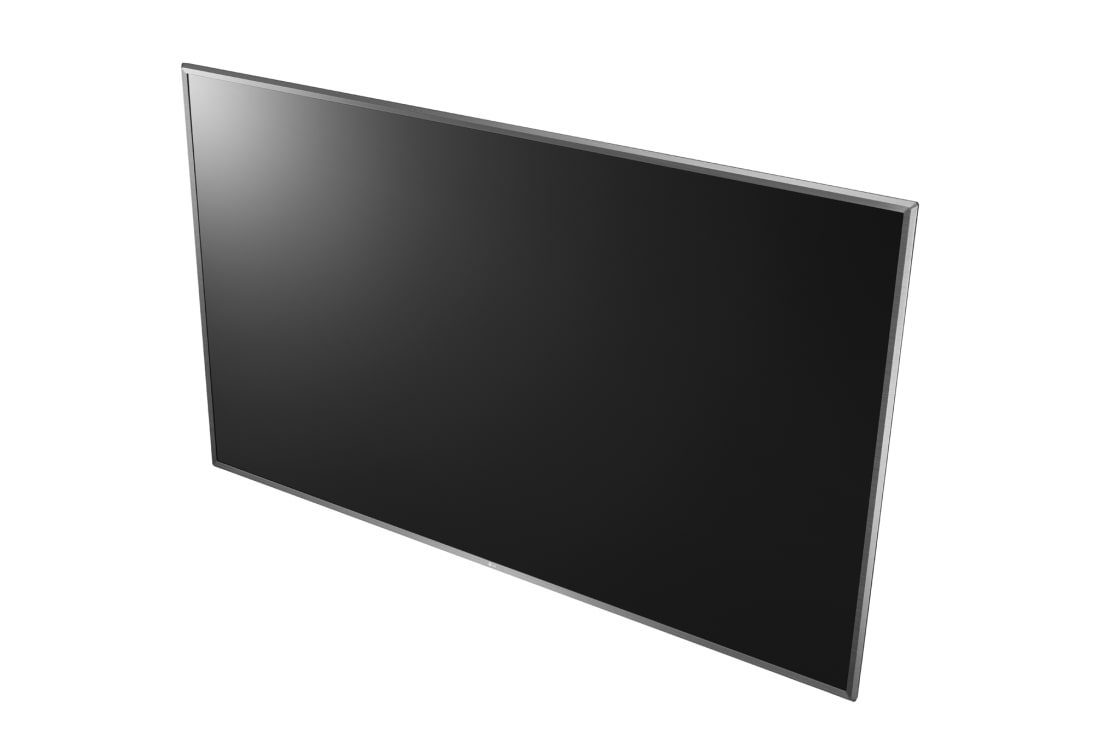

LG 86'' 350 nits UHD Signage, 86UL3E-B (EU), thumbnail 7

Discontinued

86UL3E-B (EU) component-copyModelName

86'' 350 nits UHD Signage

Key Features

Brightness(Typ.) : 350 cd/m²
Bezel : 21.9 mm (Even)
Depth : 93.3 mm
Interface : HDMI(3)/USB 2.0/ RS232C In/ RJ45 In/ Audio Out
Built-in Speaker

Choose your Size

Add to Compare

component-OBScountrySelectDesc

Key Features

Brightness(Typ.) : 350 cd/m²
Bezel : 21.9 mm (Even)
Depth : 93.3 mm
Interface : HDMI(3)/USB 2.0/ RS232C In/ RJ45 In/ Audio Out
Built-in Speaker

Choose your Size

Add to Compare

component-OBScountrySelectDesc

component-copyModel-toastMsg

86" 350 nits UHD Signage

Clear Color Expression of UHD Content

An Ultra HD large display, the UL3E series gives audiences a clearer viewing experience with vivid colors and fine details.
Equipped with wireless solutions and high compatibility features, business productivity will be enhanced in any location.

01_Vivid-Color-Details-with-Ultra-HD_1531715318759

Superior Picture Quality

True Color, Wide View
LG IPS panel features a wide viewing angle to deliver clear content regardless of where meeting participants are seated.

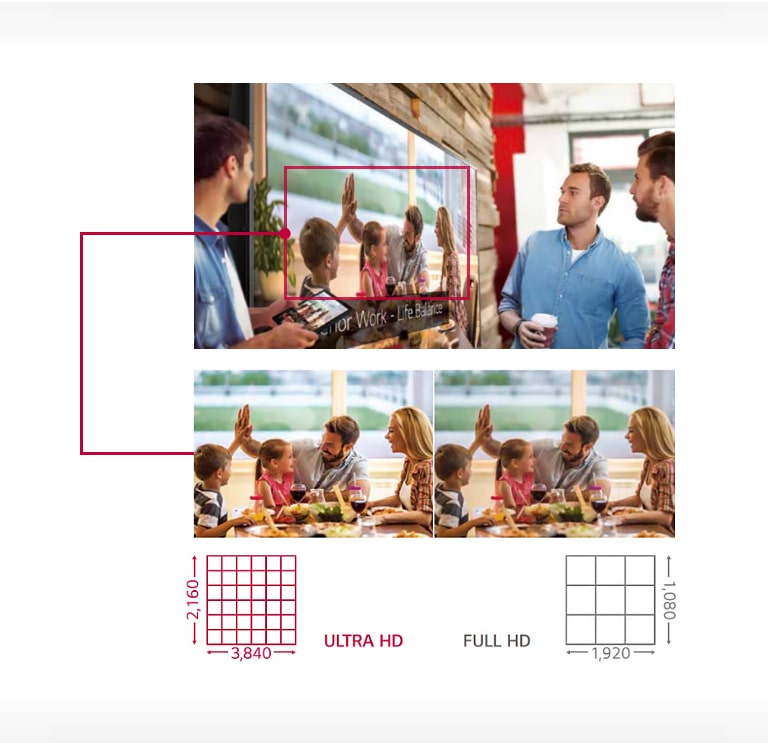

Vivid Color Details with Ultra HD
The UHD resolution allows users to view details even when zooming in on the display, with four times higher definition than FHD.

Wireless Solution

Content Sharing
Content Mirroring among devices is more convenient on a Wi-Fi network.
Real-time Promotion
With Beacon and BLE ^{(Bluetooth Low Energy)}, shop managers can provide coupons and information in real-time.

Wireless Access Point

The UL3E series operates as a virtual router which can be an wireless access point for mobile devices.

04_Embedded-Content-Management_1531715589418

PC-less Content Management

Embedded Content Management

The embedded CMS ^{(Content Management System)} allows you to edit and play content, schedule a playlist and even group and control signages via remote control, mouse or even mobile phone, without needing a separate PC or software. This makes content management much easier and user-friendly.

PC-less Content Management

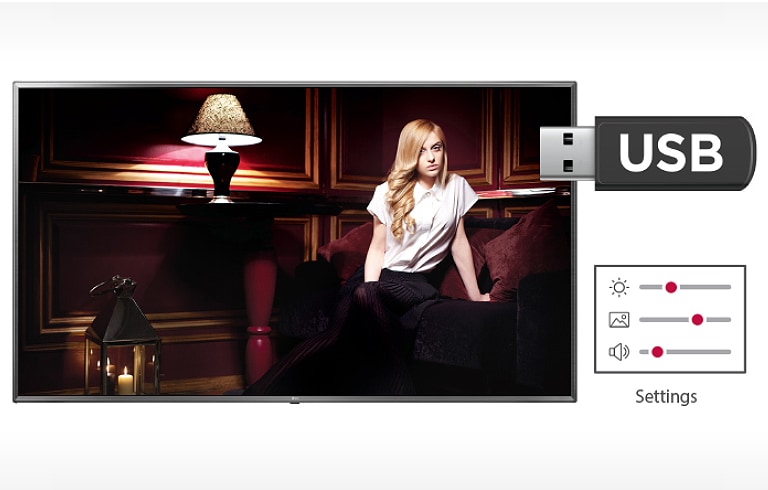

USB Data Cloning

USB data cloning makes managing multiple displays more efficient for optimal operation, since users don't have to set up each display one by one. Once users copy data to a USB in one display, it will be easily distributed to others through a USB plug-in.

06_Compatibility-with-AV-Control-System_1531715722338

Easy Maintenance

Compatibility with AV Control System

The UL3E series has been certified Crestron Connected^Ⓡ for a higher level of compatibility with professional AV controls to achieve seamless integration and automated control ¹, boosting business management efficiency.

Easy Maintenance

Real-Time Remote Monitoring

In case of malfunctions or errors, real-time remote care is available. When an error occurs, a notification can be sent through the SNMP ^{(Simple Network Management Protocol)}protocol.

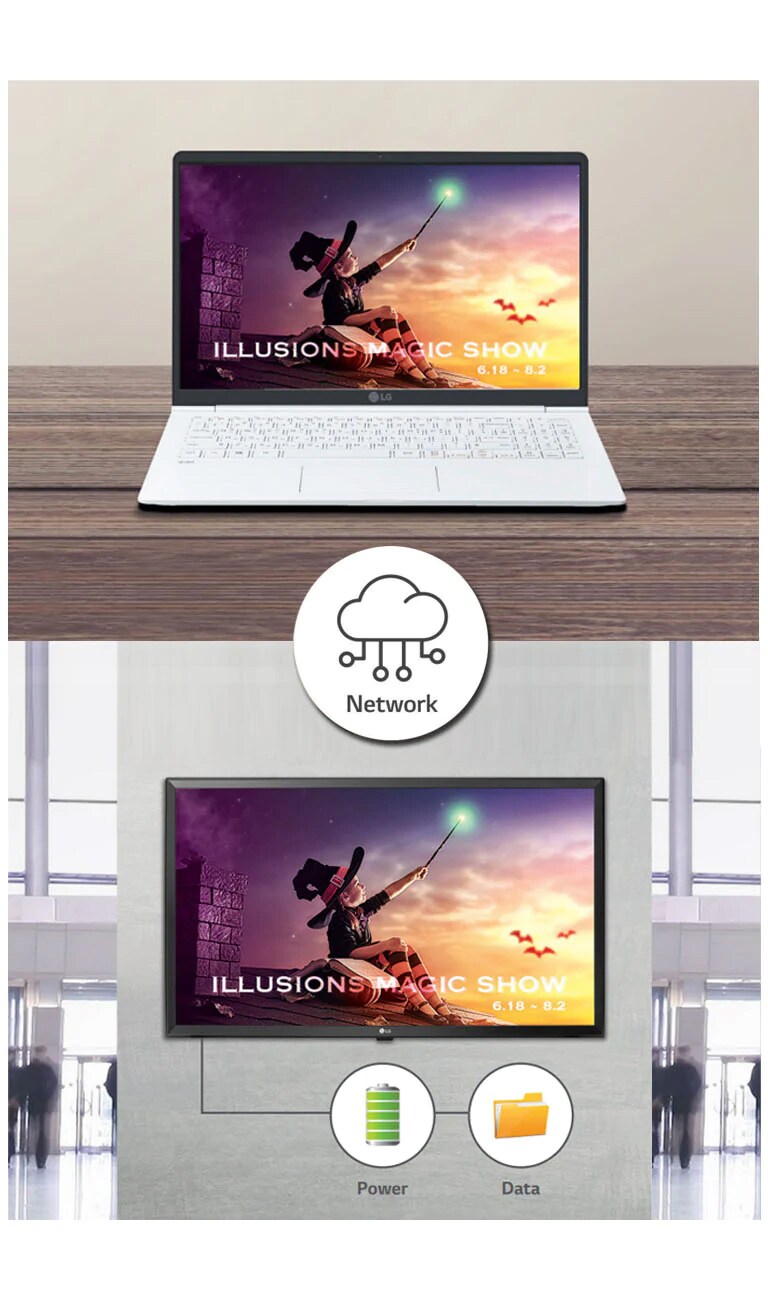

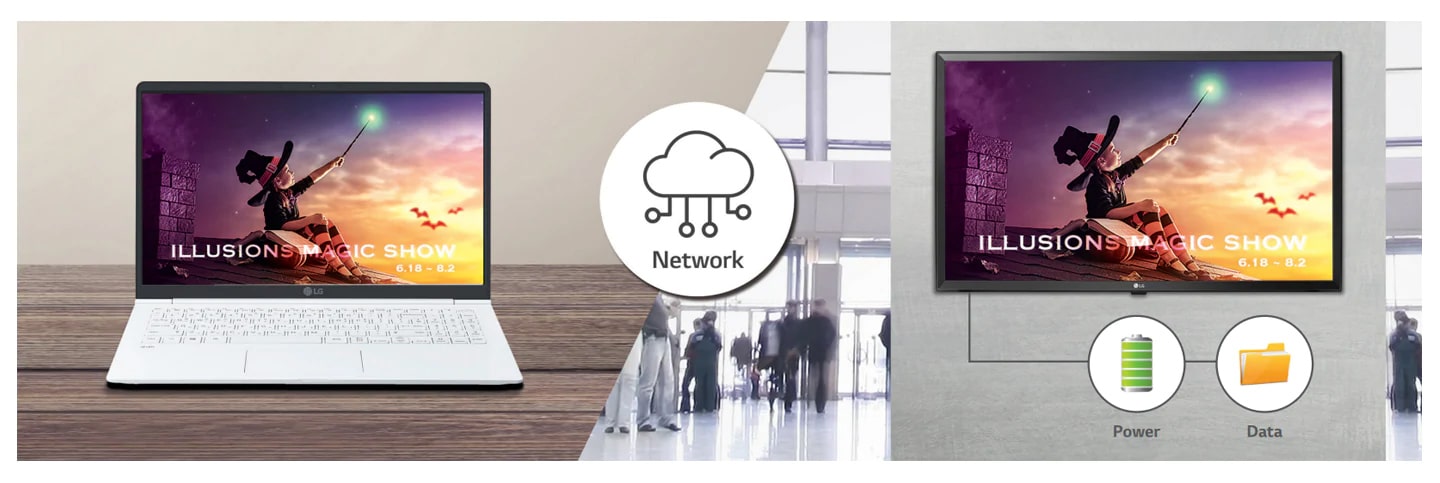

Power & Network in One Line

WOL ^{(Wake-on-LAN)} enables users to send a message through network to turn on displays. This greatly simplifies the installation and maintenance processes as only a single wire is required for power and network connection.

Panel

Screen Size

86"

Resolution

3,840 x 2,160 (UHD)
Brightness(Typ.,cd/m²)

350

Connectivity

Input

HDMI (3), USB 2.0

Output

Audio (Digital Audio Out, Optical)
External Control

RS232C In (Phone Jack Type), RJ45 In

Physical Specification

Bezel Width

21.9 mm (Even)

Monitor Dimension (W x H x D)

1,943 x 1,118 x 93.3 mm
Weight (Head)

44.2 kg

Carton Dimensions (W x H x D)

2,116 x 1,261 x 285 mm
Packed Weight

59.0 kg

VESA™ Standard Mount Interface

600 x 400 mm

Environment Conditions

Operation Temperature

0°C to 40°C

Operation Humidity

10% to 80%

Power

Power Supply

100-240V~, 50/60Hz

Power Type

Built-In Power

Power Consumption

Typ.

309 W

Max

333.5 W

Standard(Certification)

Safety

CB

EMC

CE
ErP

Yes (Class A)

Media Player Compatibility

OPS type compatible

No

External Media player Attatchable

No

Software Compatibility

Content Management Software

SuperSign CMS

Control and Monitoring Software

SuperSign Control+

Accessory

Basic

Remote Controller (2ea Batteries Included), Regulation Book, Phone to RS232C Gender

General

Region

Europe

Dimension
- [Dimension]86UL3E.dwg
- [Dimension]86UL3E.pdf
Datasheet
- UL3E_ Series_Datasheet_web_11904.pdf
Software

To download Software, Please visit the Software Download Page (Click).
Manual

To download Owner’s manual, User guide, Quick set-up guide, Please visit the Manual Download Page (Click).
