75XF3C-B component-copyModelName

75'' 3,000nits UHD Open-frame Display

LG 75'' 3,000nits UHD Open-frame Display, Front view with infill image, 75XF3C-B, thumbnail 1

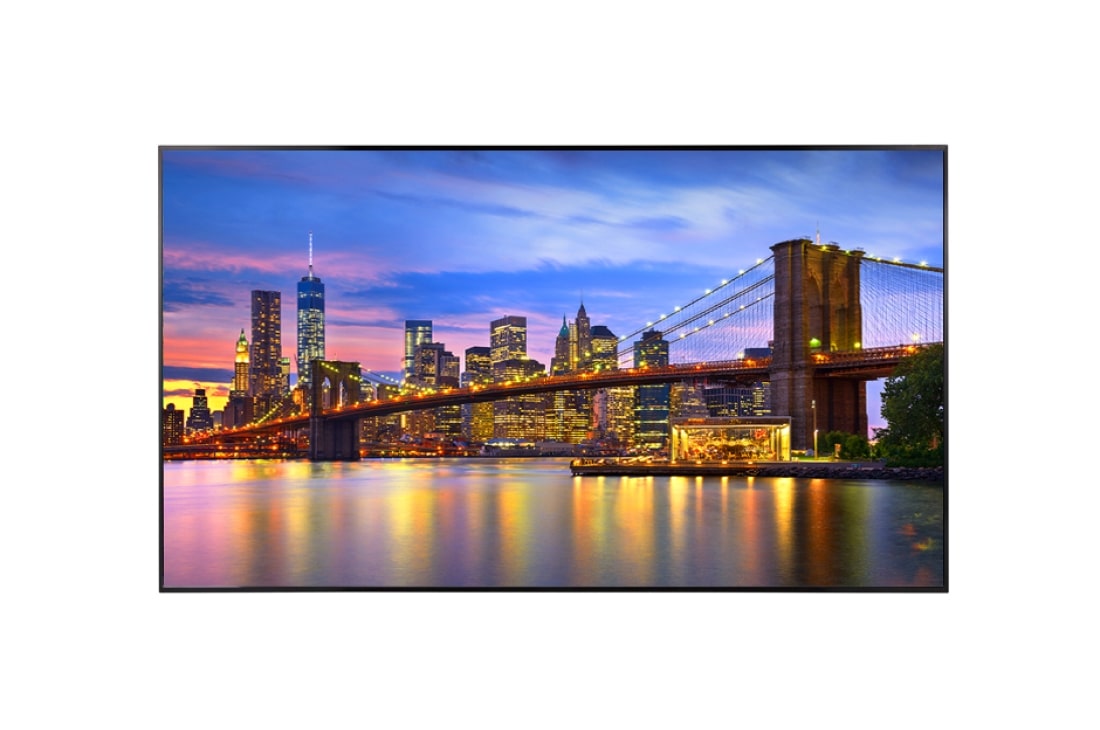

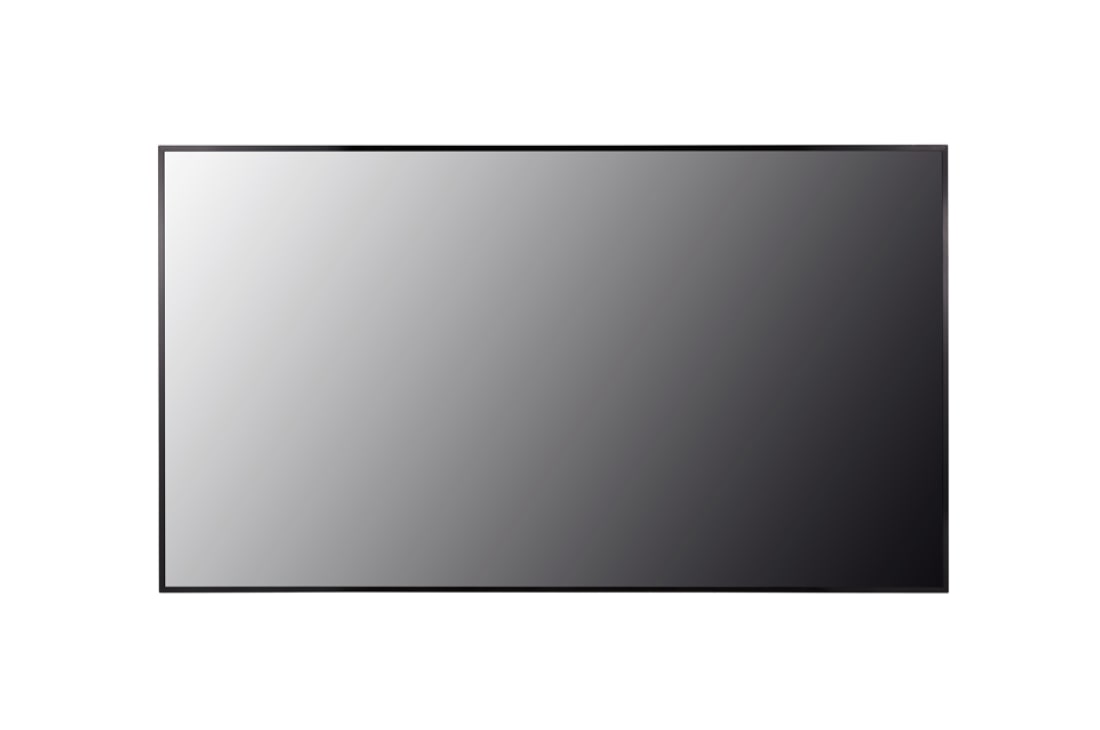

LG 75'' 3,000nits UHD Open-frame Display, Front view, 75XF3C-B, thumbnail 2

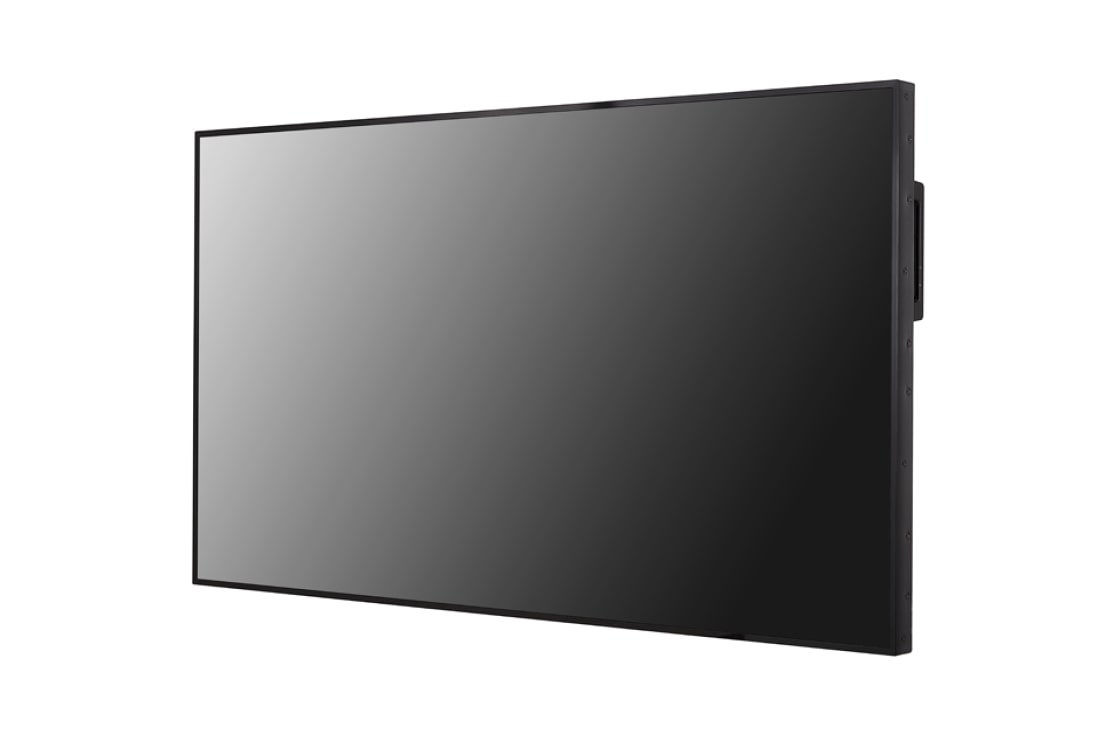

LG 75'' 3,000nits UHD Open-frame Display, -45 degree side view, 75XF3C-B, thumbnail 3

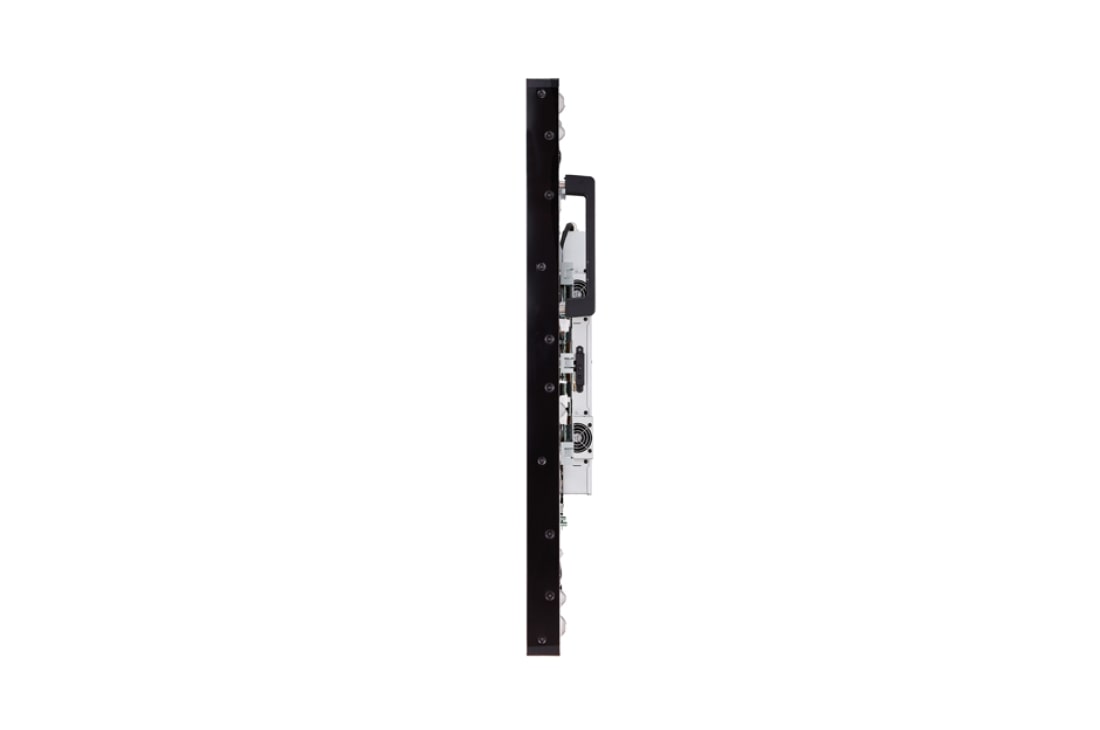

LG 75'' 3,000nits UHD Open-frame Display, -90 degree side view, 75XF3C-B, thumbnail 4

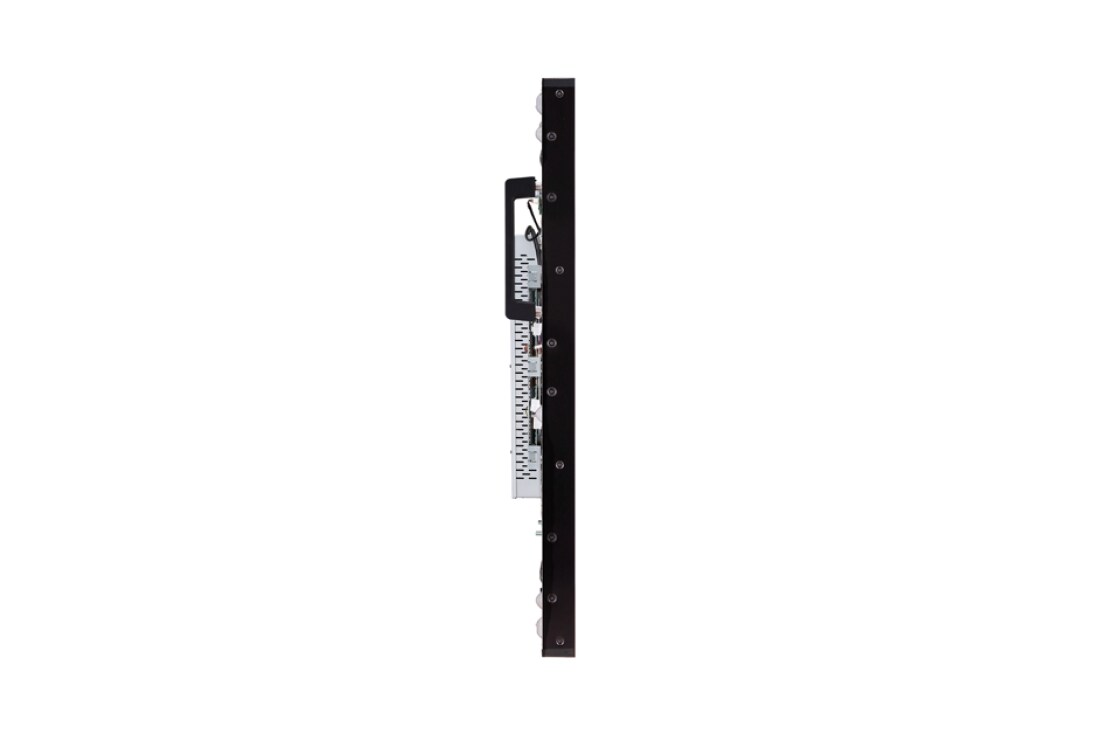

LG 75'' 3,000nits UHD Open-frame Display, +90 degree side view, 75XF3C-B, thumbnail 5

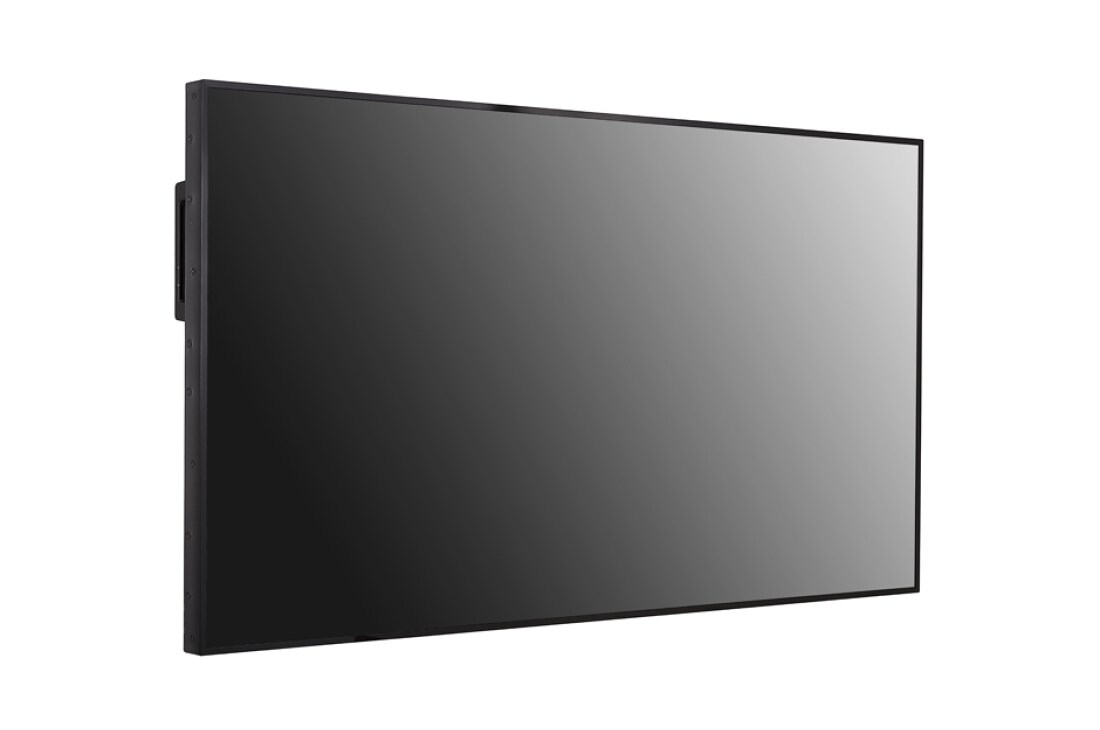

LG 75'' 3,000nits UHD Open-frame Display, +45 degree side view, 75XF3C-B, thumbnail 6

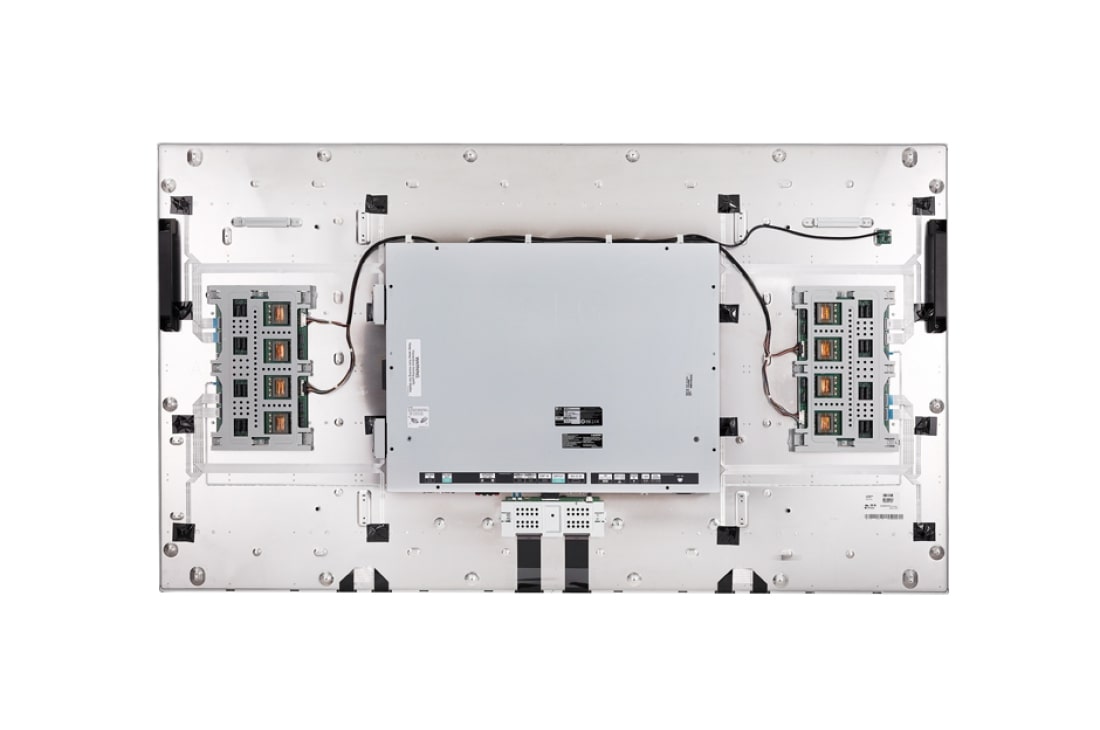

LG 75'' 3,000nits UHD Open-frame Display, Rear view, 75XF3C-B, thumbnail 7

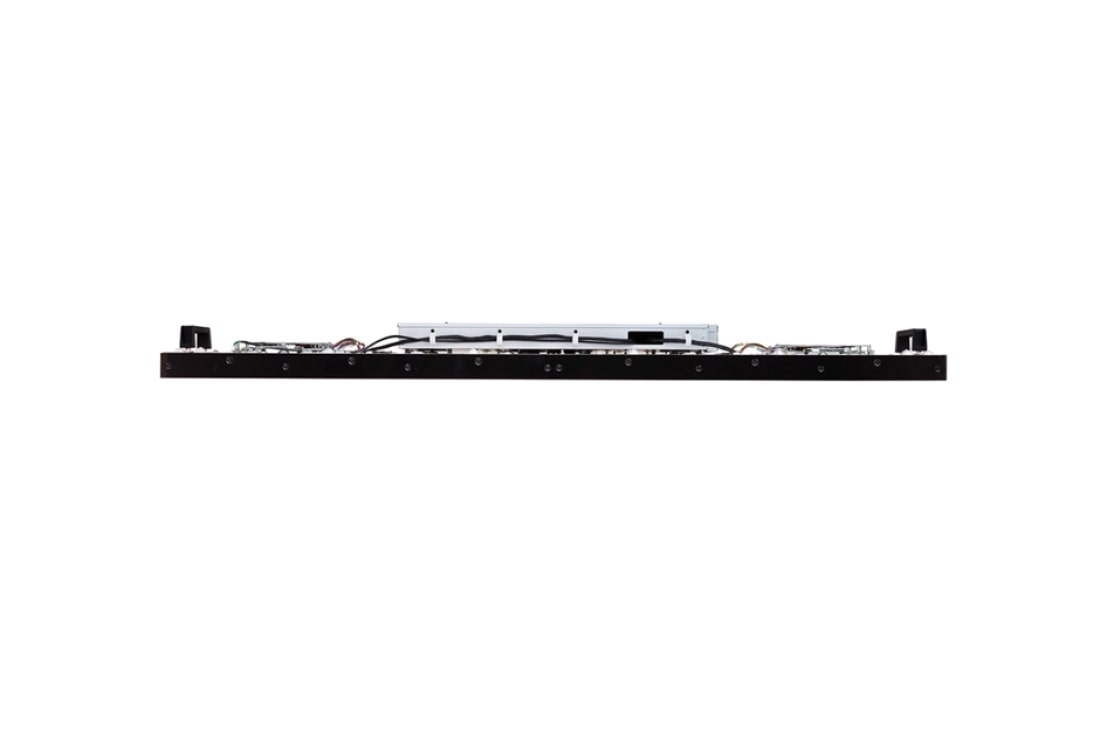

LG 75'' 3,000nits UHD Open-frame Display, Top view, 75XF3C-B, thumbnail 8

Discontinued

75XF3C-B component-copyModelName

75'' 3,000nits UHD Open-frame Display

Key Features

Brightness : 3,000 cd/m² (Typ.)
Life Time : 50,000 hours
Bezel : 11.8mm(Even bezel)
Depth : 123.9 mm
Interface : HDMI (2) / DP / DVI / RJ45 / IR / RS232C / USB / SD Card / External speaker out (L/R)

Choose your Size

Add to Compare

component-OBScountrySelectDesc

Key Features

Brightness : 3,000 cd/m² (Typ.)
Life Time : 50,000 hours
Bezel : 11.8mm(Even bezel)
Depth : 123.9 mm
Interface : HDMI (2) / DP / DVI / RJ45 / IR / RS232C / USB / SD Card / External speaker out (L/R)

Choose your Size

Add to Compare

component-OBScountrySelectDesc

component-copyModel-toastMsg

75" 3,000nits UHD Open-frame Display

Advanced Reliability with Enhanced Brightness

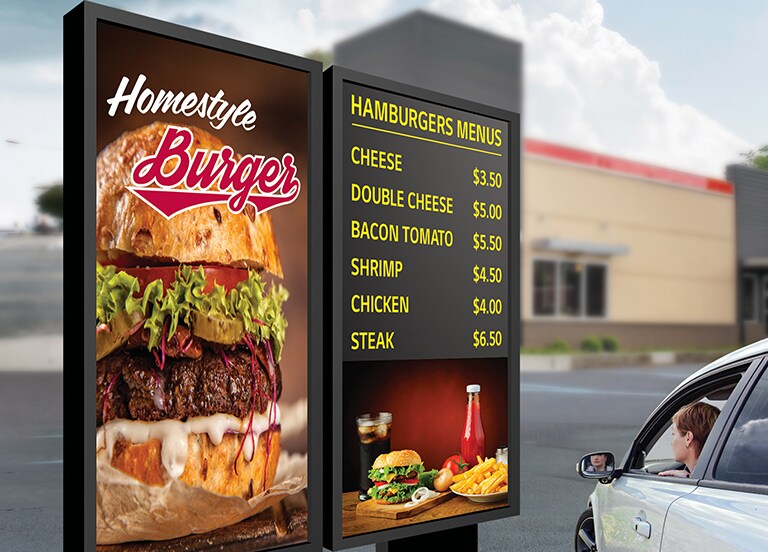

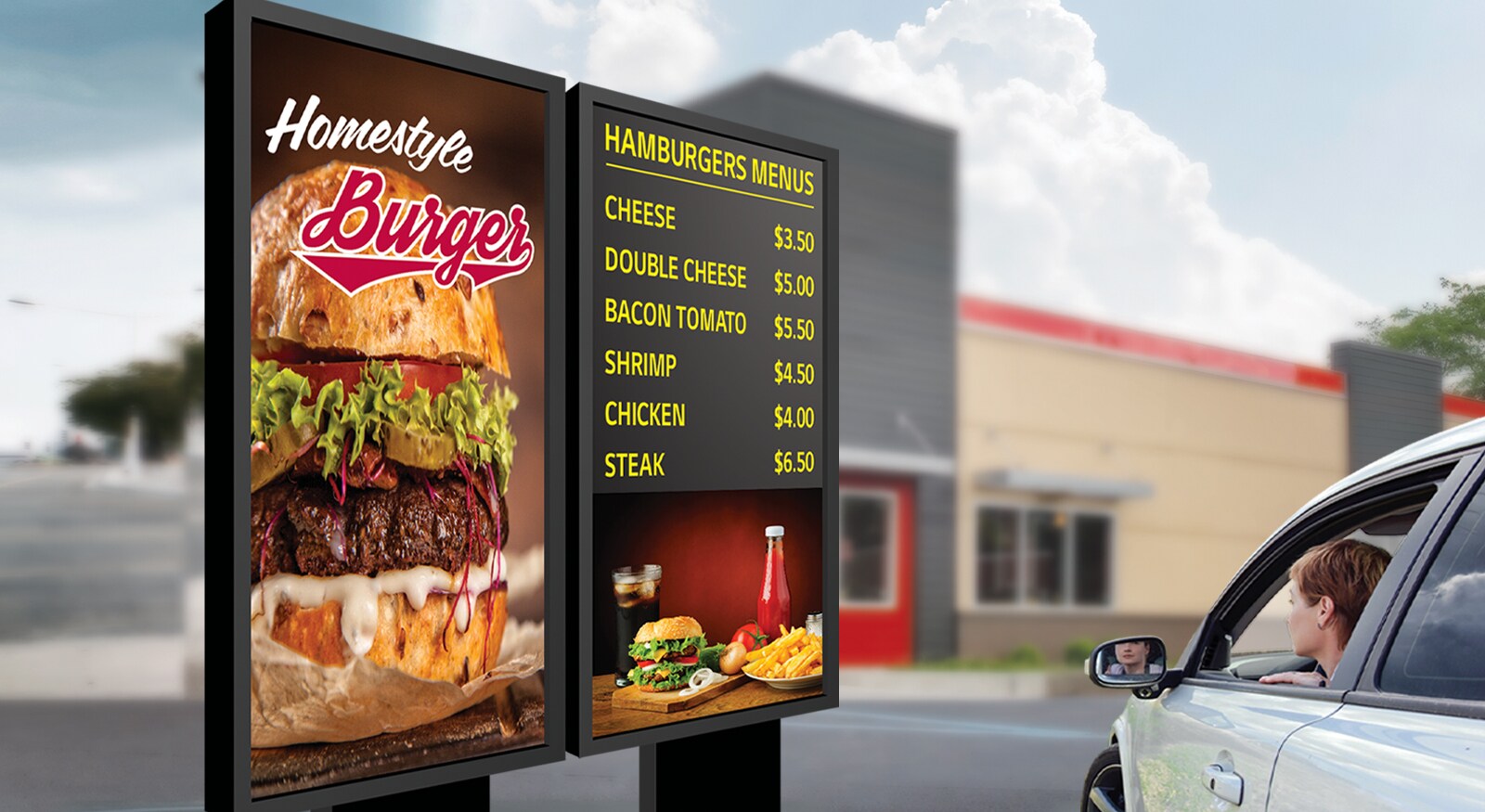

In front of the burger drive-thru store, there is an XF3C-B installed, displaying burger menus and other advertisements.

* All images in this page are for illustrative purposes only.

High Visibility
Under Strong Sunlight

With a brightness of 3,000 nits, 75XF3C-B boasts high visibility in bright environments. In addition, its clear visibility can deliver a variety of information even to those wearing polarized sunglasses.

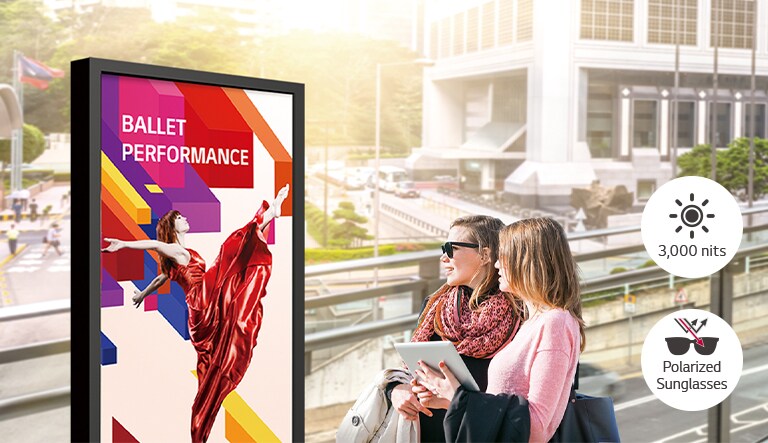

A large-sized display is installed on the street, and women are looking at a vivid-quality advertisement on the screen.

A blurry picture of FHD is being compared with UHD with vivid quality images.

Superb Picture Quality with Ultra HD Resolution

With the resolution of UHD, it makes the color and details of the contents vivid and realistic. In addition, the wide viewing angle applied with an IPS panel, provides clear contents.

* Within 178 degree

A display is working well in an environment of 0~50°C.

Wide Range of Operating Temperature

75XF3C-B can be used under a wide range of operating temperatures from 0°C to +50°C.

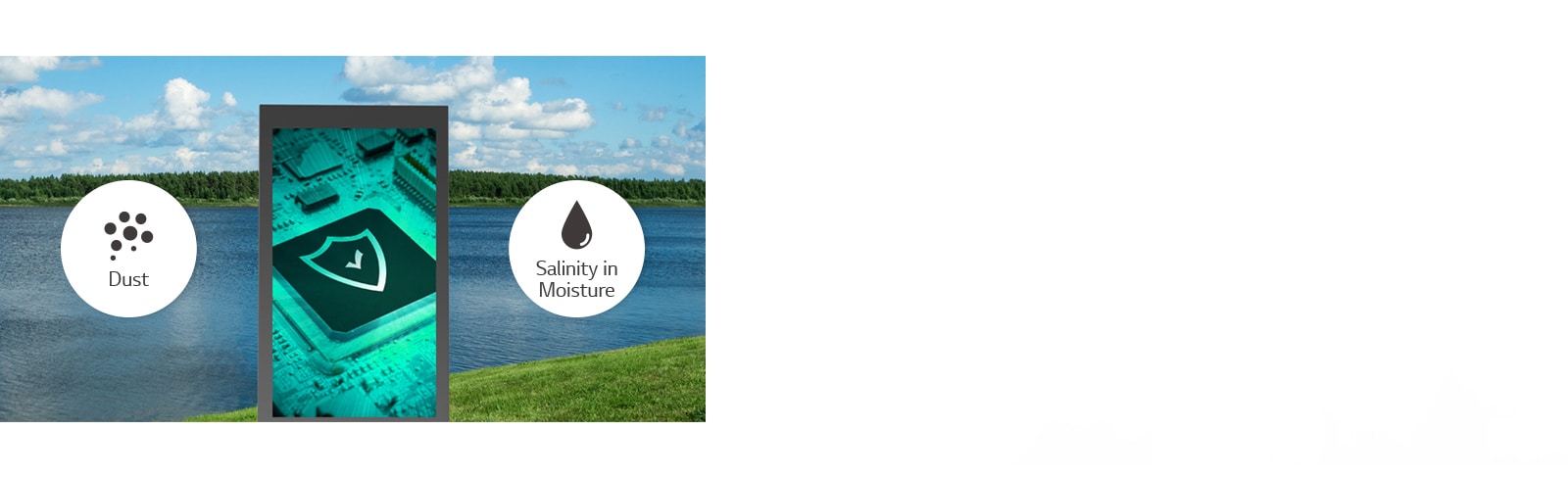

Conformal Coating

Conformal Coating* protect the circuit board, power board against dust, iron powder, humidity, etc.

* Thin protective films/breathing membranes that filter water vapor and solid debris

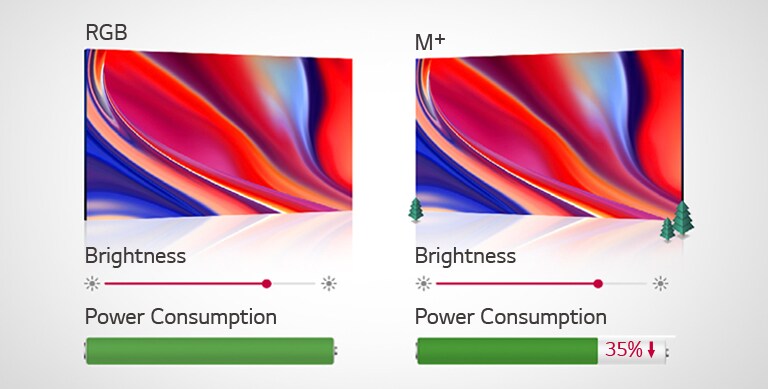

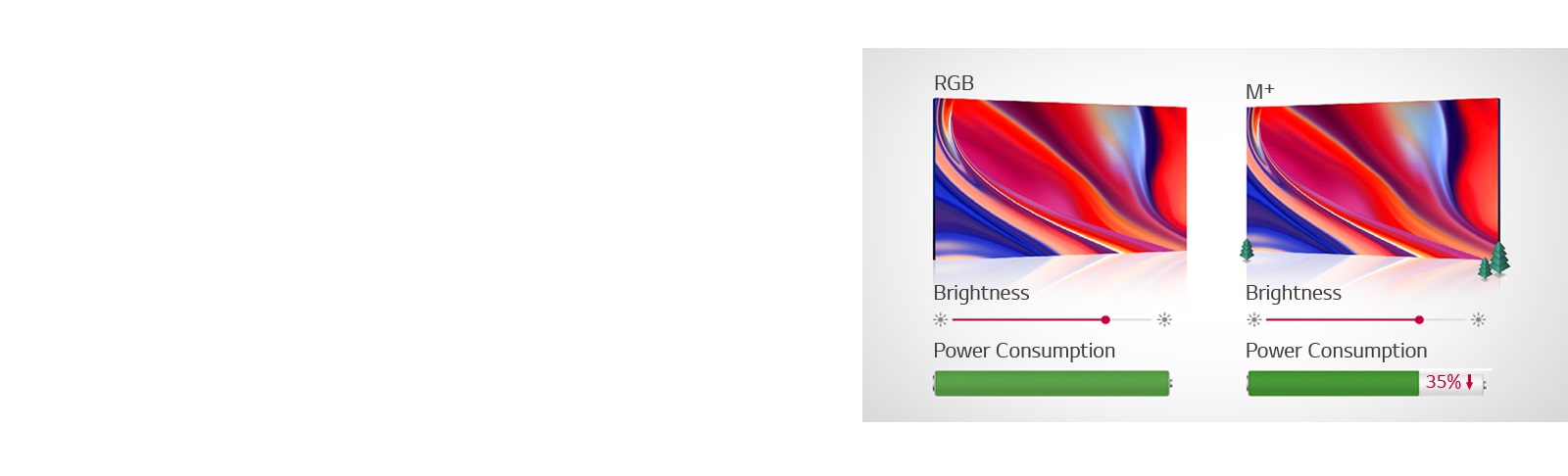

M+ panels reduce power consumption by 35% compared to RGB.

Low Power Consumption Using the M+ Panel

The M+ panel can offer high energy efficiency and cost savings as decreasing power consumption by approx.

* M+ IPS reduced approx. by 35% BLU Power consumption (IEC62087, 10 min) compared to RGB IPS, tested under same brightness (@fullwhite, 400 nit)
** Specific features can differ from circumstances.

Smart Brightness Control

The screen brightness is automatically adjusted depending on the ambient light. The brightness is increased in light for better visibility, while it is decreased in darkness for efficient power management.

The XF3C-B screen can adjust its brightness automatically according to the ambient light.

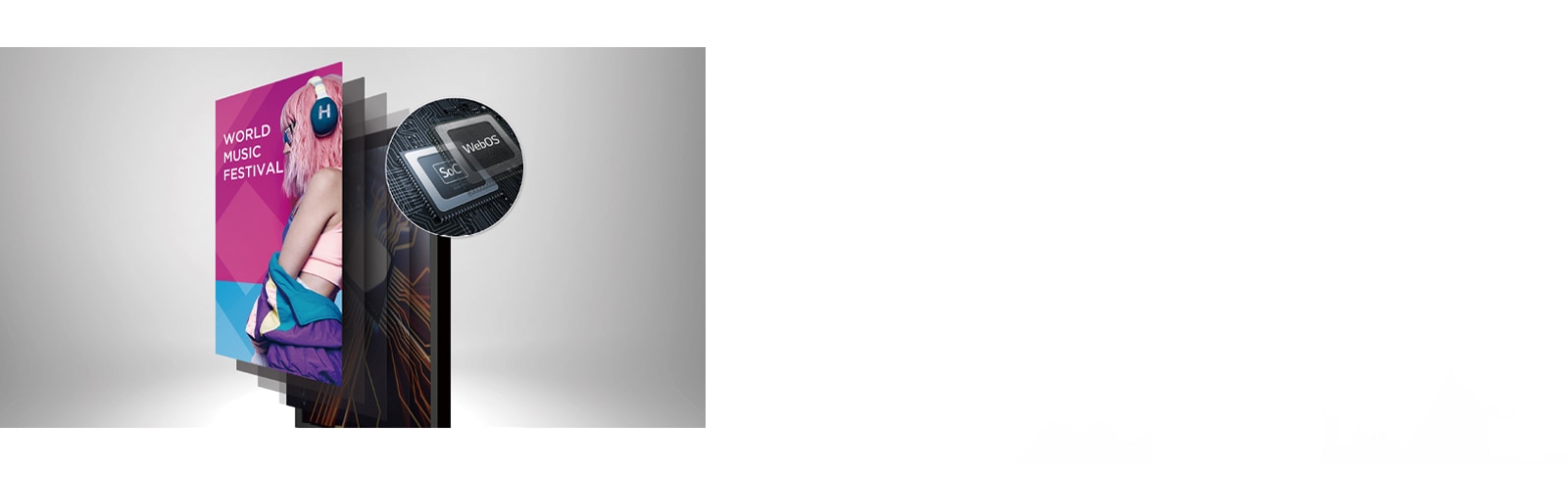

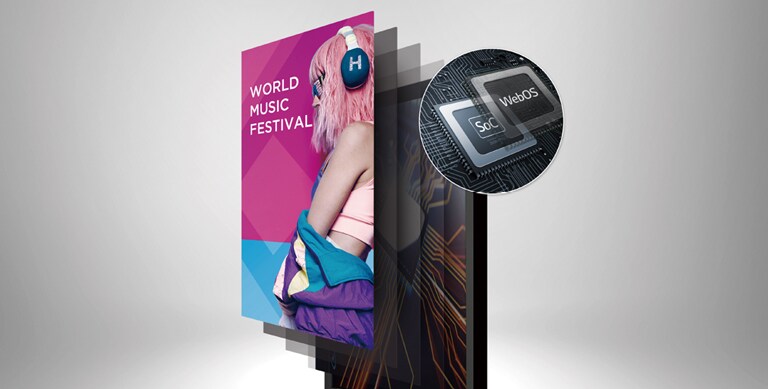

It has improved user convenience by utilizing the SoC and webOS.

webOS Smart Platform

Quad Core SoC (System-on-Chip) can execute several tasks at the same time without a separate media player. In addition, webOS 3.0 platform enhances user convenience with intuitive UI and simple app development tools.

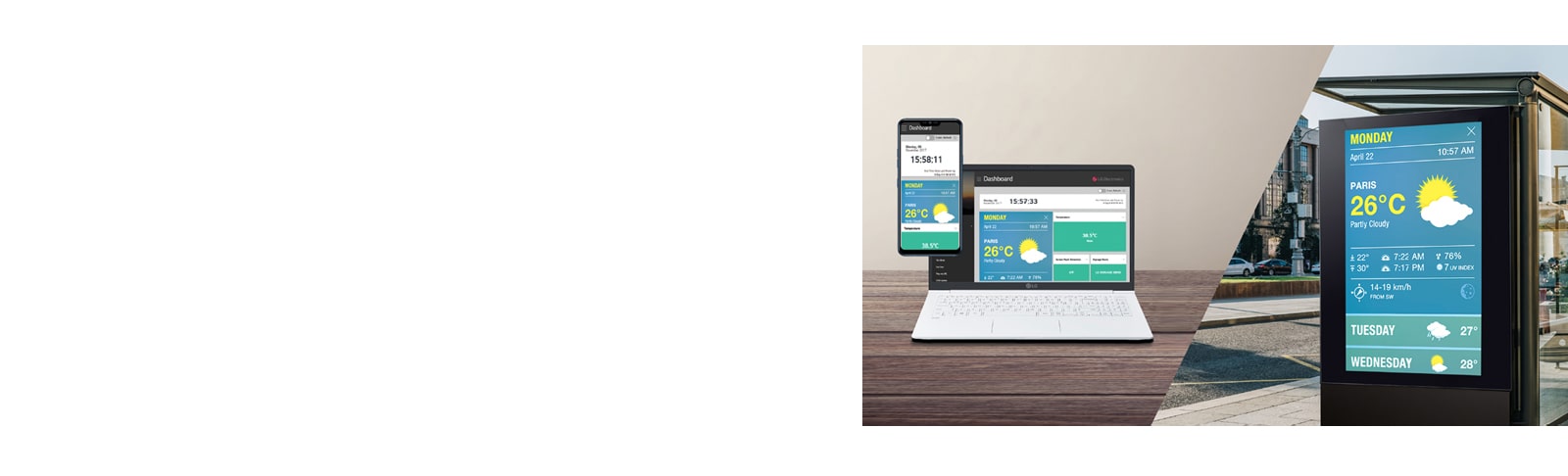

User can monitor and control their displays through mobile phone and laptop.

Web Monitoring

The LG Control Manager*, the embedded web monitoring program, allows a variety of parameters to be diagnosed in real time such as temperature, ambient light, and gyro sensors. It can be easily controlled at all times.

* Enabled by wired LAN connection

Panel

Screen Size

75" Class

Resolution

3,840 x 2,160 (UHD)
Brightness (Typ., cd/m²)

3000

Connectivity

Input

HDMI(2), DP, DVI-D, Audio, USB, SD Card

Output

DP, External Speaker Out (L/R)
External Control

RS232C In/Out, RJ45 In, IR Receiver In

Physical Specification

Bezel Width

11.8 mm (Even)

Monitor Dimension (W x H x D)

1,675.2 x 953.6 x 123.9 mm
Weight (Head)

36.7 kg

Carton Dimensions (W x H x D)

1,816 x 1,106 x 285 mm
Packed Weight

46.3 kg

Environment Conditions

Operation Temperature

0℃ to 50℃ (w/o Direct Sunlight, Direct Sunlight in Cooling System),
0℃ to 40℃ (Direct Sunlight)

Operation Humidity

10% to 85%

Power

Power Supply

100-240V~, 50/60Hz

Power Type

Built-In Power

Power Consumption

Typ.

660W (Full White)
497W (IEC 62087)

Max

695W

Standard(Certification)

Safety

UL recognized / CB

EMC

FCC Class "A" / CE / KC
ErP / Energy Star

No / No

Software Compatibility

Content Management Software

SuperSign CMS

Control and Monitoring Software

SuperSign Control+ / Control

Accessory

Basic

Remote Controller, Power Cord, IR Extension Kit, HDMI Cable, Manual (ESG&EIG)

Optional

Wi-Fi Dongle (AN-WF500)

Dimension
- 75XF3C.dwg
- 75XF3C.pdf
Datasheet
- XF Series(75XF3ES,75XF3C,55_49XF3E)_Datasheet(low)_LG Digital Signage_230901.pdf
Software

To download Software, Please visit the Software Download Page (Click).
Manual

To download Owner’s manual, User guide, Quick set-up guide, Please visit the Manual Download Page (Click).
