86UM3E-B component-copyModelName

86'' 350 nits UHD Signage

LG 86'' 350 nits UHD Signage, 86UM3E-B, thumbnail 1

LG 86'' 350 nits UHD Signage, 86UM3E-B, thumbnail 2

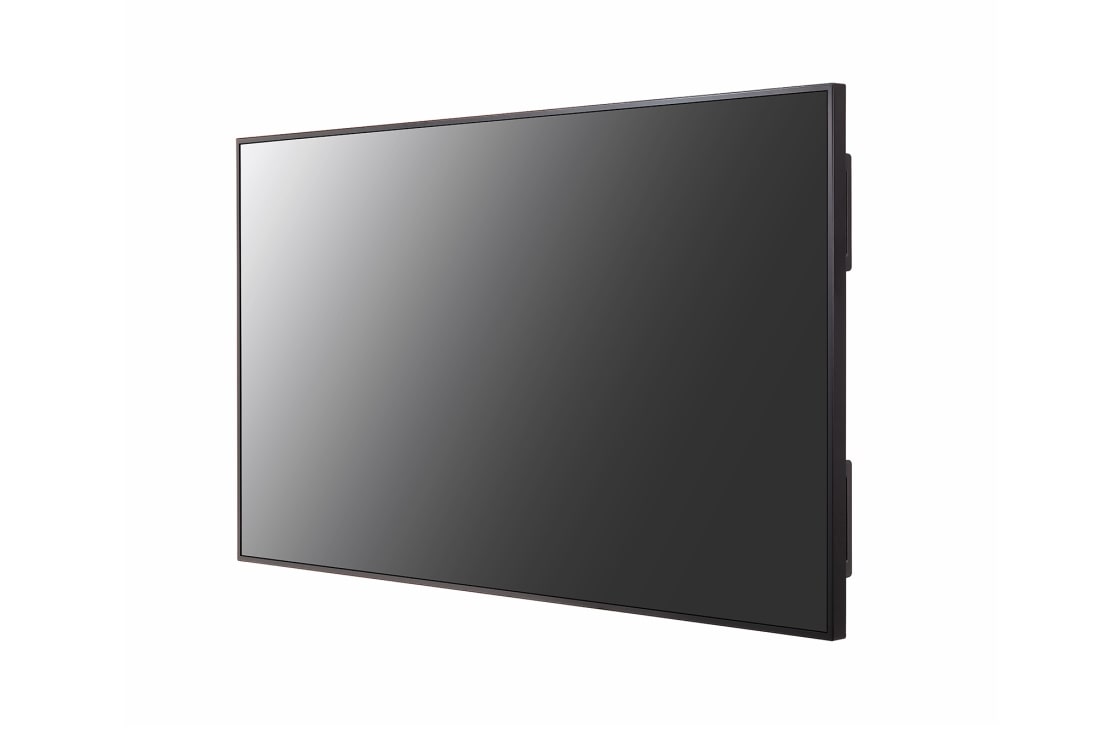

LG 86'' 350 nits UHD Signage, 86UM3E-B, thumbnail 3

LG 86'' 350 nits UHD Signage, 86UM3E-B, thumbnail 4

LG 86'' 350 nits UHD Signage, 86UM3E-B, thumbnail 5

LG 86'' 350 nits UHD Signage, 86UM3E-B, thumbnail 6

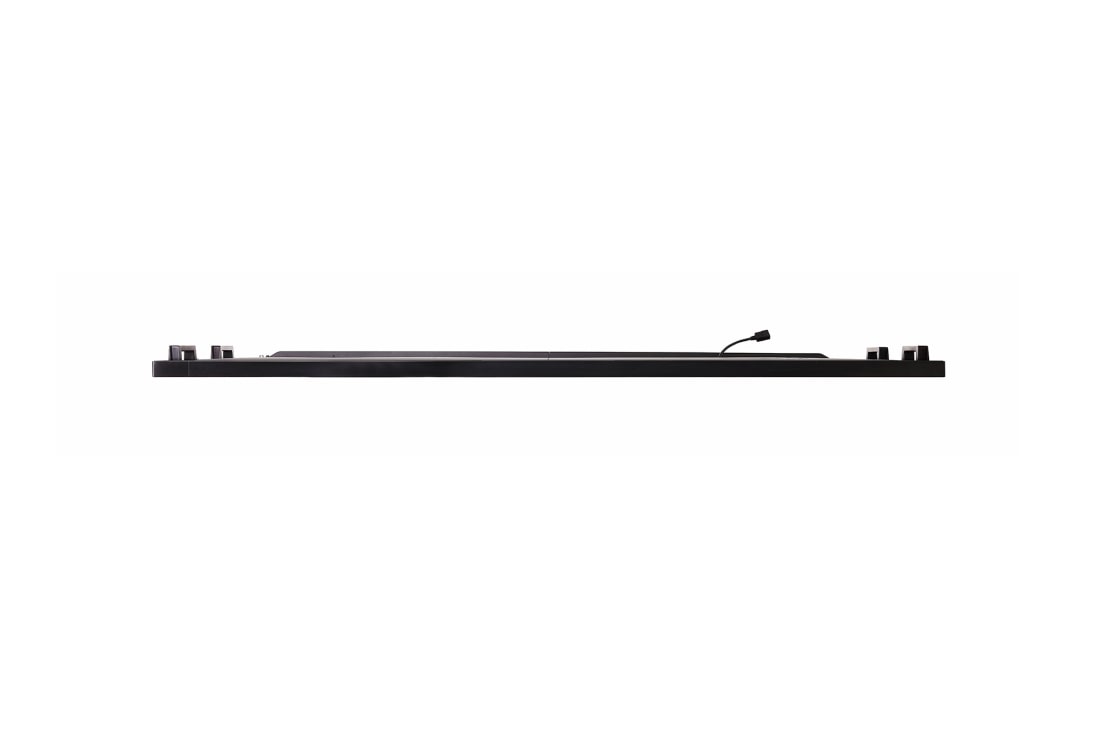

LG 86'' 350 nits UHD Signage, 86UM3E-B, thumbnail 7

Discontinued

86UM3E-B component-copyModelName

86'' 350 nits UHD Signage

Key Features

Brightness(Typ.) : 350 cd/m²
Bezel : 14.3 mm (Even)
Depth : 60.6 mm
Interface : HDMI(3)/DP/DVI-D/USB 2.0(2)/ RS232C/ RJ45/ Audio/ IR
Built-in Speaker(10W+10W)

Choose your Size

Add to Compare

component-OBScountrySelectDesc

Key Features

Brightness(Typ.) : 350 cd/m²
Bezel : 14.3 mm (Even)
Depth : 60.6 mm
Interface : HDMI(3)/DP/DVI-D/USB 2.0(2)/ RS232C/ RJ45/ Audio/ IR
Built-in Speaker(10W+10W)

Choose your Size

Add to Compare

component-OBScountrySelectDesc

component-copyModel-toastMsg

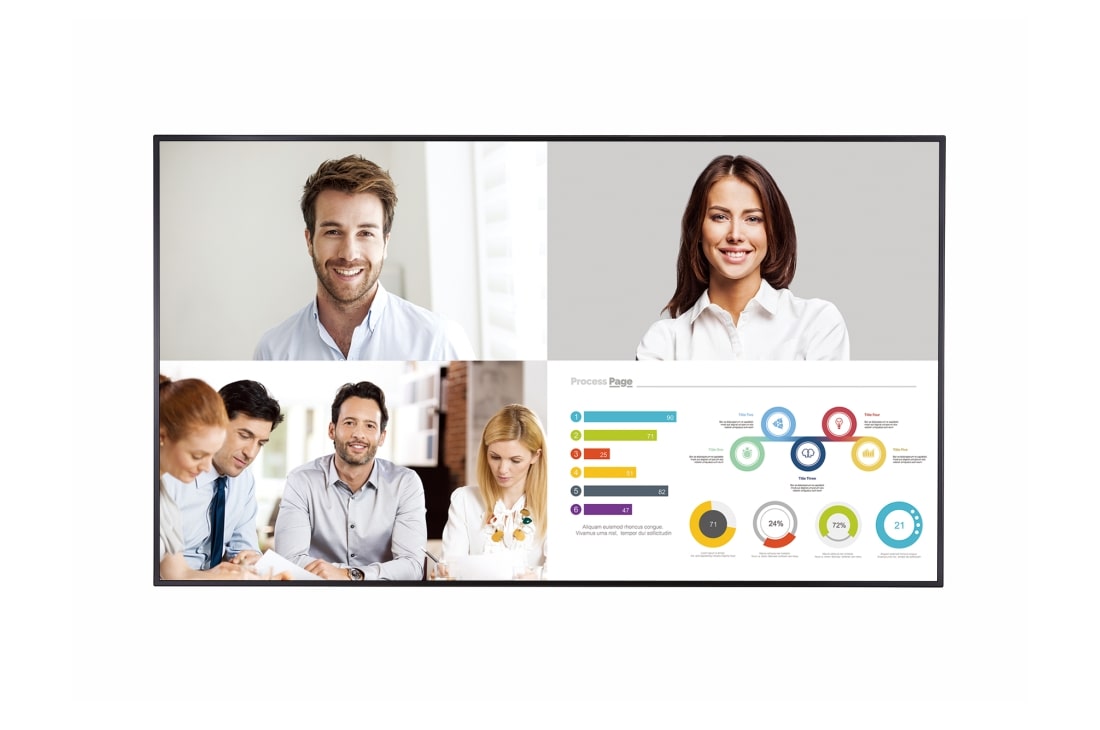

86" 350 nits UHD Signage

Vitalize True Colors of UHD Content in a Smart Way

As an Ultra HD large display, the UM3E series delivers content in a fine detail with vivid colors enough to captivate numerous viewers. Equipped with high compatibility and intuitive GUI, the product will not cause any wasted time to connect and coordinate other devices or to manage content in a meeting room or in retail stores.

Superior Picture Quality

True Color, Immersive View

The UM3E series is large enough to display content and get undivided attention from various viewers. LG IPS panel features a wide range of angle to deliver clear content regardless of the position of viewers. Each pixel in the IPS panel reproduces image colors true-to-life, without distortion.

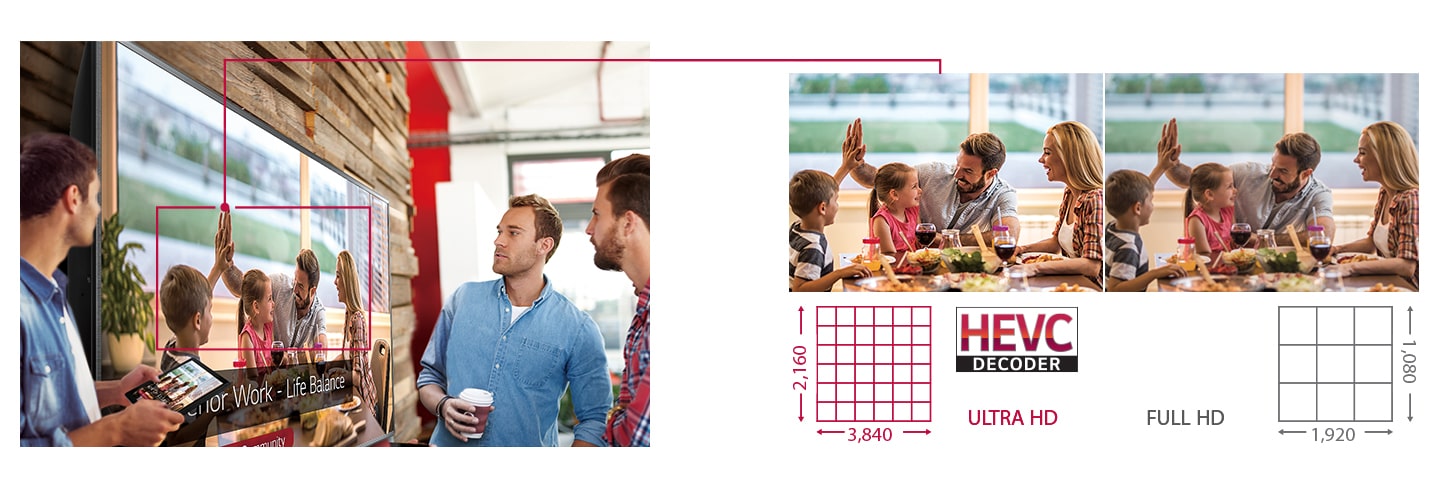

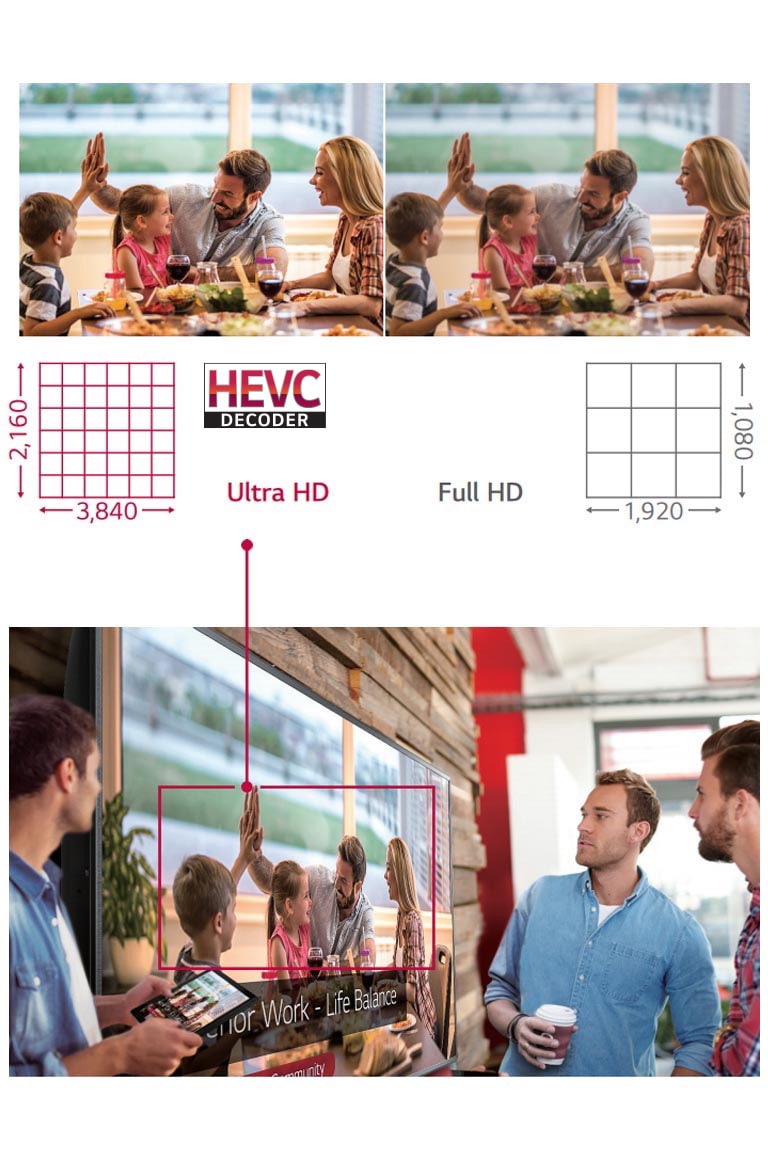

Vivid Color Details with Ultra HD

The UHD resolution allows users to view details even when zooming in on the display, with four times higher definition than FHD. The UL3E ensures stable UHD video playback with HEVC^{(High Efficiency Video Coding)}.

Powerful webOS Smart Signage Platform

Easy Content Management

The embedded CMS^{(Content Management System)} allows you to create and edit content using internal/external sources as well as set playlists to play at the desired schedule without the need for a separate PC. Thanks to the intuitive GUI and a menu structure based on usage scenarios, content management has been made much easier

Powerful webOS Smart Signage Platform

Simple Group Management

The embedded Group Manager makes a master display work as a server and manage other displays* connected on the same network. This way you can group and control multiple displays in your place of business and distribute playlists to them all at once, using input devices such as a remote control.

Powerful webOS Smart Signage Platform

Various Sensor Applications

LG webOS smart signage platform easily supports connections with external sensors such as GPIO, NFC/RFID, temperature sensors, etc. via USB plug-in. The overall cost of ownership is reduced as there's no need to purchase additional software or media players for creating value-added solutions.

Powerful webOS Smart Signage Platform

Multi Screen Mode

PBP^{(Picture-By-Picture)} features multi screen in a single display with upto 4 input sources while PIP^{(Picture-In-Picture)} supports playing both main screen and sub screen at the same time with various layouts. This gives great flexibility to allocate space for each content source.

Easy Maintenance

Real-Time Monitoring & Control

Through the Control Manager, the embedded web monitoring solution, you can control and monitor the status of multiple displays in different locations in realtime. It is available on internet-connected devices, allowing you to flexibly and rapidly respond to emergency situations anywhere.

Easy Maintenance

Real-time Care Service

The maintenance gets easier and faster with an optional service Signage 365 Care¹⁾, a cloud service solution provided by LG service. It remotely manages status of displays in client workplaces for fault diagnosis and remote-control services, ensuring the stable operation of a client's business.

Wireless Solution

Content Sharing
Content Mirroring among devices is more convenient on a Wi-Fi network.

Real-time Promotion
With Beacon and BLE^{(Bluetooth Low Energy)}, shop managers can provide coupons and information in real-time.

Wireless Solution

Wireless Access Point

The UM3E series operates as a virtual router which can be an wireless access point for mobile devices.

High Compatibility

Compatibility with AV Control System

The UM3E series has been certified Crestron Connected^Ⓡ for a higher level of compatibility with professional AV controls to achieve seamless integration and automated control¹⁾, boosting business management efficiency.

Compatibility with Video Conference System1

High Compatibility

Compatibility with Video Conference System

For the optimum visual meeting, the UM3E has certified its compatibility with Cisco Spark Room Kits, a system that offers powerful and integrated control¹⁾ for a smarter video conference, eliminating a waste of time to set up the picture quality or to change input on incoming calls.

Space-efficient Design

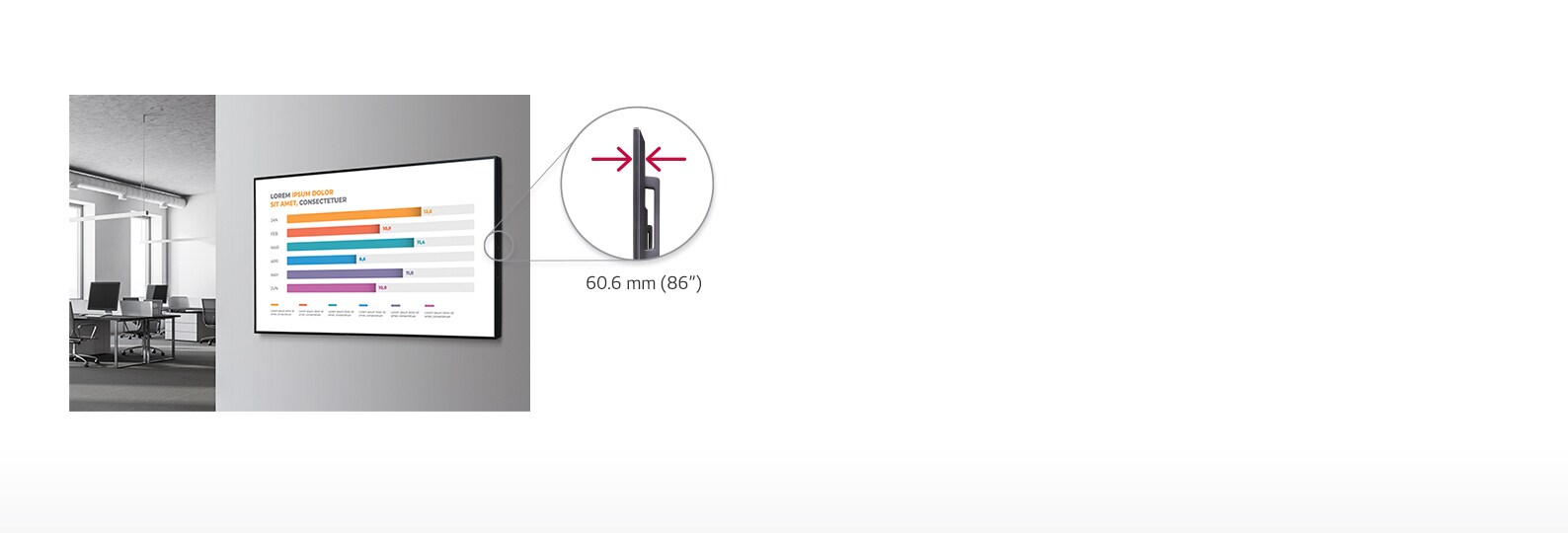

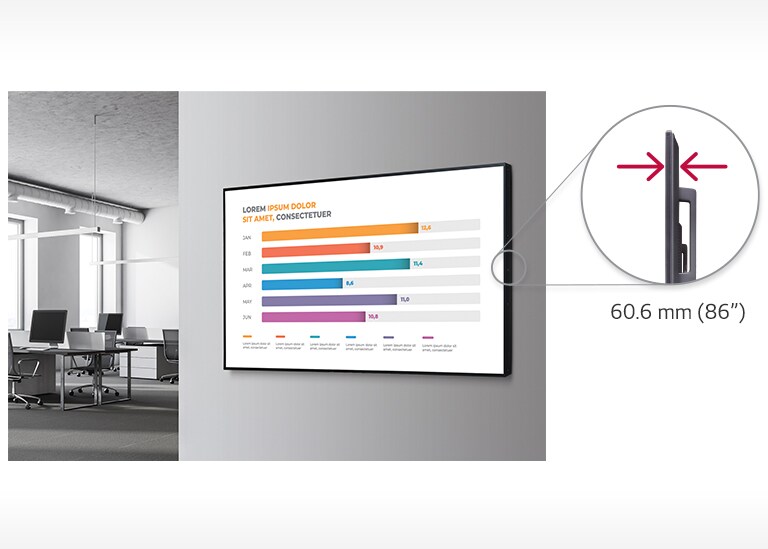

Slim and Tidy in Appearance

Although UM3E series is a large-sized display, the product still has a slim depth, a feature that allows easy installation by using less space. An immersive view is attained while maintaining a sleek look.

Space-efficient Design

Detachable Logo & Built-in Speaker

The detachable logo allows for installation in the desired orientation in landscape or portrait mode, making it easy for the user to arrange the signage. Also, sounds can be played from built-in speakers, giving advertisements greater impact.

Panel

Screen Size

86"

Resolution

3,840 x 2,160 (UHD)
Brightness(Typ.,cd/m²)

350

Viewing Angle (H x V)

178 x 178
Life Time (Typ.)

30,000 Hrs

Operation Hours

16 Hrs
Orientation

Landscape

Connectivity

Input

HDMI (3), DP, DVI-D, Audio, USB 2.0 (2)

Output

DP, Audio (Off/Fixed/Variable)
External Control

RS232C in/out, RJ45 in, IR in

Physical Specification

Bezel Width

14.3 mm (Even)

Monitor Dimension (W x H x D)

1,926.2 x 1097.2 x 60.6 mm (w/o Handle and Logo)
Weight (Head)

49 kg

Carton Dimensions (W x H x D)

2,073 x 1,260 x 292 mm
Packed Weight

61.1 kg

VESA™ Standard Mount Interface

600 x 400 mm

Environment Conditions

Operation Temperature

0°C to 40°C

Operation Humidity

10 % to 80 %

Power

Power Supply

100-240V~, 50/60Hz

Power Type

Built-In Power

Power Consumption

Typ. / Max.

250 W / 345 W

Smart Energy Saving

175 W

Certification

Safety

CB / NRTL

EMC

FCC Class "A" / CE / KC
ErP / Energy Star

Yes (EU Only) / No

Media Player Compatibility

OPS type compatible

Yes

Software Compatibility

Content Management Software

SuperSign CMS

Control and Monitoring Software

SuperSign Control+/Control

Accessory

Basic

Remote Controller, Power Cord, QSG, DP Cable (1.8M), Regulation Book, Phone to RS232C Gender

Optional

OPS Kit (KT-OPSF), Wall Mount (LSW640A/B)

General

Region

Global

Dimension
- [Dimension]86UM3E.dwg
- [Dimension]86UM3E.pdf
Datasheet
- 98UM3F_86-75UM3E_Datasheet(low)_LG UHD Signage_200313.pdf
Software

To download Software, Please visit the Software Download Page (Click).
Manual

To download Owner’s manual, User guide, Quick set-up guide, Please visit the Manual Download Page (Click).
