Key Features

Brightness(Typ.) : 350 cd/m²
Bezel : 14.9 mm (Even)
Depth : 69.4 mm (without Handle)
Interface : HDMI(3)/DP/DVI-D/USB(2)/ RS232C/ RJ45/ Audio/ IR/ External Speaker

Choose your Size

Add to Compare

component-OBScountrySelectDesc

Key Features

Brightness(Typ.) : 350 cd/m²
Bezel : 14.9 mm (Even)
Depth : 69.4 mm (without Handle)
Interface : HDMI(3)/DP/DVI-D/USB(2)/ RS232C/ RJ45/ Audio/ IR/ External Speaker

Choose your Size

Add to Compare

component-OBScountrySelectDesc

component-copyModel-toastMsg

UM3E Series

00_Vibrant Colors and Powerful Performance Bring Content to Life_1538376676726

Vitalize True Colors of UHD Content in a Smart Way

As an Ultra HD large display, the UM3E series delivers content in a fine detail with vivid colors enough to captivate numerous viewers. Equipped with high compatibility and intuitive GUI, the product will not cause any wasted time to connect and coordinate other devices or to manage content in a meeting room or in retail stores.

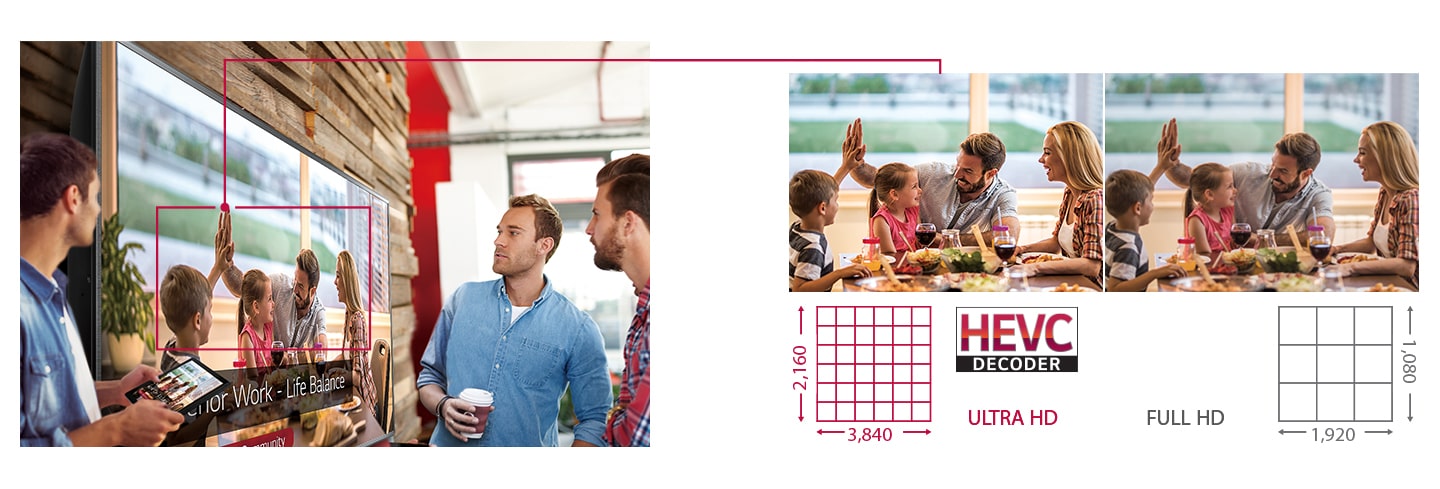

Superior Picture Quality

True Color, Immersive View

The UM3E series is large enough to display content and get undivided attention from various viewers. LG IPS panel features a wide range of angle to deliver clear content regardless of the position of viewers. Each pixel in the IPS panel reproduces image colors true-to-life, without distortion.

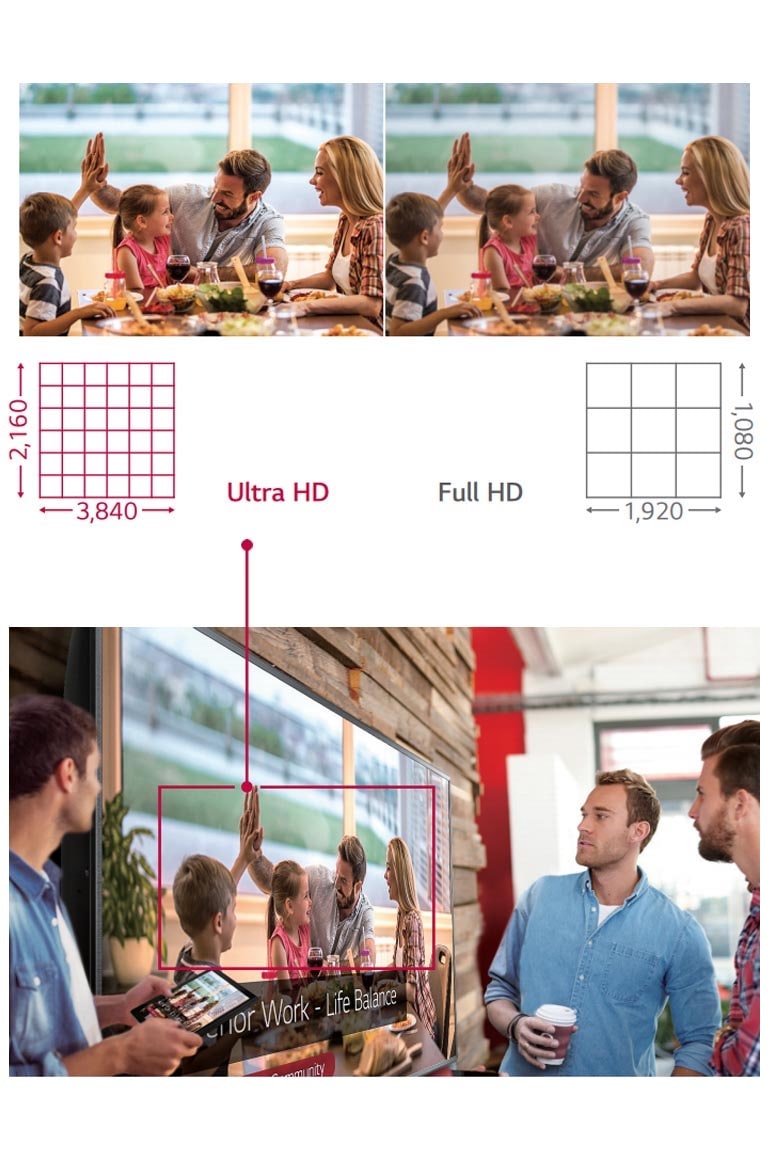

Vivid Color Details with Ultra HD

The UHD resolution allows users to view details even when zooming in on the display, with four times higher definition than FHD. The UL3E ensures stable UHD video playback with HEVC^{(High Efficiency Video Coding)}.

02_Easy-Content-Management_1537247878120

Powerful webOS Smart Signage Platform

Easy Content Management

The embedded CMS^{(Content Management System)} allows you to create and edit content using internal/external sources as well as set playlists to play at the desired schedule without the need for a separate PC. Thanks to the intuitive GUI and a menu structure based on usage scenarios, content management has been made much easier

ID-Standard-Standard-Premium-UM3E-B-04-Simple-Group-Management_1556599143018

Powerful webOS Smart Signage Platform

Simple Group Management

The embedded Group Manager makes a master display work as a server and manage other displays* connected on the same network. This way you can group and control multiple displays in your place of business and distribute playlists to them all at once, using input devices such as a remote control.

04_Various-Sensor-Applications_1538377142400

Powerful webOS Smart Signage Platform

Various Sensor Applications

LG webOS smart signage platform easily supports connections with external sensors such as GPIO, NFC/RFID, temperature sensors, etc. via USB plug-in. The overall cost of ownership is reduced as there's no need to purchase additional software or media players for creating value-added solutions.

Powerful webOS Smart Signage Platform

Multi Screen Mode

PBP^{(Picture-By-Picture)} features multi screen in a single display with upto 4 input sources while PIP^{(Picture-In-Picture)} supports playing both main screen and sub screen at the same time with various layouts. This gives great flexibility to allocate space for each content source.

06_Real-Time-Monitoring-&-Control_1538377318227

Easy Maintenance

Real-Time Monitoring & Control

Through the Control Manager, the embedded web monitoring solution, you can control and monitor the status of multiple displays in different locations in realtime. It is available on internet-connected devices, allowing you to flexibly and rapidly respond to emergency situations anywhere.

ID-Standard-Standard-Premium-UM3E-B-08-Real-time-Care-Service txt_1556600249233

Easy Maintenance

Real-time Care Service

The maintenance gets easier and faster with an optional service Signage 365 Care¹⁾, a cloud service solution provided by LG service. It remotely manages status of displays in client workplaces for fault diagnosis and remote-control services, ensuring the stable operation of a client's business.

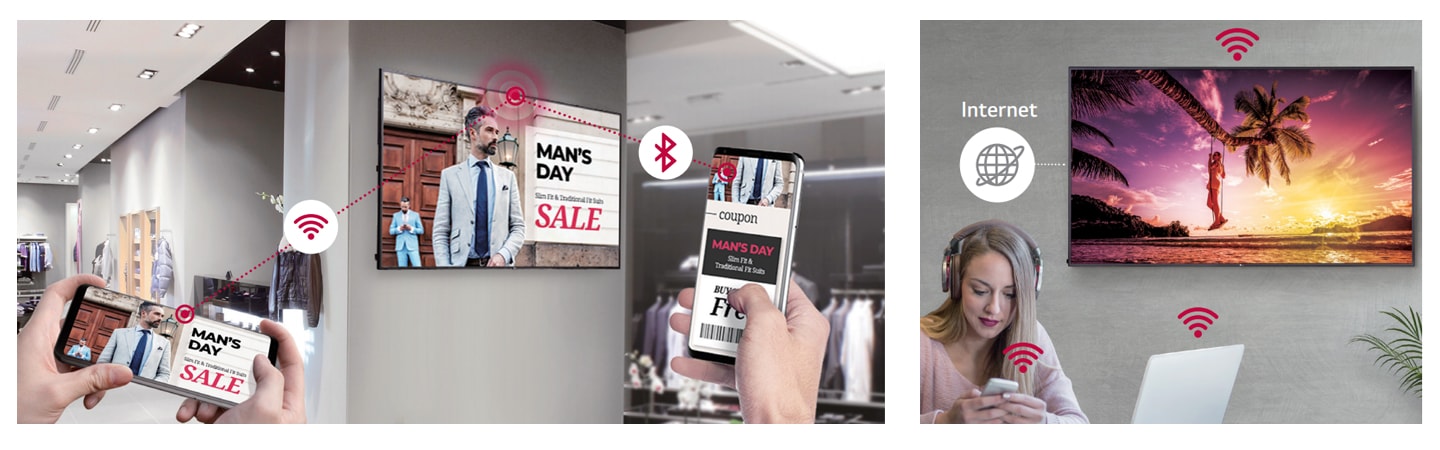

Wireless Solution

Content Sharing

Content Mirroring among devices is more convenient on a Wi-Fi network.
Real-time Promotion

With Beacon and BLE^{(Bluetooth Low Energy)}, shop managers can provide coupons and information in real-time.
Wireless Access Point

The UM3E series operates as a virtual router which can be an wireless access point for mobile devices.

10_Compatibility-with-AV-Control-System_1537248584019

High Compatibility

Compatibility with AV Control System

The UM3E series has been certified Crestron Connected^Ⓡ for a higher level of compatibility with professional AV controls to achieve seamless integration and automated control¹⁾, boosting business management efficiency.

11_Compatibility-with-Video-Conference-System_1537248651464

High Compatibility

Compatibility with Video Conference System

For the optimum visual meeting, the UM3E has certified its compatibility with Cisco Spark Room Kits, a system that offers powerful and integrated control¹⁾ for a smarter video conference, eliminating a waste of time to set up the picture quality or to change input on incoming calls.

ID-Standard-Standard-Premium-UM3E-B-12-98-Slim-and-Tidy-in-Appearance_1556582506758

Space-efficient Design

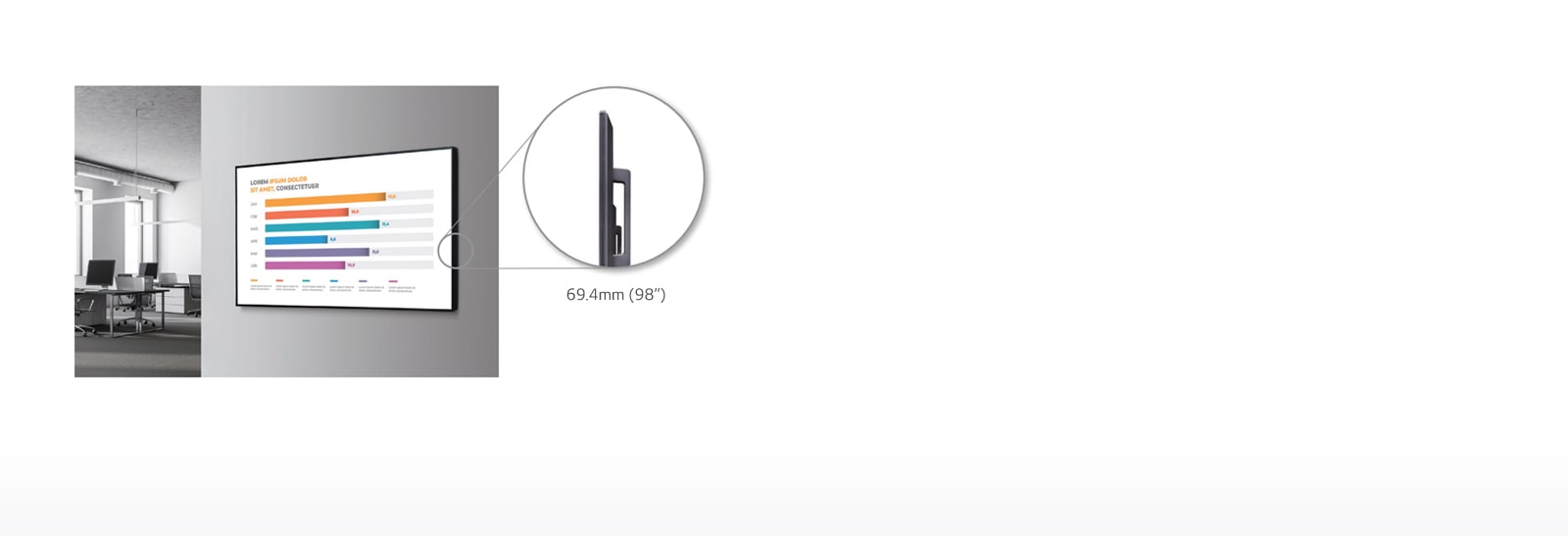

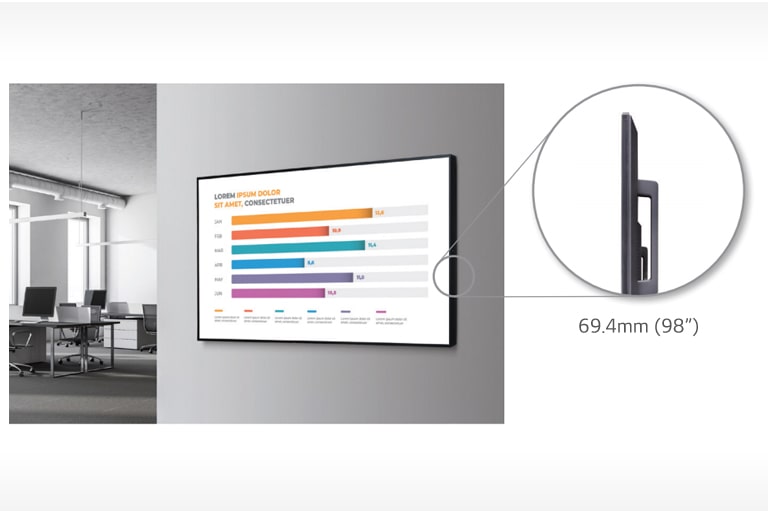

Slim and Tidy in Appearance

Although UM3E series is a large-sized display, the product still has a slim depth, a feature that allows easy installation by using less space. An immersive view is attained while maintaining a sleek look.

Panel

Screen Size

98"

Panel Technology

IPS
Aspect Ratio

16 : 9

Native Resolution

3,840 x 2,160 (UHD)
Brightness(Typ.,cd/m²)

350

Contrast Ratio

1,300:1
Dynamic CR

500,000:1

Viewing Angle (H x V)

178 x 178
Response Time

8 ms (G to G)

Surface Treatment (Haze)

Haze 1%
Life Time (Typ.)

50,000 Hrs

Operation Hours

24 Hrs
Orientation

Portrait & Landscape

Connectivity

Input

HDMI (3), DP, DVI-D, Audio, USB (2)

Output

DP, Audio, External Speaker
External Control

RS232C In/out, RJ45 (LAN) In, IR In

Physical Specification

Bezel Color

Black

Bezel Width

14.9 mm (Even)
Monitor Dimension (W x H x D)

2,191.8 x 1,246.8 x 69.4 mm (without Handle)

Weight (Head)

88 kg
Carton Dimensions (W x H x D)

2,342 x 1,386 x 402 mm

Packed Weight

123 kg
Handle

Yes

VESA™ Standard Mount Interface

800 x 400 mm

Environment Conditions

Operation Temperature Range

0°C to 40°C

Operation Humidity Range

10% to 80%

Power

Power Supply

100-240V~, 50/60Hz

Power Type

Built-In Power

Power Consumption

Typ. / Max.

315 W / 415 W

Smart Energy Saving

220.5 W

Standard(Certification)

Safety

CB / NRTL

EMC

FCC Class "A" / CE / KC
ErP / Energy Star

Yes (EU Only) / No

Media Player Compatibility

OPS type compatible

No

Software Compatibility

Content Management Software

SuperSign CMS

Control and Monitoring Software

SuperSign Control+/Control

Accessory

Basic

Remote Controller, Power Cord, QSG, IR/Light Sensor Receiver, DP Cable, Regulation Book, Phone to RS232C Gender, EYE-BOLT

Optional

Speaker (SP-2200)

General

Region

Global

Dimension
- [Dimension]98UM3E.dwg
- [Dimension]98UM3E.pdf
Datasheet
- 98UM3F_86-75UM3E_Datasheet(low)_LG UHD Signage_200313.pdf
Software

To download Software, Please visit the Software Download Page (Click).
Manual

To download Owner’s manual, User guide, Quick set-up guide, Please visit the Manual Download Page (Click).
