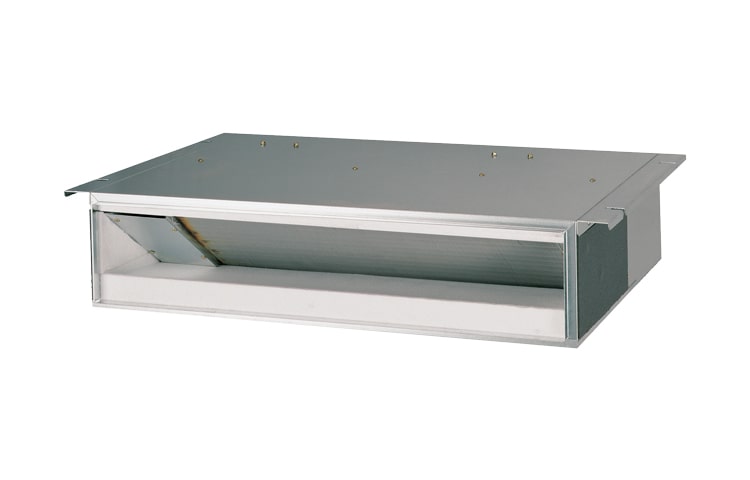

LG Ceiling Concealed Duct Air Conditioner (1.5 TR ) ET

LBNB2156QC

LG Ceiling Concealed Duct Air Conditioner (1.5 TR ) ET

()
  • LG Ceiling Concealed Duct Air Conditioner (1.5 TR ) ET, LBNB2156QC
LG Ceiling Concealed Duct Air Conditioner (1.5 TR ) ET, LBNB2156QC

Key Features

  • Wide Operation Range up to 48°C
  • E.S.P. (External Static Pressure) Control
  • Precise Temperature Control
  • Standby Mode
More

External Static Pressure (E.S.P) Control2

External Static Pressure (E.S.P) Control

Optimal airflow cools every room and every corner of your house or office consistently and accurately to reach desired temperatures.
Easy service2

Easy service

Easy Service

System designed for easy maintenance

Weekly Program

Active operation scheduling system

Auto Restart

Smart power auto-recovery
Print

All Spec

PRODUCT INFORMATION

  • Product Type

    Enclosed Type Duct

  • Inverter Technology

    No

  • Indoor Unit Noise Level (H/M/L)

    34 / 31 / 29 dB(A)

  • Refrigerant Type

    R22

  • Operation Range

    Up to 53°C

  • High Ceiling Mode

    Yes

  • Clean Air Filteration

    Yes

  • Independent Vane Operation

    Yes

GENERAL SPECIFICATIONS

  • Power Supply (Φ / V / Hz)

    1/220~240/50

  • Cooling Capacity in TR

    1.5

  • Power Input

    1.7 kW

INDOOR UNIT

  • Air Flow Rate (H/M/L) (CFM)

    475

  • External Static Pressure

    2 mmAq

  • Body Dimensions (W x H x D)

    1,100 x 190 x 575 mm

  • Net Weight

    29.0 kg

OUTDOOR UNIT

  • Compressor Type

    Rotary

  • Sound Level (H)

    60 dB(A)

  • Dimensions (W x H x D)

    800 x 555 x 260 mm

  • Net Weight

    37 kg

  • Piping Connections (Liquid)

    Ø 6.35 mm

  • Piping Connections (gas)

    Ø 12.7 mm

  • Drain (Outdoor / Indoor)

    Ø 25.4 / 22.6 mm

  • Max. Piping Length (Main Piping)

    30 m

  • Max. Elevation Difference (Indoor-Outdoor)

    15 m

WHERE TO INSTALL

  • Residence

    Yes

  • Retail Store

    Yes

  • Restaurant

    Yes

  • Office

    Yes

  • Hospital

    Yes

  • Hospitality

    Yes

Leaflet

extension : pdf
R22 Ceiling Concealed Duct.pdf
Download

To access more technical documentation and resources, please visit the LG B2B Partner Portal.
