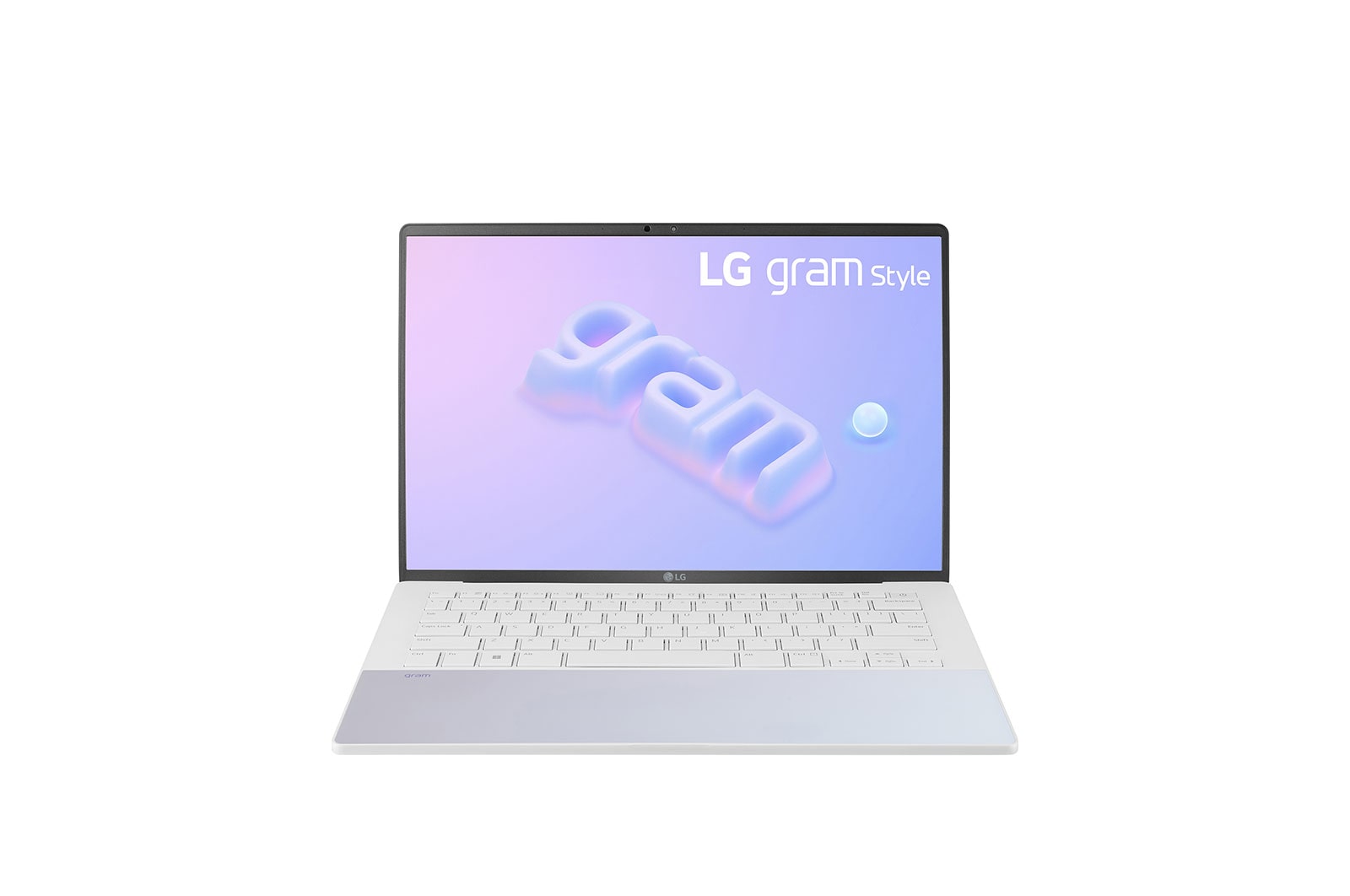

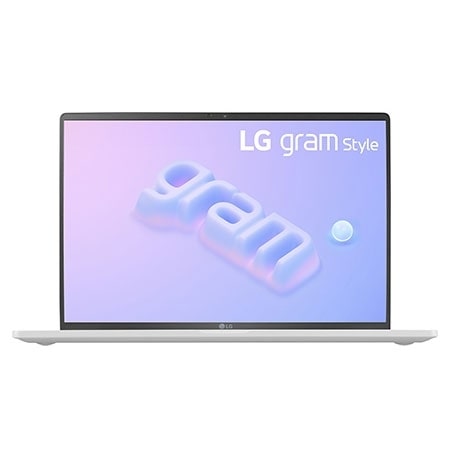

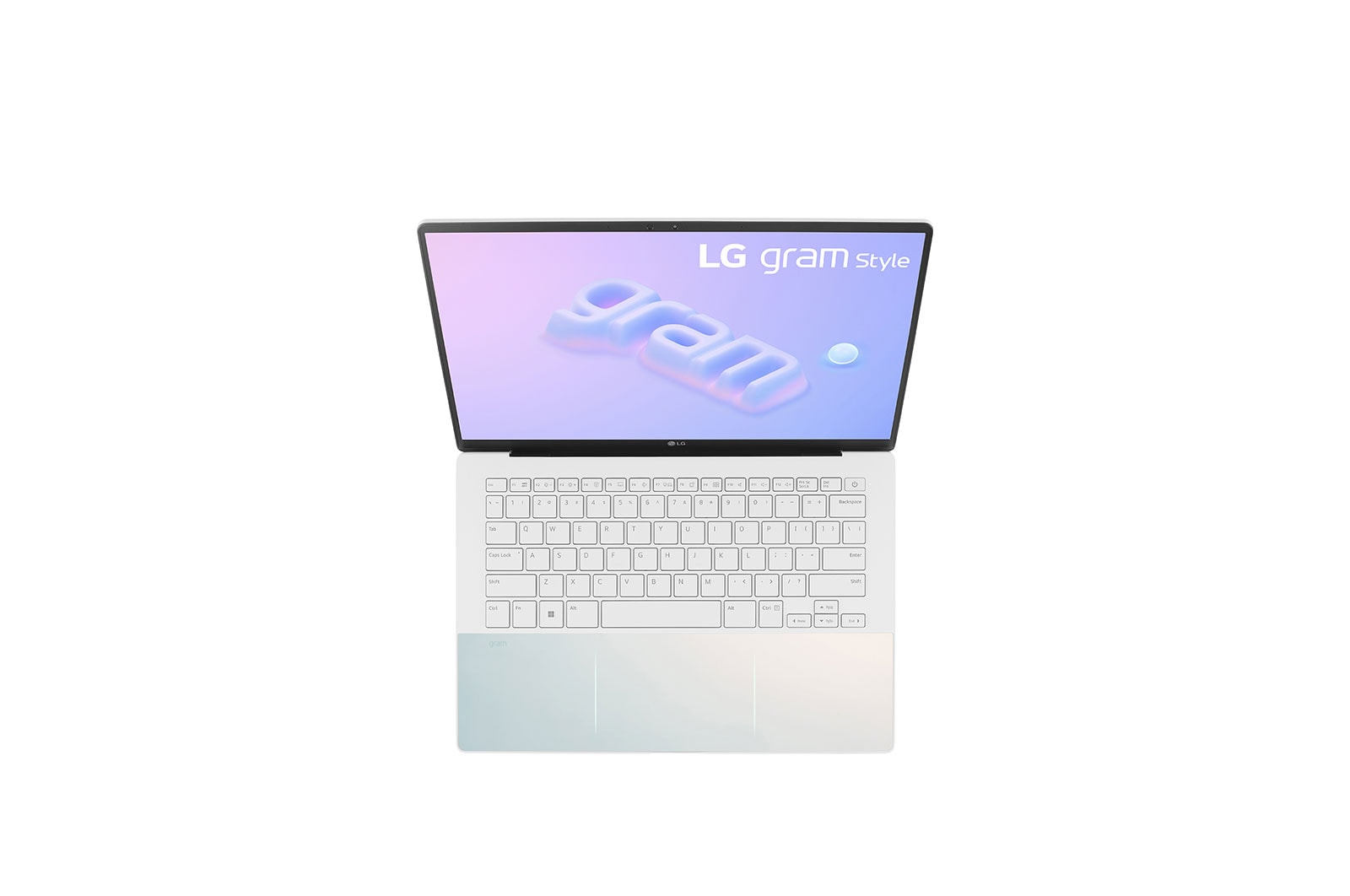

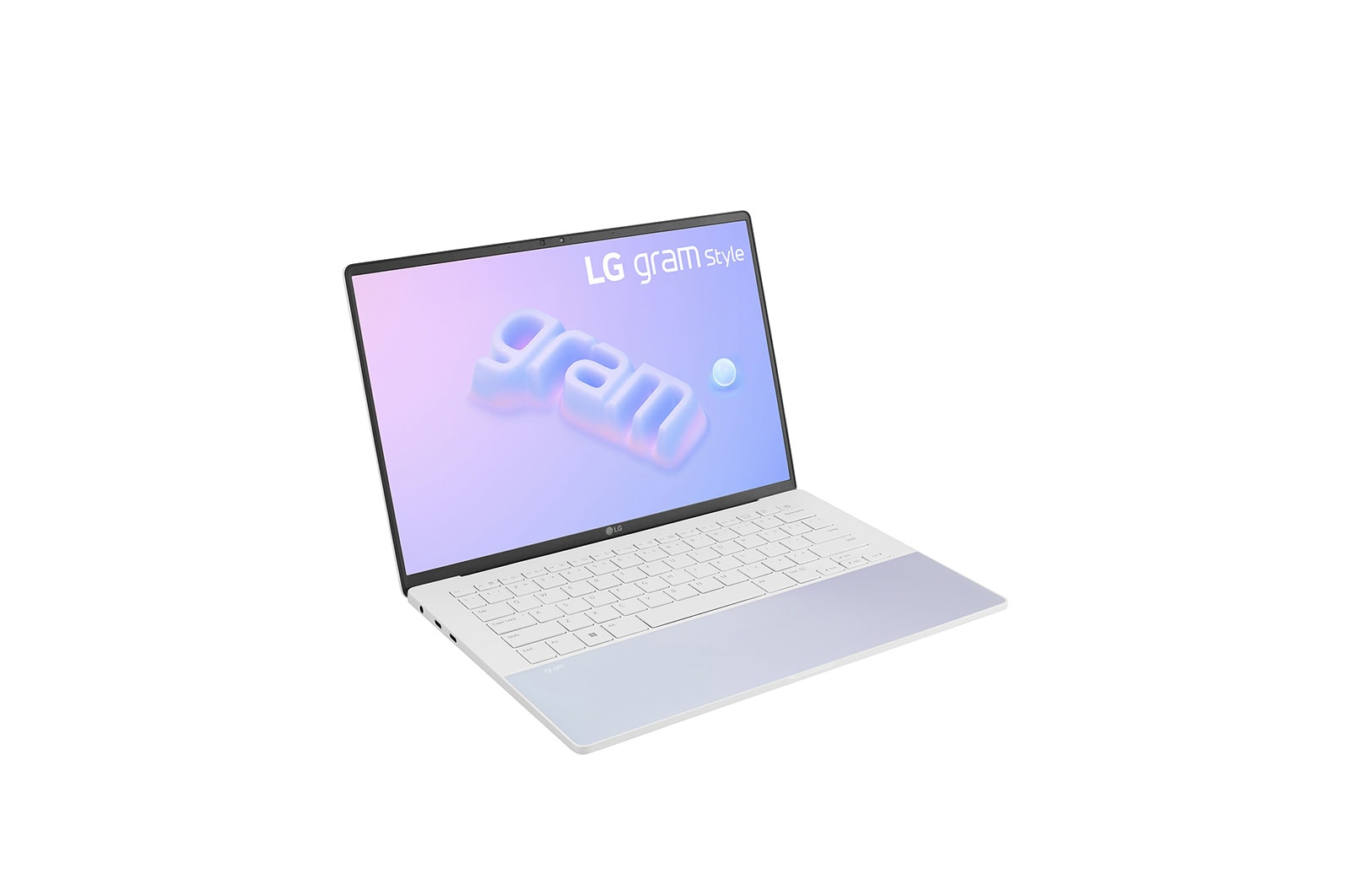

LG 14Z90RS-G.CH74A2 LG gram Style Logo.
LG 14Z90RS-G.CH74A2 Start Light with LG gram.
*The images simulated to enhance feature understanding. It may differ from actual use.
*The model image is simulated for illustrative purposes. It may differ from the actual product.

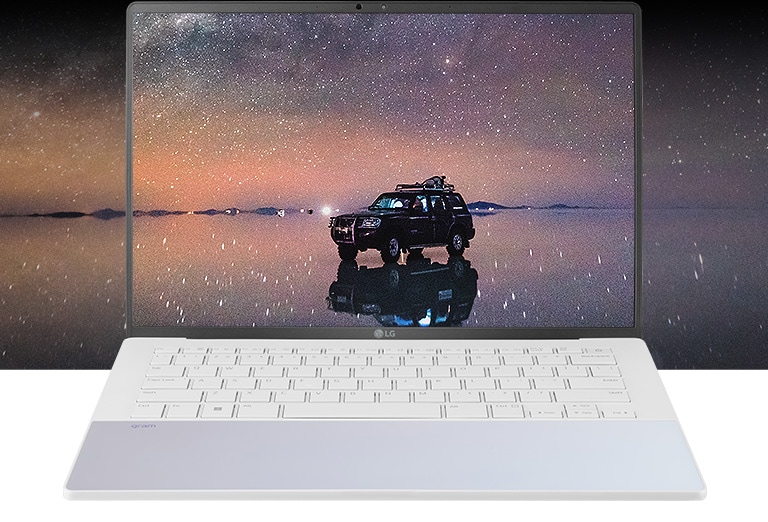

LG 14Z90RS-G.CH74A2 The image expresses the lifelike visual through the vast night scene, full of stars and the shallow lake that reflects the stars.
*The images simulated to enhance feature understanding. It may differ from actual use.
*The images simulated to enhance feature understanding. It may differ from actual use.
**Brightness is 400nits(Typ.), Peak HDR Brightness is more than 500nits.
***Obtained the certificates on the panel- Halo Free, Superior Image Quality, and Green Guard.
Thanks to the OLED's 100% DCI-P3 wide color gamut, you can always see vivid details and rich colors.
*The images simulated to enhance feature understanding. It may differ from actual use.
**DCI-P3 Typical 100%, Minimum 90%.
***DCI-P3 : The color standard that is defined by the Digital Cinema Initiatives (DCI).
Whether gaming, watching, or simply scrolling, enjoy smooth visuals with significantly reduced stuttering and afterimage effects, thanks to the 0.2ms response time and 90Hz high refresh rate.
*The images simulated to enhance feature understanding. It may differ from actual use.
*The images simulated to enhance feature understanding. It may differ from actual use.
*Brightness is 400nits(Typ.), Peak HDR Brightness is more than 500nits.
*The images simulated to enhance feature understanding. It may differ from actual use.
MIL-STD-810H
LG gram even passed MIL-STD-810H military durability testing. Built from lightweight yet durable materials, it is as strong as it is portable.
*LG gram: MIL-STD-810 standard testing and certification by KOLAS Labs December 2022. Passed 7 different MIL-STD 810H Tests for durability conducted by an independent laboratory that conforms to U.S. military standards. Compliant with the following methods for MIL-STD-810H: Method 500.6 Low Pressure (Altitude) (Procedure I – Storage and Method and Procedure II - Operation); Method 501.7 High Temperature (Procedure I – Storage and Procedure II - Operation); Method 502.7 Low Temperature (Procedure I – Storage and Procedure II - Operation); Method 509.7 – Salt Fog Test; Method 510.7 - Dust; Method 514.8 – Vibration; Method 516.8 Shock (Procedure II) – Transportation Shock. Device may not perform as tested in all conditions. Test performed in controlled environment. Do not attempt.
*The images simulated to enhance feature understanding. It may differ from actual use.

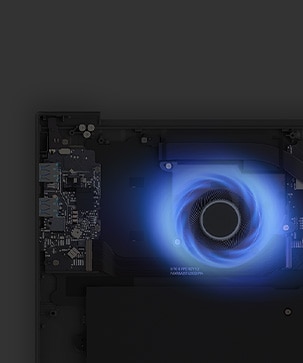

**Modified keyboard location to improve the airflow. Larger fan with more blades. Applied graphite sheet under the keyboard. The advanced cooling feature is in comparison to the preceding model.
*The images simulated to enhance feature understanding. It may differ from actual use.
*The images simulated to enhance feature understanding. It may differ from actual use.
*This feature is only available when the product and mobile phone are connected to the internet.
*To use this function, scan the QR code generated by the PC app with your phone. In case not available to scan the QR, enter the 6-digit PIN code to connect.
LG 14Z90RS-G.CH74A2 It show that the security guard works when user leaves the gram and it sends an alert to its user.
*The images simulated to enhance feature understanding. It may differ from actual use.
*The e-mail notification works only when the product is connected to the internet and the adapter is plugged in. The security guard works no matter whether the internet is connected or not.
*Actual battery life will vary from specifications depending on model, setup configuration, applications used, features utilized and power management settings.
*The images simulated to enhance feature understanding. It may differ from actual use.

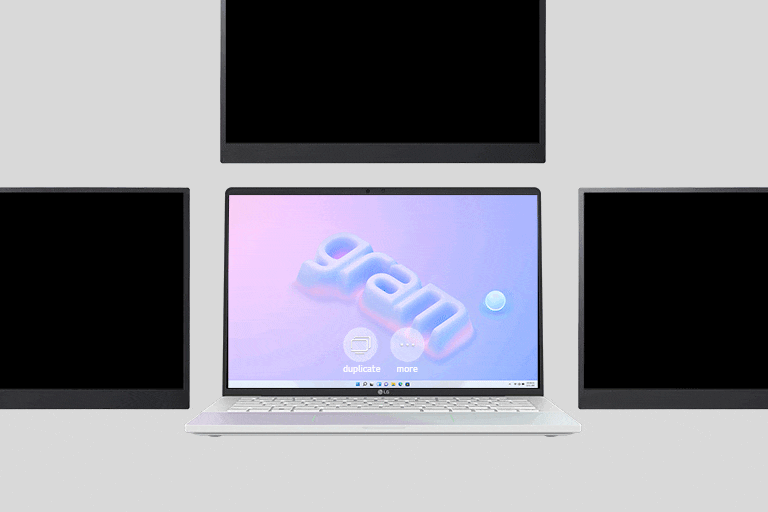

LG Display Extension allows you to simply click in the direction of the 2nd display and use it.

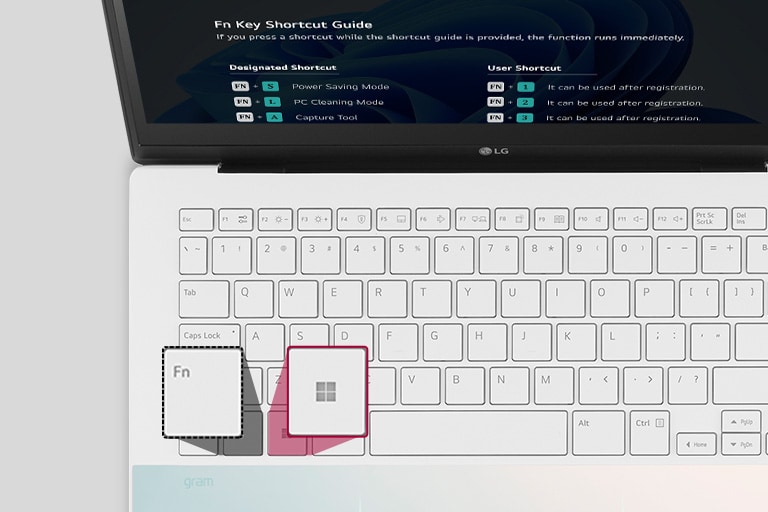

Hold down the Fn or Windows key to bring up the hot key map. LG gram comes preloaded with all of the most intuitive hot keys.
*The cable for connection to 2nd display is not included. It is sold separately.
*The images simulated to enhance feature understanding. It may differ from actual use.
Operating System
Windows 11 Home
Size (Inch)
14
Processor
i7-1360P
Memory
16GB LPDDR5 (Dual Channel, 6000MHz)
SSD
512GB NVMe Gen4 M.2(2280) Dual SSD slots
weight(kg)
0.999
Resolution
WQXGA+ 2880 x 1800
Graphic
Intel Iris Xe Graphics
Color gamut
DCI-P3 100% (Typical, min 90%)
Dimension(mm)
311.6 x 213.9 x 15.9
Accessory
USB-C to RJ45 adapter (B2B option)
eMMC
N/A
HDD
N/A
MMC Slot
Micro SD
SSD
512GB NVMe Gen4 M.2(2280) Dual SSD slots
Battery
72Wh
Graphic
Intel Iris Xe Graphics
Memory
16GB LPDDR5 (Dual Channel, 6000MHz)
Operating System
Windows 11 Home
Processor
i7-1360P
Button
Power button without Fingerprint
Certified
HDR True Black500, SGS, UL
Thermal
N/A
BT
BT 5.1
Interface
N/A
TV Tuner
N/A
Webcam
FHD IR Webcam with Dual Mic (Face recognition)
Wireless
Intel® Wireless-AX211 (802.11ax, 2x2, Dual Band, BT Combo)
Chassis Materials
Glass, Li-Magnesium, Magnesium, PC-ABS
Color
Aurora White
Dimension(mm)
311.6 x 213.9 x 15.9
Shipping Dimension(mm)
432 x 262 x 60
Shipping weight(kg)
1.9
weight(kg)
0.999
Brightness
400nit
Color gamut
DCI-P3 100% (Typical, min 90%)
Contrast
1,000,000 :1 (Typical)
Panel Type
OLED
Pol
Anti Glare Low Refrection
Ratio
16:10
Refresh Rate
90Hz
Resolution
WQXGA+ 2880 x 1800
Response Time
0.2ms
Size (Inch)
14
Product Category
gram
Year
Y23
Keyboard
Full Size 79 Keys (US) / 80 Keys (UK)/83Keys(Japan), Backlit KBD
Pointing Device
Precision Touch Pad w/ Scroll and Gesture Function (size: 131.5 x 82.6mm)
LED
Power, DC-In, Caps Lock, webcam
AC Adapter
65W
finger print
NO
fTPM/HW TPM
Option
HDD Security
NO
Secure mode
NO
Slim Kensington lock
YES
SSD Security
YES
Audio
HD Audio with Dolby Atmos
Speaker
Stereo Speaker 2.0W x 2, Max 5W(Smart Amp)
DC-in
N/A
HDMI
N/A
HP-Out
4Pole Headset, US type
RJ45
N/A
USB Type A
USB 3.2 Gen 2x1 (x1)
USB Type C
USB 4 Gen3x2 Type C (x2, with Power Delivery, Display Port, Thunderbolt 4)
Etc.
N/A
LG Glance by Mirametrix®
YES
Cyberlink Power Media, Photo Director LE*, Power Director LE*, Audio Director LE*, Color Director LE*
NO
Dolby Atmos
YES
DTS X:Ultra
NO
Intel® Connectivity Performance Suite
YES
Intel® Unision
YES
LG Control Center
NO
LG Display Extension
YES
LG Easy Guide / Troubleshooting Guide
NO
LG On Screen Display 3
YES
LG PC Manuals
YES
LG Pen Settings
NO
LG Power Manager
NO
LG Reader Mode
NO
LG Security Guard
YES
LG UltraGear Studio
NO
LG Update Center
NO
LG Update & Recovery
YES
McAfee Live Safe (30 Days Trial)
YES
Microsoft 365 (30 Days Trial)
YES
Nebo for LG
NO
PCmover Professional
YES
Sync on Mobile
YES
Wacom notes
NO
