*The remote control is included in the package.
*Internet connection and subscription to streaming services are required.
*Supported services may differ by region.
1. Find the video that you want to stream.
2. Tap AirPlay icon.
3. Choose your LG CineBeam projector.
4. If an AirPlay passcode appears on your projector screen, enter the passcode on your Apple device.
1. Open Control Center.
2. Tap Screen Mirroring.
3. Select your LG CineBeam from the list.
4. If an AirPlay passcode appears on your projector screen, enter the passcode on your Apple device.
1. On 2nd depth Launcher of webOS22, click AirPlay.
2. Click Open Settings and Select 'Set up HomeKit’.
3. Scan the QR Code on LG CineBeam using your Apple device.
4. Complete HomeKit Setting on LG CineBeam.
*Your Apple device must be connected to the same Wi-Fi network as your projector.
*Apple, Apple Home, AirPlay, iPad, iPhone, and Mac are trademarks of Apple Inc., registered in the U.S. and other countries and regions.
*This LG CineBeam supports AirPlay 2 and requires iOS 12.3 or later or macOS 10.14.5 or later.
*Supported on Android or Window 8.1 and above.
*Supported on BT 5.0 and above. The sound between the two connected devices may not match.
*The images simulated to enhance feature understanding. It may differ from actual use.
*The connection of the power cord is required for operation.
Through optimization by the Alpha 7 Intelligent Processor, nebulae in the night sky appear more vibrant and exhibit enhanced sharpness.
Display Type
DLP
Resolution
1920 x 1080
Brightness (ANSI Lumen)
450
Contrast Ratio (Full On Full Off)
150,000:1
Uniformorty (JBMMA 9point)
85%
Aspect Ratio Control
16:9/Original/4:3/Vertical Zoom/4-Way Zoom
Projection Lens - Focus (Auto/Manua/Motorizedl)
Manual
Projection Image - Screen Size
30 (76.2cm) ~ 120 (304.8cm)
Projection Lens - Zoom
Fixed
Light source - Type
4Ch(RGBB) LED
Light source - Life High Brightness
30,000 Hrs
Projection Image - Standard (lens to wall)
60"@1.59m
(100"@2.65m)
Projection Image - Throw Ratio
1.2
Platform (OS, UI)
webOS 22
Contents Sharing (with DLNA supporting device)
Yes
Bluetooth Sound out
Yes
HDR
Yes
HDMI ARC (Audio Return Channel)
Yes
HDMI simplink (CEC)
Yes
Wireless Contents Share (with Android, iOS)
Yes
AirPlay 2
Yes
HDCP
HDCP 2.2

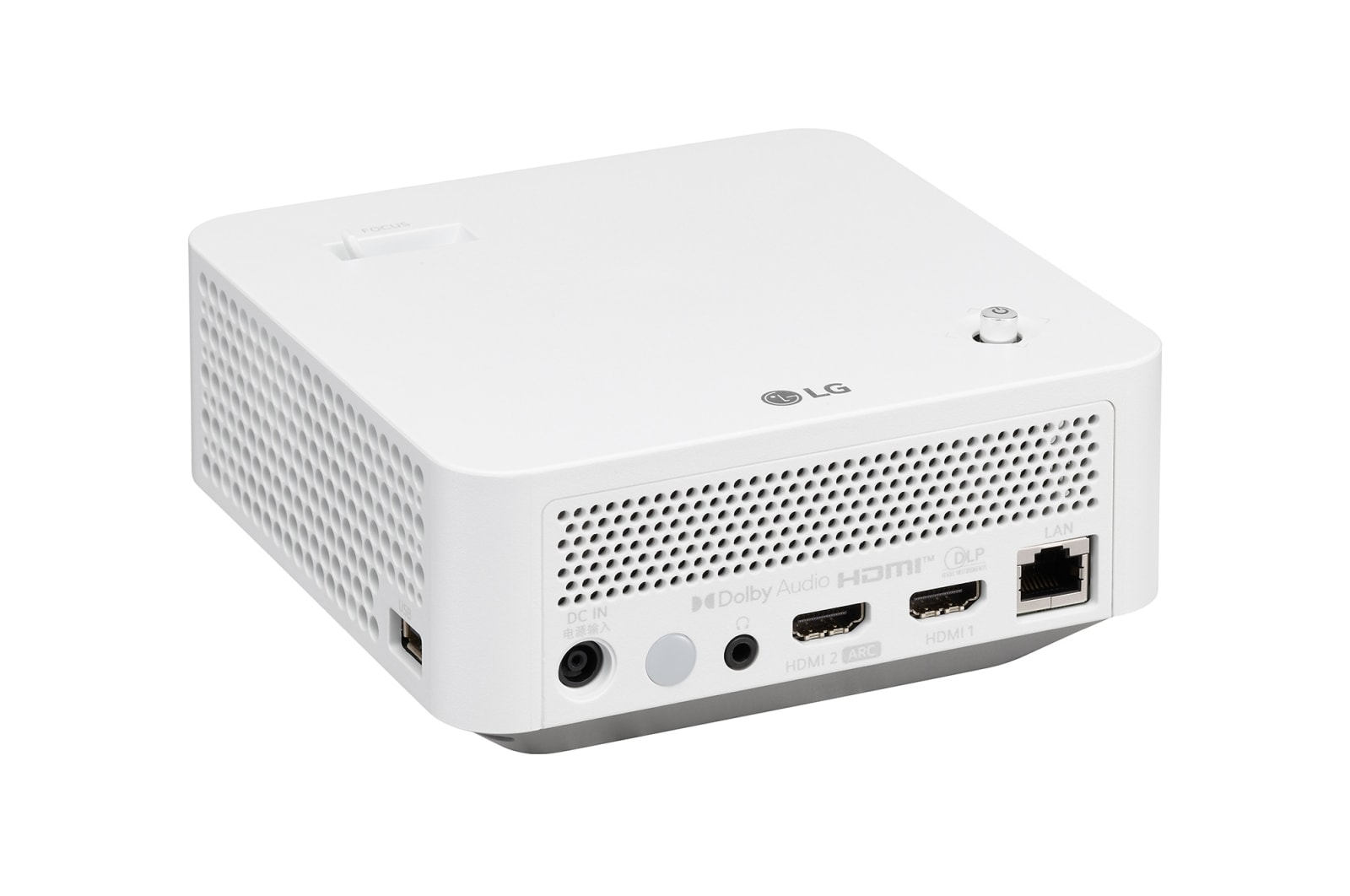

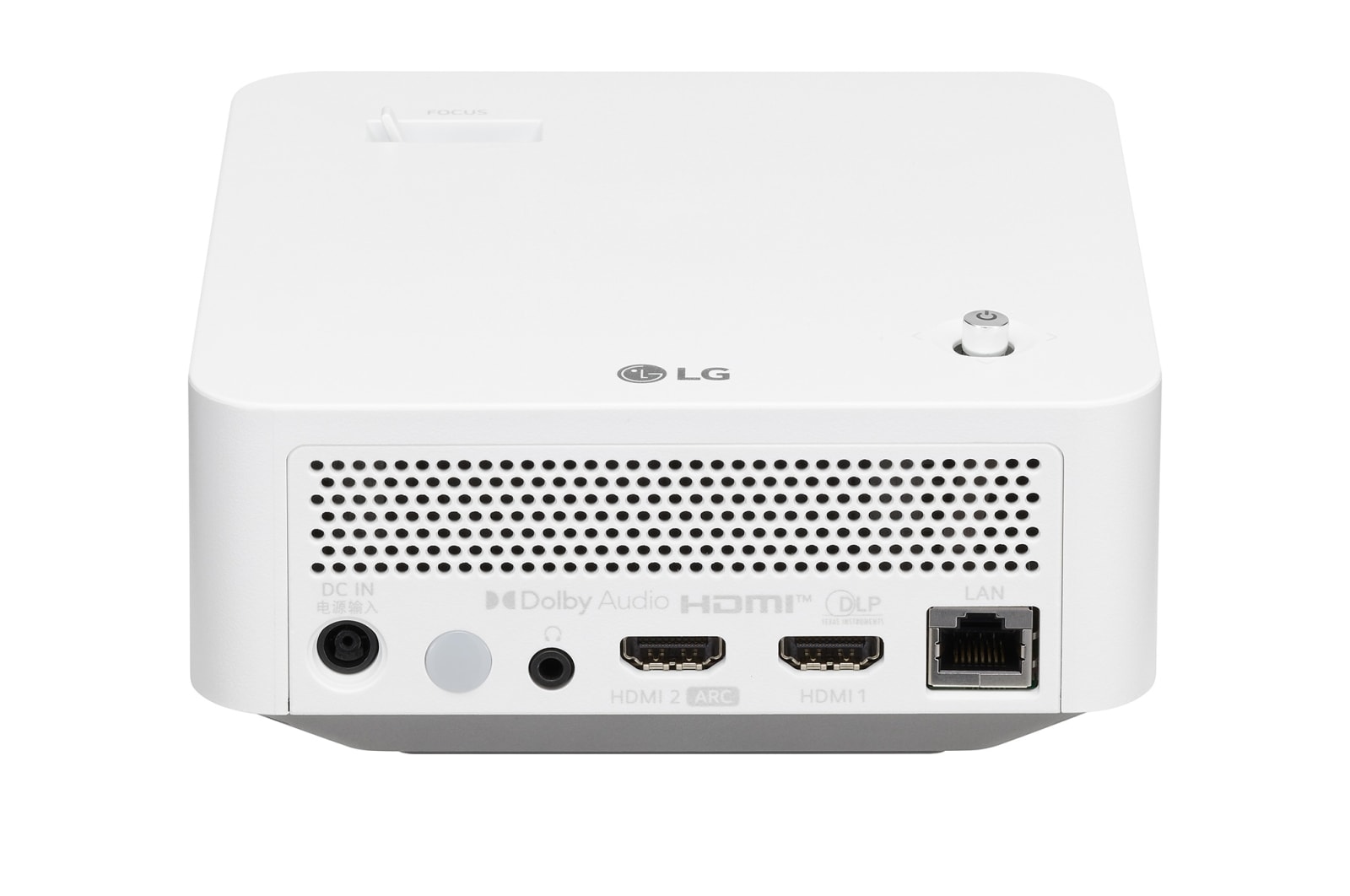

HDMI
Yes (2ea, HDMI 2.0)
Audio out
Yes (1ea)
RJ45
Yes (1ea)

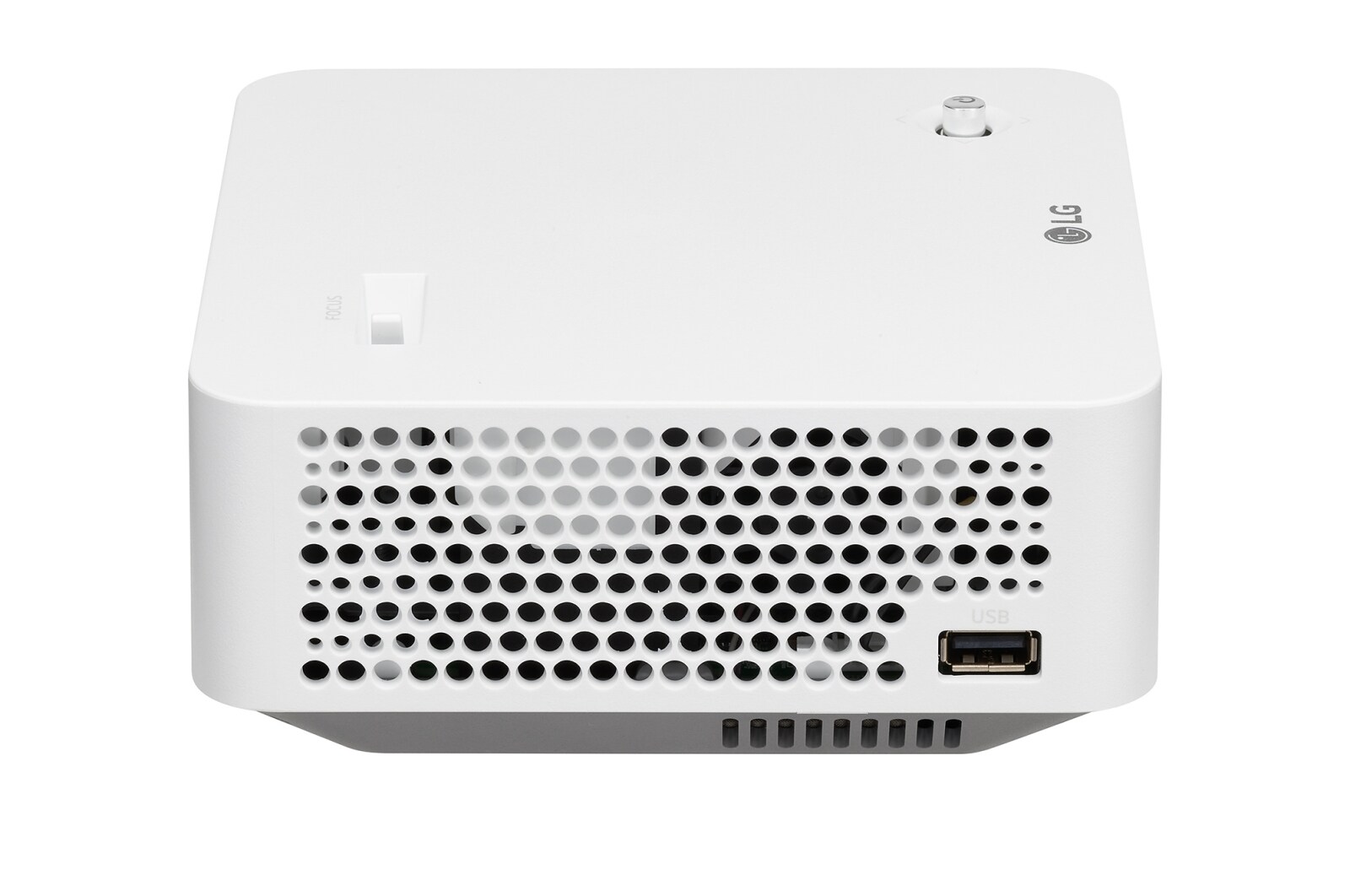

USB Type-A
Yes (2ea)
Speaker
Yes
Speaker Output (unit)
5W Mono
Type
100V – 240V @ 50~60 Hz
(PSU Built-in)
Power Consumption (Typ.)
62W
Stand-by Power
0.5W
Dimension with Stand (W x H x D)
148 x 66.5 x 148 mm
Weight with Stand
0.95 KG
FCC
Yes
ETL
Yes
CE
Yes
CB
Yes
PSE
Yes
KCC
Yes
KC
Yes
Net Quantity
1
Country of Origin
China
Manufactured By
LG ELECTRONICS NANJING NEW TECHNOLOGY CO. LTD., 346, YAOXIN ROAD, ECONOMIC & TECHNICAL DEVELOPMENTZONE, NANJING 210038, CHINA
Imported By
LG ELECTRONICS INDIA PVT LTD, A-24/6, MOHAN COOPERATIVE INDUSTRIAL ESTATE, MATHURA ROAD, NEW DELHI - 110044
