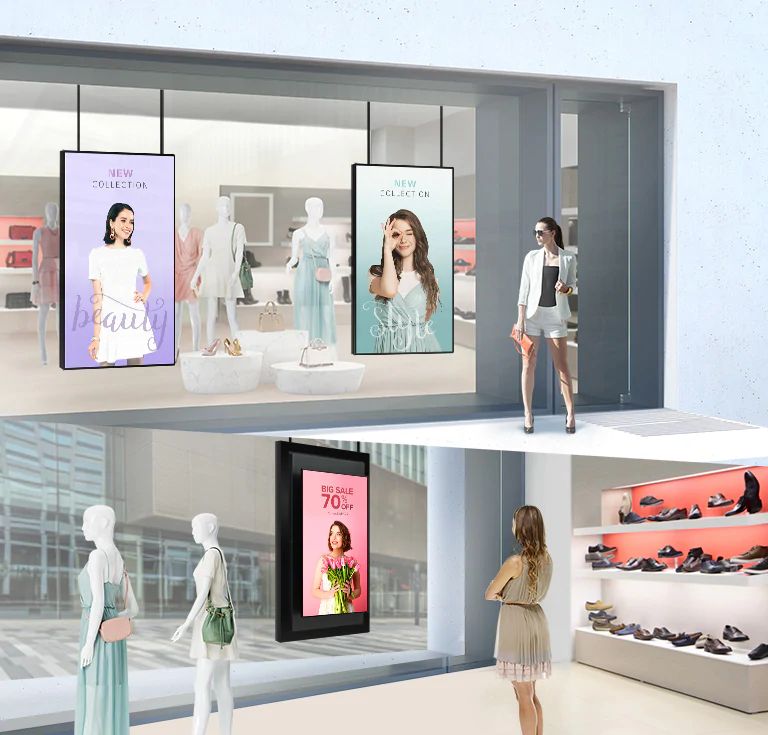

LG Window Facing Display

()

Make Your Content Stand Out beyond Window with the Outstanding Visibility

LG 75XS4G digital signage with outstanding visibility

* All images of this page are for illustrative purposes only.

Deliver Your Message
with High Visibility
Even Under the Strong Sunlight

With a great brightness of 4,000 nits** and UHD picture quality,
75XS4G clearly deliver contents and attract public attention,
which is the ultimate display for outdoor visibility.
QWP*** enables clear visibility even when the viewer is wearing polarized sunglasses.

* ‘LG Conventional’ refers to LG 75XS2E.
** Brightness of 75XS4G : Max. 4,000 nits, Typ. 3,200 nits
*** Quarter Wave Plate

High Energy Efficiency

The 75XS4G is *energy efficient, allowing for an efficient total cost management
while showing content in UHD resolution even with 4,000 nits of high brightness.

* Maximum power consumption of 75XS4G is 790 W at ‘On Mode’. The figure may differ depending on the actual environment.

Space Blending Slim Design

Given that window-facing displays are usually installed indoors close to the window,
75XS4G's slim design is useful as it can blend naturally inside the store.

* ‘LG Conventional’ refers to LG 75XS2E

Double-sided Usage with Dedicated Bracket

Due to the 75XS4G flat-back design and dedicated bracket*,
store owner can attach LG’s UHD display** to the back for the purpose of
displaying a variety of content for both external and internal customers.

* Bracket is optional.
** Attachable Displays : LG 65/55/49 inches UH7 Series, 65/55/49 inches UH5/UM3 Series

Wide Operating
Temperature Range

75XS4G can operate at various temperatures of 0-40°C.

Conformal Coating

*Conformal Coating improves reliability of the circuit board, power board
by protecting it against dust, iron powder, humidity, etc.

* Conformal Coating : Thin protective films/breathing membranes that filter water vapor and solid debris

High Performance with webOS

Quad Core SoC* can execute several tasks at the same time without a separate media player.
In addition, webOS 4.1 platform enhances user convenience with intuitive UI and simple app development tools.

* System-on-Chip

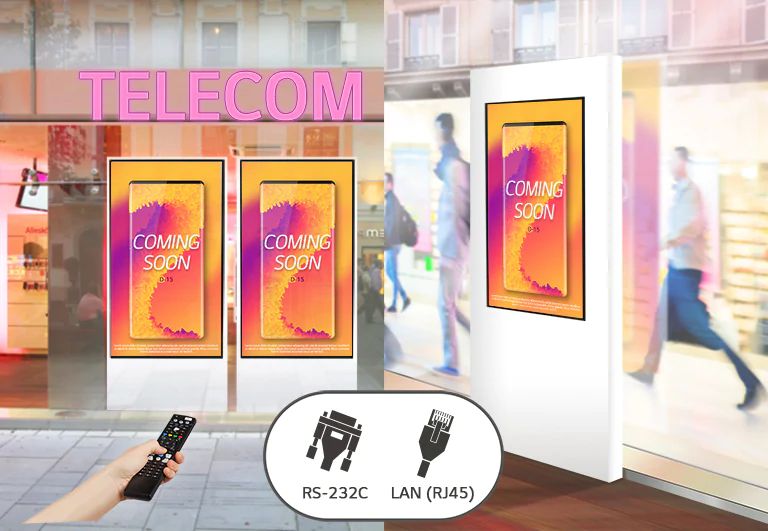

Multiple Display Control with a Remote Control

Multiple device controls are available through the RJ45 & RS-232C ports.
It means that even double-sided displays can be easily controlled simultaneously
with a remote control.

LG 75XS4G Multiple Display Control with a Remote

Easy Content Distribution
& SW Update

75XS4G features embedded Wi-Fi, Bluetooth, Beacon making it easy to distribute content wirelessly and update Firmware. In particular, using Beacon and BLE (Bluetooth Low Energy),
Shop manager can do various promotional activities, such as providing promotional coupons or product information to visitor in real time.

Web Monitoring
(Control Manager)

This web-based monitoring solution is user-friendly and allows the user to be at ease.
It enables the user to have full access anywhere at anytime
from their mobile phone while having access to both current and past data.
It allows the user to monitor the unit, make adjustments, and control the unit remotely in real time.

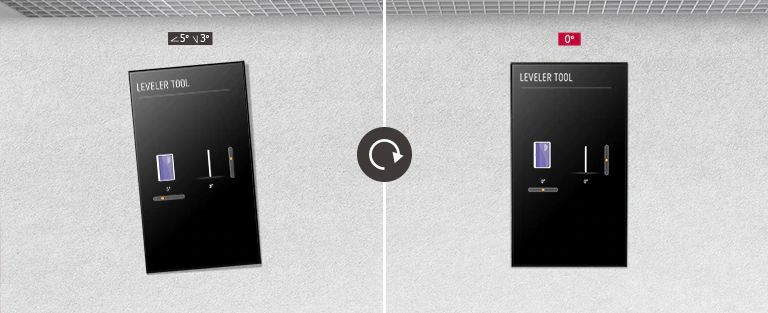

Precise Installation Using Leveler Tool

The 75XS4G is equipped with a "Leveler Tool" which shows users how the device is tilt,
so the display can be precisely installed.

Alert for Right Direction

The 75XS4G is equipped with a "horizontal sensor", so the display can be installed accurately.

All Spec

PANEL

Screen Size (Inch)

75
Panel Technology

IPS / M+
Back Light Type

Direct
Aspect Ratio

16:9
Native Resolution

3840 x 2160 (UHD)
Refresh Rate

60Hz
Brightness

4,000nit (Typ.), 3,200nit (Min.)
Dynamic CR

500,000:1
Color Gamut

NTSC 68%
Viewing Angle (H x V)

178º x 178º
Color Depth (Number of Colors)

1.07 Billion colors
Response Time

8ms (G to G)
Surface Treatment (Haze)

Haze 3%
Operation Hours (Hours/Day)

24/7
Portait / Landscape

YES / YES
Transparency

N/A
QWP (Quarter Wave Plate)

YES

CONNECTIVITY

HDMI In

YES (2ea)
HDMI In (HDCP Ver.)

2.2/1.4
DP In

YES (HDCP 2.2/1.3)
DVI-D In

NO
RGB In

NO
Audio In

NO
RS232C In

YES
RJ45(LAN) In

YES (1ea)
IR In

YES
USB In

USB2.0 Type A (1ea)
HDMI Out

YES
DP Out

YES
Audio Out

NO
Touch USB

NO
External Speaker Out

YES
RS232C Out

YES
RJ45(LAN) Out

YES
IR Out

YES (Sharing RS232C Out)
Daisy Chain

NO

MECHANICAL SPECIFICATION

Bezel Color

Black
Bezel Width

Even bezel : 13.8mm
Weight (Head)

39.6Kg
Packed Weight

50Kg
Monitor Dimensions (W x H x D)

1679.2 x 957.6 x 104mm
Monitor Dimension with Stand (W x H x D)

N/A
Handle

YES
VESA Standard Mount Interface

600 x 400 mm
Carton Dimensions (W x H x D)

1816 x 1106 x 285mm
Weight (Head+Stand)

N/A

PROTECTION GLASS

Thickness

N/A
Degree of Protection

N/A
Tempered / Chemical strengthening

N/A
Anti-Reflective

N/A
Infrared - Resistance (IR)

N/A
Shatter-Proof

N/A

FEATURE - HARDWARE

Internal Memory (eMMC)

16GB
Wi-Fi/BT (Built-in)

YES
Temperature Sensor

YES
Auto Brightness Sensor

YES
Pixel Sensor

NO
Proximity Sensor

NO
Current Sensor

NO
BLU Sensor

NO
Humidity Sensor

NO
Acceleration(Gyro) Sensor

YES
Power Indicator

NO
Local Key Operation

YES
FAN (Built-in)

YES

FEATURE - SOFTWARE

OS Ver. (webOS)

webOS 4.1
Local Contents Scheduling

YES
Group Manager

YES
USB Plug & Play

YES
Fail Over

YES
Booting Logo Image

YES
No Signal Image

YES
RS232C Sync

YES
Local Network Sync

YES
Backlight Sync

YES
PIP

YES
PBP

YES (2PBP)
Screen Share

NO
Video Tag

YES (4 Video Tag)
Play Via URL

YES
Screen Rotation

YES
External Input Rotation

YES
Gapless Playback

YES
Tile Mode Setting

YES
Setting Data Cloning

YES
SNMP

YES
ISM Method

YES
Auto Set ID

YES
Status Mailing

YES
Control Manager

YES
Cisco Certification

NO
Crestron Connected

NO
Smart Energy Saving

YES
PM mode

YES
Wake on LAN

YES
Network Ready

YES
BEACON

YES
HDMI-CEC

YES
SI Server Setting

YES
webRTC

YES
Pro:Idiom

YES
Brightness Compensation

NO
W/B Setting by Grey scale

NO
Scan Inversion

NO

ENVIRONMENT CONDITIONS

Operation Temperature

0 °C to 40 °C (w/o Direct Sunlight, Direct Sunlight in Cooling System) 0 °C to 30 °C (Direct Sunlight)
Operation Humidity

10 % to 80 %

POWER

Power Supply

AC 100-240V~, 50/60Hz
Power Type

Built-in Power

POWER CONSUMPTION

BTU (British Thermal Unit)

2559 BTU/Hr(Typ.), 2696 BTU/Hr(Max.)
DPM

0.5W
Power off

0.5W
Max.

790W
Typ.

750W (Full White) 405W (IEC 62087)

SOUND

Speaker (Built-in)

NO

CERTIFICATION

Safety

CB / NRTL
EMC

FCC Class "A" / CE / KC / VCCI
ERP / Energy Star

YES / NO
ePEAT(US only)

NO

OPS COMPATIBILITY

OPS Type compatible

NO
OPS Power Built-in

NO

SOFTWARE COMPATIBILITY

SuperSign CMS

YES
SuperSign Control+

YES
SuperSign WB

NO
SuperSign Cloud

NO
Promota

NO
Mobile CMS

NO
Connected Care

YES

LANGUAGE

OSD

English, French, German, Spanish, Italian, Korean, Chinese(Simplified), Chinese(Original), Portugues(Brazil), Swedish, Finnish, Norwegian, Danish, Russian, Japanese, Portugues(Europe), Dutch, Czech, Greek, Türkçe, Arabic

ACCESSORY

Basic

Remote Controller(including battery 2ea), Power Cord, HDMI Cable, Manual (EIG, IG), IR Receiver(w/Ambient Light Sensor), RS-232C Gender, IR Sheet
Optional

Double sided Bracket (Landscape&Portrait : WM-B640S)
