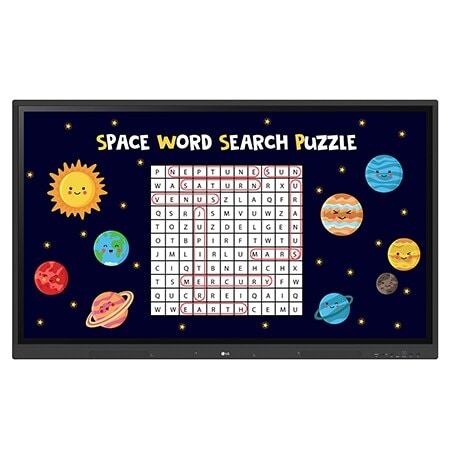

LG CreateBoard

(4)

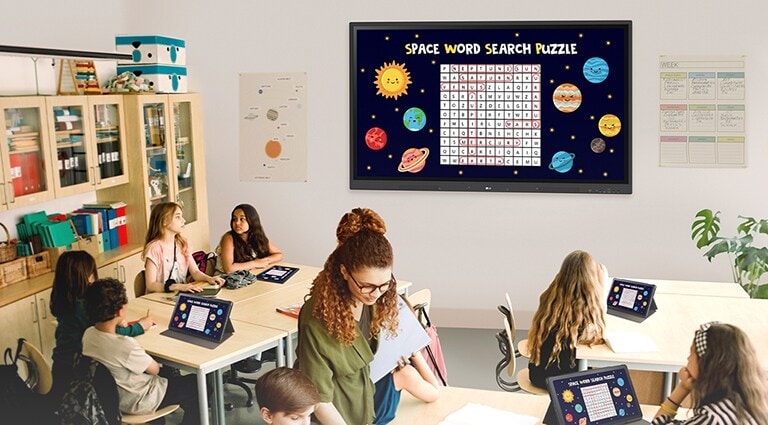

A New Level of Classroom with LG CreateBoard

*All images in this page are for illustrative purposes only.

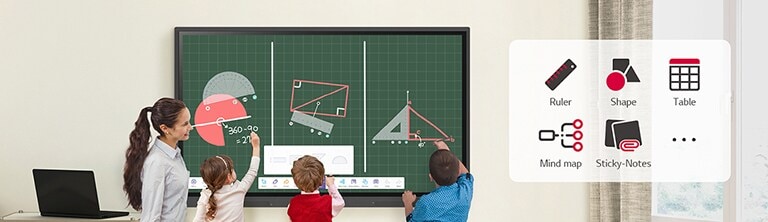

Various Teaching Templates

LG CreateBoard offers a variety of educational templates and teaching tools such as a ruler, table, and sticky notes, allowing for active engagement by students and enabling intuitive classes.
Editing images and videos becomes easy with LG CreateBoard, and created resources can be easily shared with others through QR codes.

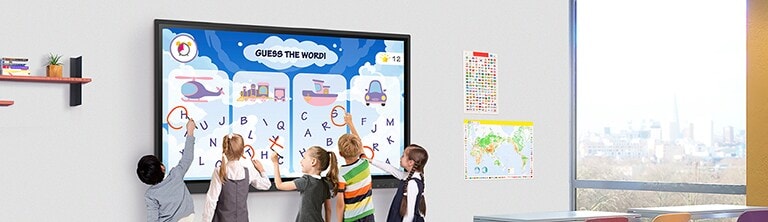

Multi-touch

LG CreateBoard can simultaneously detect up to 40 points for multi-touch functionality. This creates a lifelike board touch experience, helping students easily become accustomed and truly engage in classes. This leads to the maximum concentration and organic engagement of students.

*A max of 32 points are recognized in the Android environment, and a max of 40 points are detected in the Windows environment.
*Up to 10 points can be recognized in the writing app.

Easy to Save / Import / Export

LG CreateBoard includes simple import and export functionality.
Resources can be saved and imported directly to and from Google Drive or OneDrive, and files can be imported from a USB drive (Users can browse resources saved on USB storage).

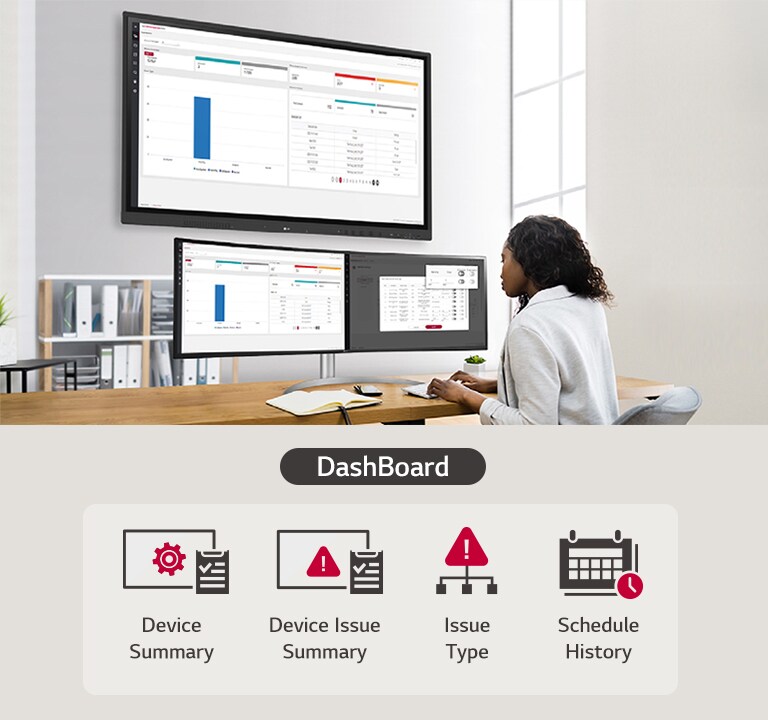

LG ConnectedCare DMS

LG ConnectedCare DMS is a cloud solution for remotely monitoring, controlling, and managing the status of LG CreateBoard installed in educational environments. This feature enables IT managers to operate and manage important resources on operating devices without physically visiting sites.

*'LG ConnectedCare DMS' needs to be purchased separately.
*The availability of the 'LG ConnectedCare DMS' service differs by region,
so please contact the LG sales representative in your region for more details.

Issue Management

Remote issue management can be carried out by the LG ConnectedCare DMS solution. This makes management safer and more efficient, facilitating the stable operation of the classroom.

Remote-control Services

Frequently used controls such as the power on/off, scheduling, brightness, and screen lock functions can be applied using a remote control. Content including images, videos, audio messages, or live streaming can be remotely shared with connected devices.

Broadcasting

In case of emergency situations such as a fire or a natural disaster, emergency warning alerts will be sent from the main system, which help teachers and students promptly take safety action. When the message is sent out to the device, LG CreateBoard interrupts the current display and sends out emergency messages along with warning sounds.

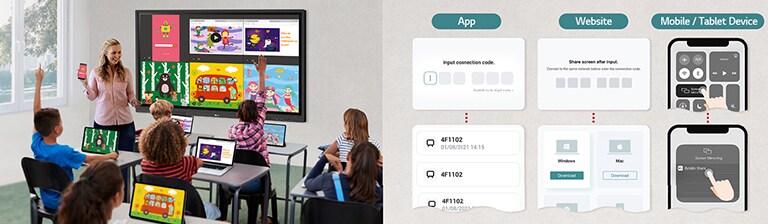

Wireless ScreenShare

LG CreateBoard Share enables users to show up to 9 shared screens or a file on a screen in real-time when the LG CreateBoard Share app is installed on the device.
Also, files from the host can be easily sent to any devices connected to the LG CreateBoard Share app, and several quick controls by the host are available.

*LG CreateBoard also supports app-less sharing for PC (via website) and mobile devices within the same network.
*For a more stable connection, we recommend the installation of a dedicated app (LG CreateBoard Share).

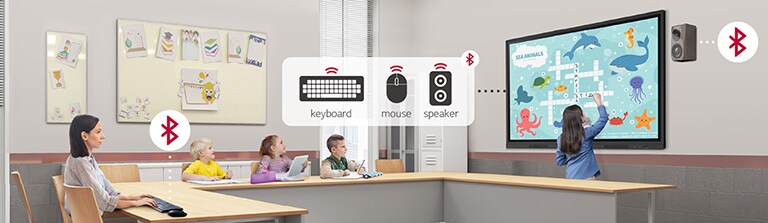

Bluetooth Connectivity

LG CreateBoard supports wireless Bluetooth connections to various devices such as a speaker, mouse, keyboard, etc. This is optimal for building a hybrid environment so that online and offline classes can proceed smoothly.

C-type Connection

USB-C connectivity simplifies connections
which enables charging and sending data simultaneously over just one single cable.

*USB Type-C cables are sold separately.

QR Login for Easy Cloud Access

The QR code on the home screen reduces preparation time for class by enabling personal device verification. Users can sign up for a variety of apps on the LG CreateBoard including Google Drive and OneDrive with just one QR verification without any additional login process. Once a lesson is finished, users can simply click the Logout button to disconnect, thus the risk of a personal information leak is reduced.

Advanced Eye-Care

LG CreateBoard has introduced a flicker-free function. With the reduced flickering of the monitor's backlight, users can use the device with more comfort even when using it for a long time.

Front Connectivity Design

LG CreateBoard features front display ports and speakers which are ideal for both teachers and students, enabling content to be delivered easier with more immersive sound.

Built-in OPS Slot

LG CreateBoard supports OPS slots, allowing you to easily and conveniently mount OPS desktop at the back of the LG CreateBoard without the hassle of connecting to an external desktop, offering you more expanded functions.

*OPS : Open Pluggable Specification

Smart Viewing

The Smart Viewing feature of LG CreateBoard enables efficient teaching. Two or more materials can be displayed on the same screen simultaneously without having to repeat Alt-tab, making teaching more convenient and efficient. Two materials can be displayed side by side (multi window mode), or one material can be overlaid on the other one (picture-in-picture mode).

*Multi window mode may not work for some apps.
*PIP mode is available for the external source screen.

Power Saving

When a device doesn’t receive an external input signal for a specific amount of time set by the user, the device goes into standby mode. Devices can also be automatically turned on or off at specific time or day set by the user, which contributes to save energy.

Screen Lock

Teachers can lock the screen using the Screen Lock function, and unlock it by entering a password. Users can set the Screen Lock in the Settings menu to protect the device from unidentified users.

Secure Mode

LG CreateBoard supports Secure Mode that disables the LG CreateBoard Share function to prevent unauthorized content from being shown on various devices.

USB Lock Mode

USB Lock Mode is a security measure that helps prevent data from being copied to unauthorized devices, which is essential when being used in spaces where security is critical.

Auto-remove Files

Users can set LG CreateBoard to delete files regularly for enhanced security.

All Spec

PANEL

Screen Size (Inch)

65
Panel Technology

IPS
Back Light Type

Direct
Aspect Ratio

16:9
Native Resolution

3840 x 2160 (UHD)
Refresh Rate

60Hz
Brightness

440 nits
Dynamic CR

5,000:1
Color Gamut

NTSC 72%
Viewing Angle (H x V)

178º x 178º
Color Depth (Number of Colors)

16.7 Million colors
Response Time

8ms (G to G)
Surface Treatment (Haze)

Haze 25%
Operation Hours (Hours/Day)

16/7
Portait / Landscape

NO / YES

CONNECTIVITY

HDMI In

YES (3ea)
HDMI In (HDCP Ver.)

2.2
DP In

NO
DVI-D In

NO
RGB In

YES
Audio In

YES
RS232C In

YES
RJ45(LAN) In

YES (1ea)
IR In

NO
USB In

USB3.0 Type A (4ea), USB2.0 Type A (1ea), USB Type C (1ea)
HDMI Out

YES
DP Out

NO
Audio Out

YES
Touch USB

USB2.0 Type B (2ea)
External Speaker Out

NO
RS232C Out

NO
RJ45(LAN) Out

YES

MECHANICAL SPECIFICATION

Bezel Color

Black
Bezel Width

T/R/L/B : 15/15/15/44mm
Weight (Head)

35.0Kg
Packed Weight

44.7Kg
Monitor Dimensions (W x H x D)

1488.4 × 896.6 × 87.2mm
Handle

YES
VESA Standard Mount Interface

600 x 400 mm
Carton Dimensions (W x H x D)

1628 × 1005 × 208mm

FEATURE - HARDWARE

Internal Memory (eMMC)

32GB
Wi-Fi/BT (Built-in)

YES
Temperature Sensor

NO
Auto Brightness Sensor

YES
Power Indicator

YES
Local Key Operation

NO

FEATURE - SOFTWARE

Booting Logo Image

YES
PIP

YES
PBP

YES (2PBP)
Screen Share

YES
Setting Data Cloning

NO
Crestron Connected

NO
Smart Energy Saving

YES
PM mode

NO
Wake on LAN

YES
Network Ready

NO
HDMI-CEC

NO

ENVIRONMENT CONDITIONS

Operation Temperature

0 °C to 40 °C
Operation Humidity

10 % to 90 %

POWER

Power Supply

AC 100-240V~, 50/60Hz
Power Type

Built-in Power

POWER CONSUMPTION

BTU (British Thermal Unit)

751 BTU/Hr(Typ.), 1433 BTU/Hr(Max.)
DPM

0.5W
Power off

0.5W
Max.

420W
Typ.

220W

SOUND

Speaker (Built-in)

YES (15W x 2)

CERTIFICATION

Safety

CB / NRTL
EMC

FCC Class "A" / CE
ERP / Energy Star

YES / YES

OPS COMPATIBILITY

OPS Type compatible

YES (Slot)
OPS Power Built-in

YES

SOFTWARE COMPATIBILITY

Connected Care

YES

LANGUAGE

OSD

English, Denmark, Finnish, German, Korean, Norwegian, Polski, Portugues(Europe), Portugues(Brazil), Romanian, Spanish, Swedish, Hungarian, Thai

ACCESSORY

Basic

Power Cord 3M*1, USB Cable (Type A-Type B) 5M*1, HDMI Cable 3M*1, Writing Pen*2pcs, User Manual, QSG, Carton Box, Remote Controller(include battery 2ea), Wifi module
Optional

Wall Mount(WM-L000S), Floor Stand(ST-000F, ST-860F)

SPECIAL FEATURE

Conformal Coating (Power Board)

YES

DEDICATED FEATURE - TOUCH

Available Object Size for Touch

Ø2 mm ↑
Response Time ('Paint' app on Windows 10 PC)

5ms ↓
Accuracy (Typ.)

±1mm
Interface

USB2.0
Protection Glass Thickness

3mm (Anti-Glare)
Protection Glass Transmission

0.88
Operating System Support

Windows 7/8/10/Linux/Mac/Android (Linux/Mac Support one point touch)
Multi Touch Point

Max. 40 Points(Windows), Max. 32 Points(Android)
